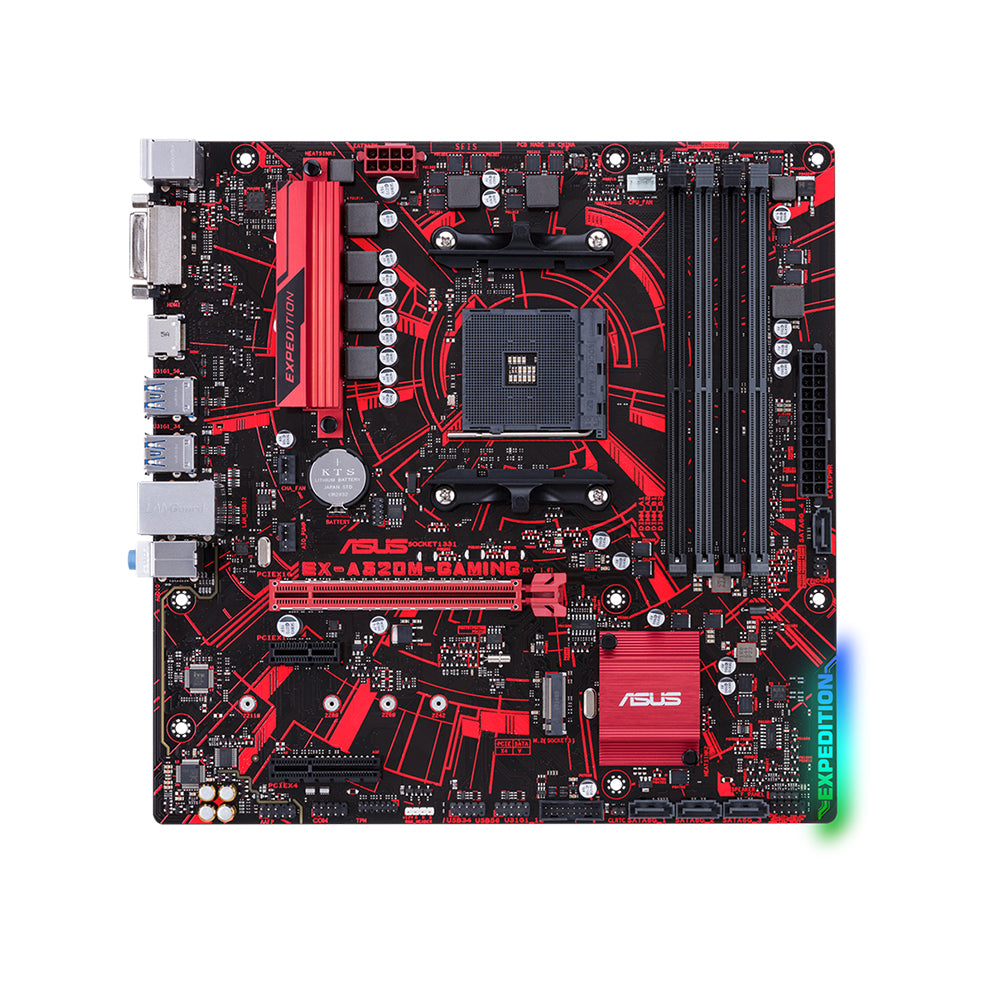

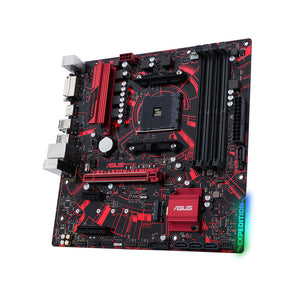

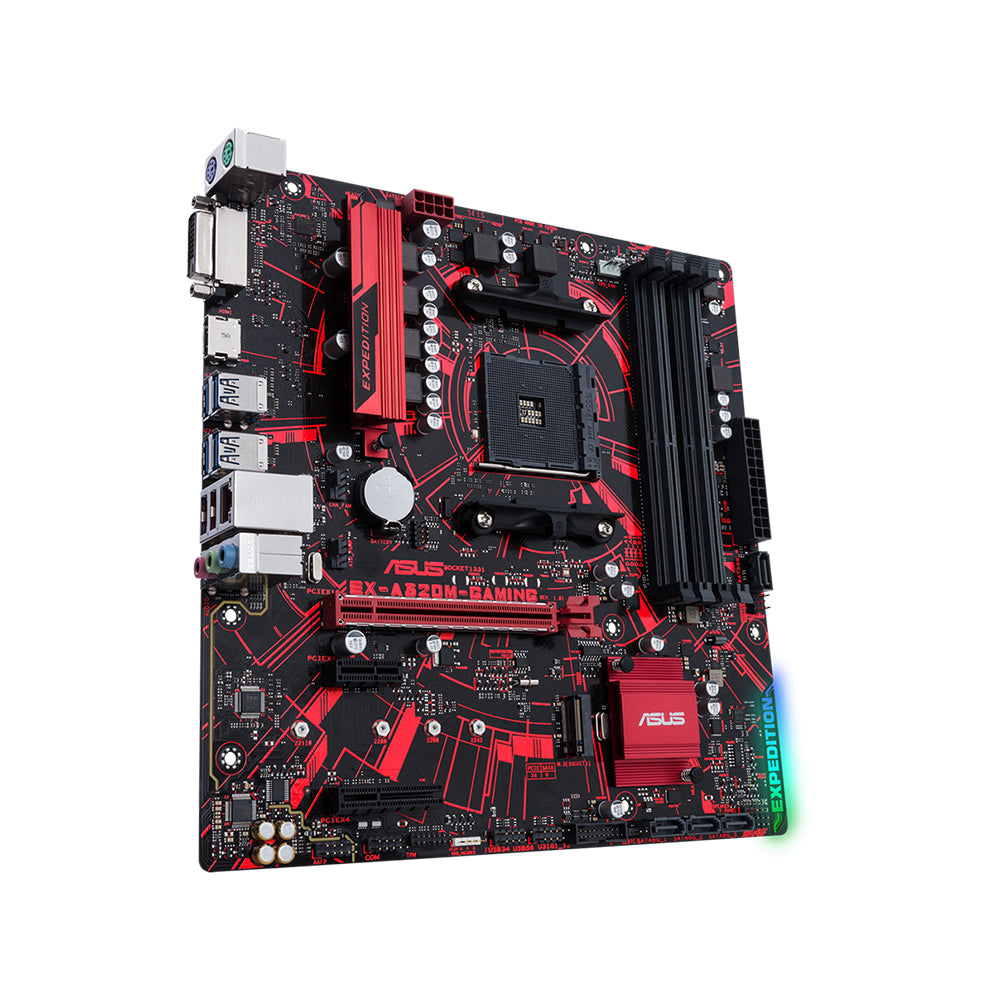

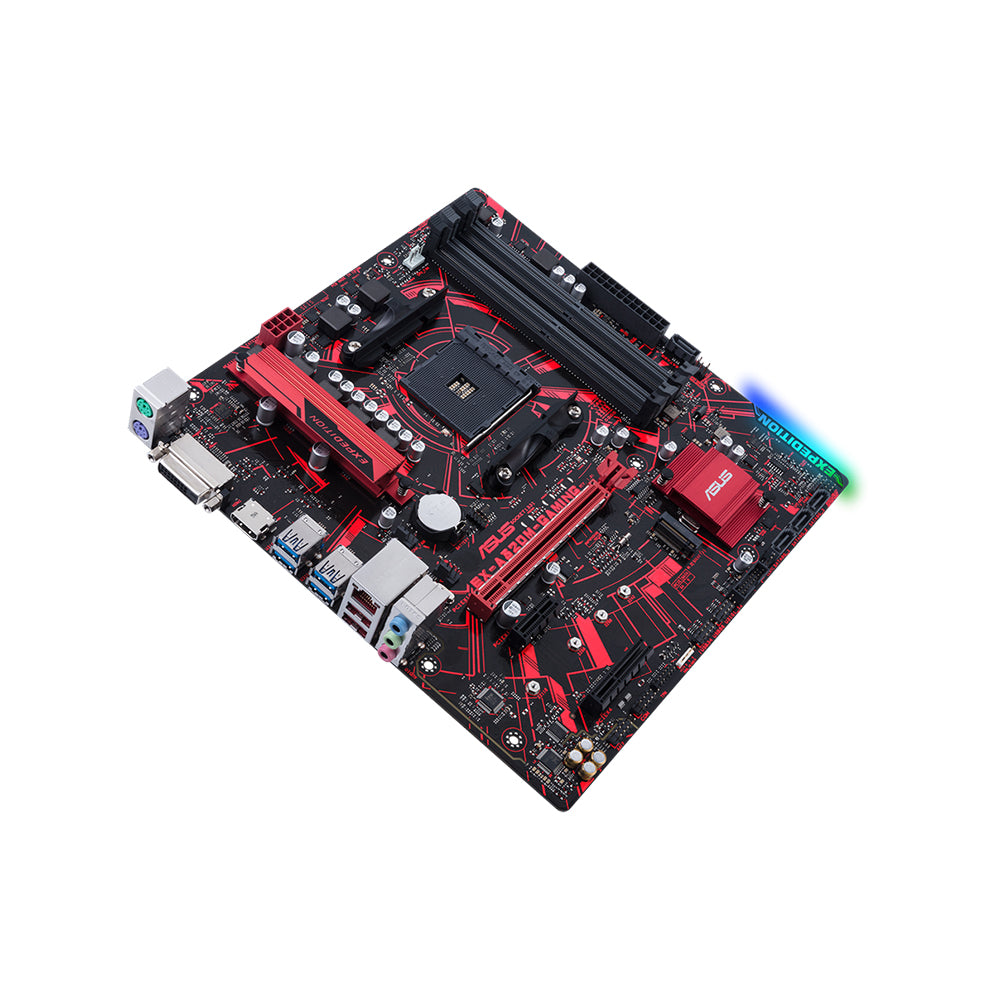

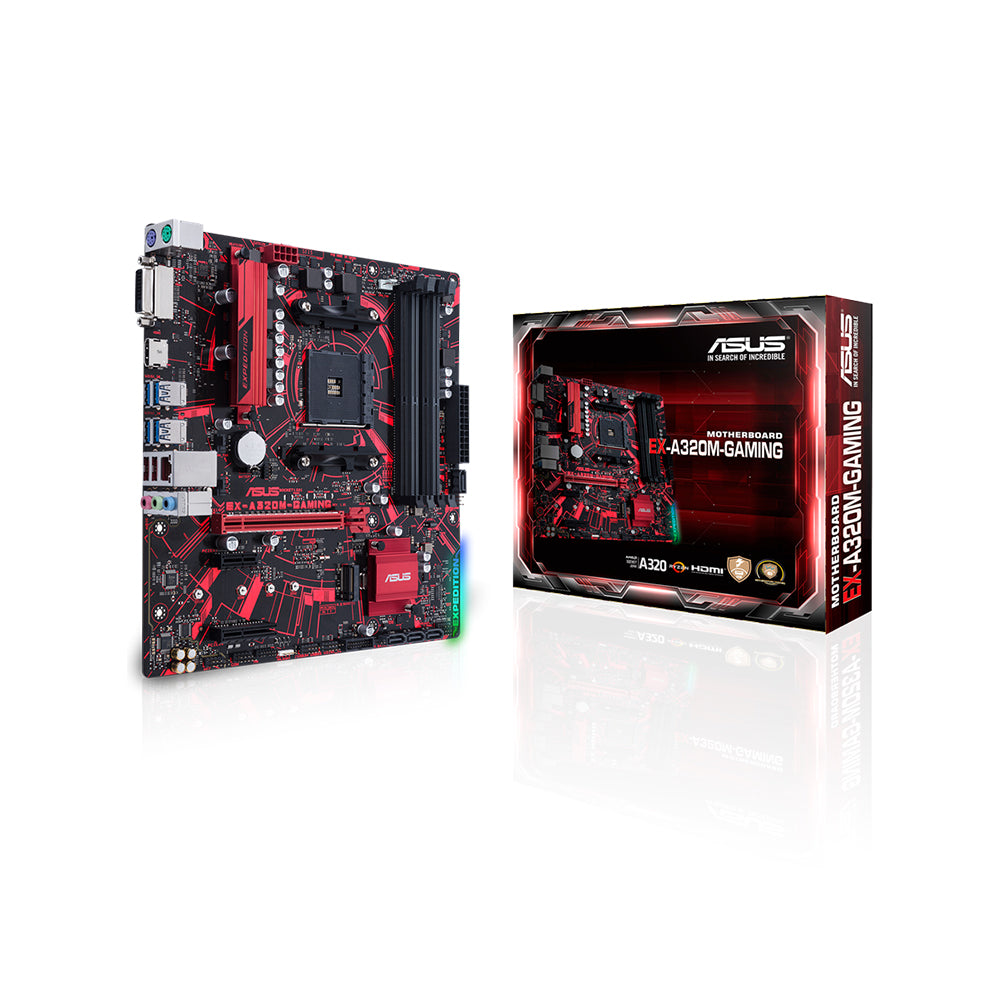

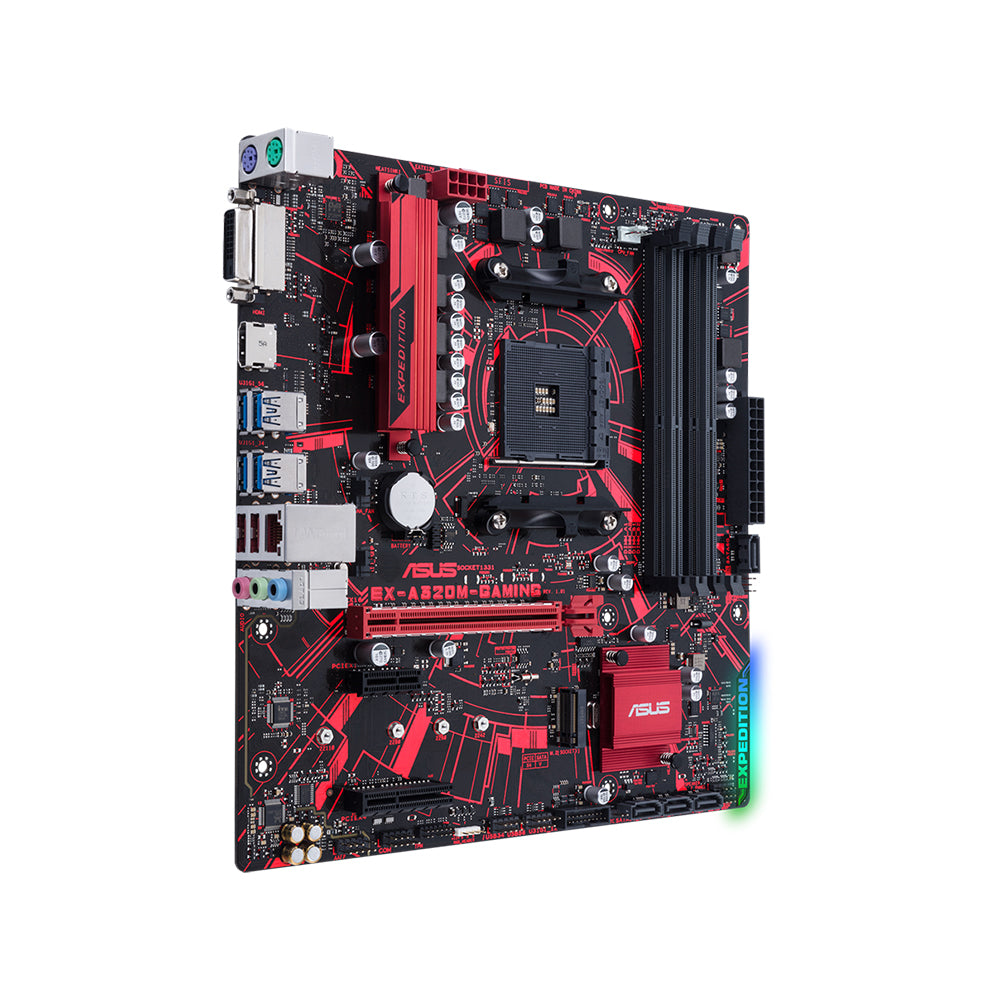

ASUS EX-A320M-GAMING Micro ATX Gaming Motherboard - AMD A320, DDR4, HDMI/DVI-D, PCIe 3.0

The ASUS EX-A320M-GAMING motherboard is designed to support AMD's Ryzen and A-series processors, providing a solid foundation for budget-friendly gaming and general computing. This Micro ATX motherboard features the AMD A320 chipset, supporting up to 64GB of DDR4 memory and offering multiple connectivity options for an enhanced user experience.

Key Features:

• Socket Type: AM4
• Chipset: AMD A320
• Form Factor: Micro ATX (244 x 244 mm)

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 64GB
• Supported Memory Types: DDR4 (2133/2400/2666/2800/2933/3000/3200 MHz, OC)

Expansion Slots:

• 1 x PCIe 3.0/2.0 x16 (x16 mode)
• 1 x PCIe 2.0 x4 (x2 mode)
• 1 x PCIe 3.0/2.0 x16 (x8 mode)
• 1 x PCIe x1

Storage Options:

• 1 x M.2 Socket (supports SATA and PCIe NVMe)
• 4 x SATA III (6Gb/s) ports

Integrated Graphics Support:

• Supports integrated graphics from AMD Ryzen processors with Radeon Vega Graphics.

Video Outputs:

• 1 x HDMI (supports up to 4096 x 2160 @ 24 Hz)
• 1 x DVI-D (supports up to 1920 x 1200 @ 60 Hz)

Networking and Audio:

• LAN Controller: Realtek RTL8111H Gigabit Ethernet
• Audio Codec: Realtek ALC887, supporting up to 7.1-channel audio with features like de-pop circuit for reduced noise.

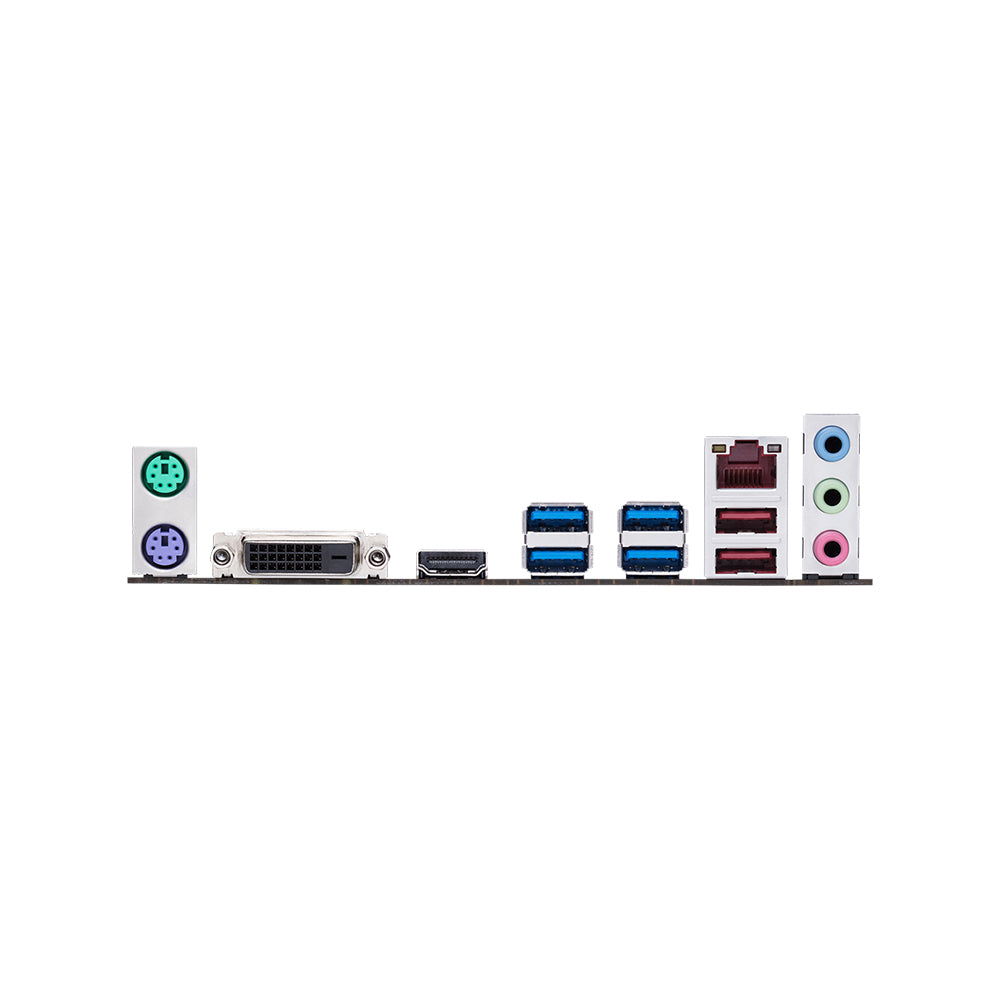

Connectivity:

• USB Ports:
  • Rear I/O:
    • 2 x USB 2.0 Type-A
    • 4 x USB 3.1 Gen1 Type-A
• Internal Connectors:
  • USB headers for additional ports, RGB header, and fan connectors.

Additional Features:

• Power Connectors:
  • Standard ATX power connectors, including a dedicated CPU power connector.
• Cooling Support:
  • Multiple fan headers for effective system cooling.
