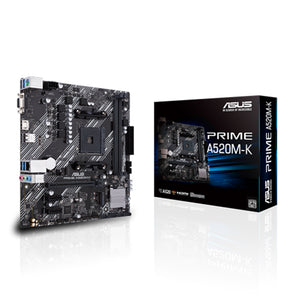

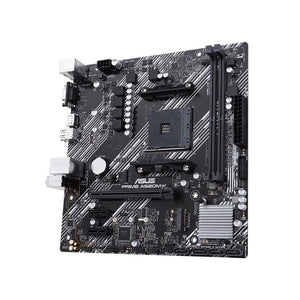

ASUS PRIME A520M-K Micro ATX Motherboard - AM4, AMD A520, DDR4, HDMI/D-Sub, PCIe 3.0

The ASUS PRIME A520M-K motherboard is expertly designed for AMD processors, featuring the AMD A520 chipset. This Micro ATX motherboard supports a wide range of Ryzen processors and offers a robust set of features tailored for both everyday users and DIY PC builders.

Key Features:

• Socket Type: AM4
• Chipset: AMD A520
• Form Factor: Micro ATX (244 x 244 mm)

Memory Support:

• Slots: 2 x DIMM
• Maximum Capacity: Up to 64GB
• Supported Memory Types: DDR4 (2133/2400/2666/2800/2933/3000/3200 MHz, with overclocking support up to 4866 MHz)

Expansion Slots:

• 1 x PCIe 3.0 x16 slot (x16 mode)
• 2 x PCIe 3.0 x1 slots

Storage Options:

• M.2 Slot: 1 x M.2 Socket 3 (supports PCIe 3.0 x4 and SATA modes)
• SATA Ports: 4 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 10)

Integrated Graphics Support:

• Supports integrated graphics from AMD Ryzen processors.

Video Outputs:

• 1 x HDMI (supports up to 4K @ 60 Hz)
• 1 x D-Sub

Networking and Audio:

• LAN Controller: Realtek RTL8111H providing Gigabit Ethernet
• Audio Codec: Realtek ALC887/897 supporting up to 7.1-channel audio with audio shielding and dedicated PCB layers.

Connectivity:

• USB Ports:
  • Rear I/O:
    • 2 x USB 3.2 Gen 1 Type-A
    • 4 x USB 2.0 Type-A
• Internal Connectors:
  • Front USB headers for additional ports.

Additional Features:

• Cooling Solutions: Comprehensive cooling with PCH heatsink and Fan Xpert for optimal thermal management.
• 5X Protection III: Multiple hardware safeguards for enhanced system protection.
