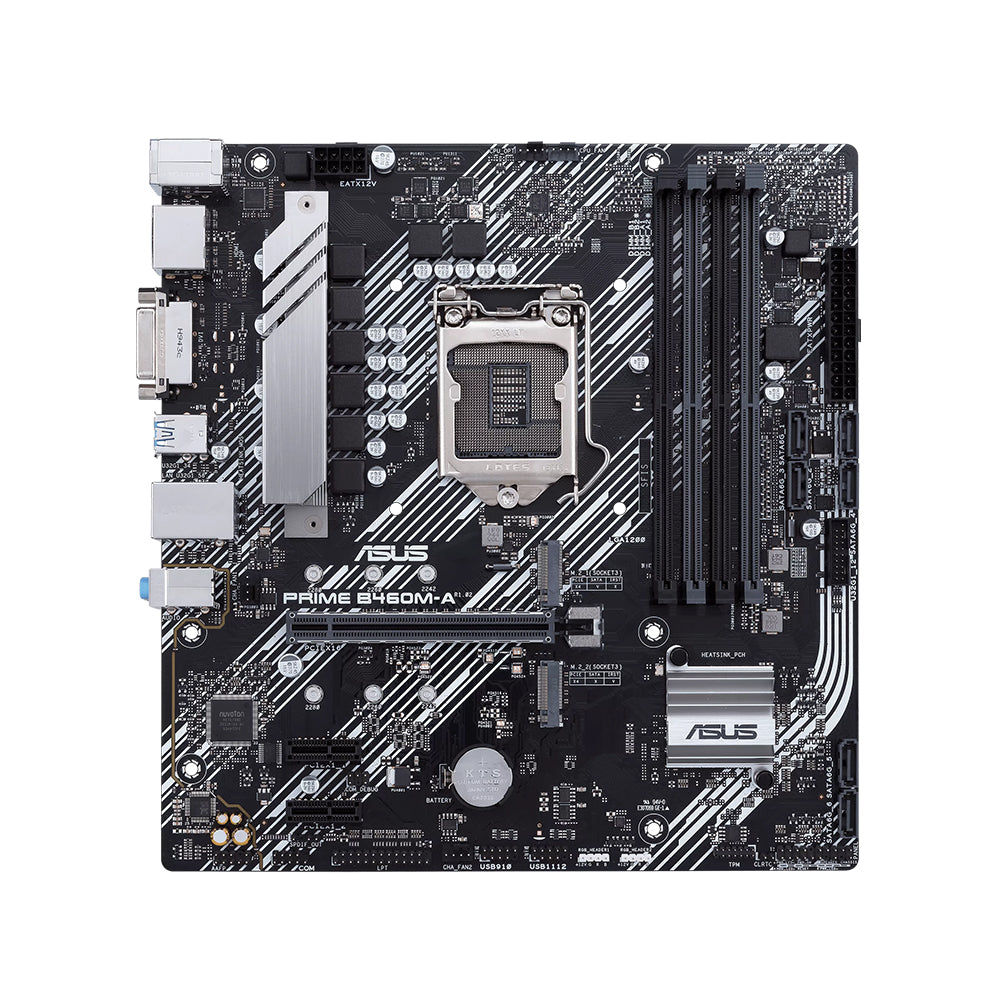

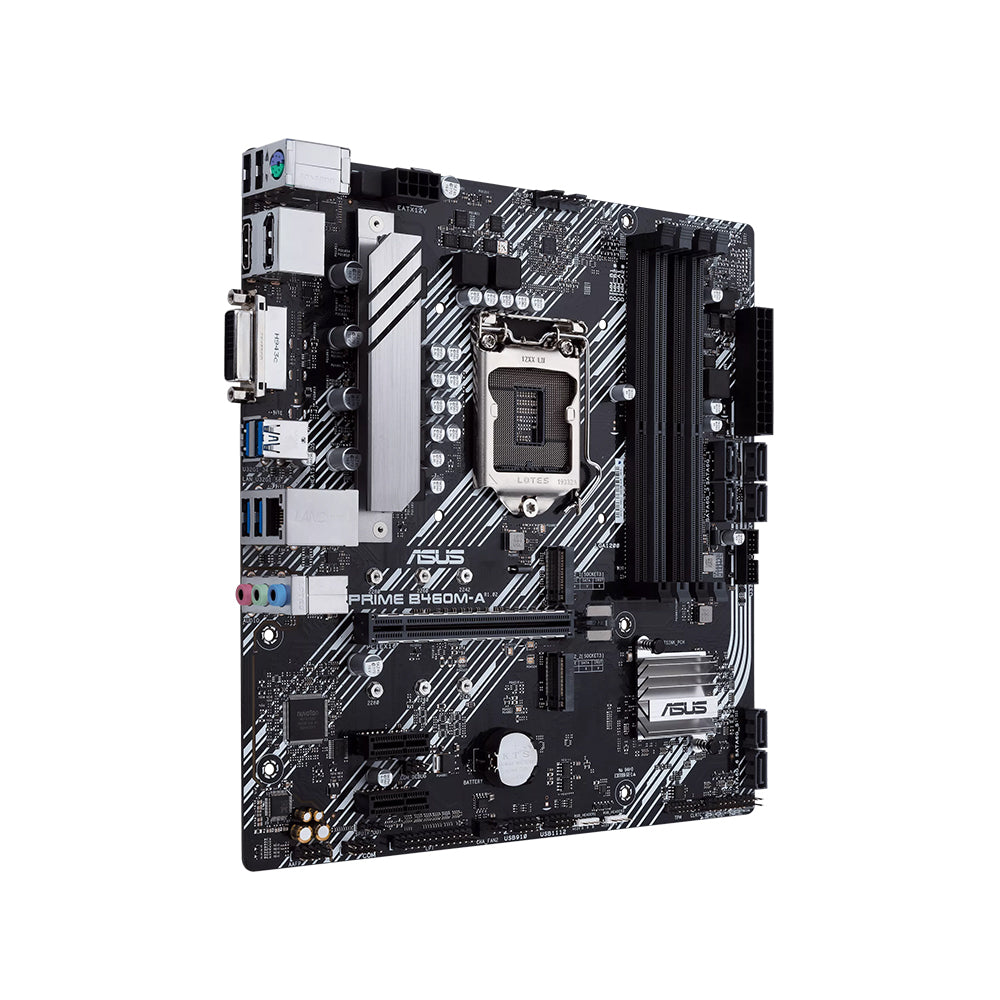

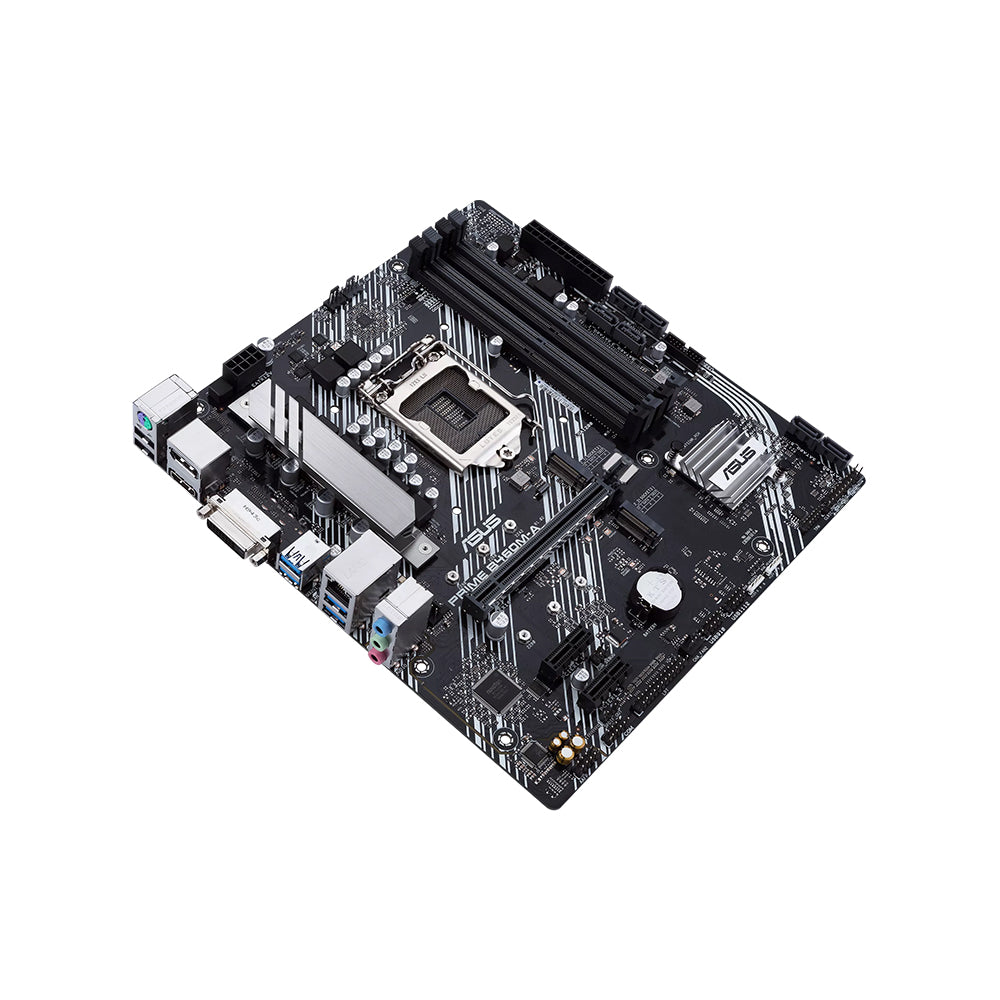

ASUS PRIME B460M-A Micro ATX Motherboard - LGA 1200, Intel B460, DDR4, Dual M.2, HDMI, DisplayPort

The ASUS PRIME B460M-A motherboard is designed for users looking to build a reliable and efficient system using Intel's 10th Generation Core processors. Built on the Intel B460 chipset, this Micro ATX motherboard supports a variety of features that enhance performance and connectivity, making it an ideal choice for everyday computing and gaming.

Key Features:

• Socket Type: LGA 1200
• Chipset: Intel B460
• Form Factor: Micro ATX (9.6 x 9.6 inches / 24.4 x 24.4 cm)

CPU Support:

• Compatible with Intel® 10th Generation Core™, Pentium Gold, and Celeron processors.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 128GB
• Supported Memory Types: DDR4 (2133/2400/2666/2800/2933 MHz)
• Native Memory Support:
  • i5 or lower: 2666/2400/2133 MHz
  • i7 or i9: 2933/2800/2666/2400/2133 MHz

Expansion Slots:

• 1 x PCIe 3.0 x16 slot (supports x16 mode)
• 2 x PCIe 3.0 x1 slots

Storage Options:

• M.2 Slots:
  • 2 x M.2 sockets (supporting both SATA and PCIe modes)
• SATA Ports:
  • 6 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: Realtek RTL8111H providing Gigabit Ethernet with LANGuard protection.

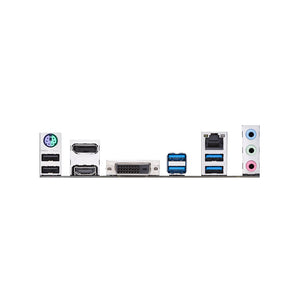

Video Outputs:

• Multi-VGA output support including:
  • DisplayPort (1.4) supporting resolutions up to 4096 x 2304 @ 60 Hz
  • HDMI (1.4b) supporting resolutions up to 4096 x 2160 @ 30 Hz
  • DVI-D output

USB Connectivity:

• Rear USB Ports:
  • 4 x USB 3.2 Gen1 ports
  • 2 x USB 2.0 ports

Audio Features:

• Audio Codec: Realtek ALC887 supporting up to 7.1-channel high-definition audio.
• Features include jack-detection and premium capacitors for enhanced sound quality.

Additional Features:

• Aura Sync RGB Header for customizable LED lighting.
• ASUS OptiMem technology for improved memory stability and performance.
• Fan Xpert for flexible cooling controls.
