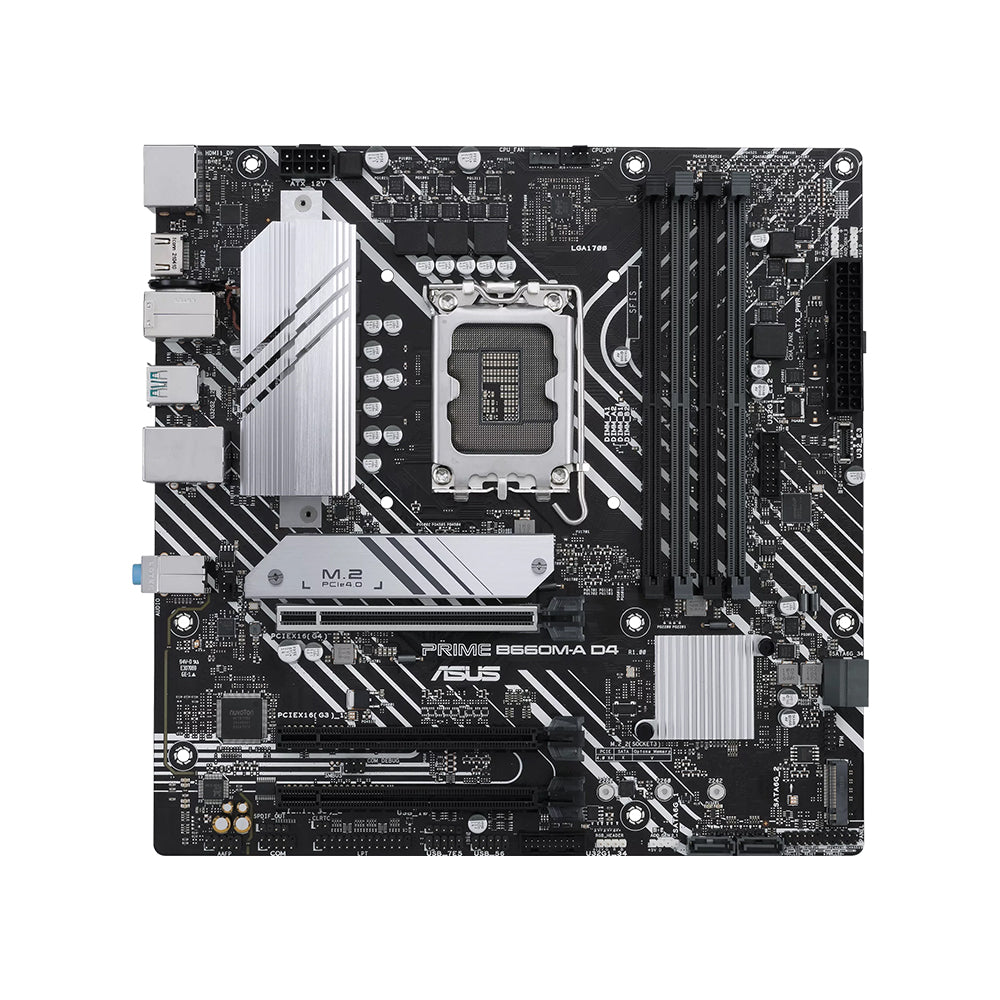

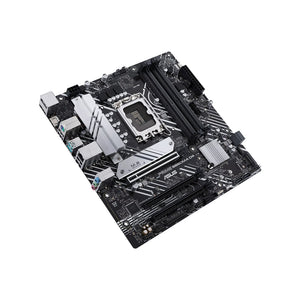

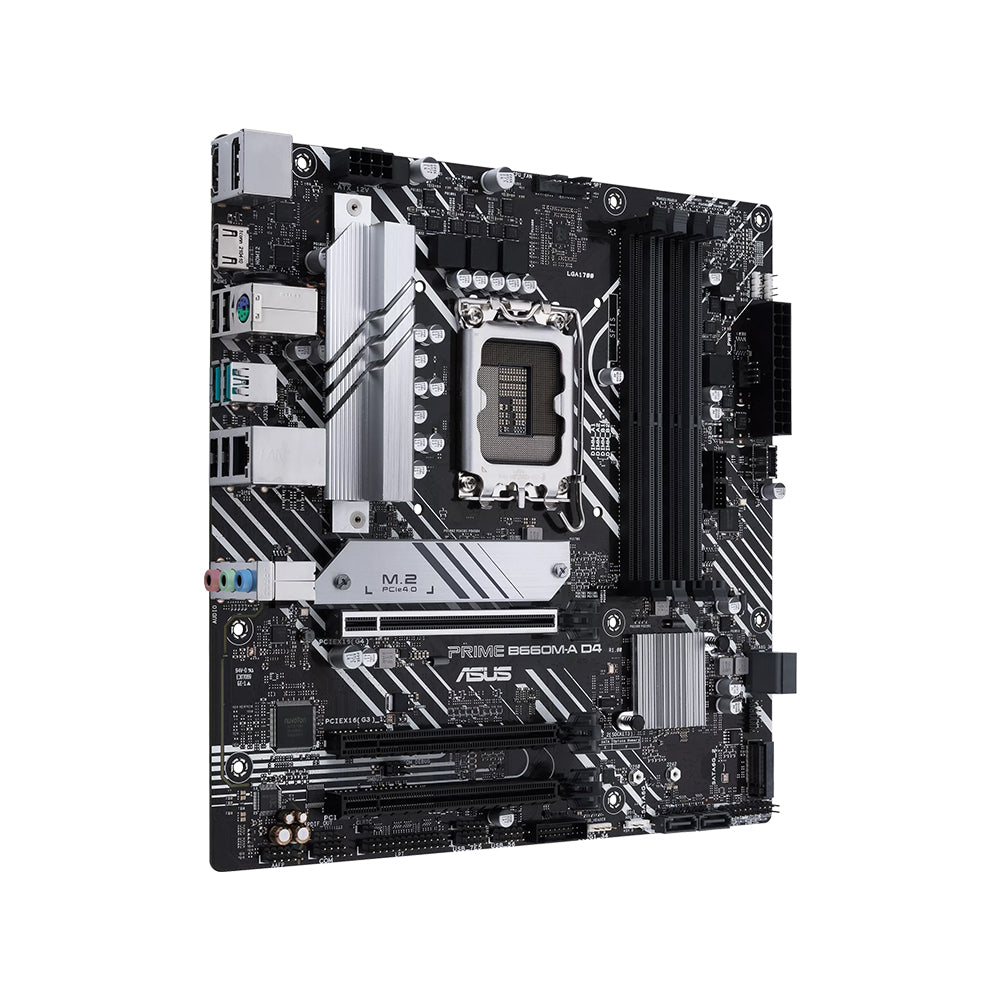

ASUS PRIME B660M-A D4 Micro ATX Motherboard - LGA 1700, Intel B660, DDR4, PCIe 4.0, Dual M.2

The ASUS PRIME B660M-A D4 motherboard is expertly designed for Intel's 12th and 13th Generation processors, providing a solid foundation for building efficient and high-performance systems. This Micro ATX motherboard features the Intel B660 chipset and supports a variety of modern connectivity options to enhance your computing experience.

Key Features:

• Socket Type: LGA 1700
• Chipset: Intel B660
• Form Factor: Micro ATX (24.4 cm x 24.4 cm)

CPU Support:

• Compatible with Intel® 12th and 13th Generation Core™, Pentium Gold, and Celeron processors.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 128GB
• Supported Memory Types: DDR4 (up to 5333 MHz overclocked)

Expansion Slots:

• 1 x PCIe 4.0/3.0 x16 slot
• 1 x PCIe 3.0 x16 slot (supports x4 mode)
• 1 x PCIe 3.0 x16 slot (supports x1 mode)

Storage Options:

• M.2 Slots:
  • 2 x M.2 sockets (supporting PCIe 4.0 and SATA modes)
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports with RAID support.

Networking:

• LAN Controller: Intel® 1Gb Ethernet for reliable wired connectivity.

Video Outputs:

• Dual video outputs including:
  • 1 x DisplayPort (supports up to 4K @ 60Hz)
  • 2 x HDMI® ports (supports up to 4K @ 60Hz)

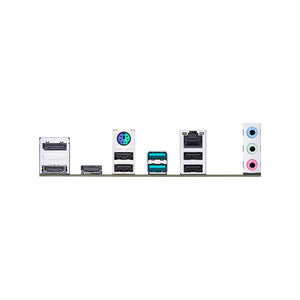

USB Connectivity:

• Rear USB Ports:
  • Multiple USB ports including USB 3.2 Gen 2 Type-A and front USB Type-C for fast data transfer.

Audio Features:

• Audio Codec: Realtek ALC897 supporting up to 7.1-channel high-definition audio with premium capacitors for enhanced sound quality.

Additional Features:

• ASUS OptiMem II Technology for improved memory overclocking.
• Comprehensive cooling solutions with VRM heatsinks, M.2 heatsinks, and hybrid fan headers.
• Aura Sync RGB Lighting for customizable LED effects that synchronize with other compatible components.
