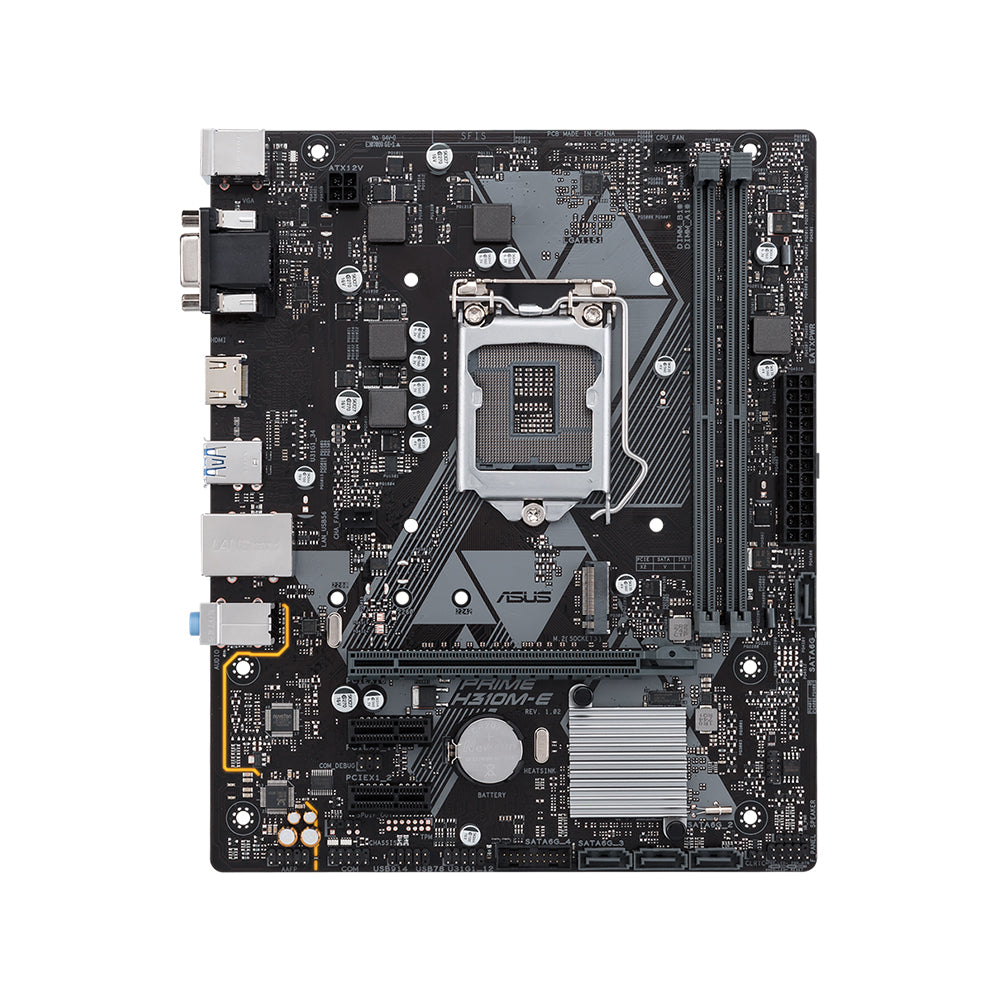

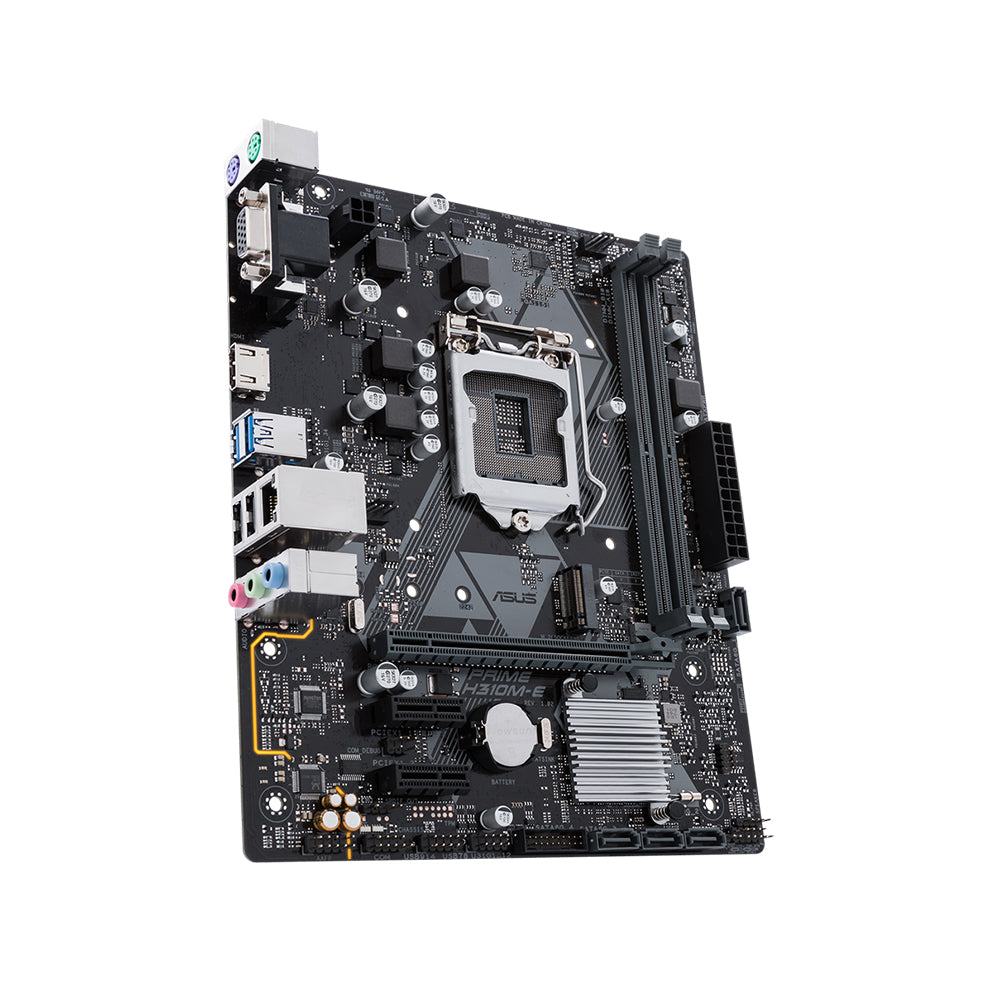

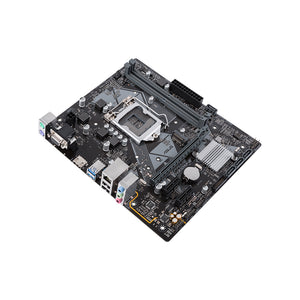

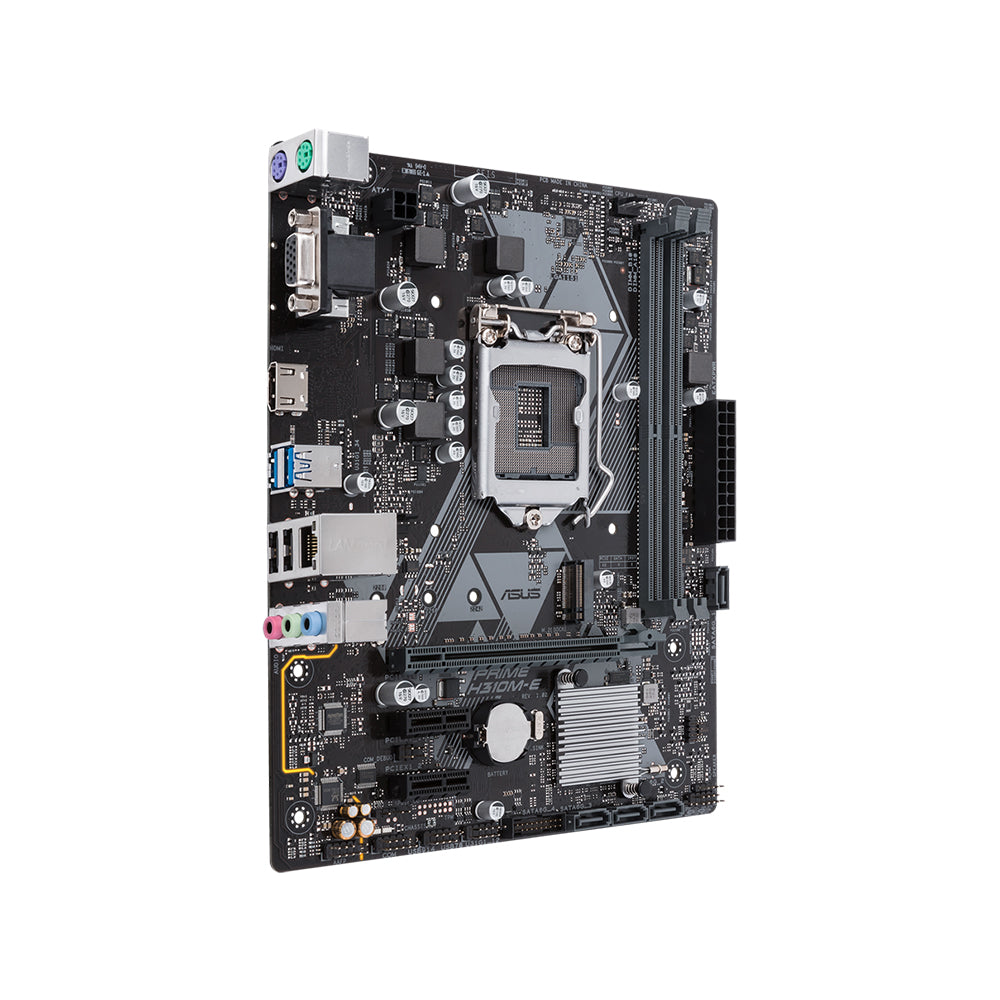

ASUS PRIME H310M-E Micro ATX Motherboard - LGA 1151, Intel H310, DDR4, HDMI, M.2 Support

The ASUS PRIME H310M-E motherboard is designed for users looking to build a solid and reliable system using Intel's 8th and 9th Generation processors. This Micro ATX motherboard features the Intel H310 chipset and offers essential features for everyday computing, making it an excellent choice for budget-friendly builds.

Key Features:

• Socket Type: LGA 1151
• Chipset: Intel H310
• Form Factor: Micro ATX (185 x 226 mm)

CPU Support:

• Compatible with Intel® 8th and 9th Generation Core™ i7, i5, i3, Pentium®, and Celeron® processors.

Memory Support:

• Slots: 2 x DIMM
• Maximum Capacity: Up to 32GB
• Supported Memory Types: DDR4 (2666/2400/2133 MHz)
• Dual Channel Memory Architecture for improved performance.

Expansion Slots:

• 1 x PCIe 3.0/2.0 x16 slot (supports x16 mode)
• 2 x PCIe 2.0 x1 slots for additional expansion cards.

Storage Options:

• M.2 Slot:
  • 1 x M.2 Socket 3 (supports both SATA and PCIe 2.0 x2 modes)
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports for traditional hard drives and SSDs.

Networking:

• LAN Controller: Realtek® RTL8111H providing Gigabit Ethernet for reliable wired connectivity.

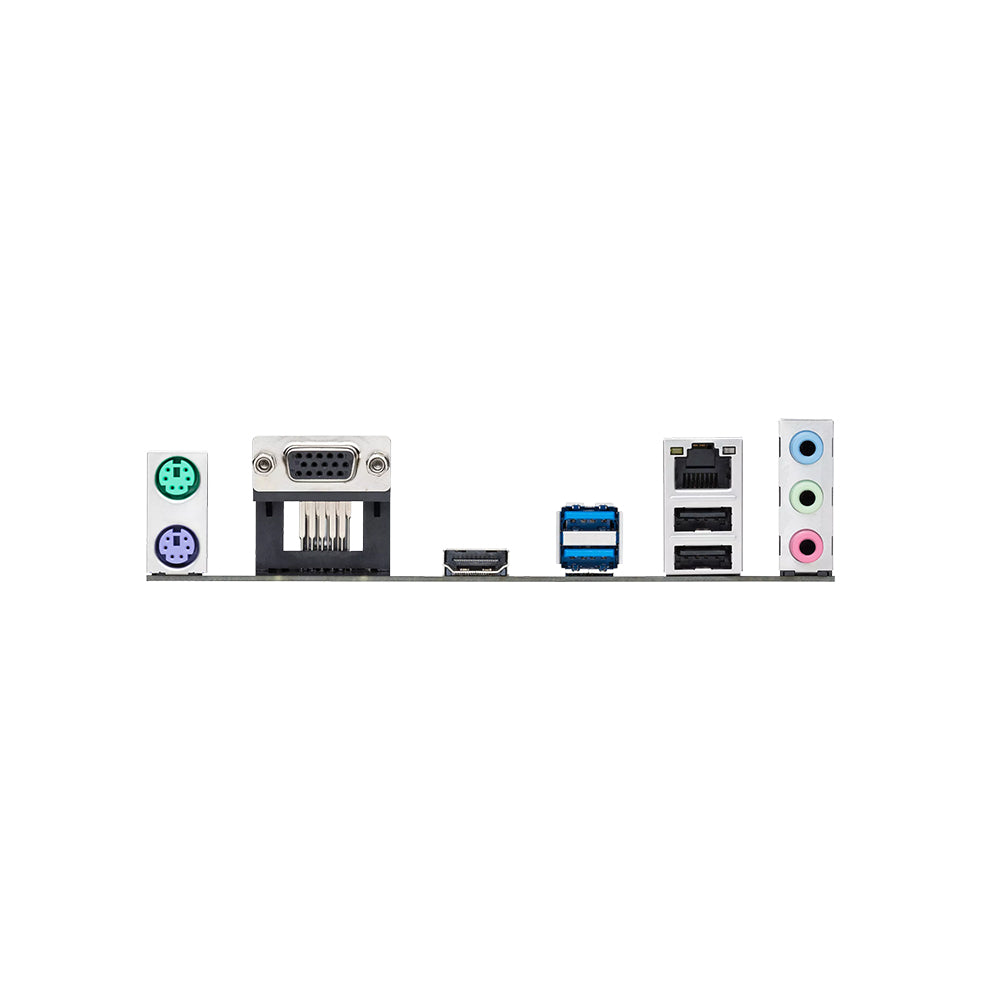

Video Outputs:

• Supports integrated graphics with:
  • 1 x HDMI (up to 4096 x 2160 @ 24 Hz)
  • 1 x VGA (up to 1920 x 1200 @ 60 Hz)

USB Connectivity:

• Rear USB Ports:
  • 2 x USB 3.1 Gen 1 Type-A ports
  • 4 x USB 2.0 Type-A ports

Audio Features:

• Audio Codec: Realtek ALC887 supporting up to 7.1-channel high-definition audio.
• Integrated audio outputs including three analog jacks and S/PDIF output header.

Additional Features:

• 5X Protection III: Multiple hardware safeguards including SafeSlot Core, LANGuard, and overvoltage protection.
• ASUS OptiMem Technology for improved memory stability.
• AI Suite 3 for easy system tuning and optimization.
