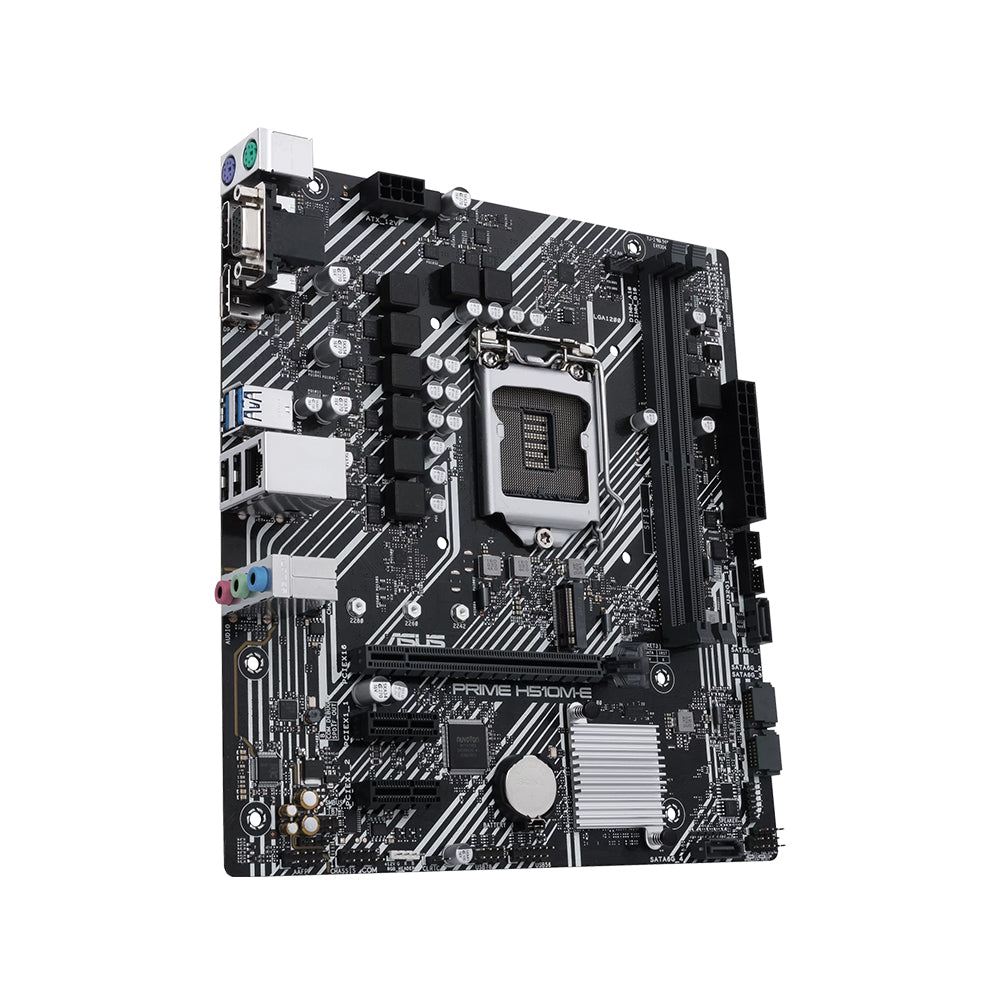

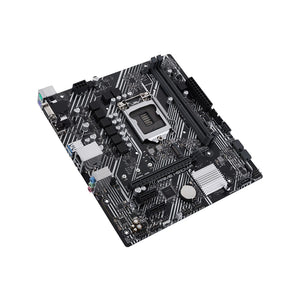

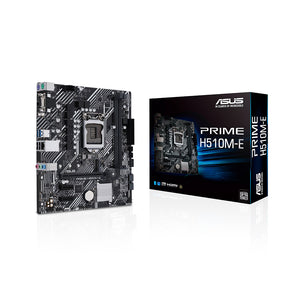

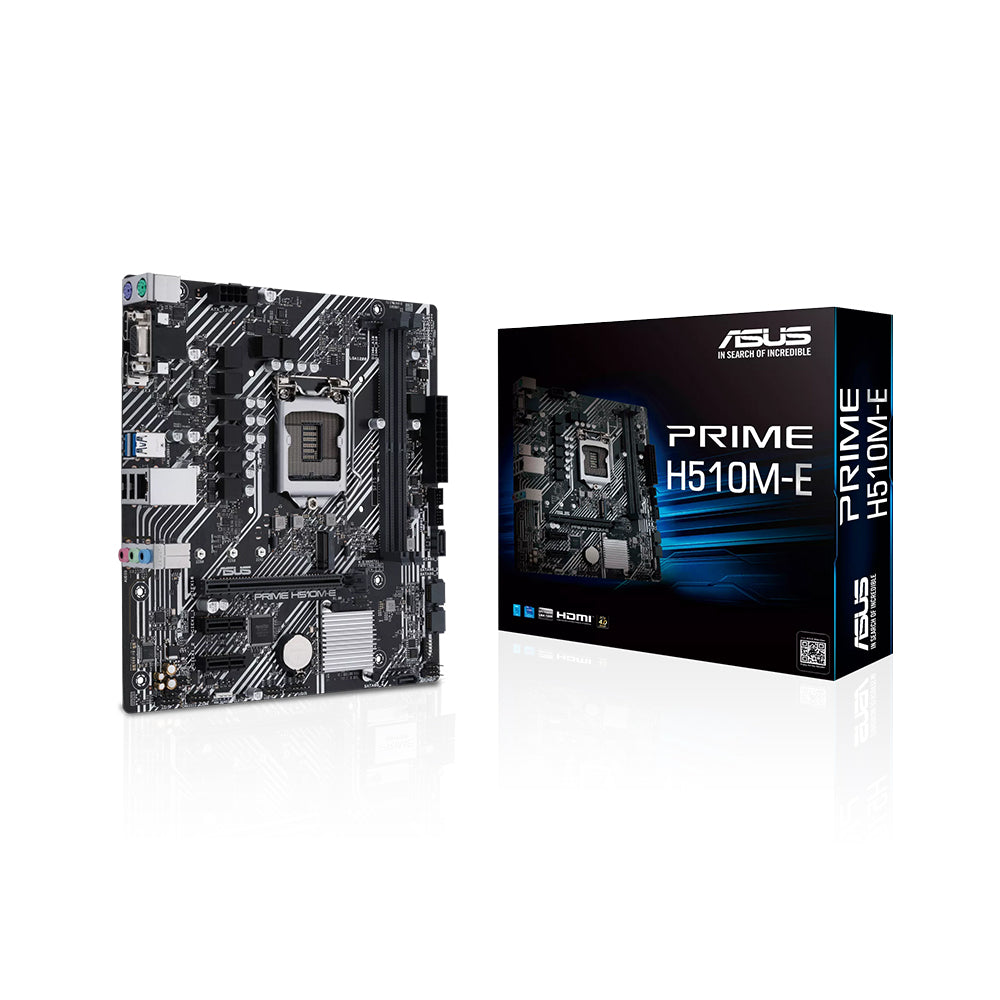

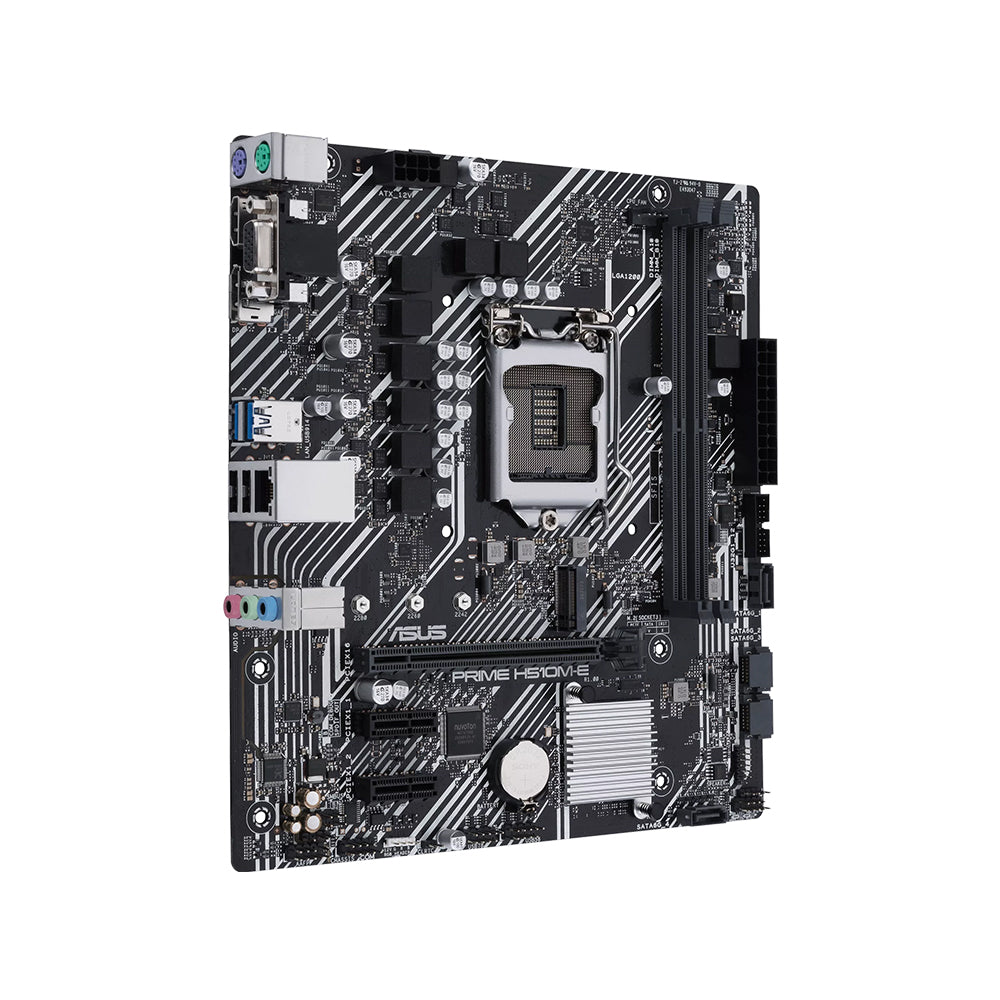

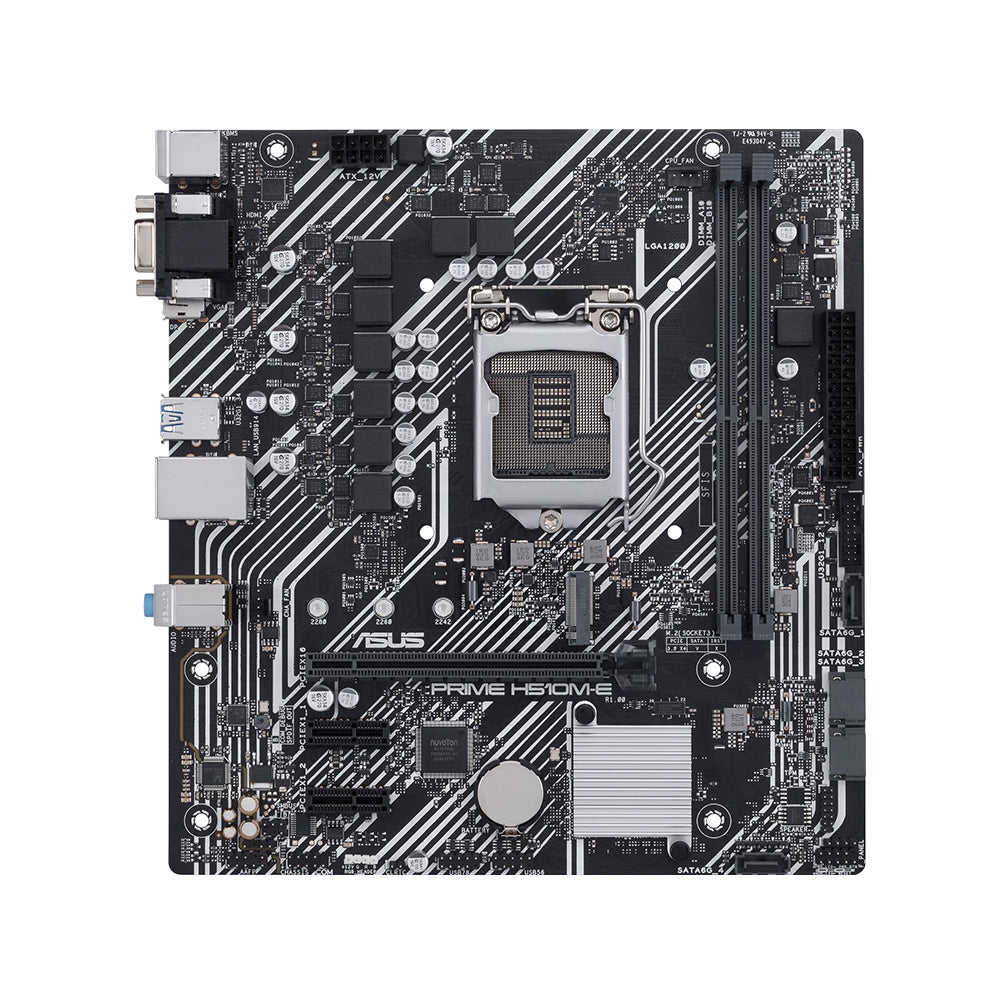

ASUS PRIME H510M-E Micro ATX Motherboard - LGA 1200, Intel H510, DDR4, PCIe 4.0, HDMI, DisplayPort

The ASUS PRIME H510M-E motherboard is designed for users looking to build a reliable and efficient system using Intel's 10th and 11th Generation processors. Built on the Intel H510 chipset, this Micro ATX motherboard offers essential features for everyday computing and gaming, ensuring a solid foundation for various applications.

Key Features:

• Socket Type: LGA 1200
• Chipset: Intel® H510
• Form Factor: Micro ATX (9.6 x 9.6 inches / 24.4 x 24.4 cm)

CPU Support:

• Compatible with Intel® 10th and 11th Generation Core™, Pentium Gold, and Celeron processors.

Memory Support:

• Slots: 2 x DIMM
• Maximum Capacity: Up to 64GB
• Supported Memory Types: DDR4 (up to 3200 MHz overclocked)
• Dual Channel Memory Architecture for improved performance.

Expansion Slots:

• 1 x PCIe 4.0/3.0 x16 slot (supports x16 mode)
• 2 x PCIe 3.0 x1 slots for additional expansion cards.

Storage Options:

• M.2 Slot:
  • 1 x M.2 Socket (supports PCIe 3.0 x4 and SATA modes)
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports for connecting traditional hard drives and SSDs.

Networking:

• LAN Controller: Intel® I219-V providing Gigabit Ethernet for reliable wired connectivity.

Video Outputs:

• Supports integrated graphics with:
  • 1 x DisplayPort (up to 4096 x 2304 @60Hz)
  • 1 x HDMI™ (up to 4K @60Hz with compatible CPUs)
  • 1 x D-Sub (up to 1920 x 1200 @60Hz)

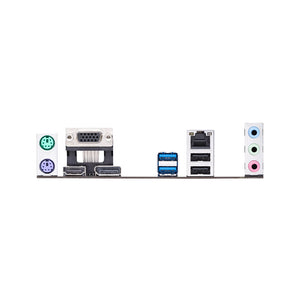

USB Connectivity:

• Rear USB Ports:
  • 2 x USB 3.2 Gen 1 Type-A ports
  • 2 x USB 2.0 Type-A ports
• Front USB Ports:
  • Additional headers for up to two USB 3.2 Gen 1 ports and four USB 2.0 ports.

Audio Features:

• Audio Codec: Realtek ALC897 supporting up to 7.1-channel high-definition audio with premium capacitors for enhanced sound quality.

Additional Features:

• 5X Protection III: Multiple hardware safeguards including SafeSlot Core, LANGuard, and overvoltage protection.
• Comprehensive Cooling Solutions with a PCH heatsink and Fan Xpert for optimal thermal management.
