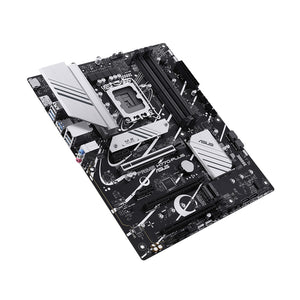

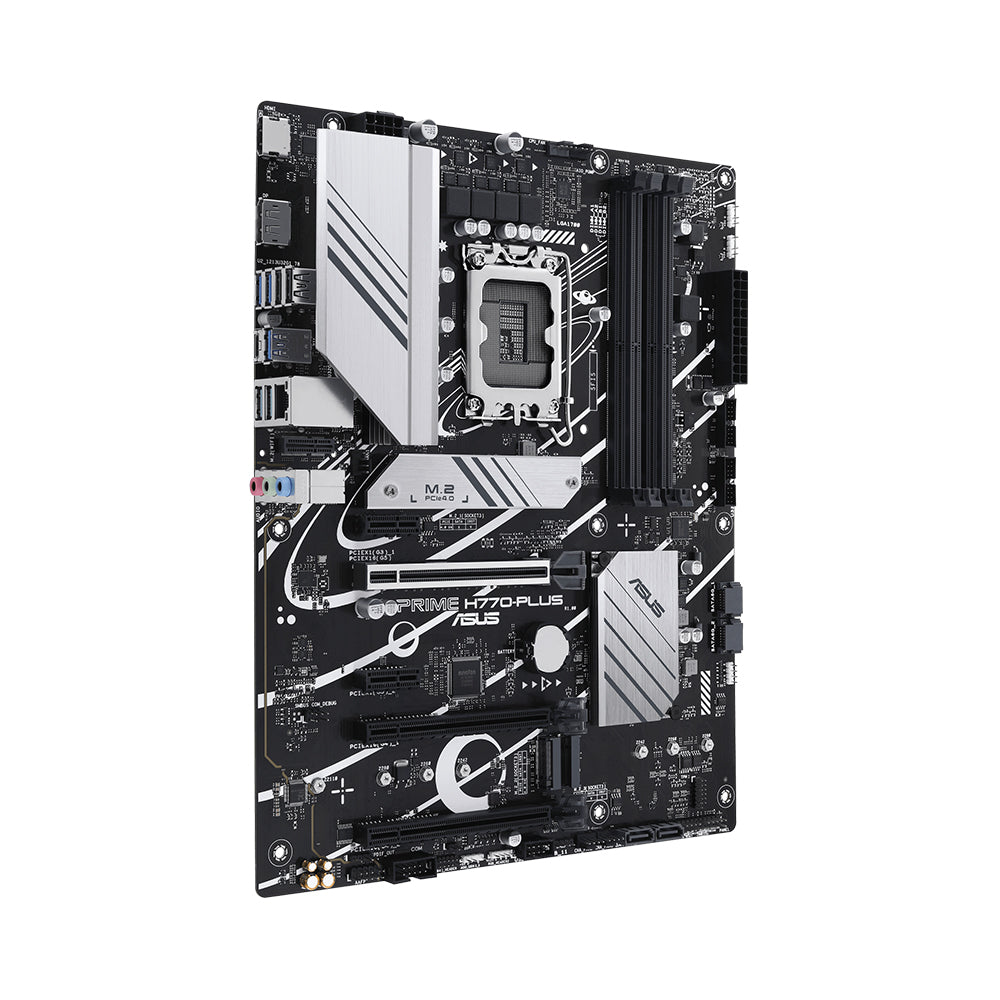

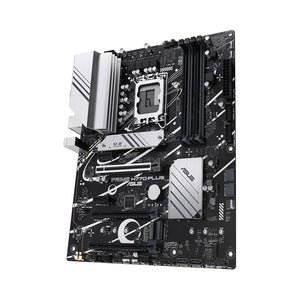

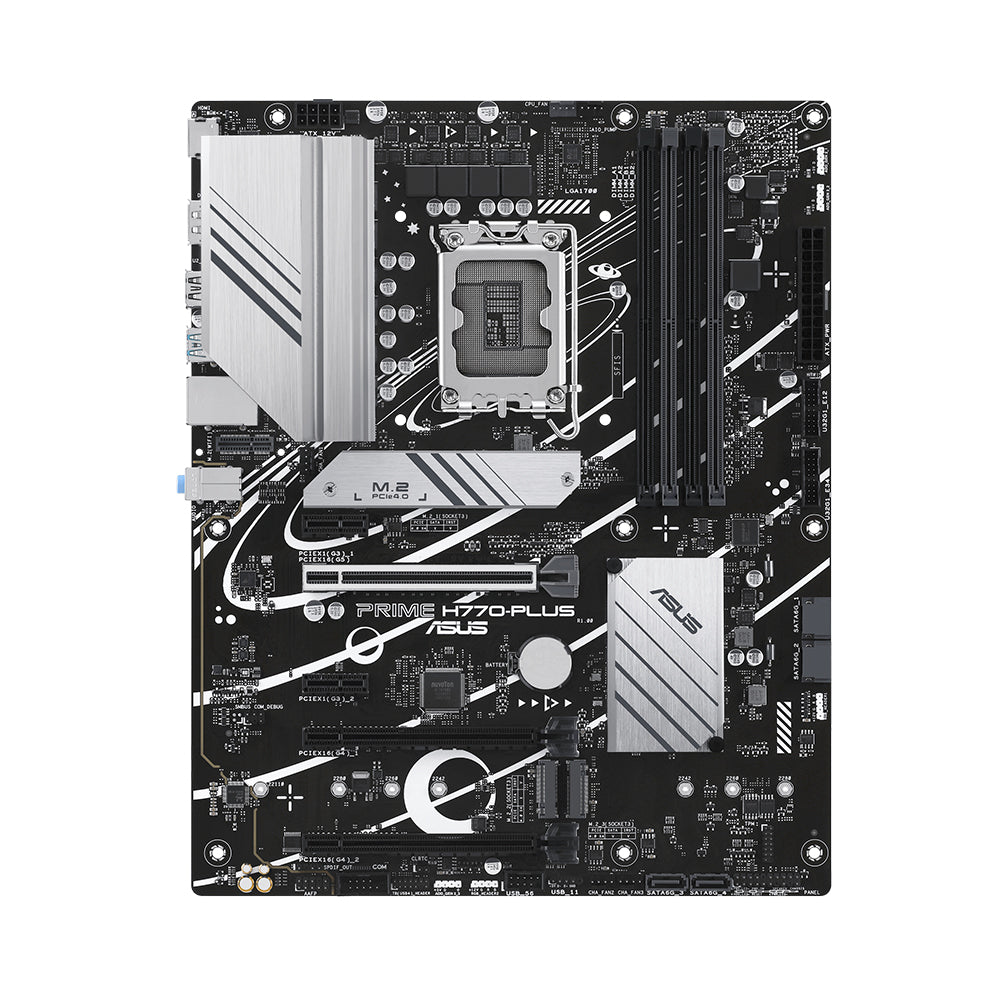

ASUS PRIME H770-PLUS ATX Motherboard - LGA 1700, Intel H770, DDR5, PCIe 5.0, 2.5 GbE LAN

The ASUS PRIME H770-PLUS motherboard is designed for users seeking to build a high-performance system with Intel's 12th and 13th Generation processors. Built on the Intel H770 chipset, this ATX motherboard supports advanced features and connectivity options that cater to both gaming and productivity needs.

Key Features:

• Socket Type: LGA 1700
• Chipset: Intel® H770
• Form Factor: ATX (30.5 x 24.4 cm)

CPU Support:

• Compatible with Intel® 12th and 13th Generation Core™, Pentium Gold, and Celeron processors.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 192GB
• Supported Memory Types: DDR5 (up to 7200 MHz overclocked)
• Memory Architecture: Dual Channel with support for ASUS Enhanced Memory Profile (AEMP II) and OptiMem II technology.

Expansion Slots:

• 1 x PCIe 5.0 x16 slot for high-performance graphics cards.
• 2 x PCIe 4.0 x16 slots (operating at x4 mode).
• 2 x PCIe 3.0 x1 slots for additional expansion cards.

Storage Options:

• M.2 Slots:
  • 3 x M.2 sockets (1 x M.2 PCIe 4.0 x4, 1 x M.2 PCIe/SATA, and 1 x M.2 PCIe 4.0 x4)
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports for traditional hard drives and SSDs.

Networking:

• LAN Controller: Realtek® Integrated 2.5 GbE for high-speed wired networking.

Video Outputs:

• Supports integrated graphics with:
  • 1 x HDMI™ (up to 4K @60Hz)
  • 1 x DisplayPort (up to 8K @60Hz)

USB Connectivity:

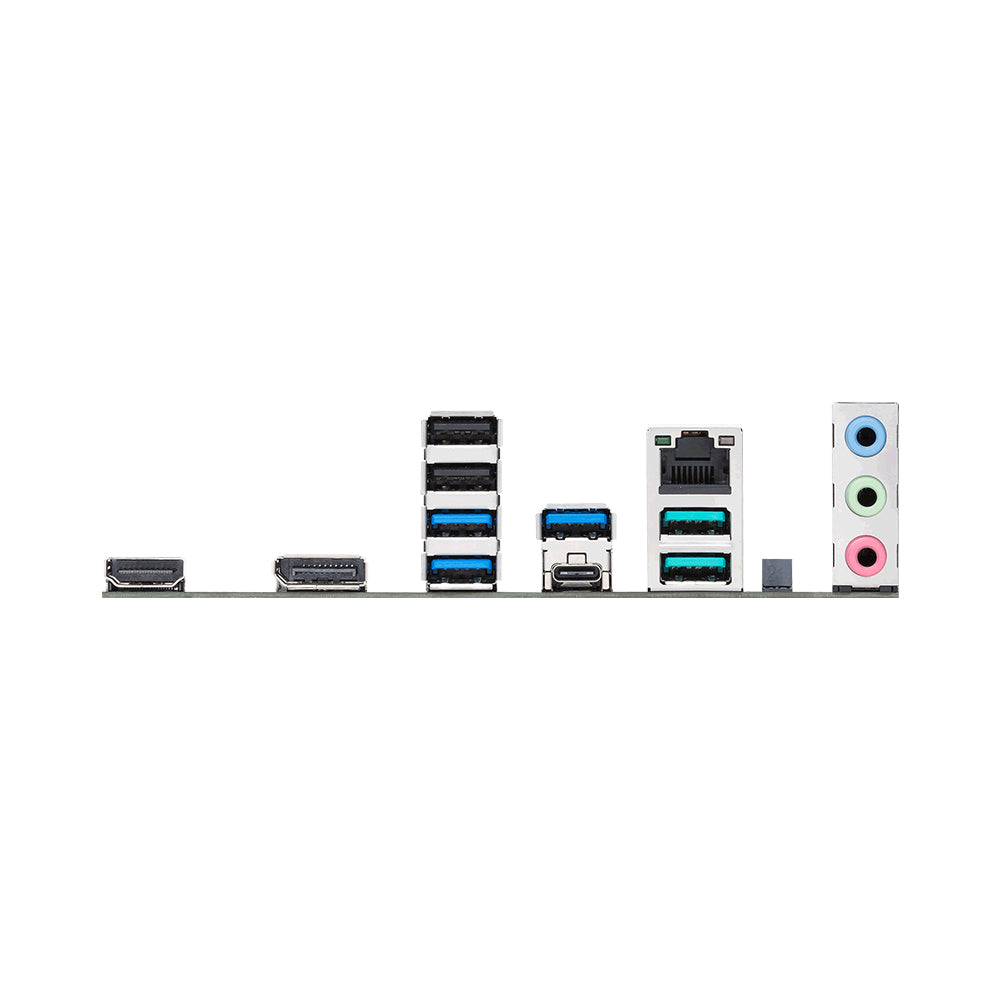

• Rear USB Ports:
  • Multiple USB ports including USB 3.2 Gen 2 Type-C for fast data transfer.

Audio Features:

• Audio Codec: Integrated audio supporting up to 8-channel high-definition audio with premium capacitors for enhanced sound quality.

Additional Features:

• Comprehensive Cooling Solutions: Includes VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert for optimal thermal management.
• Aura Sync RGB Lighting support with onboard addressable Gen 2 headers for customizable LED effects.
