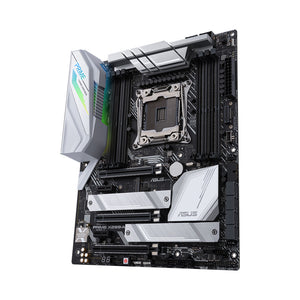

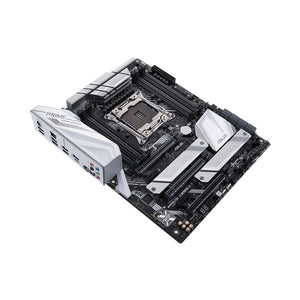

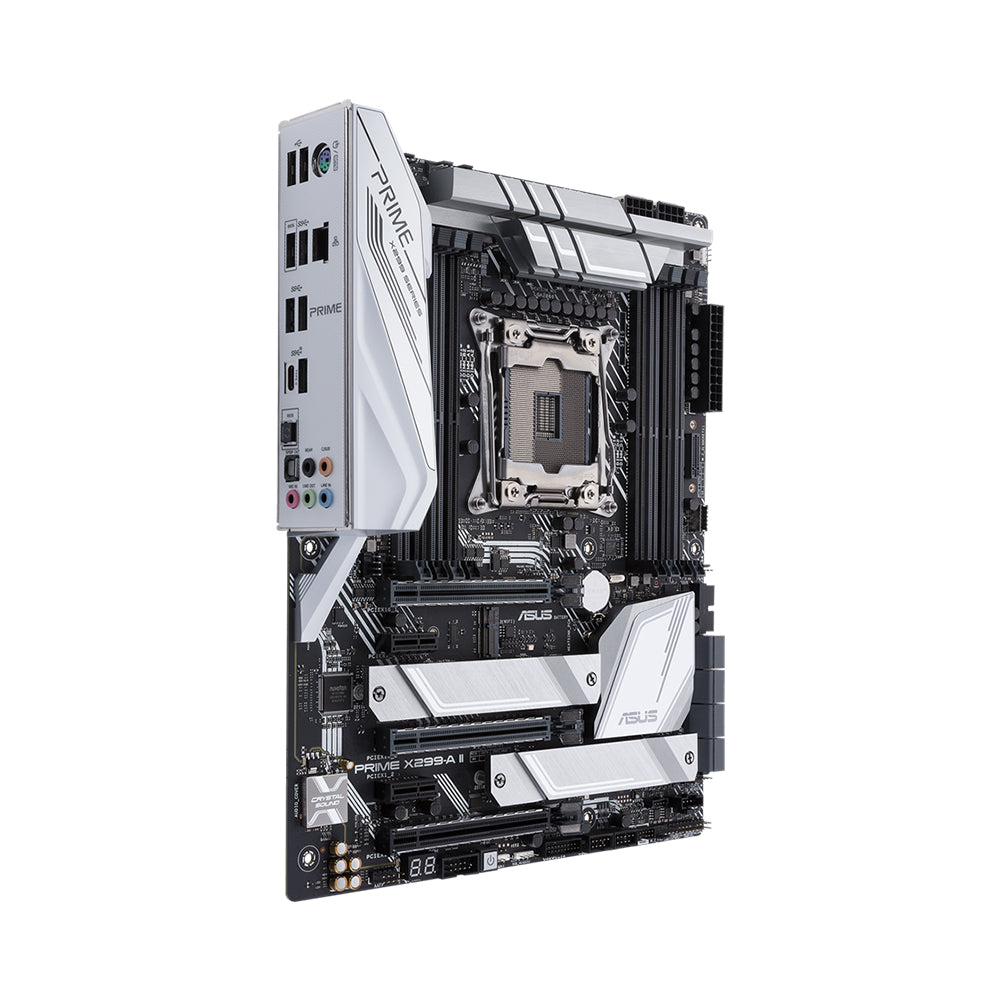

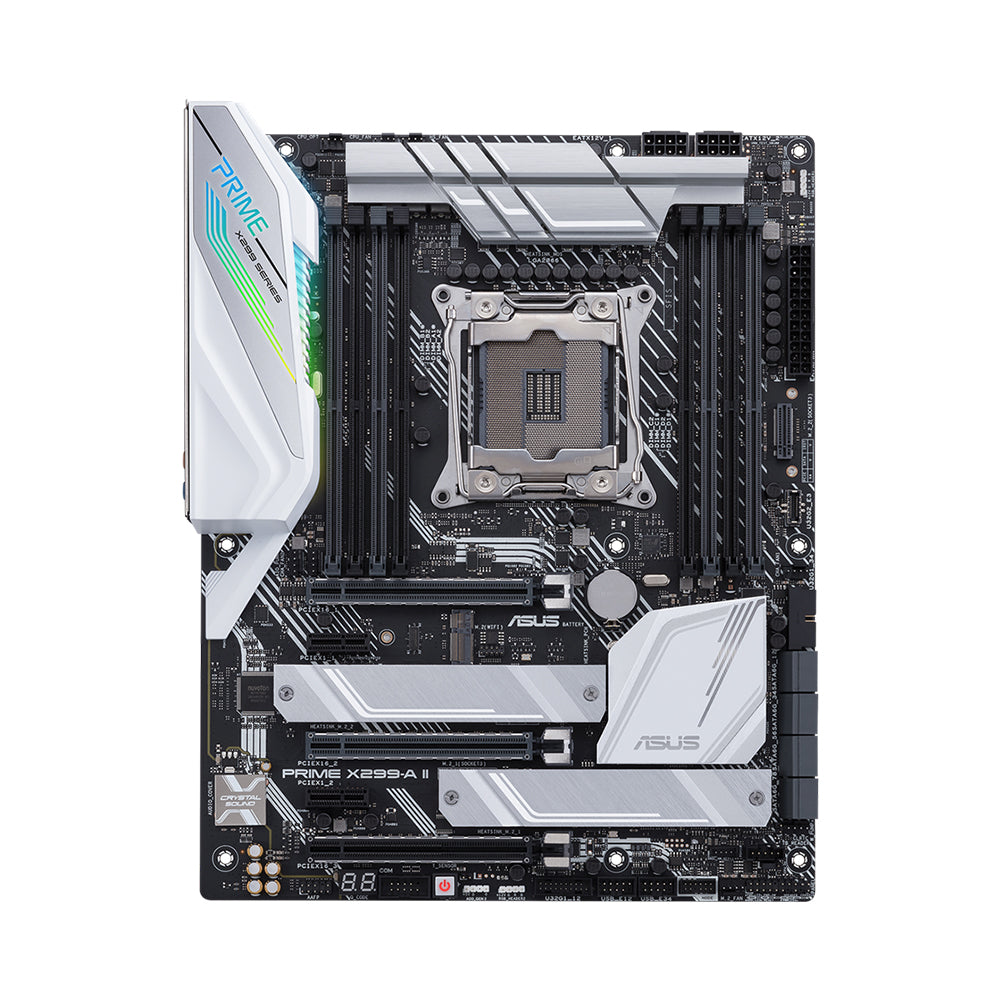

ASUS PRIME X299-A II ATX Motherboard - LGA 2066, Intel X299, DDR4, PCIe 3.0, Dual M.2, USB 3.2 Gen 2

The ASUS PRIME X299-A II motherboard is engineered for high-performance computing, designed to support Intel's Core X-series processors up to 18 cores. Built on the Intel X299 chipset, this ATX motherboard combines advanced features and robust power delivery to cater to demanding applications such as content creation, gaming, and data processing.

Key Features:

• Socket Type: LGA 2066
• Chipset: Intel X299
• Form Factor: ATX (30.5 x 24.4 cm)

CPU Support:

• Compatible with Intel® Core X-series processors, supporting high core counts and enhanced performance.

Memory Support:

• Slots: 8 x DIMM
• Maximum Capacity: Up to 256GB
• Supported Memory Types: DDR4 (up to 4266 MHz overclocked)
• Memory Architecture: Quad Channel for improved bandwidth and performance.

Expansion Slots:

• 3 x PCIe 3.0 x16 slots (configurations dependent on CPU lanes)
• 2 x PCIe 3.0 x1 slots for additional expansion cards.

Storage Options:

• M.2 Slots:
  • 2 x M.2 sockets (supporting both SATA and PCIe modes)
• SATA Ports:
  • 8 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: Intel® Gigabit Ethernet for reliable wired connectivity.

USB Connectivity:

• Rear USB Ports:
  • Up to 8 x USB ports including USB 3.2 Gen 2 Type-C and Type-A ports for fast data transfer.

Audio Features:

• Audio Codec: Realtek ALC1220 supporting up to 8-channel high-definition audio with premium capacitors for enhanced sound quality.

Additional Features:

• Robust Power Design: Equipped with 12 IR3555 power stages for stable power delivery and performance.

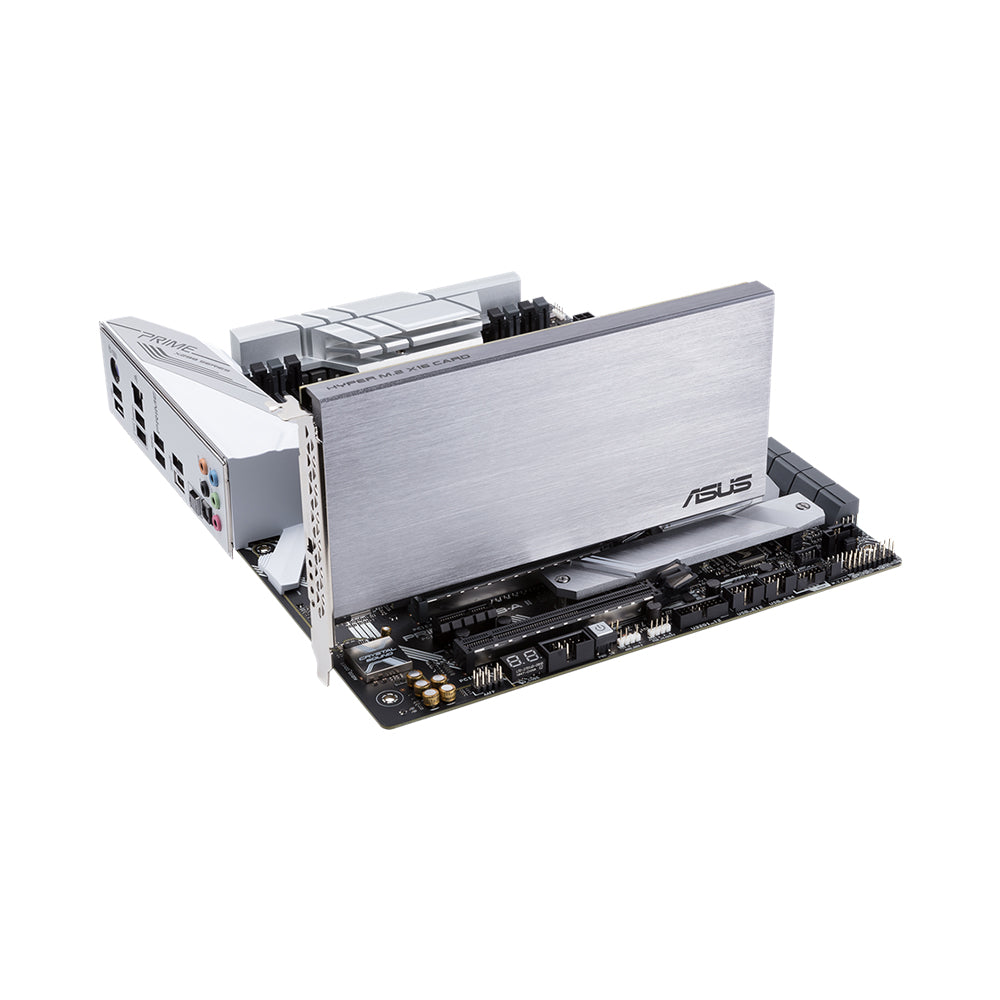

• M.2 Heatsink: Efficient cooling solution for M.2 SSDs to prevent thermal throttling.
• AI Overclocking: Automatically optimizes CPU performance based on system conditions.
• Comprehensive Cooling Solutions: Includes multiple fan headers and thermal management features.
