ASUS PRIME Z790-A WIFI CSM ATX Motherboard - LGA 1700, Intel Z790, DDR5, PCIe 5.0, Wi-Fi 6E

The ASUS PRIME Z790-A WIFI CSM motherboard is designed for high-performance computing, supporting Intel's 12th and 13th Generation processors. Built on the Intel Z790 chipset, this ATX motherboard offers advanced features and connectivity options, making it ideal for gamers and professionals who demand reliability and performance.

Key Features:

• Socket Type: LGA 1700
• Chipset: Intel® Z790
• Form Factor: ATX (30.5 x 24.4 cm)

CPU Support:

• Compatible with Intel® 12th and 13th Generation Core™, Pentium Gold, and Celeron processors.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 128GB
• Supported Memory Types: DDR5 (up to 7200 MHz overclocked)
• Memory Architecture: Dual Channel with support for Intel® Extreme Memory Profile (XMP) and OptiMem II technology.

Expansion Slots:

• 1 x PCIe 5.0 x16 slot for high-performance graphics cards.
• 1 x PCIe 4.0 x16 slot (supports x4 mode).
• 1 x PCIe 4.0 x4 slot.
• 2 x PCIe 3.0 x1 slots for additional expansion cards.

Storage Options:

• M.2 Slots:
  • Total of 4 M.2 sockets supporting PCIe 4.0 and SATA modes.
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports with RAID support.

Networking:

• LAN Controller: Realtek® Integrated 2.5 Gb Ethernet for high-speed wired connectivity.
• Wi-Fi: Integrated Wi-Fi 6E for enhanced wireless performance.

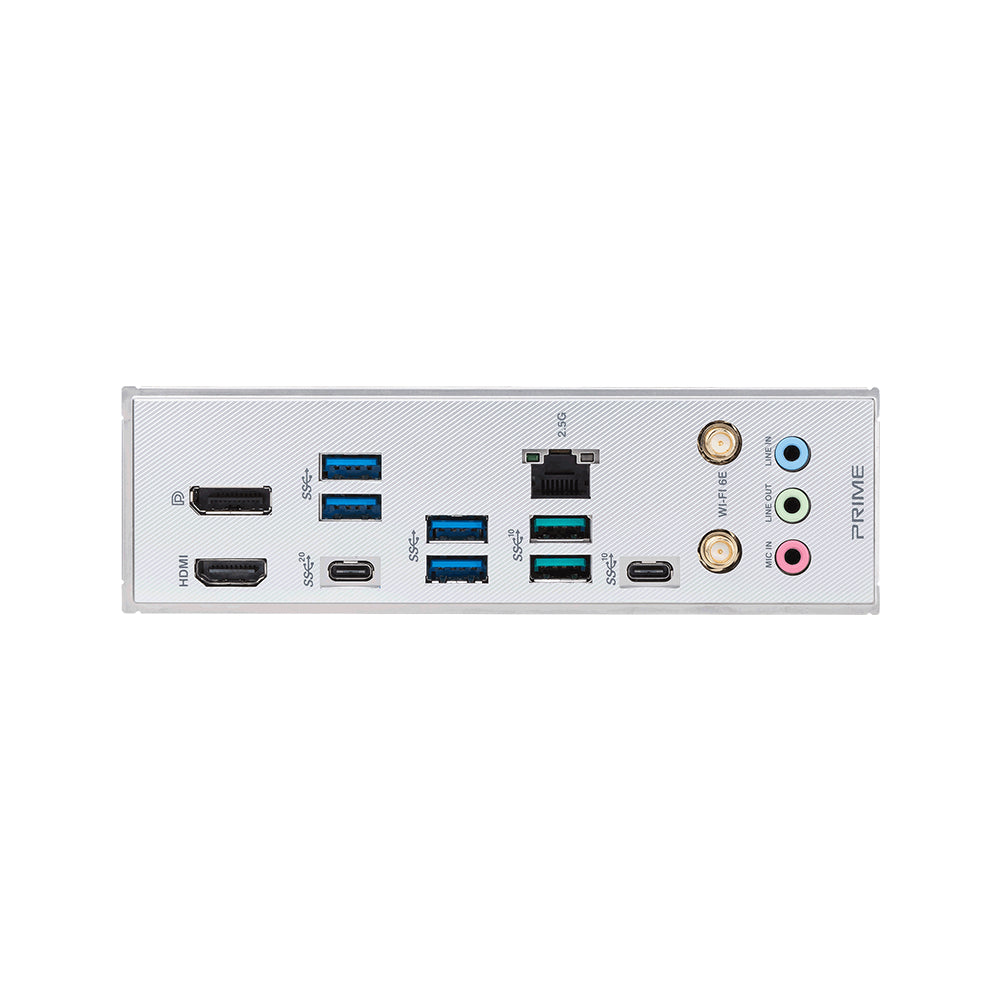

Video Outputs:

• Supports integrated graphics with:
  • 1 x DisplayPort (up to 8K @60Hz)
  • 1 x HDMI™ (up to 4K @60Hz)

USB Connectivity:

• Multiple USB ports including USB 3.2 Gen 2 Type-C for fast data transfer.

Audio Features:

• Audio Codec: Realtek ALC897 supporting up to 7.1-channel high-definition audio with premium capacitors for enhanced sound quality.

Additional Features:

• Cooling Solutions: Equipped with multiple heatsinks for VRMs and M.2 slots to prevent thermal throttling.
• Fan Xpert 4 software for comprehensive cooling control.
• ASUS Corporate Stable Model (CSM): Provides stable and reliable motherboards with a product lifecycle support of up to 36 months.
