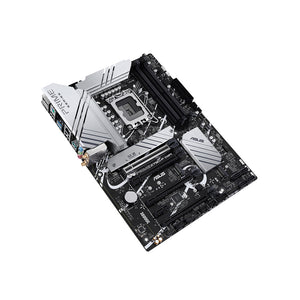

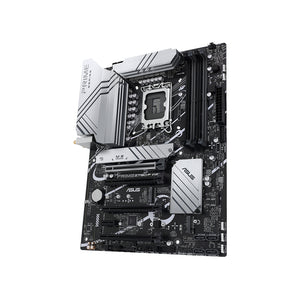

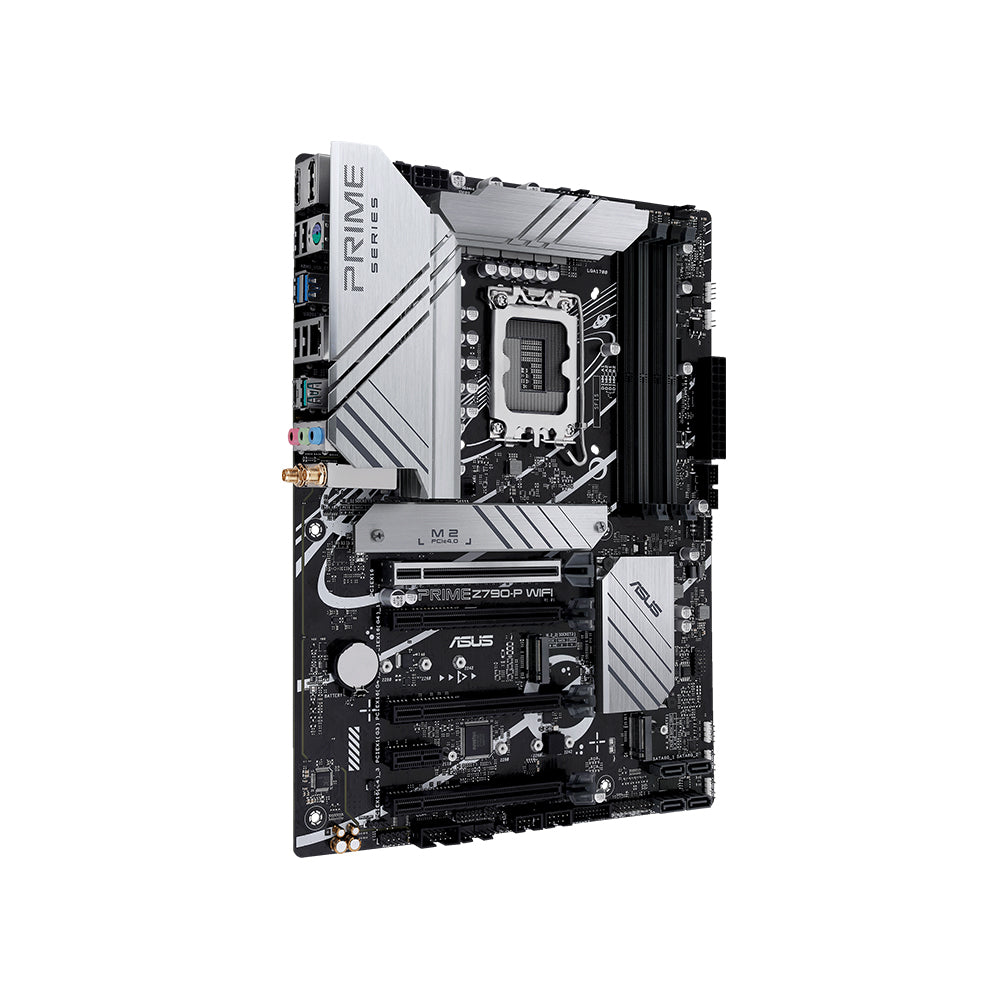

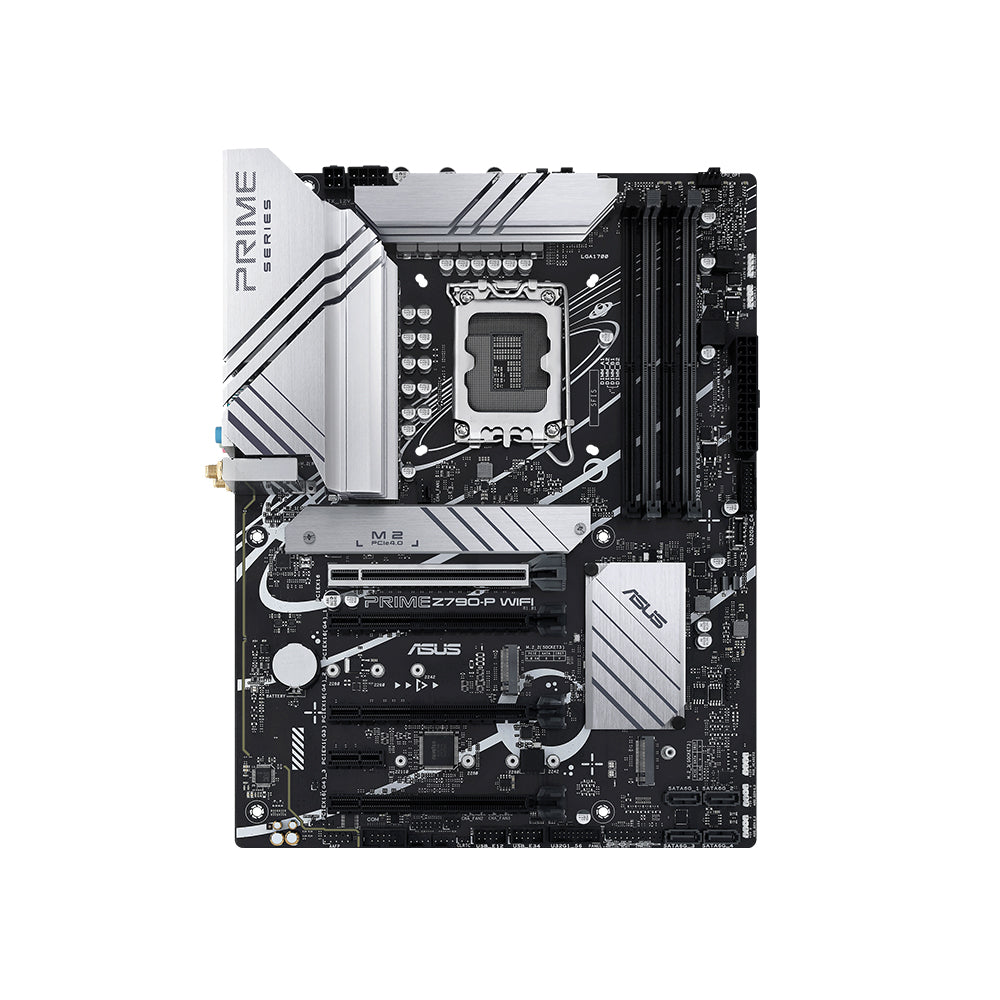

ASUS PRIME Z790-P WIFI CSM ATX Motherboard - LGA 1700, Intel Z790, DDR5, PCIe 5.0, Wi-Fi 6E

The ASUS PRIME Z790-P WIFI CSM motherboard is built for high-performance computing, supporting Intel's 12th and 13th Generation processors. Featuring the Intel Z790 chipset, this ATX motherboard provides advanced features and connectivity options suitable for both gaming and professional workloads.

Key Features:

• Socket Type: LGA 1700
• Chipset: Intel® Z790
• Form Factor: ATX (30.5 x 24.4 cm)

CPU Support:

• Compatible with Intel® 12th and 13th Generation Core™, Pentium Gold, and Celeron processors.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 128GB
• Supported Memory Types: DDR5 (up to 7200 MHz overclocked)
• Memory Architecture: Dual Channel with support for ASUS Enhanced Memory Profile II (AEMP II) for optimized performance.

Expansion Slots:

• 1 x PCIe 5.0 x16 slot for high-performance graphics cards.
• 3 x PCIe 4.0 x16 slots (operating at x4 mode).
• 1 x PCIe 3.0 x1 slot for additional expansion cards.

Storage Options:

• M.2 Slots:
  • Total of 3 M.2 sockets supporting PCIe 4.0 and SATA modes.
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports with RAID support.

Networking:

• LAN Controller: Realtek® Integrated 2.5 Gb Ethernet for high-speed wired connectivity.
• Wi-Fi: Integrated Wi-Fi 6E for enhanced wireless performance.

Video Outputs:

• Supports integrated graphics with:
  • 1 x HDMI™ (up to 4K @60Hz)
  • 1 x DisplayPort (up to 8K @60Hz)

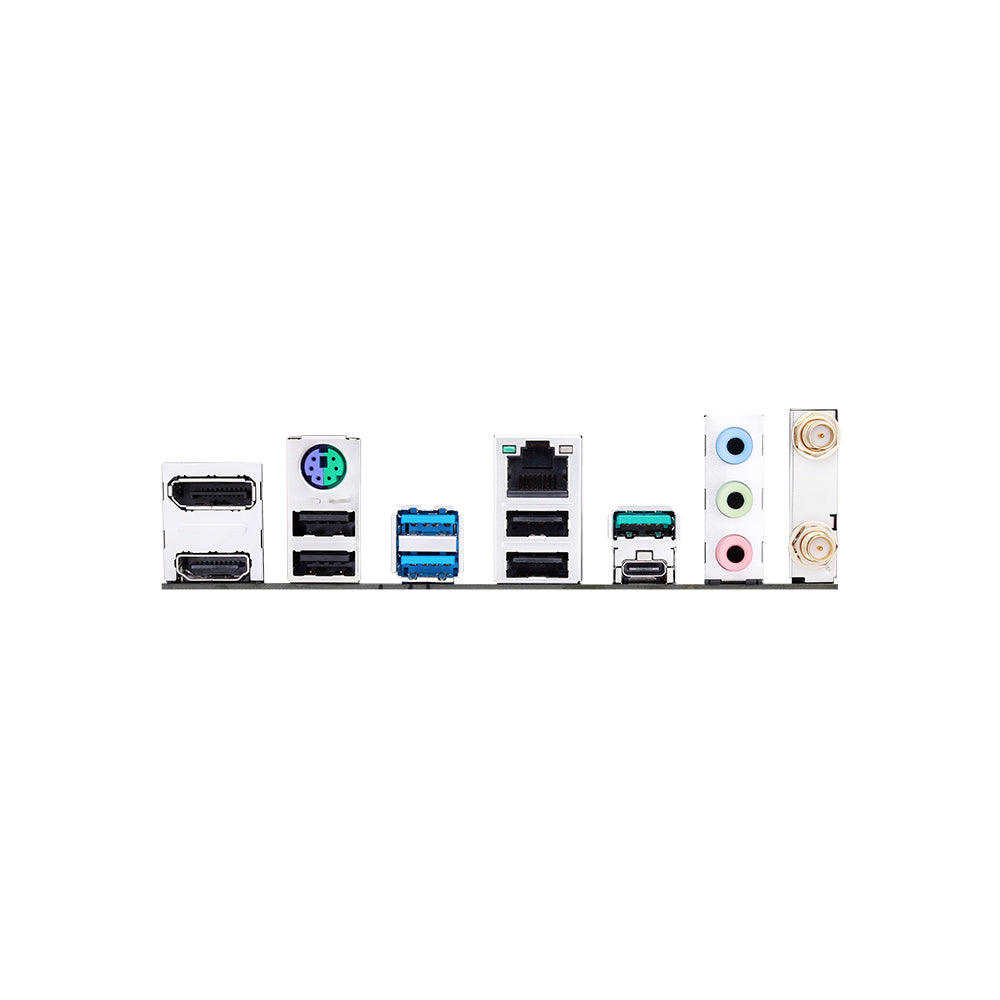

USB Connectivity:

• Multiple USB ports including USB 3.2 Gen 2 Type-C for fast data transfer.

Audio Features:

• Audio Codec: Realtek ALC897 supporting up to 7.1-channel high-definition audio with premium capacitors for enhanced sound quality.

Additional Features:

• Robust Power Design: Equipped with a comprehensive cooling solution including multiple heatsinks and hybrid fan headers to ensure stability during high-performance tasks.
• ASUS Corporate Stable Model (CSM): Offers stable and reliable motherboards with a product lifecycle support of up to 36 months, ideal for corporate environments.
