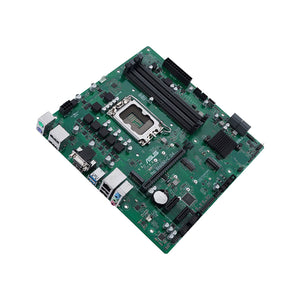

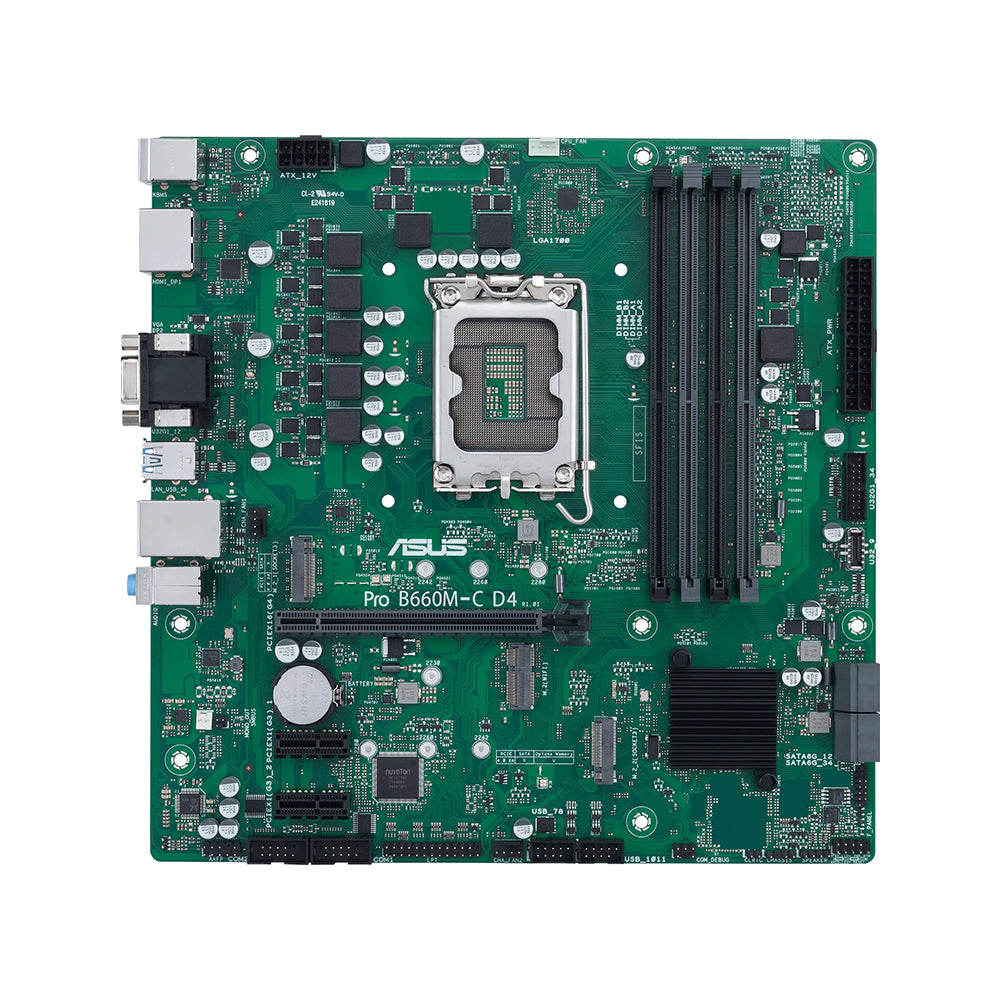

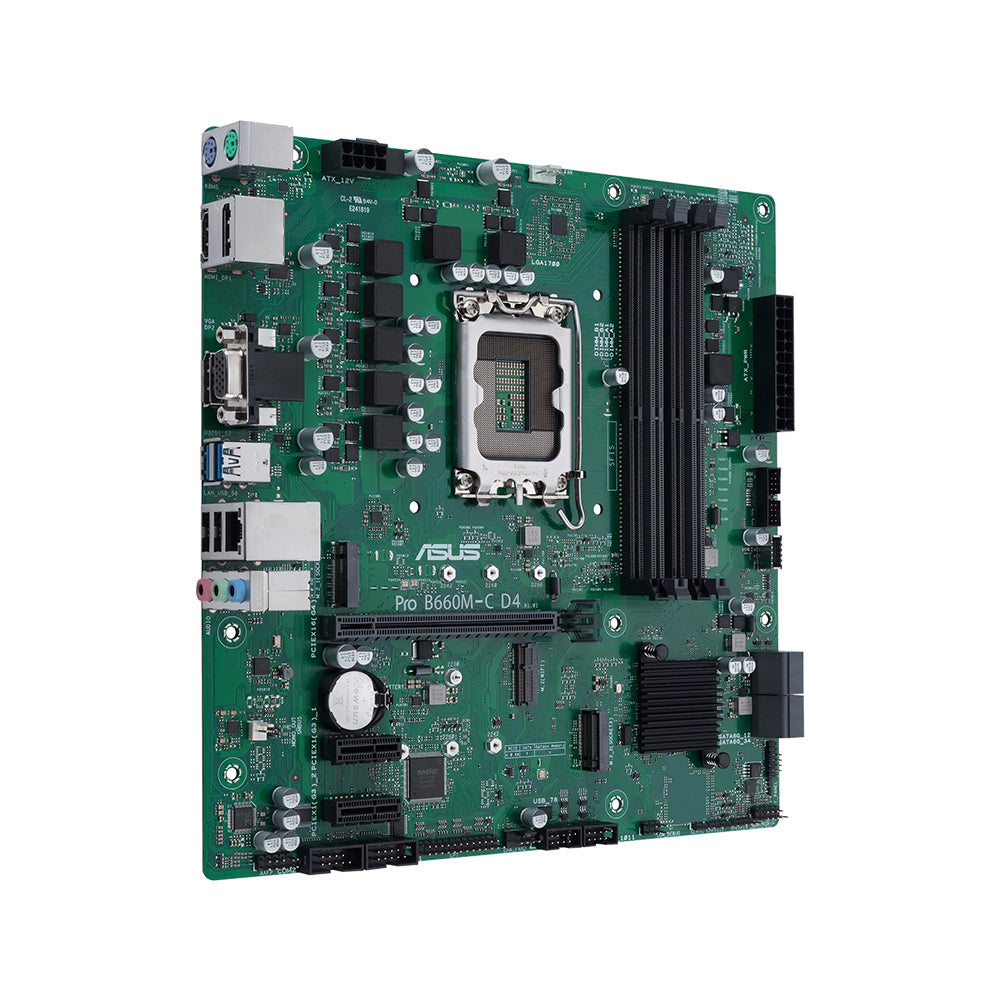

ASUS Pro B660M-C D4 CSM Micro ATX Motherboard - LGA 1700, Intel B660, DDR4, PCIe 4.0, Wi-Fi Support

The ASUS Pro B660M-C D4 CSM motherboard is designed for business and professional environments, supporting Intel's 12th and 13th Generation processors. Built on the Intel B660 chipset, this Micro ATX motherboard offers robust features tailored for stability, security, and efficient management in enterprise-level applications.

Key Features:

• Socket Type: LGA 1700
• Chipset: Intel® B660
• Form Factor: Micro ATX (24.4 x 24.4 cm)

CPU Support:

• Compatible with Intel® 12th and 13th Generation Core™, Pentium Gold, and Celeron processors.
• Supports Intel® Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 128GB
• Supported Memory Types: DDR4 (up to 4600 MHz overclocked)
• Memory Architecture: Dual Channel with support for Intel® Extreme Memory Profile (XMP).

Expansion Slots:

• 1 x PCIe 4.0/3.0 x16 slot for high-performance graphics cards.
• 2 x PCIe 3.0 x1 slots for additional expansion cards.

Storage Options:

• M.2 Slots:
  • 2 x M.2 sockets (supporting PCIe 4.0 x4 and SATA modes).
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: Intel® Gigabit Ethernet with ASUS LANGuard for enhanced protection against surges.

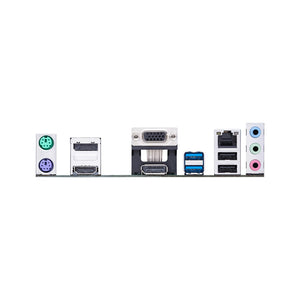

USB Connectivity:

• Rear USB Ports:
  • 2 x USB 3.2 Gen 1 Type-A ports
  • 2 x USB 2.0 Type-A ports
• Additional headers for front panel USB connections.

Audio Features:

• Audio Codec: Supports up to 8-channel high-definition audio.

Additional Features:

• ASUS CSM Program: Ensures stable supply and long-term availability of motherboards with end-of-life notifications.
• Enhanced System Security: Features a self-recovering BIOS and TPM for improved security.
• ASUS Control Center Express: Integrated IT monitoring and management software for enterprise-level administration.
• Diagnostic Features: Q-LED diagnostic display and COM debug header for easier troubleshooting.
