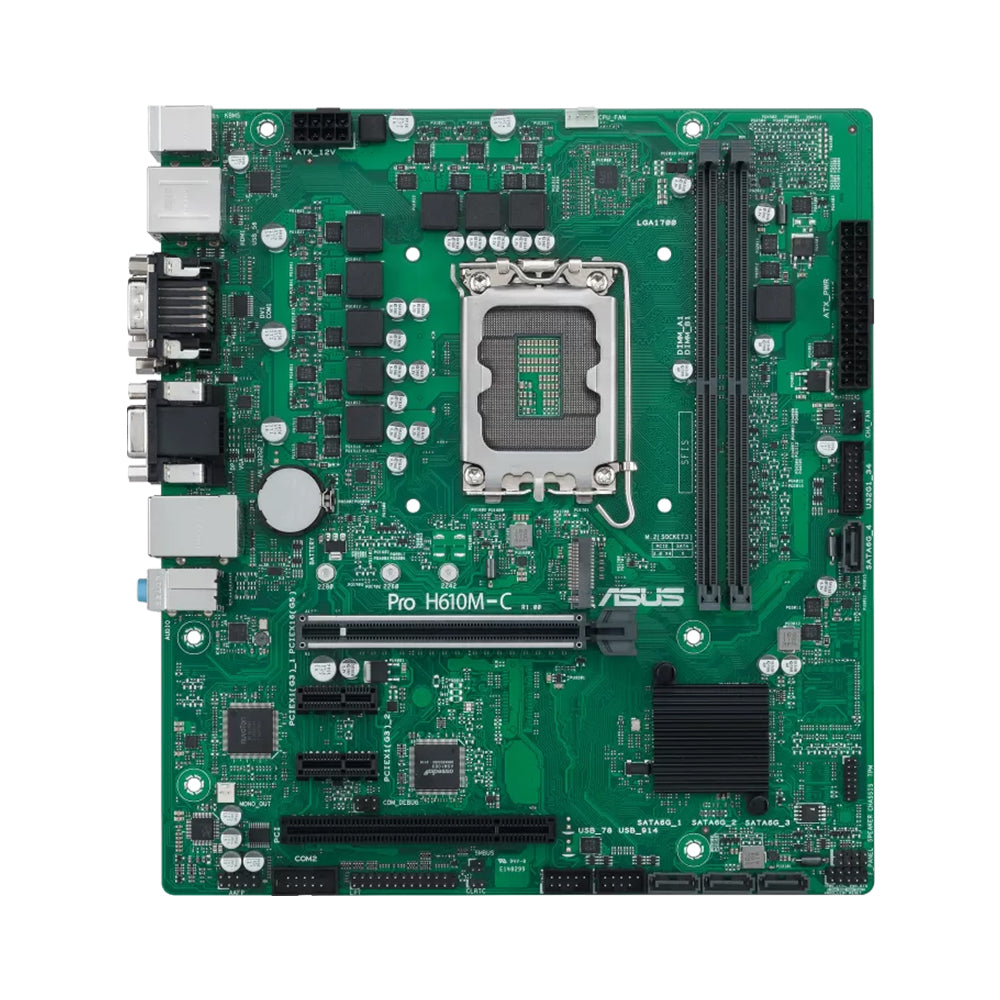

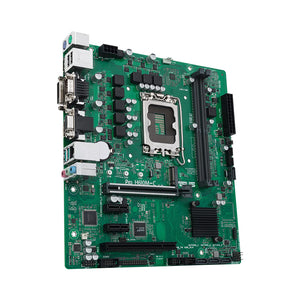

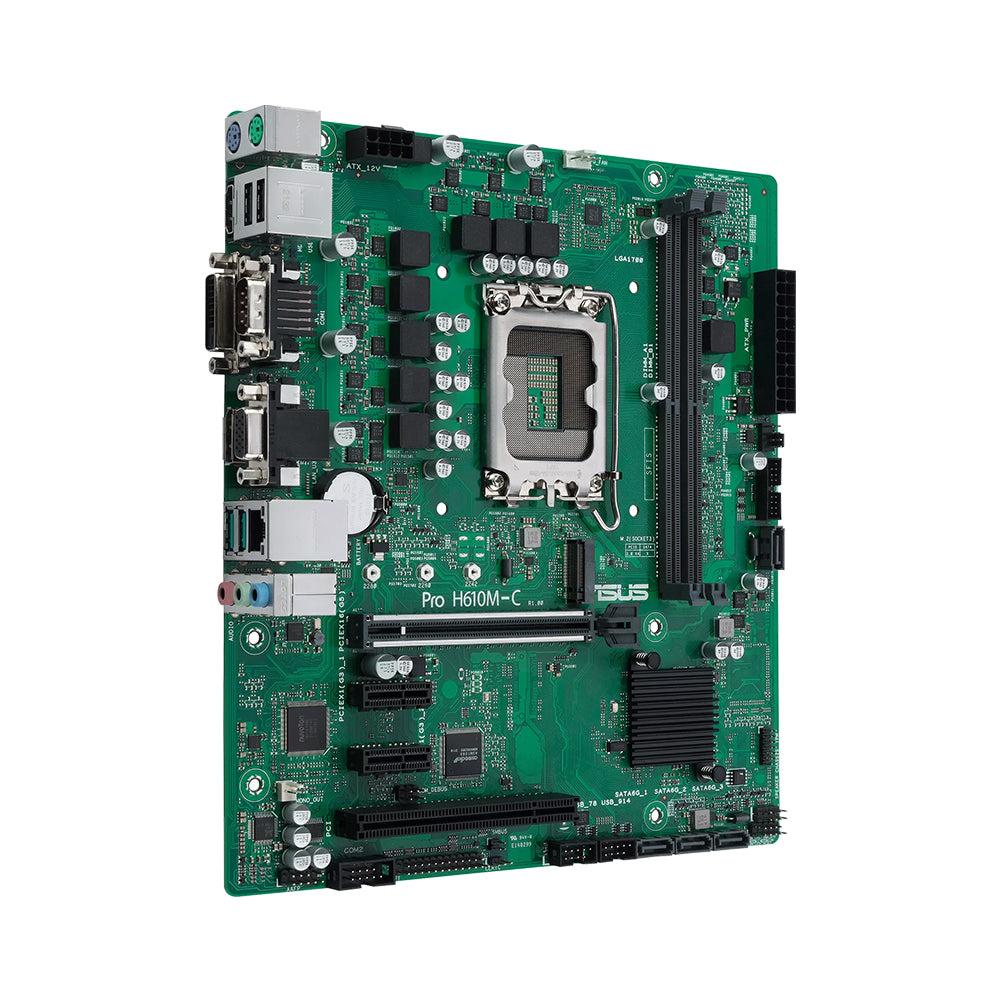

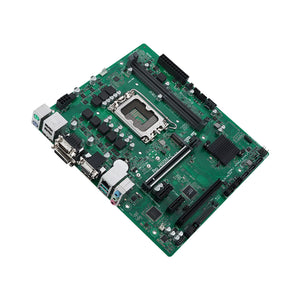

ASUS Pro H610M-C-CSM Micro ATX Motherboard - LGA 1700, Intel H610, DDR5, PCIe 5.0, Enhanced Security Features

The ASUS Pro H610M-C-CSM motherboard is designed for business and professional environments, supporting Intel's 12th Generation processors. Built on the Intel H610 chipset, this Micro ATX motherboard offers a range of features aimed at enhancing security, reliability, and manageability for enterprise-level applications.

Key Features:

• Socket Type: LGA 1700
• Chipset: Intel® H610
• Form Factor: Micro ATX (24.4 x 22 cm)

CPU Support:

• Compatible with Intel® 12th Generation Core™, Pentium Gold, and Celeron processors.
• Supports Intel® Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0.

Memory Support:

• Slots: 2 x DIMM
• Maximum Capacity: Up to 64GB
• Supported Memory Types: DDR5 (up to 4800 MHz)
• Memory Architecture: Dual Channel with support for Intel® Extreme Memory Profile (XMP).

Expansion Slots:

• 1 x PCIe 5.0 x16 slot for high-performance graphics cards.
• 2 x PCIe 3.0 x1 slots for additional expansion cards.

Storage Options:

• M.2 Slot:
  • 1 x M.2 socket (supports PCIe 3.0 x4 mode).
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports with RAID support.

Networking:

• LAN Controller: Intel® Gigabit Ethernet with ASUS LANGuard for enhanced protection against surges.

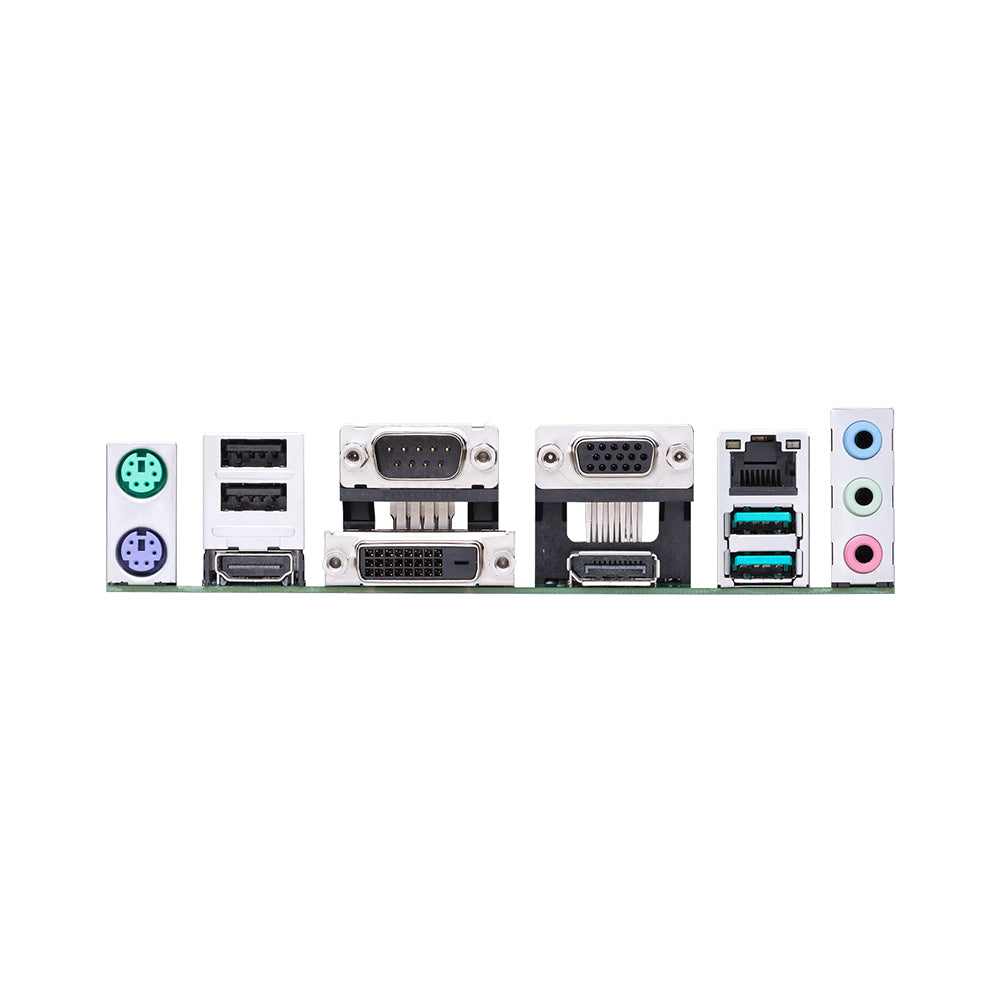

Video Outputs:

• Supports integrated graphics with:
  • 1 x DisplayPort
  • 1 x HDMI™
  • 1 x DVI-D
  • 1 x D-Sub port

USB Connectivity:

• Multiple USB ports including USB 3.2 Gen 2 for fast data transfer.

Audio Features:

• Supports up to 8-channel high-definition audio.

Additional Features:

• ASUS CSM Program: Provides stable motherboard supply, end-of-life notifications, and IT management software.
• Enhanced System Security: Features a self-recovering BIOS and TPM for safeguarding PCs.
• Comprehensive Management Tools: Includes ASUS Control Center Express for IT monitoring and management.
• Anti-Moisture Coating: Protects the motherboard in humid environments to minimize corrosion.
