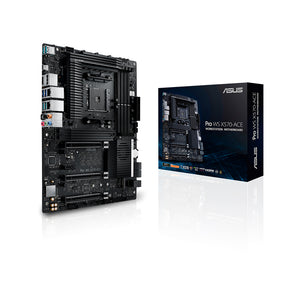

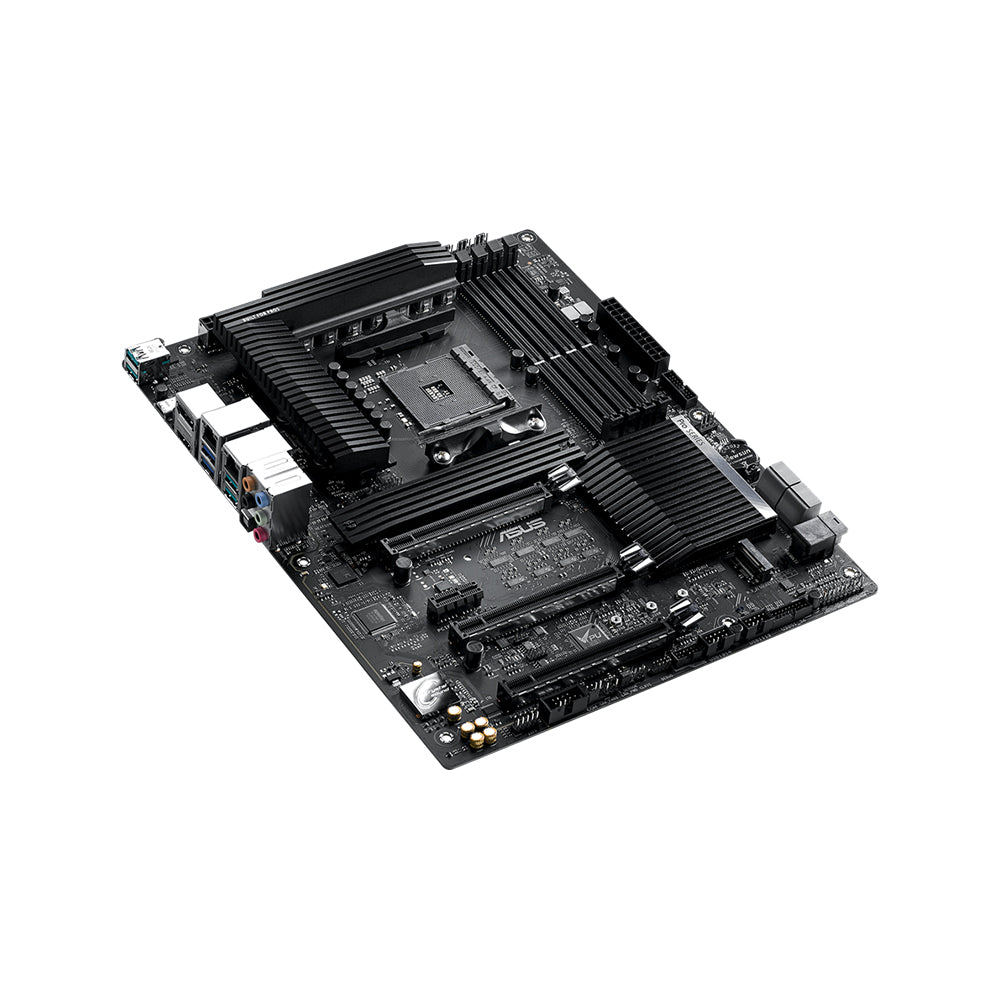

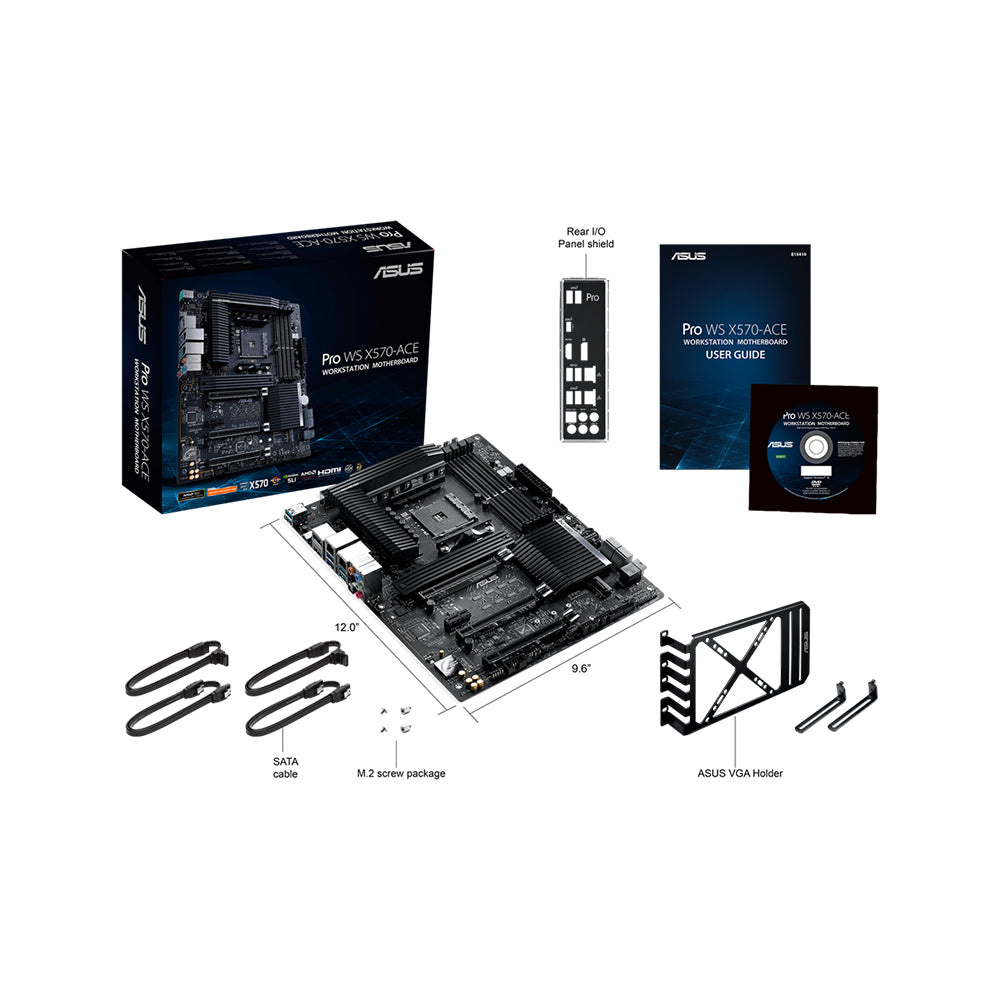

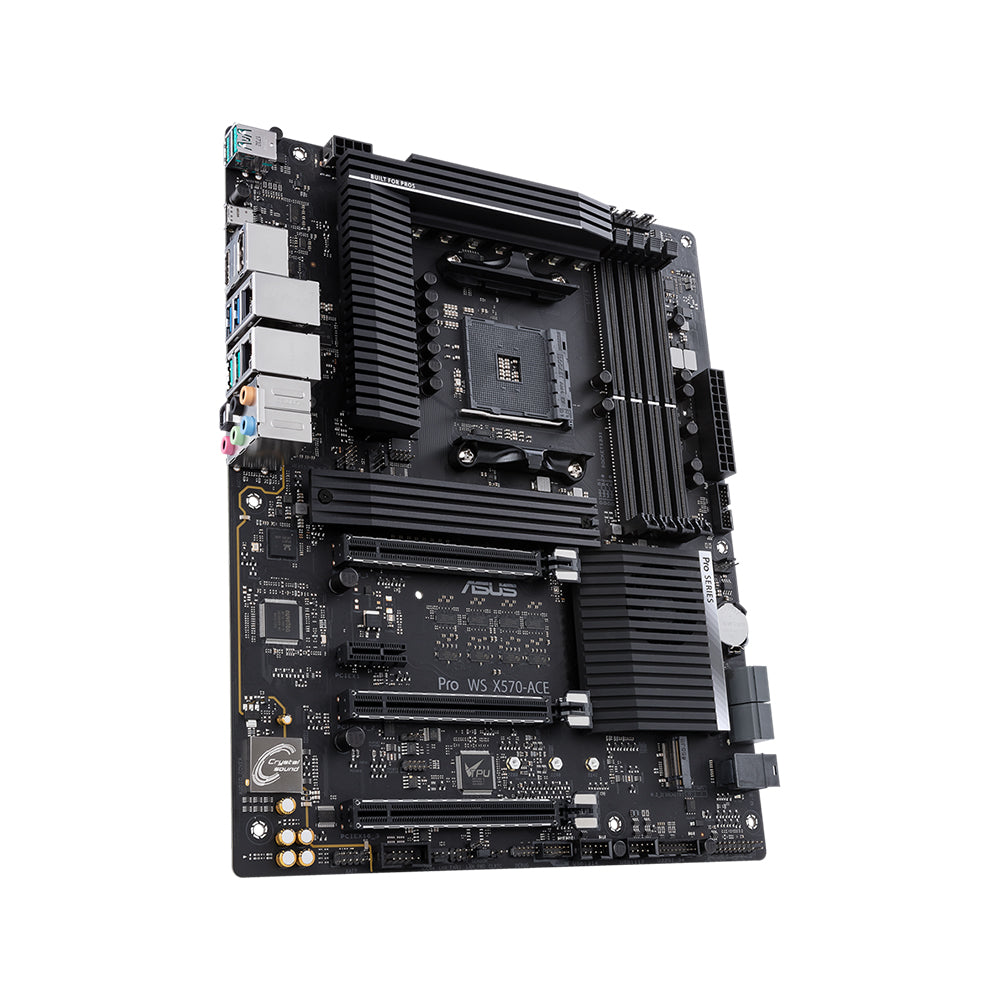

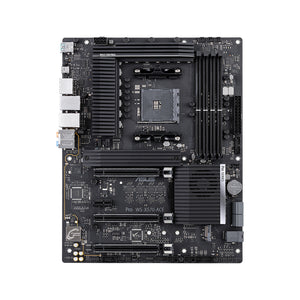

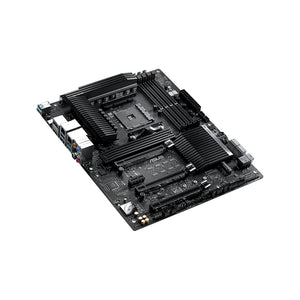

ASUS Pro WS X570-ACE Workstation Motherboard - AM4, AMD X570, DDR4, PCIe 4.0, Dual M.2, Wi-Fi

The ASUS Pro WS X570-ACE motherboard is designed specifically for professional workstations, supporting AMD Ryzen™ processors with the AM4 socket. Featuring the advanced AMD X570 chipset, this ATX motherboard is optimized for high-performance tasks such as 3D rendering, AI training, and computational workloads.

Key Features:

• Socket Type: AM4
• Chipset: AMD X570
• Form Factor: ATX (12.0 x 9.6 inches / 30.5 x 24.4 cm)

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 128GB
• Supported Memory Types: DDR4 (2133/2400/2666/2800/2933/3000/3200 MHz, with overclocking support up to 4400 MHz)

Expansion Slots:

• 3 x PCIe 4.0 x16 slots (supporting dual x8 configurations)
• Multi-GPU support for NVIDIA® SLI® and AMD CrossFireX™ technologies.

Storage Options:

• M.2 Slots:
  • 2 x M.2 sockets (supports PCIe 4.0 x4 and SATA modes)
• SATA Ports: 4 x SATA III (6Gb/s) ports with RAID support.

Networking:

• LAN Controller: Intel® Gigabit LAN for reliable wired connectivity.
• Wi-Fi: Integrated Wi-Fi 6 for high-speed wireless connections.

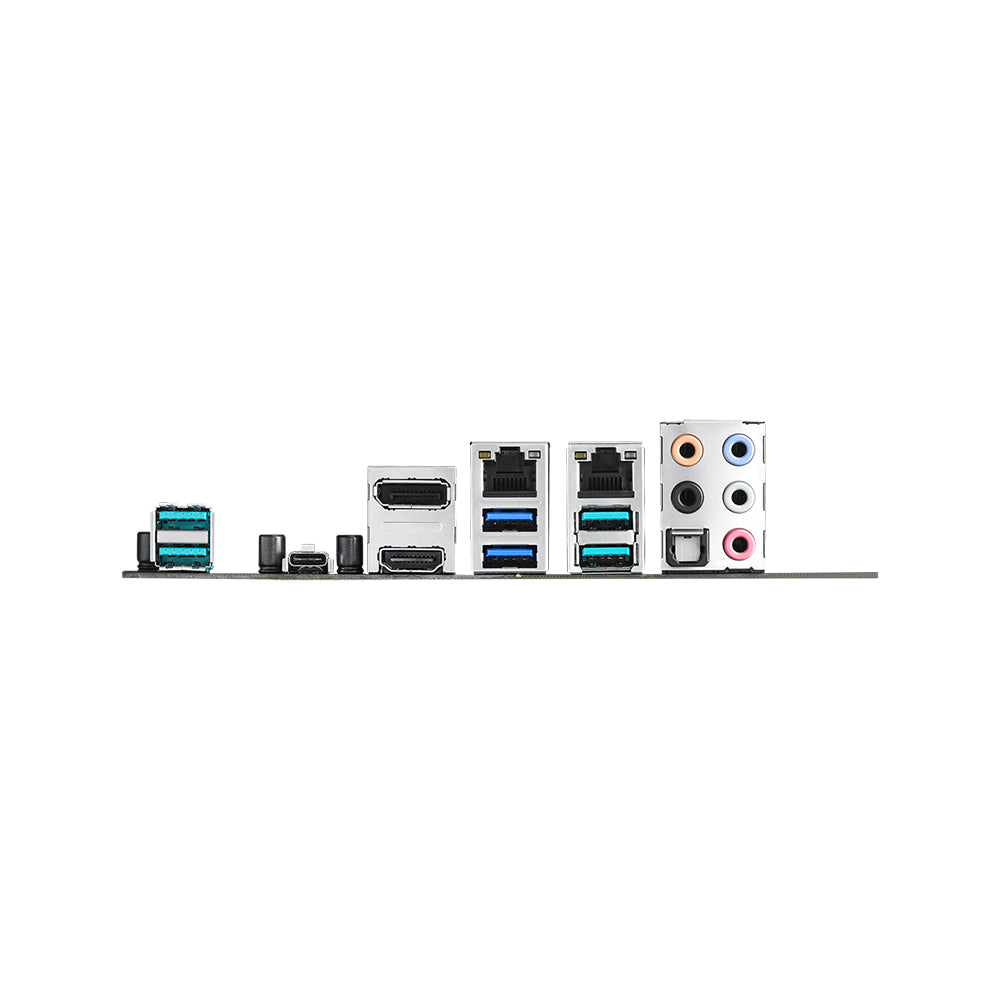

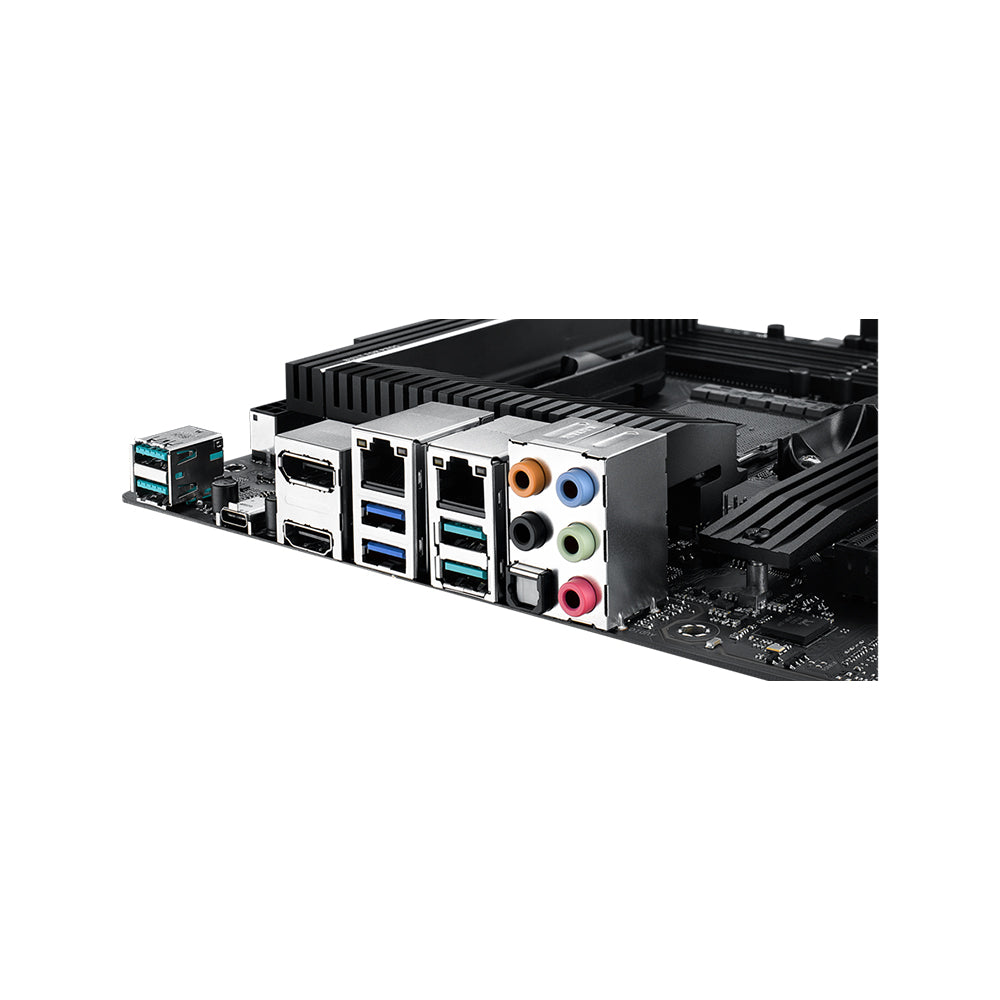

USB Connectivity:

• Rear USB Ports:
  • 5 x USB 3.2 Gen 2 ports (including Type-C)
  • 3 x USB 3.2 Gen 1 ports
  • Additional USB headers for front panel connectivity.

Audio Features:

• Audio Codec: Realtek ALC887 supporting up to 7.1-channel audio with premium capacitors for enhanced sound quality.

Additional Features:

• Power Delivery System: Equipped with IR3555 power stages for stable power delivery to the CPU.
• Cooling Solutions: Comprehensive cooling options including dedicated heatsinks for M.2 slots and multiple fan headers.
• ASUS Control Center (ACC): For easy system monitoring and management.
