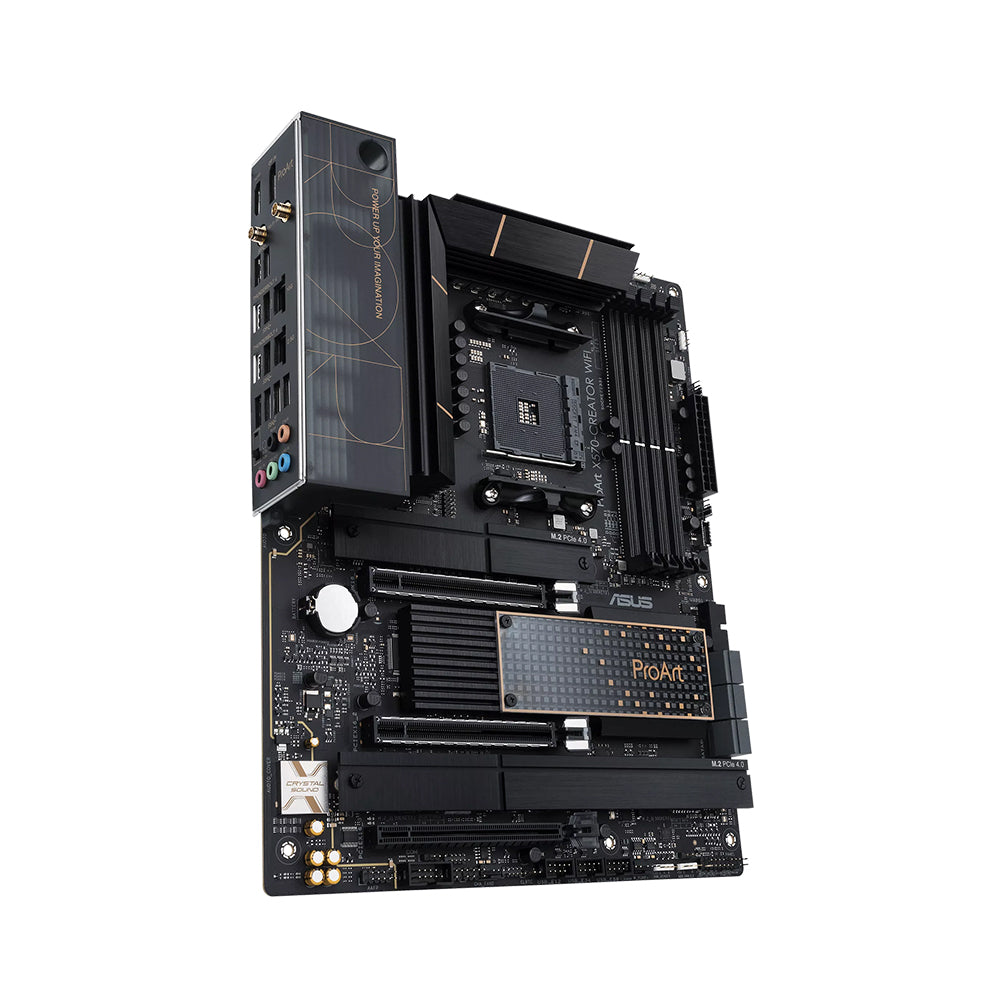

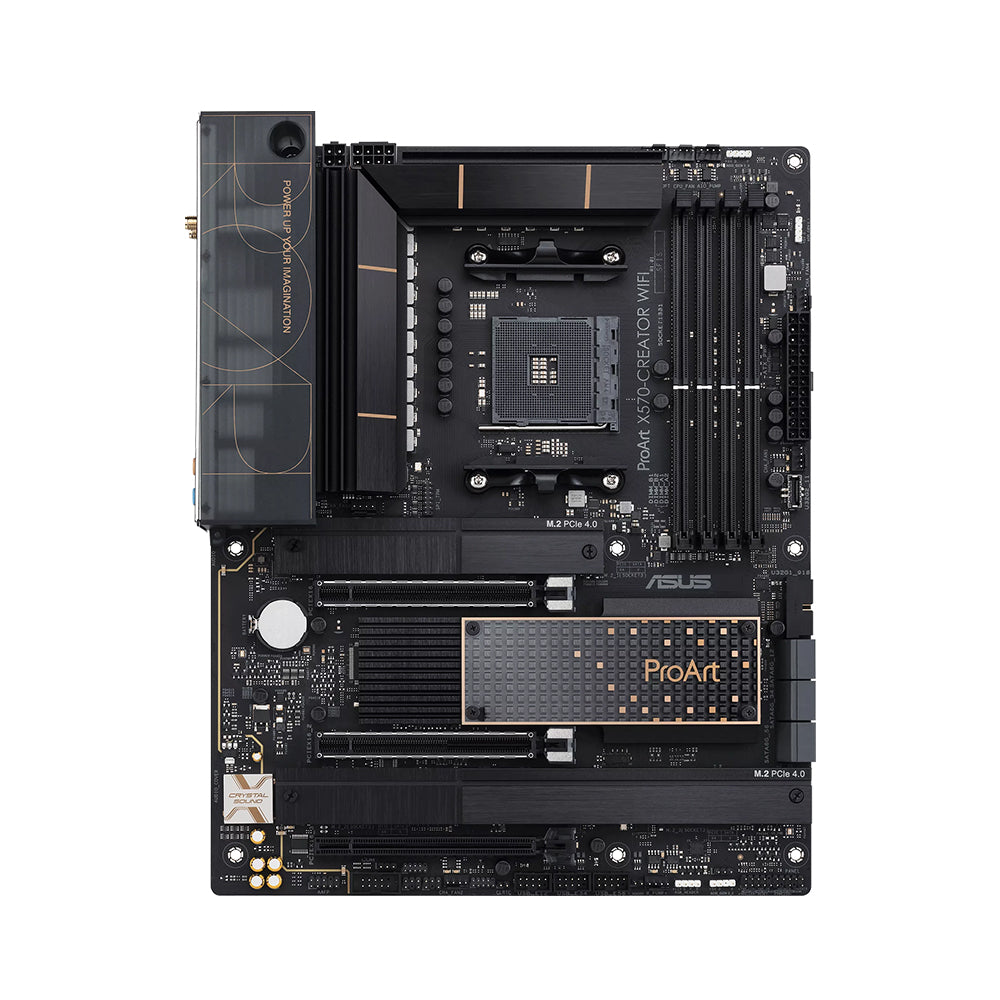

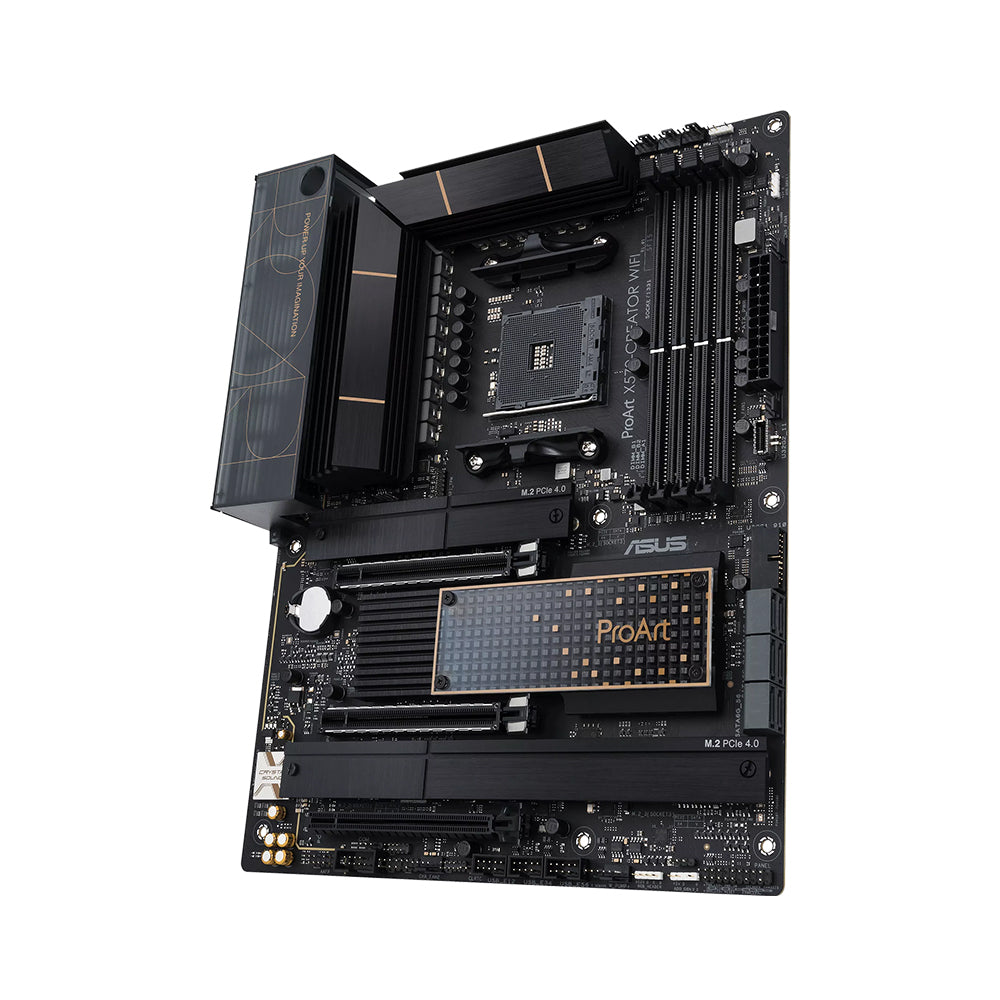

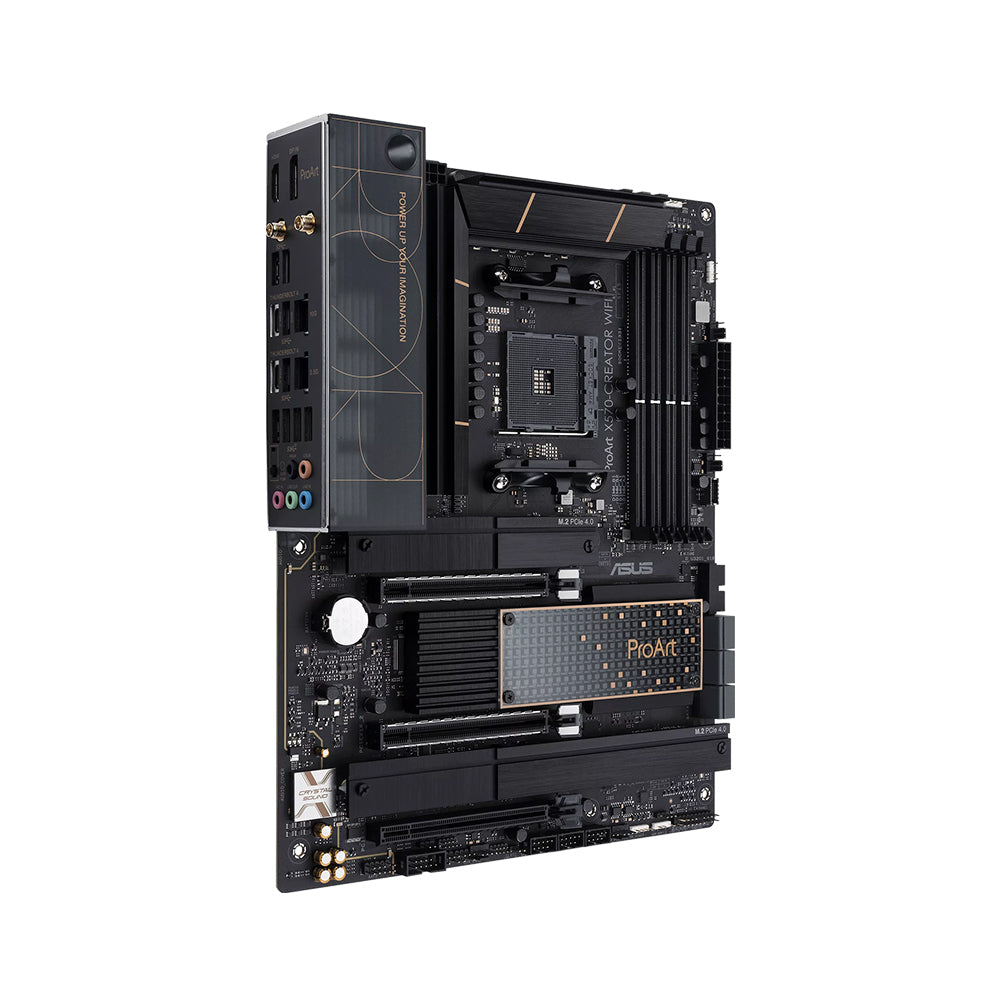

ASUS ProArt X570-CREATOR WIFI Motherboard - AM4, AMD X570, DDR4, PCIe 4.0, Dual Thunderbolt 4

The ASUS ProArt X570-CREATOR WIFI motherboard is specifically designed for content creators and professionals seeking high performance and extensive connectivity options. Built on the AMD X570 chipset, this ATX motherboard supports the latest AMD Ryzen™ processors and offers a robust set of features tailored for demanding tasks such as 3D rendering, video editing, and software development.

Key Features:

• Socket Type: AM4
• Chipset: AMD X570
• Form Factor: ATX (12 x 9.6 inches / 30.5 x 24.4 cm)

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 128GB
• Supported Memory Types: DDR4 (2133/2400/2666/2800/2933/3000/3200 MHz, with overclocking support up to 4800 MHz)

Expansion Slots:

• 3 x PCIe 4.0 x16 slots for high-performance graphics cards and expansion cards.

Storage Options:

• M.2 Slots:
  • 3 x M.2 sockets (supporting PCIe 4.0 x4 and SATA modes)
• SATA Ports: 6 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, and 10).

Networking:

• LAN Controllers:
  • Dual Ethernet ports: 1 x Marvell® AQtion AQC113C (10Gb) and 1 x Intel® I225-V (2.5Gb).
• Wi-Fi: Integrated Wi-Fi 6E for high-speed wireless connectivity.

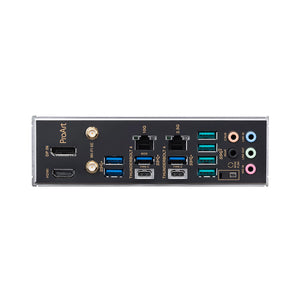

USB Connectivity:

• Rear USB Ports:
  • Dual Thunderbolt™ 4 Type-C ports
  • Multiple USB 3.2 Gen 2 ports (including Type-C) for fast data transfer.

Audio Features:

• Audio Codec: Realtek ALC4080 supporting up to 7.1-channel audio with premium capacitors for enhanced sound quality.

Additional Features:

• Robust Power Delivery:
  • Features a 14+2 power stage design with ProCool II power connector for stable power delivery.
• Comprehensive Thermal Design:
  • Massive VRM heatsink, passive chipset heatsink, and M.2 aluminum heatsinks ensure optimal cooling.
• Advanced Security Features:
  • USB port management, software blacklisting, and Regedit on/off controls via ASUS Control Center Express.
