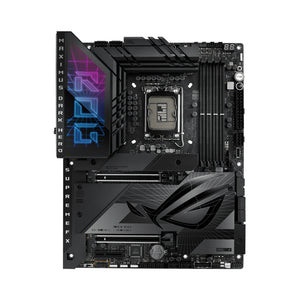

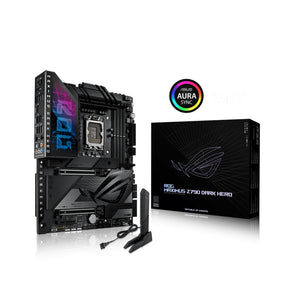

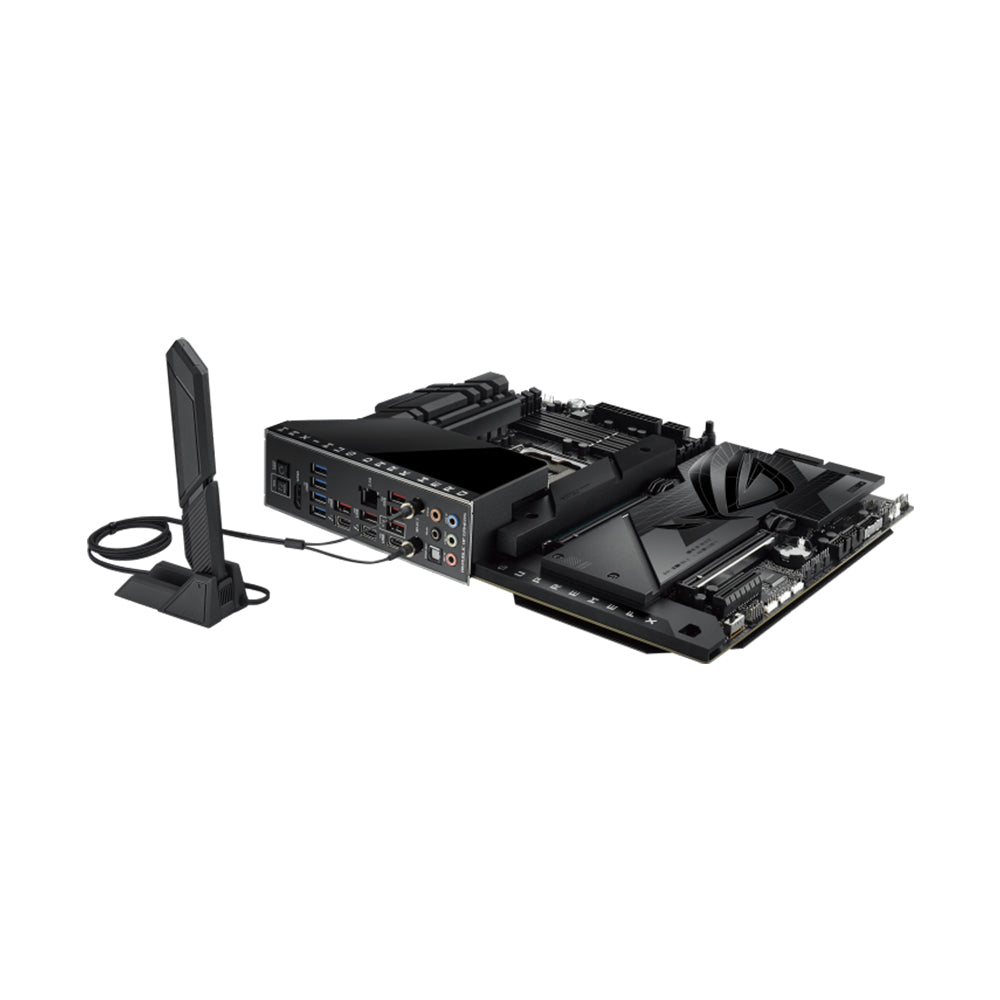

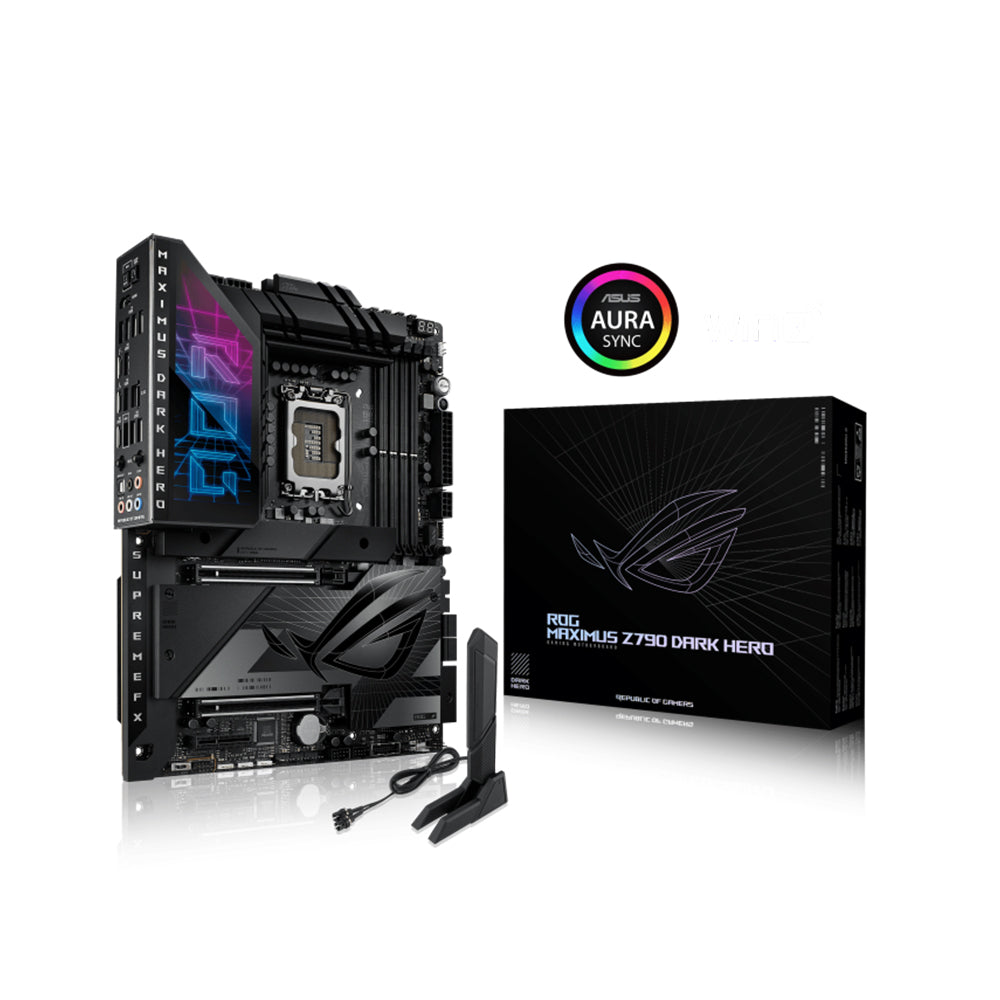

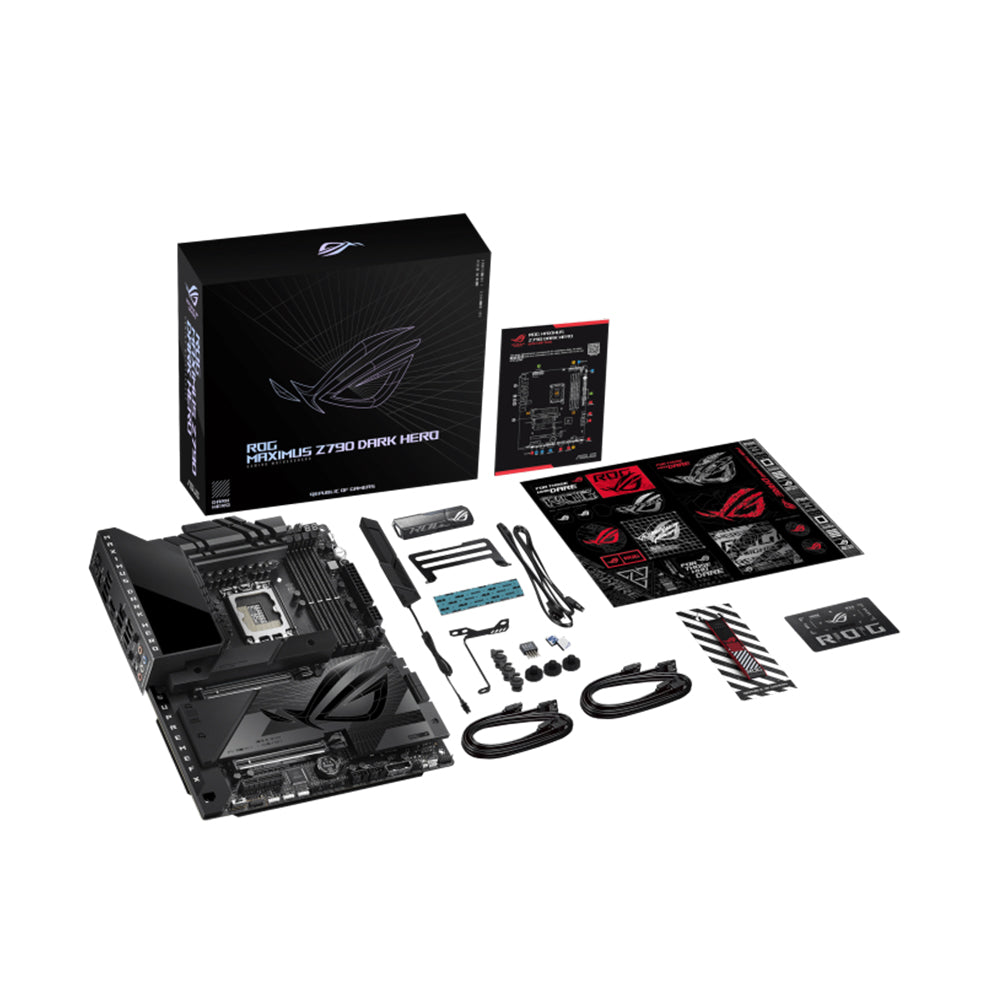

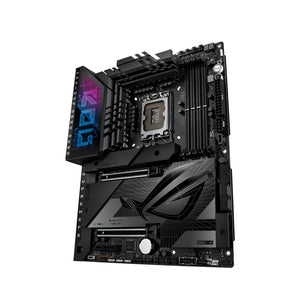

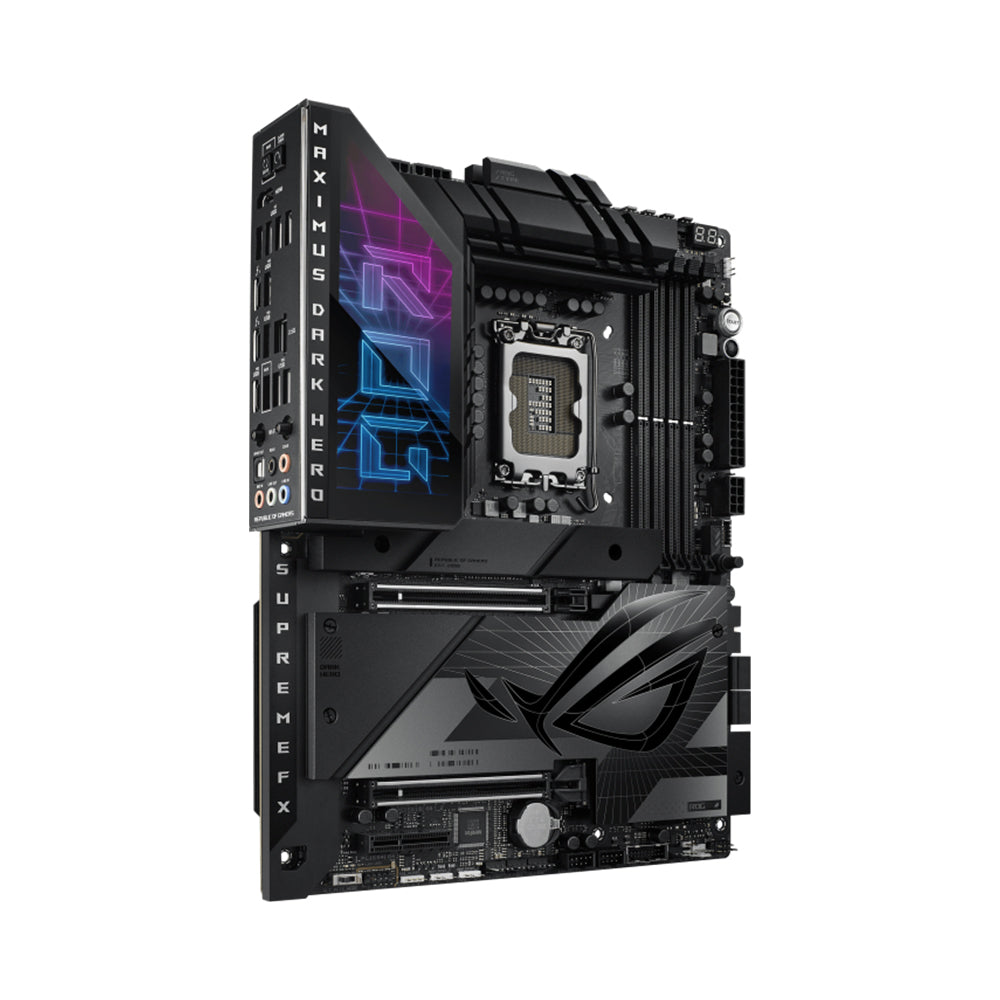

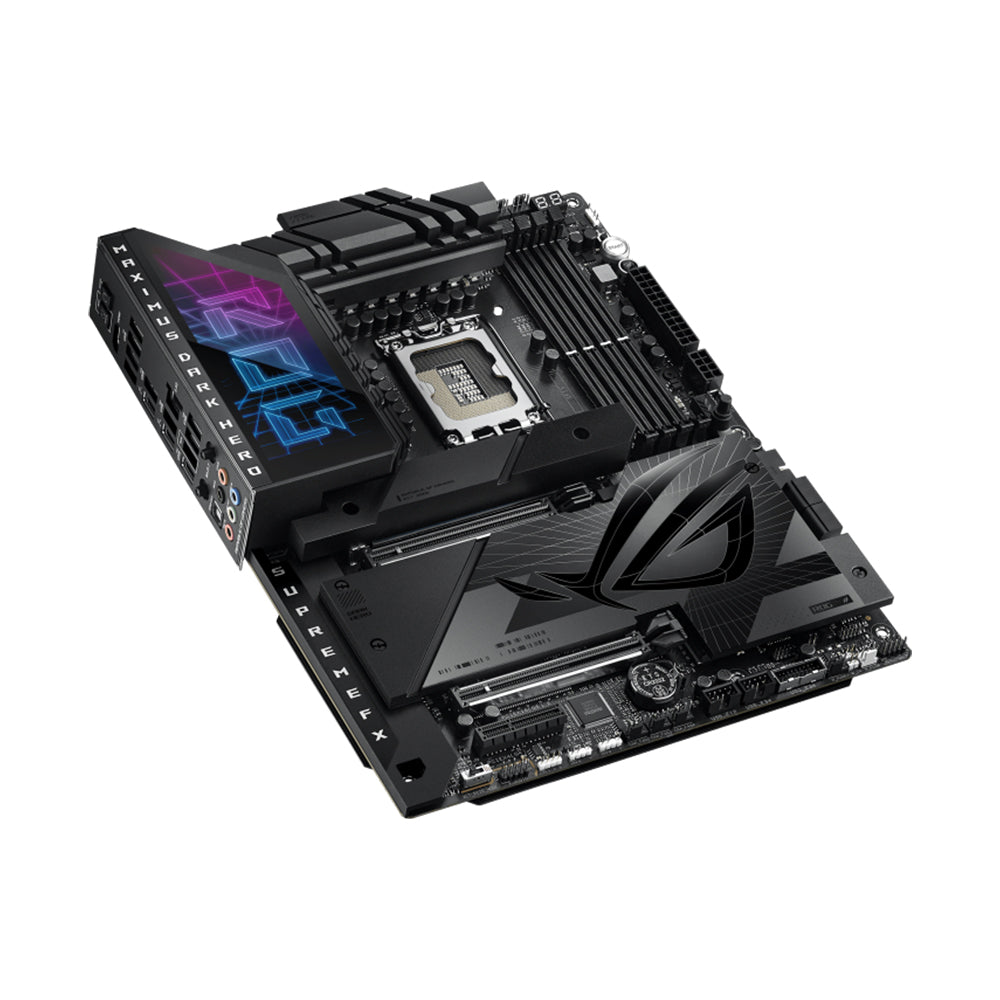

ASUS ROG Maximus Z790 Dark Hero Motherboard - LGA 1700, Intel Z790, DDR5, PCIe 5.0, Wi-Fi 7

The ASUS ROG Maximus Z790 Dark Hero motherboard is a premium ATX solution designed for gamers and enthusiasts utilizing Intel's latest processors. Built on the Intel Z790 chipset, this motherboard supports 12th, 13th, and upcoming 14th Generation Intel Core processors, offering cutting-edge performance and extensive connectivity options.

Key Features:

• Socket Type: LGA 1700
• Chipset: Intel® Z790
• Form Factor: ATX (30.5 x 24.4 cm)

CPU Support:

• Compatible with Intel® 12th, 13th, and 14th Generation Core™, Pentium Gold, and Celeron processors.
• Supports Intel® Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 192GB
• Supported Memory Types: DDR5 (up to 8000 MHz overclocked)
• Memory Architecture: Dual Channel with support for ASUS Enhanced Memory Profile II (AEMP II).

Expansion Slots:

• 2 x PCIe 5.0 x16 slots (configurable to x16 or x8/x8 modes).
• 1 x PCIe 4.0 x4 slot for additional expansion cards.

Storage Options:

• M.2 Slots:
  • 5 x M.2 sockets (1 supporting PCIe 5.0 and up to 128 Gbps).
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports with RAID support (RAID 0/1/5/10).

Networking:

• LAN Controller: Integrated dual Ethernet with a 2.5 GbE port for high-speed wired connectivity.
• Wi-Fi: Integrated Wi-Fi 7 (802.11be) for enhanced wireless performance.
• Bluetooth: Bluetooth 5.4 support for wireless peripherals.

USB Connectivity:

• Multiple USB ports including:
  • 2 x USB 3.2 Gen 2x2 Type-C ports (20 Gbps).
  • Several USB Type-A ports supporting various speeds.

Audio Features:

• Audio Codec: Realtek ALC4082 with ESS® ES9218 Quad DAC for high-fidelity audio output supporting up to 7.1 channels.

Additional Features:

• Robust Power Delivery: Equipped with a sophisticated power design featuring a total of 20+1 power stages to ensure stable performance during overclocking.
• Advanced Cooling Solutions: Includes multiple heatsinks and fan headers for optimal thermal management.
• Customizable RGB Lighting: Aura Sync RGB lighting integrated into the design for personalized aesthetics.
• Enhanced Overclocking Tools: AI Overclocking and AI Cooling II features for intelligent performance tuning.
