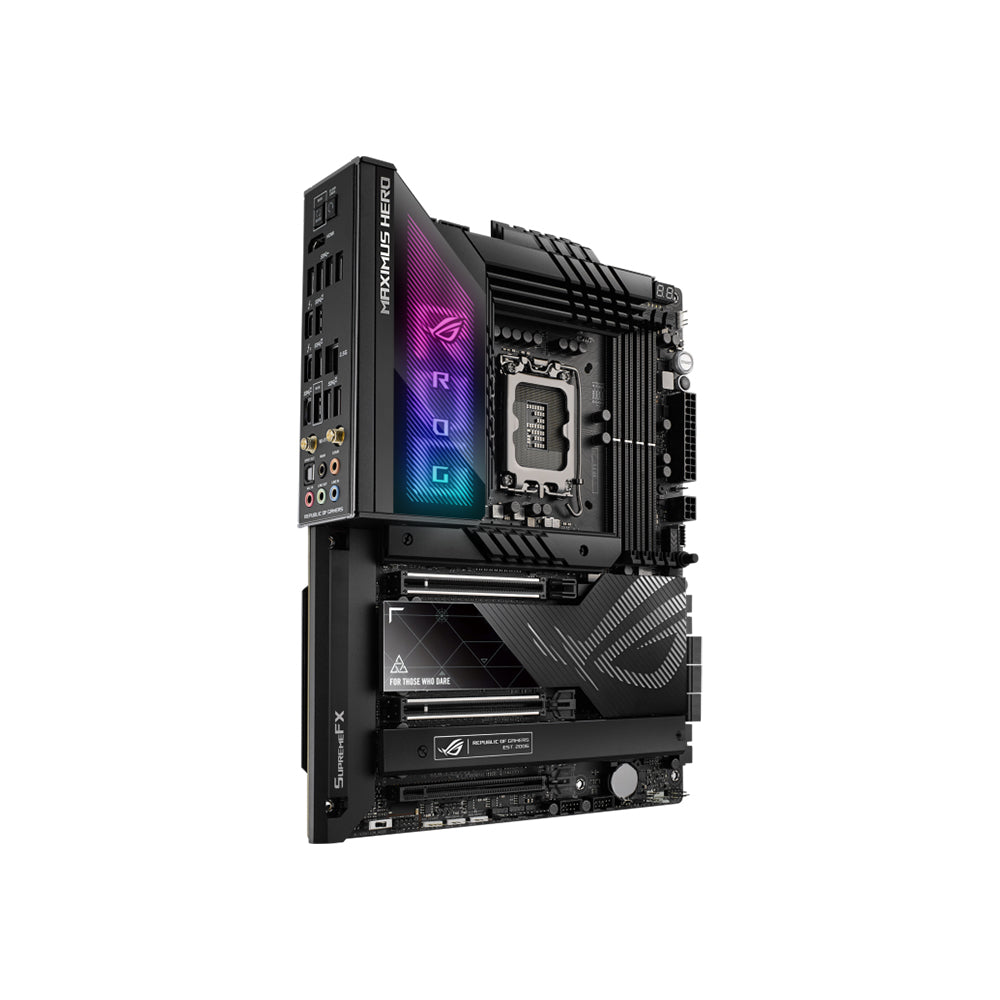

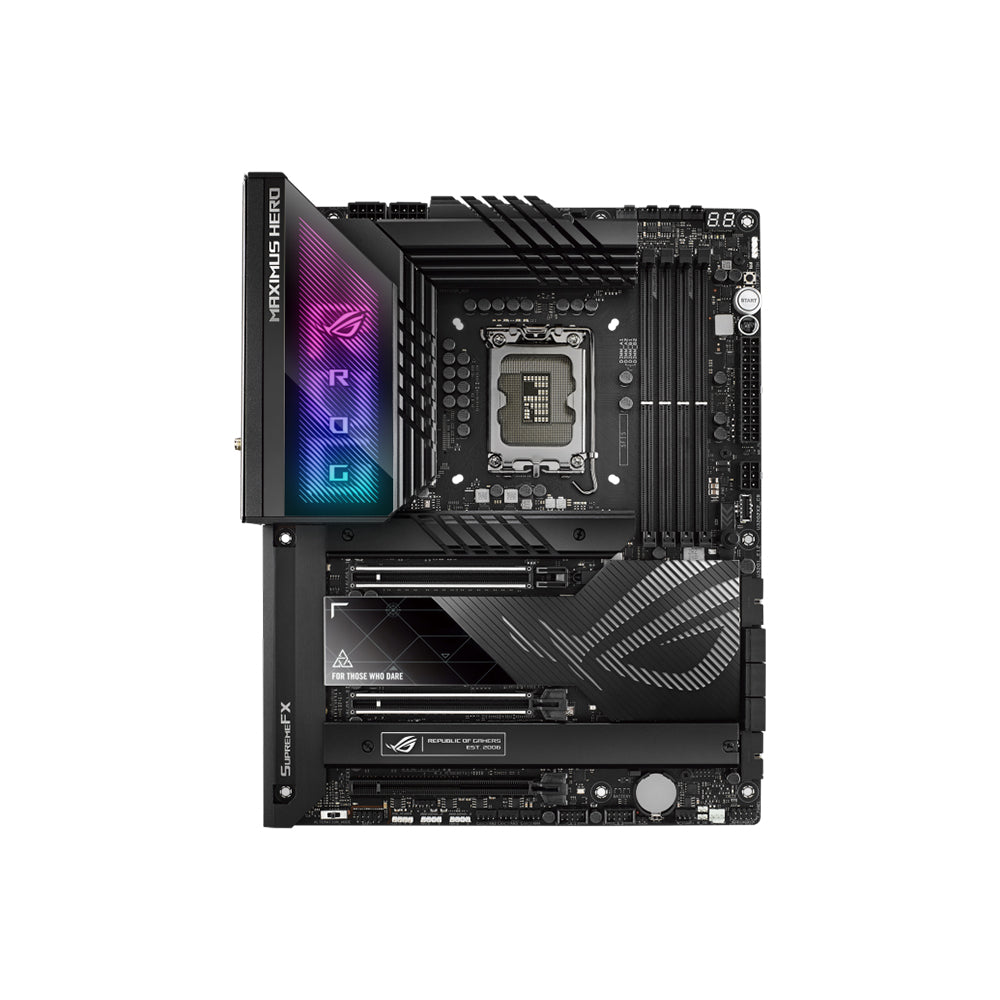

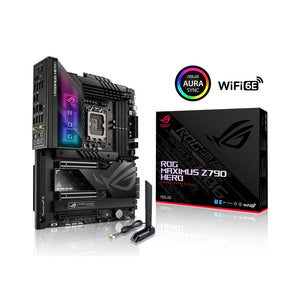

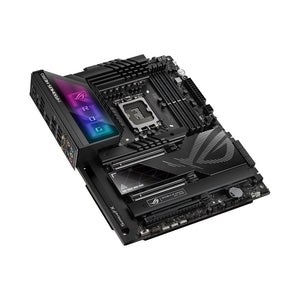

ASUS ROG Maximus Z790 Hero Motherboard - LGA 1700, Intel Z790, DDR5, PCIe 5.0, Wi-Fi 6E

The ASUS ROG Maximus Z790 Hero motherboard is engineered for high-performance gaming and content creation, supporting Intel's 12th and 13th Generation processors. Built on the Intel Z790 chipset, this ATX motherboard combines cutting-edge technology with robust features to deliver exceptional performance and connectivity.

Key Features:

• Socket Type: LGA 1700
• Chipset: Intel® Z790
• Form Factor: ATX (30.5 x 24.4 cm)

CPU Support:

• Compatible with Intel® 12th and 13th Generation Core™, Pentium Gold, and Celeron processors.
• Supports Intel® Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 128GB
• Supported Memory Types: DDR5 (up to 7000 MHz overclocked)
• Memory Architecture: Dual Channel with support for ASUS Enhanced Memory Profile (AEMP II).

Expansion Slots:

• 2 x PCIe 5.0 x16 slots (configurable to x16 or x8/x8 modes).
• 1 x PCIe 4.0 x16 slot (operating at x4 mode).

Storage Options:

• M.2 Slots:
  • 5 x M.2 sockets (1 supporting PCIe 5.0, others supporting PCIe 4.0).
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports with RAID support.

Networking:

• LAN Controller: Integrated Intel® 2.5Gb Ethernet for high-speed wired connectivity.
• Wi-Fi: Integrated Wi-Fi 6E (802.11ax) for enhanced wireless performance.
• Bluetooth: Bluetooth 5.2 support for wireless peripherals.

USB Connectivity:

• Multiple USB ports including:
  • 1 x USB 3.2 Gen 2x2 Type-C port.
  • Several USB Type-A ports supporting various speeds.

Audio Features:

• Audio Codec: Realtek ALC4082 with high-fidelity audio output supporting up to 7.1 channels.

Additional Features:

• Robust Power Delivery: Features a comprehensive power design with high-quality components for stable performance during overclocking.
• Advanced Cooling Solutions: Includes multiple heatsinks and fan headers for optimal thermal management.
• Customizable RGB Lighting: Aura Sync RGB lighting with multiple headers for personalized aesthetics.
• Enhanced Overclocking Tools: AI Overclocking and AI Cooling features for intelligent performance tuning.
