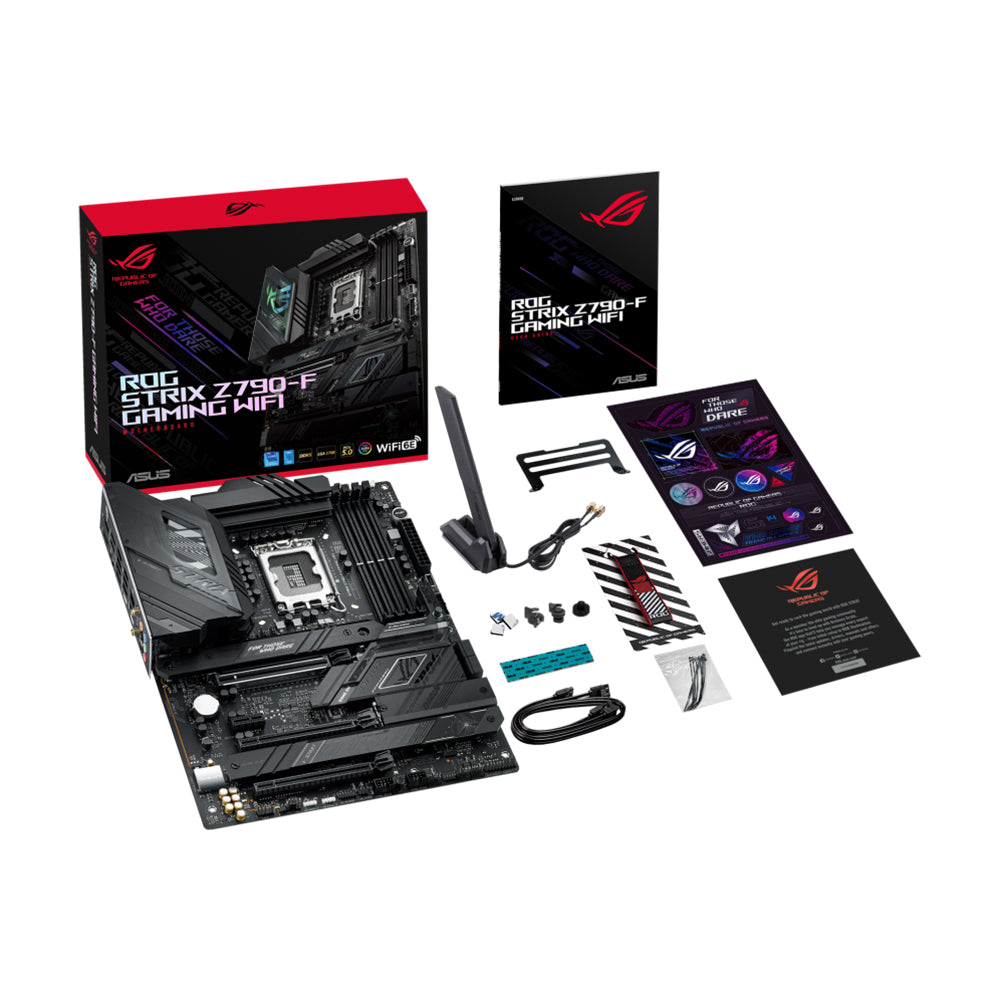

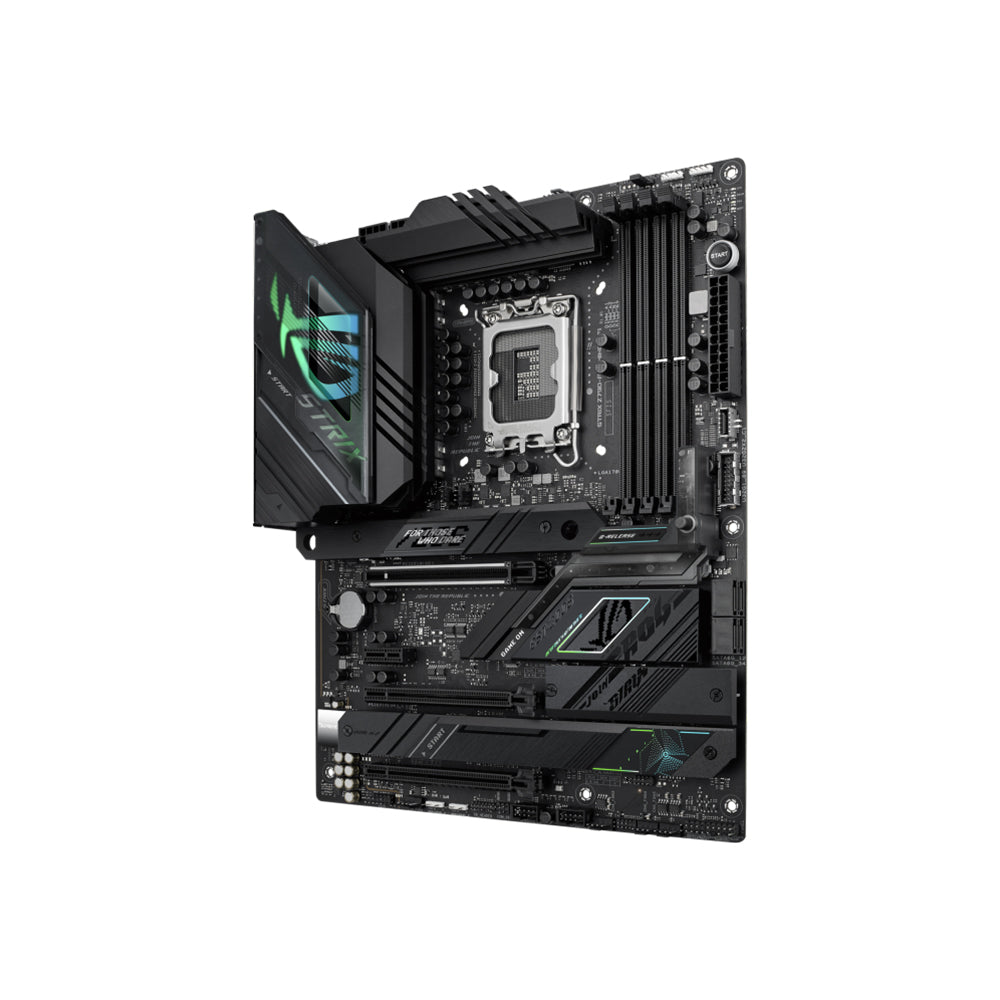

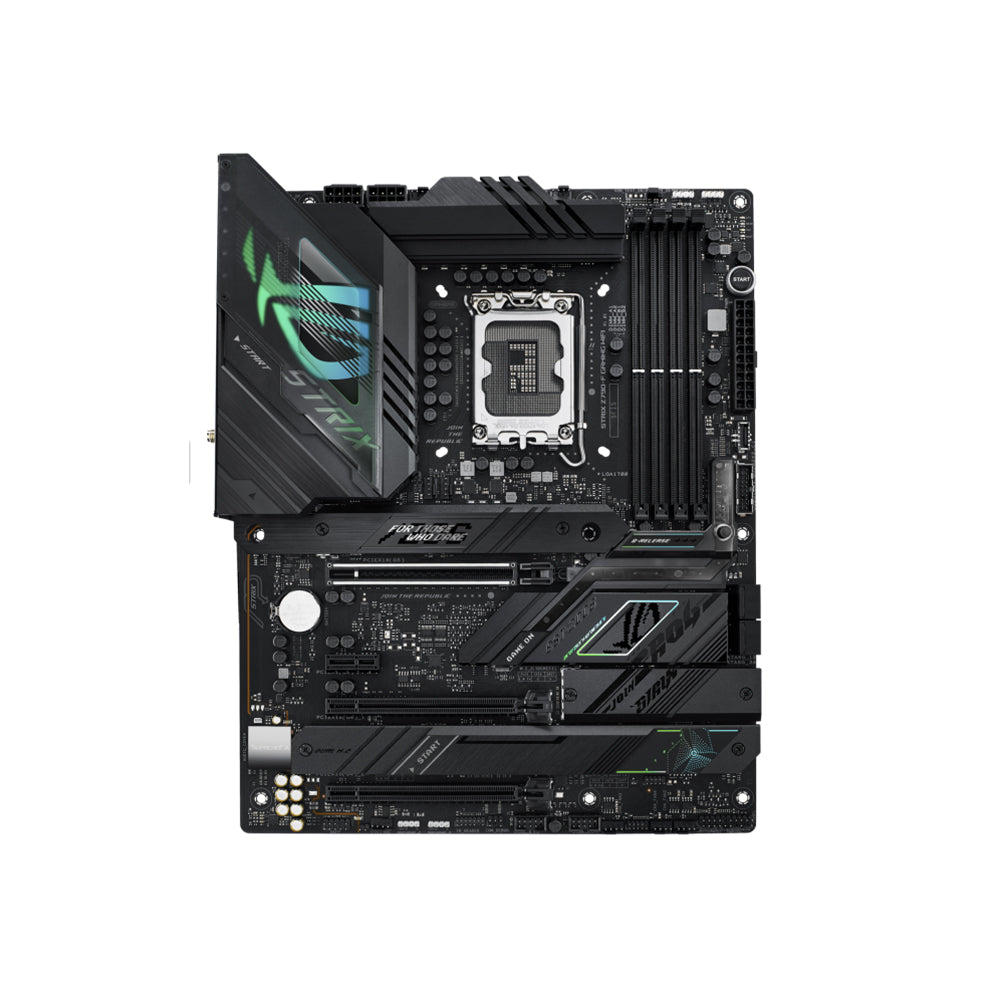

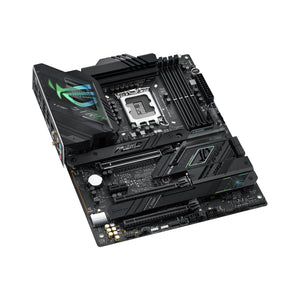

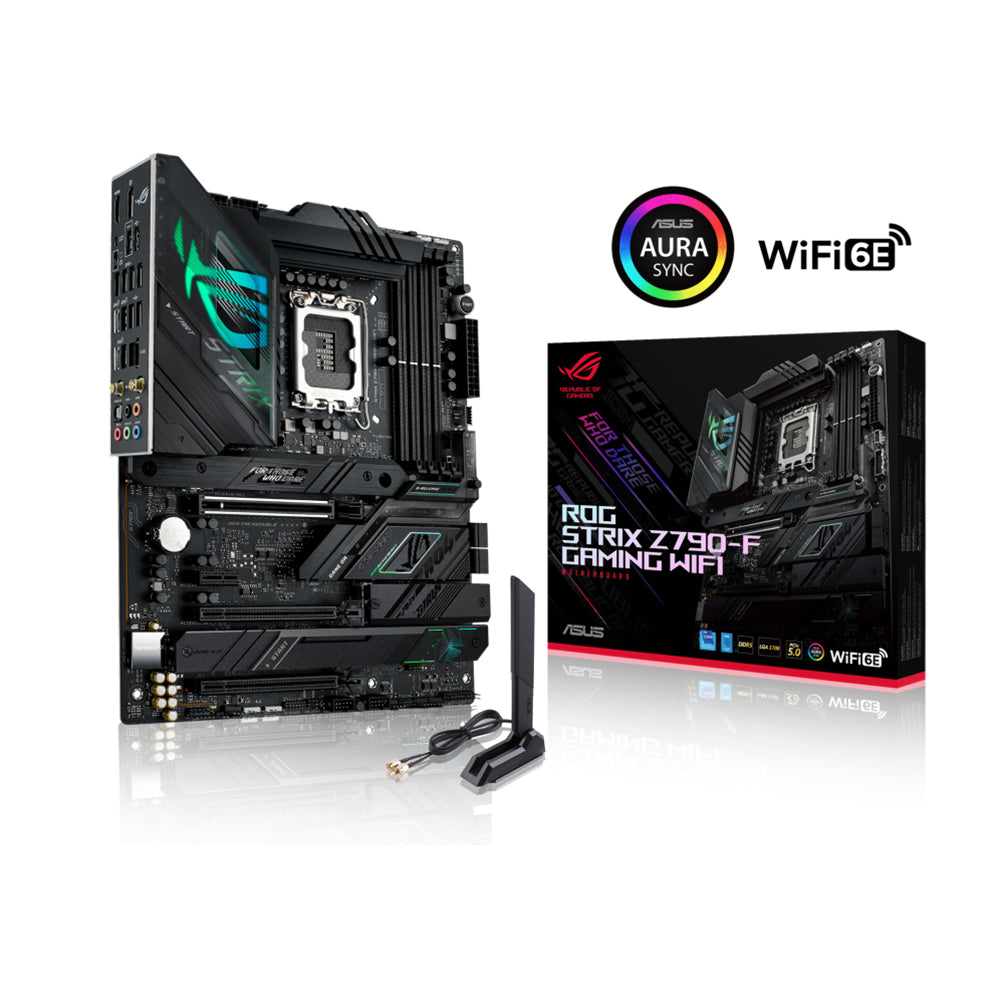

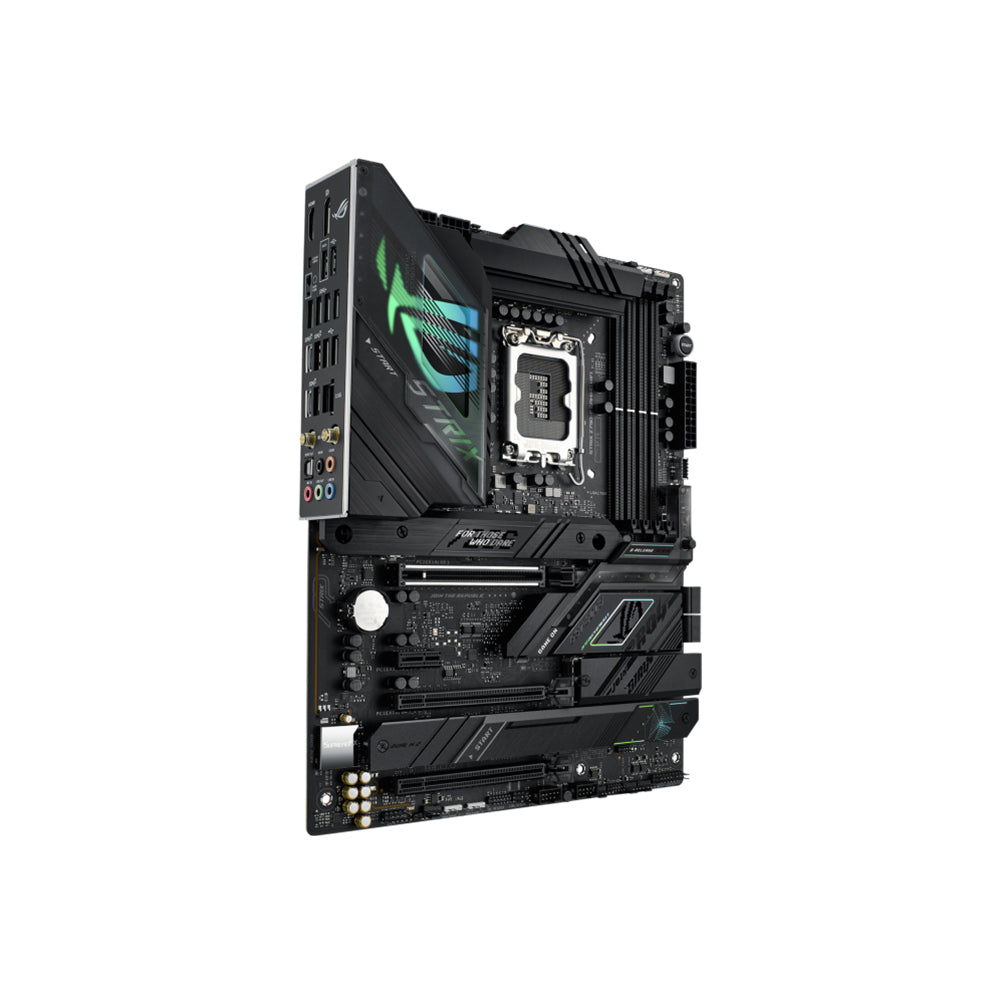

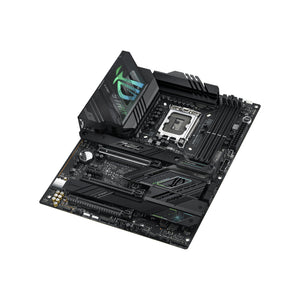

ASUS ROG Strix Z790-F Gaming WiFi Motherboard - LGA 1700, Intel Z790, DDR5, PCIe 5.0, Wi-Fi 6E

The ASUS ROG Strix Z790-F Gaming WiFi motherboard is designed for gamers and enthusiasts looking to build a high-performance system with Intel's latest processors. Built on the Intel Z790 chipset, this ATX motherboard supports both 12th and 13th Generation Intel Core processors and offers a range of advanced features to enhance gaming and multitasking capabilities.

Key Features:

• Socket Type: LGA 1700
• Chipset: Intel® Z790
• Form Factor: ATX (30.5 x 24.4 cm)

CPU Support:

• Compatible with Intel® 12th and 13th Generation Core™, Pentium Gold, and Celeron processors.
• Supports Intel® Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 128GB
• Supported Memory Types: DDR5 (up to 7200 MHz overclocked)
• Memory Architecture: Dual Channel with support for ASUS Enhanced Memory Profile II (AEMP II) for optimized performance.

Expansion Slots:

• 1 x PCIe 5.0 x16 slot for high-performance graphics cards.
• 2 x PCIe 4.0 x16 slots (operating at x4 mode).
• 1 x PCIe 3.0 x1 slot for additional expansion cards.

Storage Options:

• M.2 Slots:
  • 4 x M.2 sockets supporting PCIe 4.0 and SATA modes.
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports with RAID support.

Networking:

• LAN Controller: Integrated Intel® 2.5Gb Ethernet for high-speed wired connectivity.

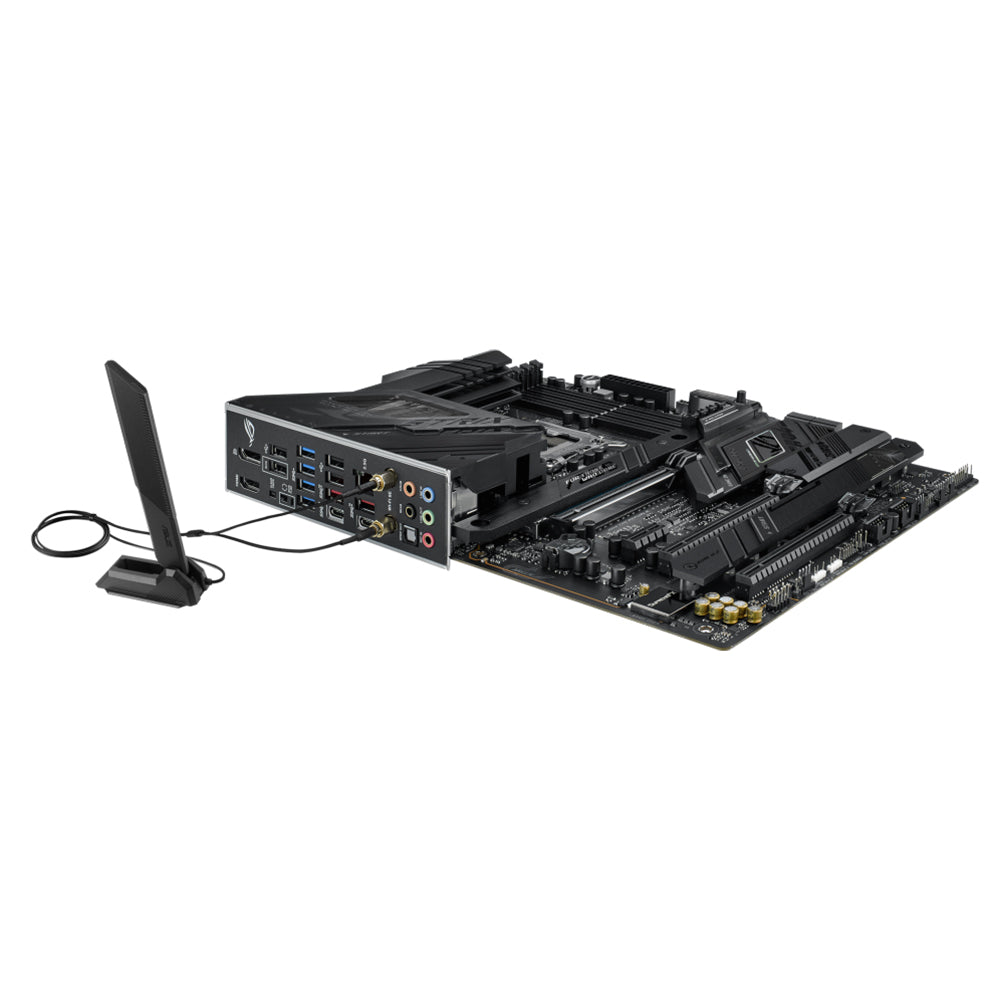

• Wi-Fi: Integrated Wi-Fi 6E (802.11ax) for enhanced wireless performance with support for the newly available spectrum in the 6 GHz band.
• Bluetooth: Bluetooth 5.2 support for wireless peripherals.

USB Connectivity:

• Multiple USB ports including:
  • Two USB 3.2 Gen 2x2 Type-C ports for fast data transfers up to 20 Gbps.

Audio Features:

• Audio Codec: Realtek ALC4080 with Savitech SV3H712 amplifier, supporting immersive audio experiences.

Additional Features:

• AI Overclocking: Automatically profiles the CPU and cooling to predict optimal configurations for enhanced performance.
• Comprehensive Cooling Solutions: Includes multiple heatsinks and fan headers to ensure optimal thermal management.
• Customizable RGB Lighting: Aura Sync RGB lighting with headers for personalized aesthetics.
• User-Friendly Design: Features like Q-Latch for M.2 slots, Q-Release for PCIe slots, and an easy-to-use UEFI BIOS enhance the DIY experience.
