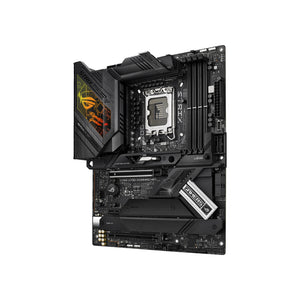

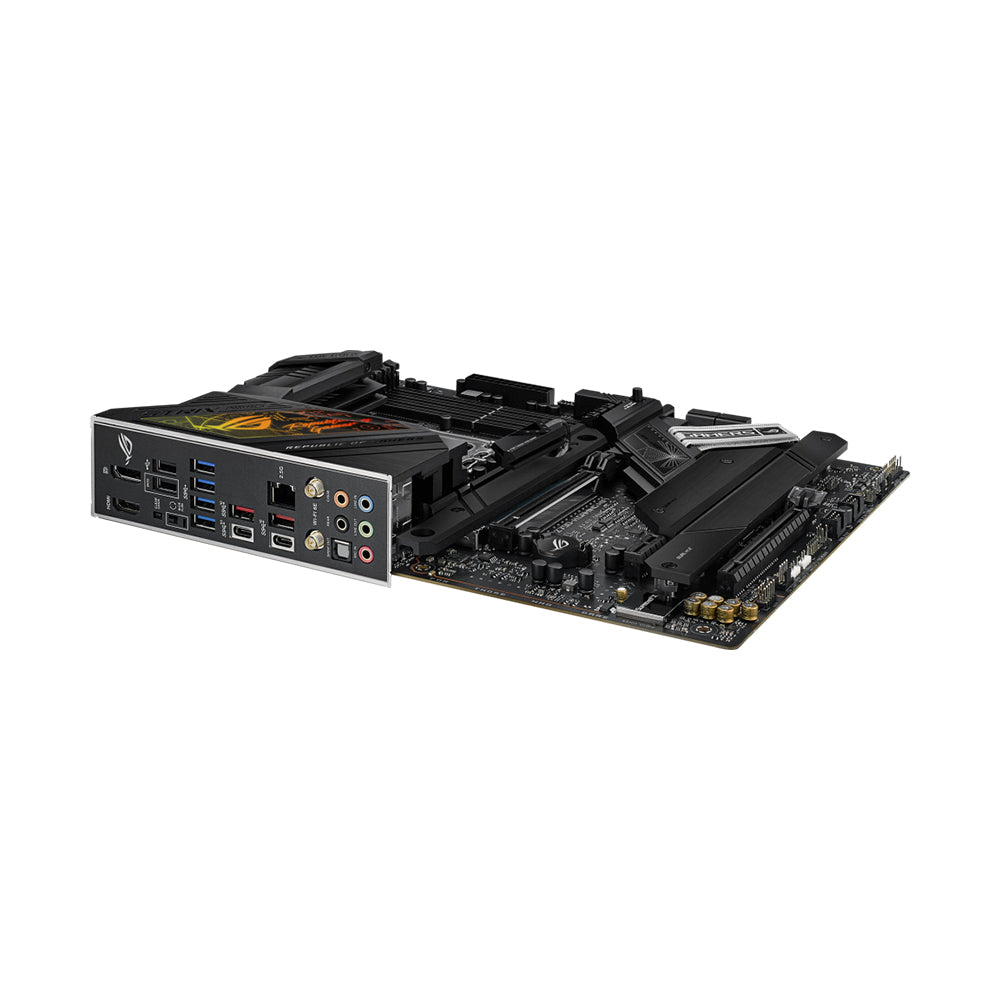

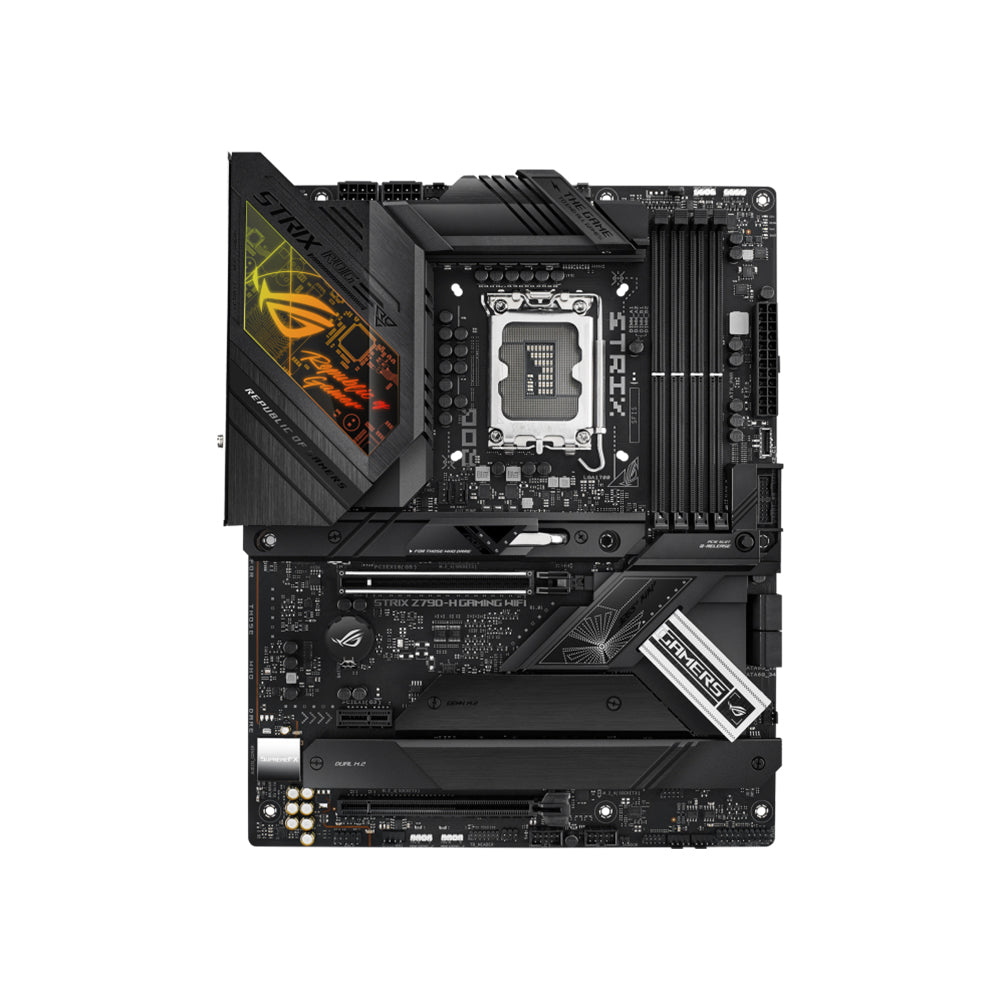

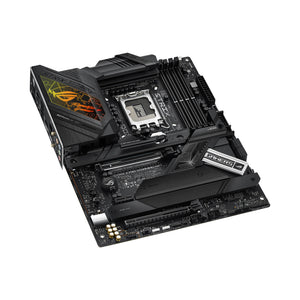

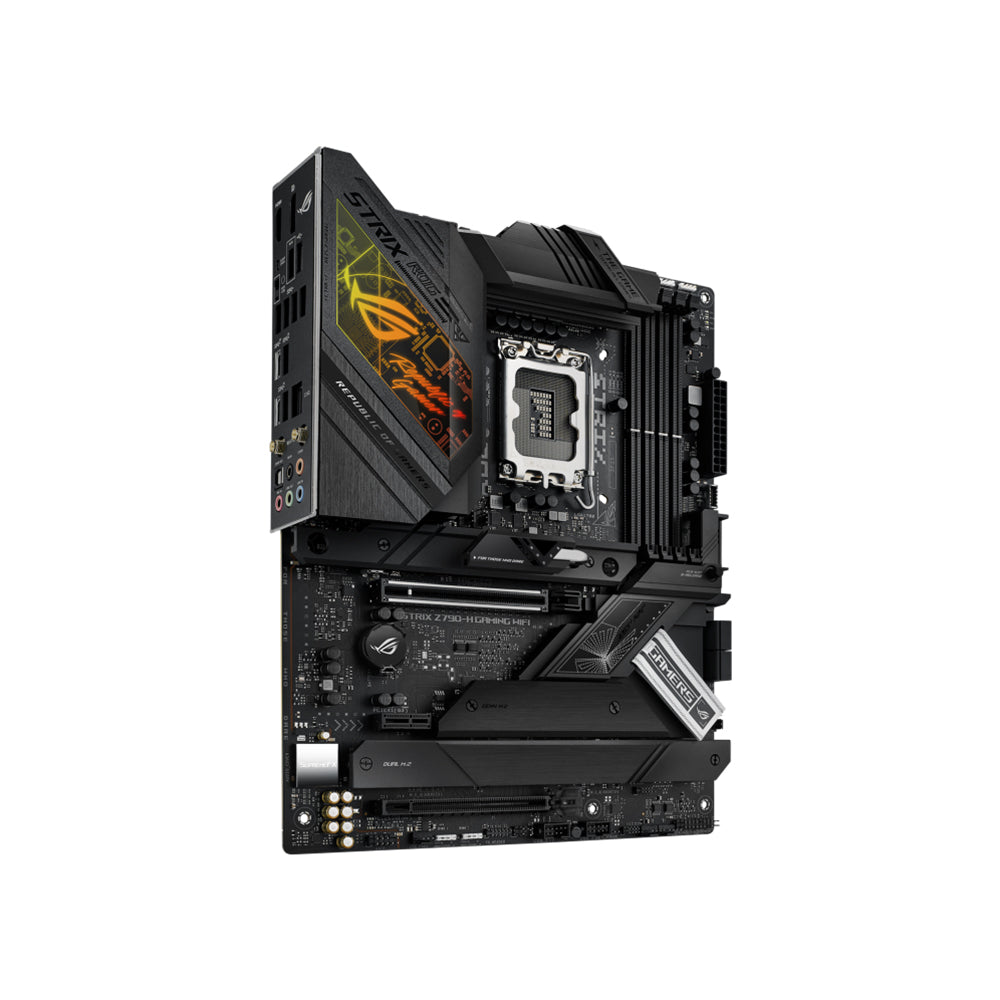

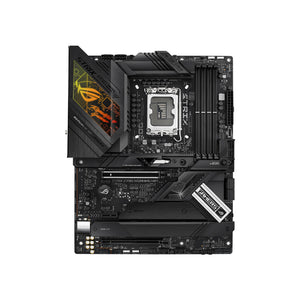

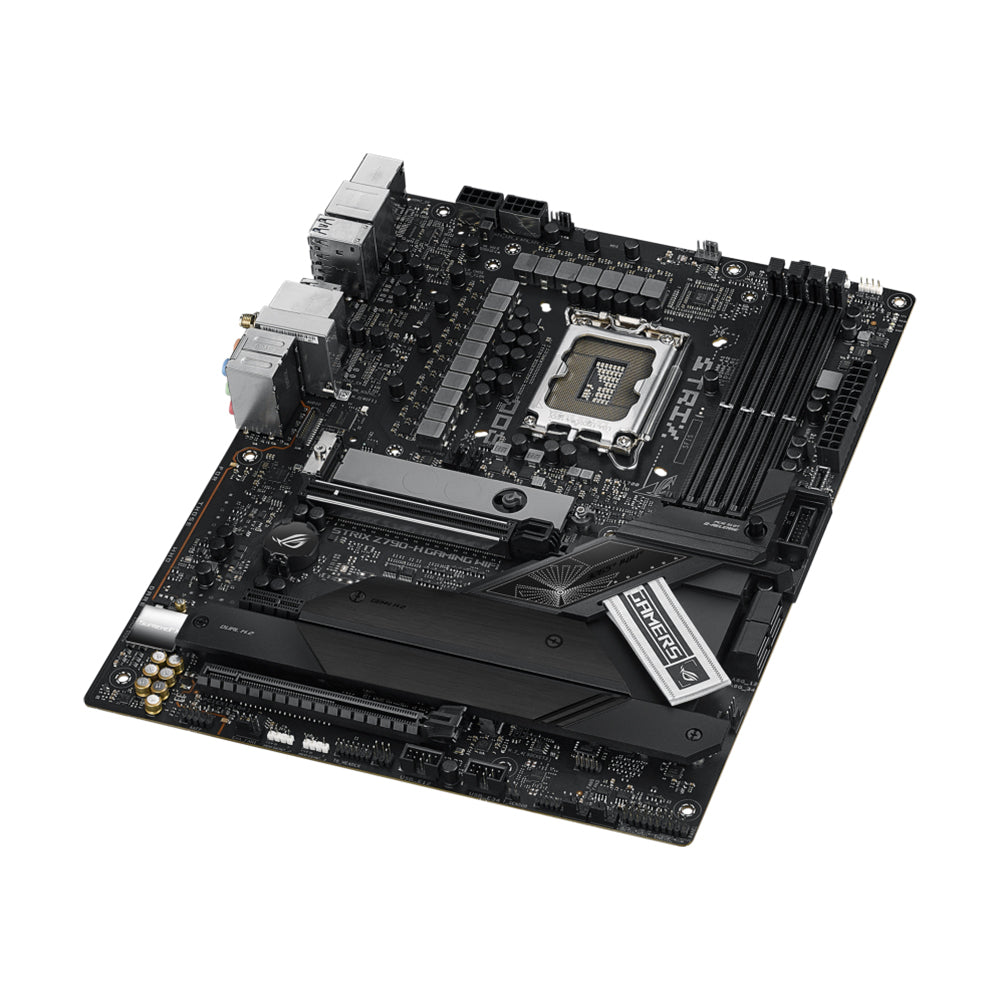

ASUS ROG Strix Z790-H Gaming WiFi Motherboard - LGA 1700, Intel Z790, DDR5, PCIe 5.0, Wi-Fi 6E

The ASUS ROG Strix Z790-H Gaming WiFi motherboard is crafted for gamers and PC enthusiasts who demand high performance and advanced features. Built on the Intel Z790 chipset, this ATX motherboard supports Intel's 12th and 13th Generation processors, offering a robust platform for gaming and content creation.

Key Features:

• Socket Type: LGA 1700
• Chipset: Intel® Z790
• Form Factor: ATX (30.5 x 24.4 cm)

CPU Support:

• Compatible with Intel® 12th and 13th Generation Core™, Pentium Gold, and Celeron processors.
• Supports Intel® Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 192GB
• Supported Memory Types: DDR5 (up to 7800 MHz overclocked)
• Memory Architecture: Dual Channel with ASUS Enhanced Memory Profile II (AEMP II) for optimized performance.

Expansion Slots:

• 1 x PCIe 5.0 x16 slot (SafeSlot) for high-performance graphics cards.
• 2 x PCIe 4.0 x16 slots (operating at x4 mode).
• 1 x PCIe 3.0 x1 slot for additional expansion cards.

Storage Options:

• M.2 Slots:
  • 4 x M.2 sockets supporting PCIe and SATA modes, with substantial heatsinks for thermal management.
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports with RAID support.

Networking:

• LAN Controller: Integrated Intel® 2.5Gb Ethernet for high-speed wired connectivity.
• Wi-Fi: Onboard Wi-Fi 6E (802.11ax) providing enhanced wireless performance with access to the newly available spectrum in the 6 GHz band.

USB Connectivity:

• Multiple USB ports including:
  • Two USB 3.2 Gen 2x2 Type-C ports for fast data transfers up to 20 Gbps.

Audio Features:

• Audio Codec: Realtek ALC4080 with high-fidelity audio output supporting immersive audio experiences.

Additional Features:

• AI Overclocking: Automatically profiles the CPU and cooling to predict optimal configurations for enhanced performance.
• Robust Power Delivery: Features a power architecture with a total of 16+1 power stages rated for high current delivery.
• Advanced Cooling Solutions: Includes thick black heatsinks and multiple fan headers for optimal thermal management.
• Customizable RGB Lighting: Aura Sync RGB lighting integrated into the design for personalized aesthetics.
