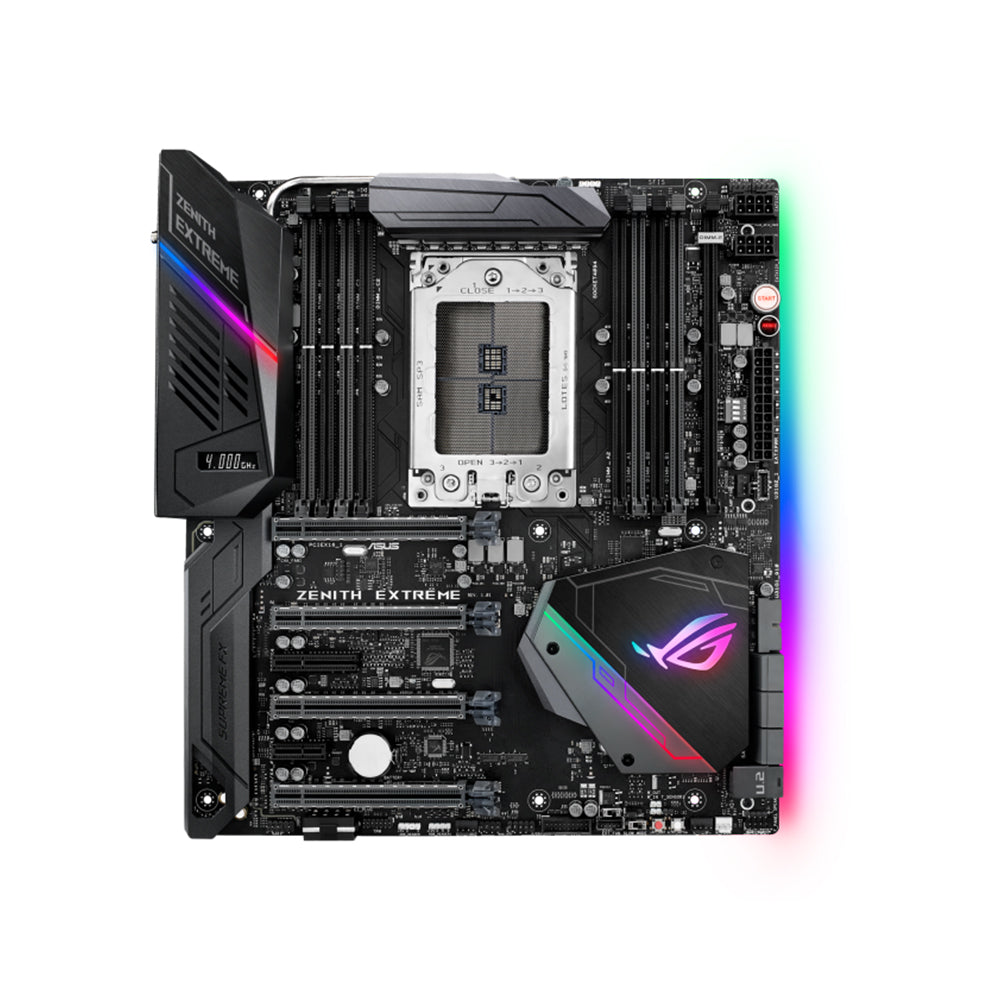

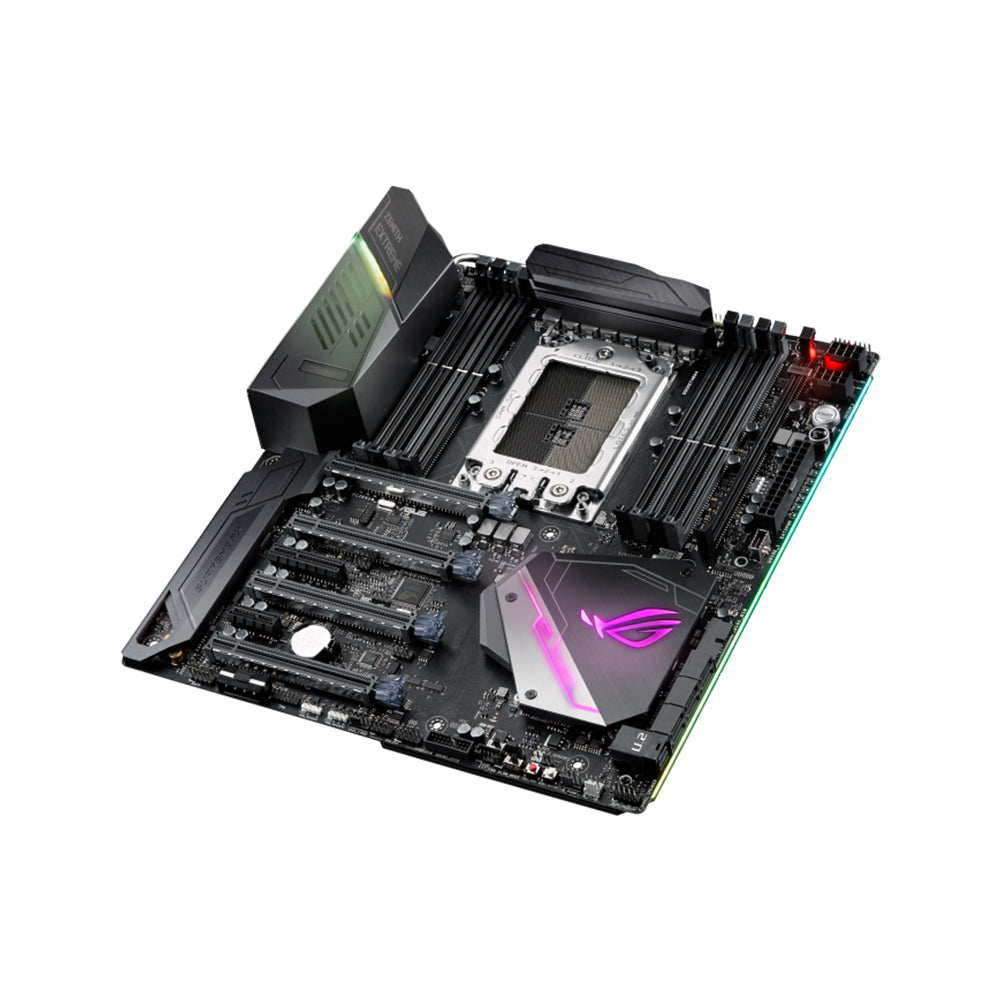

ASUS ROG Zenith Extreme Motherboard - AM4, AMD X399, DDR4, PCIe 3.0, Aura Sync RGB

The ASUS ROG Zenith Extreme motherboard is designed for high-performance computing, specifically tailored for AMD Ryzen™ Threadripper™ processors. Built on the AMD X399 chipset, this E-ATX motherboard supports extensive multi-GPU configurations and offers a robust set of features aimed at gamers and content creators alike.

Key Features:

• Socket Type: Socket TR4
• Chipset: AMD X399
• Form Factor: E-ATX (12 x 10.7 inches / 30.5 x 27.2 cm)

CPU Support:

• Supports up to 16-core AMD Ryzen™ Threadripper™ processors, enabling powerful multi-threaded performance.

Memory Support:

• Slots: 8 x DIMM
• Maximum Capacity: Up to 128GB
• Supported Memory Types: DDR4 (2133/2400/2666/2800/2933/3000/3200 MHz, with overclocking support up to 3600 MHz)
• Quad Channel Memory Architecture for enhanced bandwidth.

Expansion Slots:

• 4 x PCIe 3.0 x16 slots (configurations: x16, x16/x16, x16/x8/x16, x16/x8/x16/x8)
• 1 x PCIe 2.0 x4 slot
• 1 x PCIe 2.0 x1 slot

Storage Options:

• M.2 Slots:
  • 2 x M.2 Socket 3 (supports both SATA and PCIe SSDs)
• SATA Ports:
  • 8 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, and 10).

Networking:

• LAN Controller: Intel® I211-AT Gigabit LAN with ROG GameFirst IV technology.

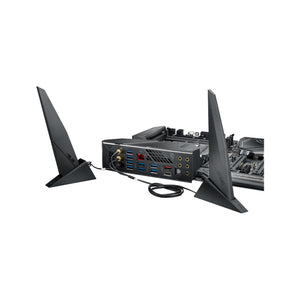

• Wi-Fi: Integrated Wi-Fi with support for high-speed wireless connectivity.

Audio Features:

• Audio Codec: SupremeFX S1220A supporting up to 8-channel high-definition audio.
• DTS Sound Unbound for immersive audio experiences.

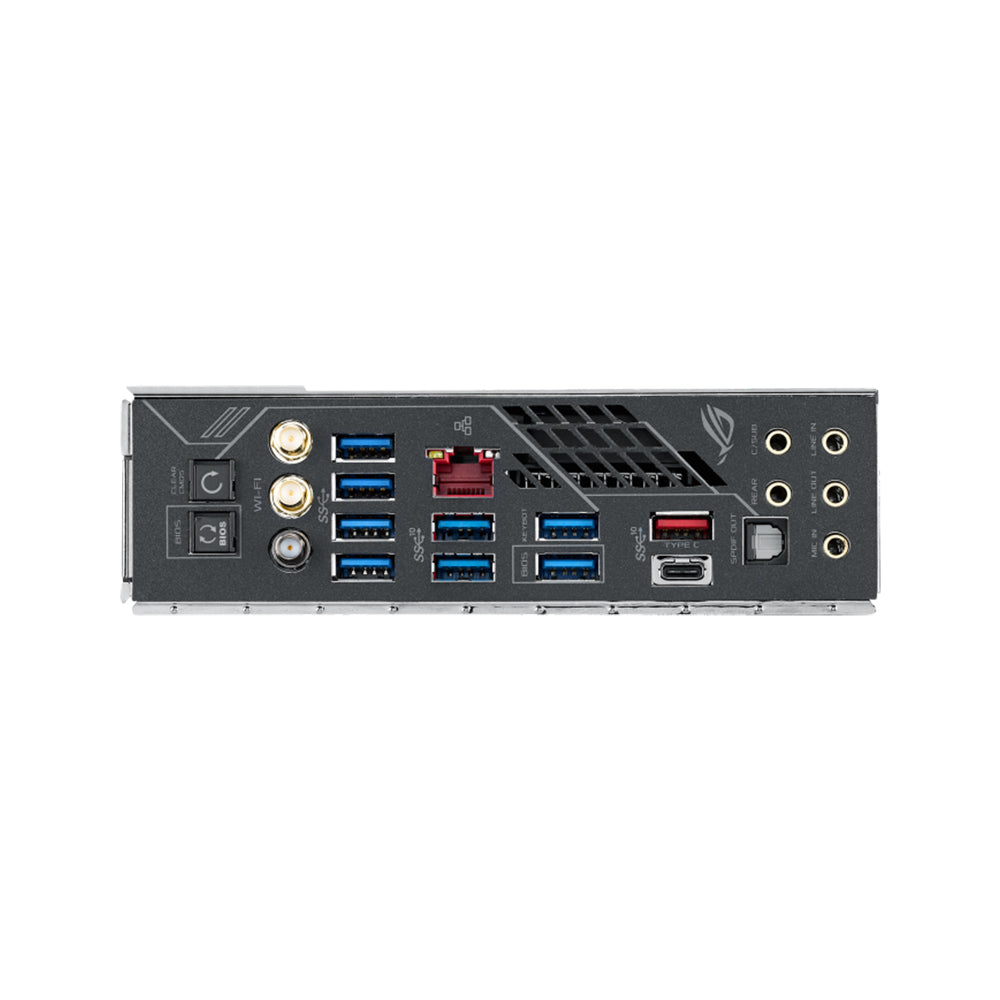

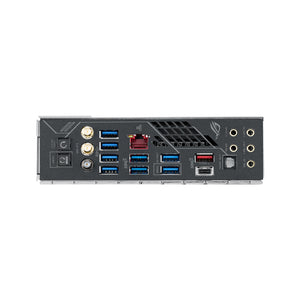

USB Connectivity:

• Multiple USB ports including USB 3.1 Gen 2 Type-C and Type-A for fast data transfer.

Additional Features:

• Aura Sync RGB Lighting for customizable LED effects that can sync with other compatible components.
• ROG Exclusive Features such as EZ Plug, DirectKey, and KeyBot II for enhanced usability.
• Comprehensive cooling solutions with dedicated heatsinks for M.2 slots and advanced fan control options.
