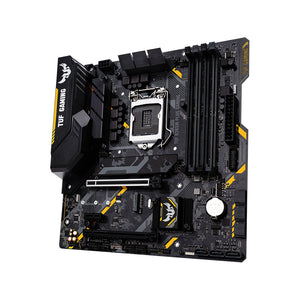

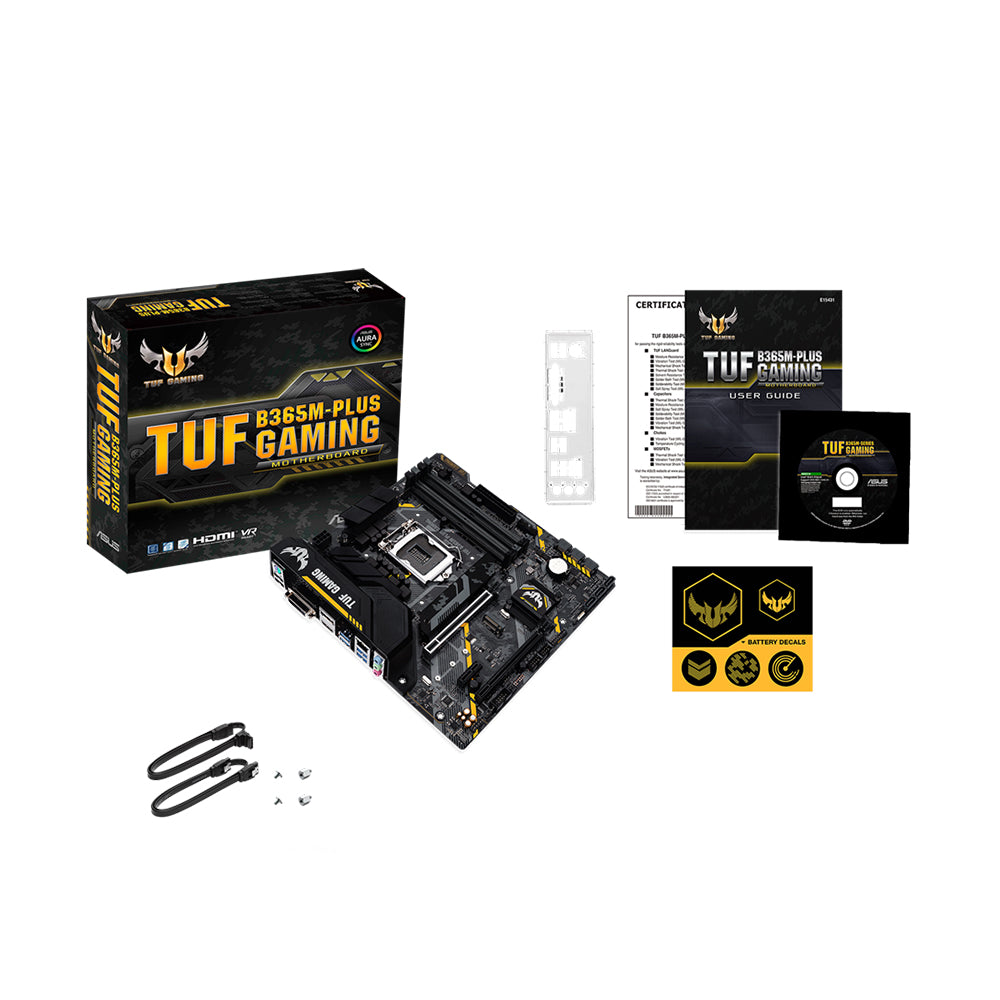

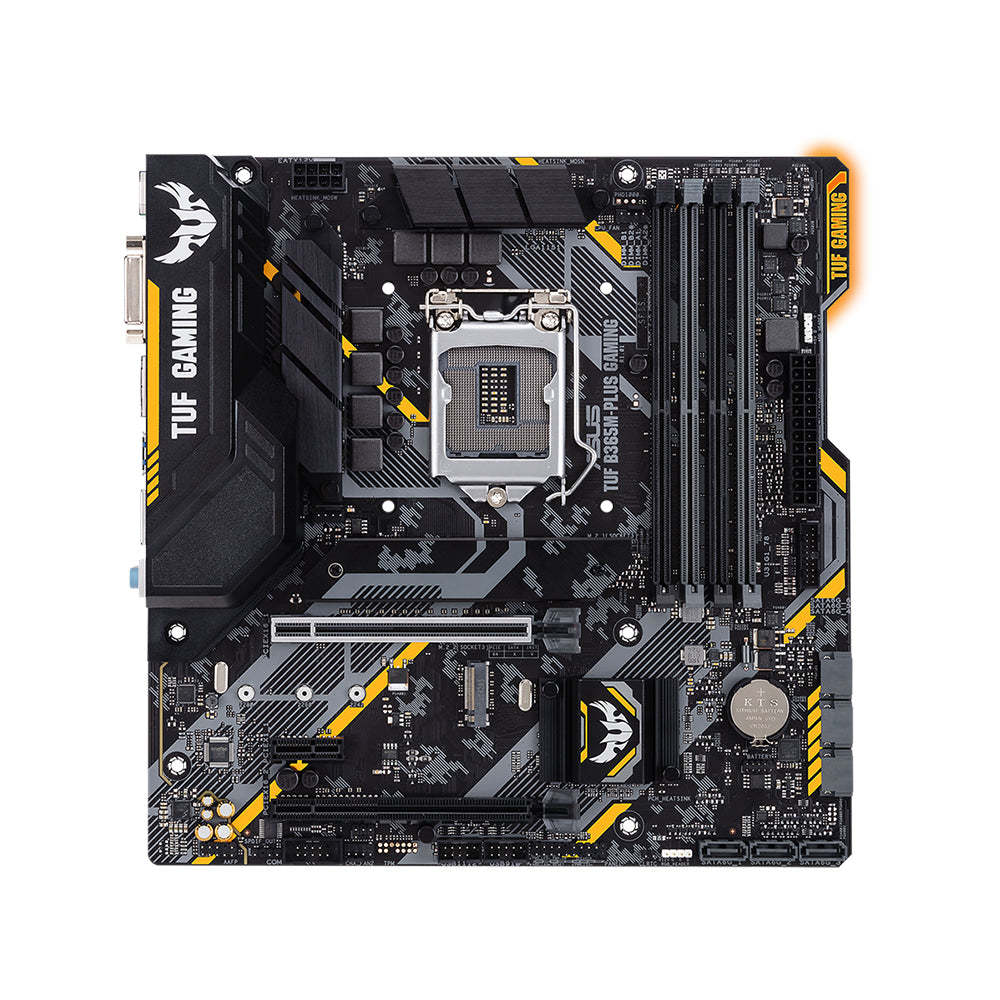

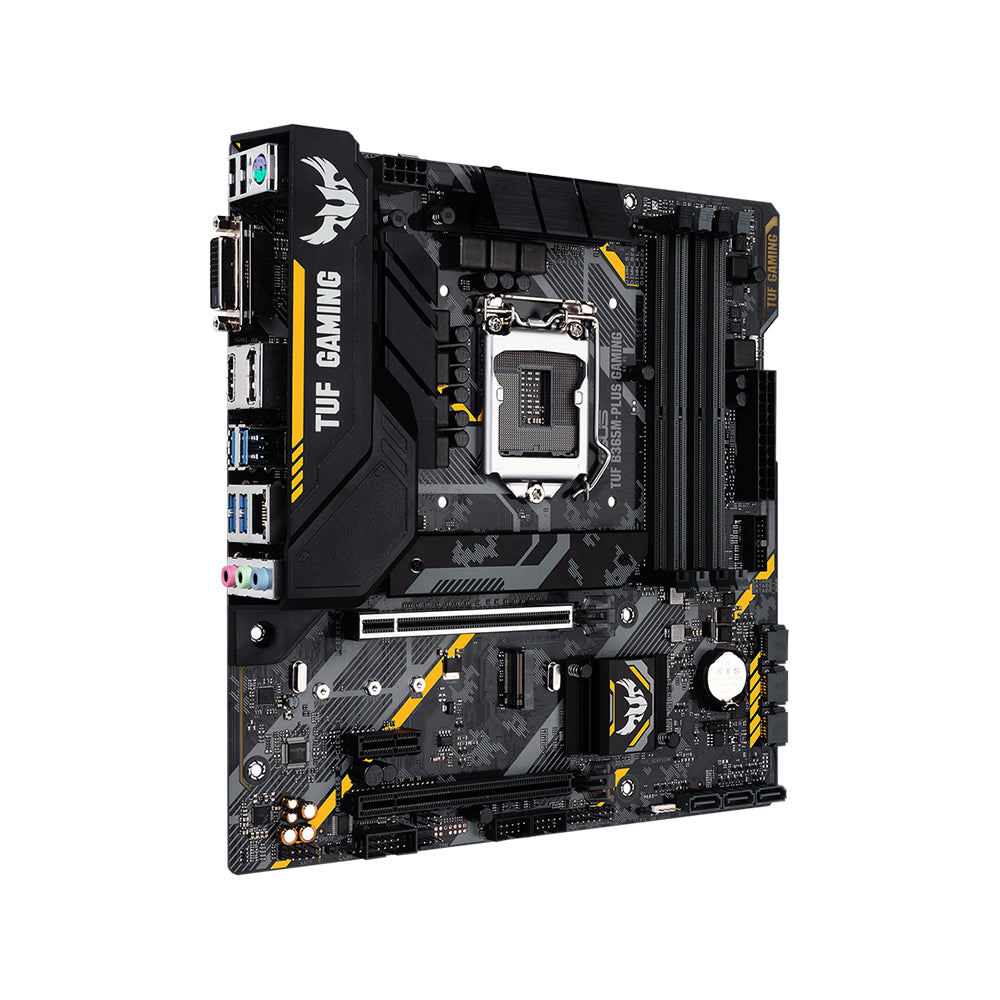

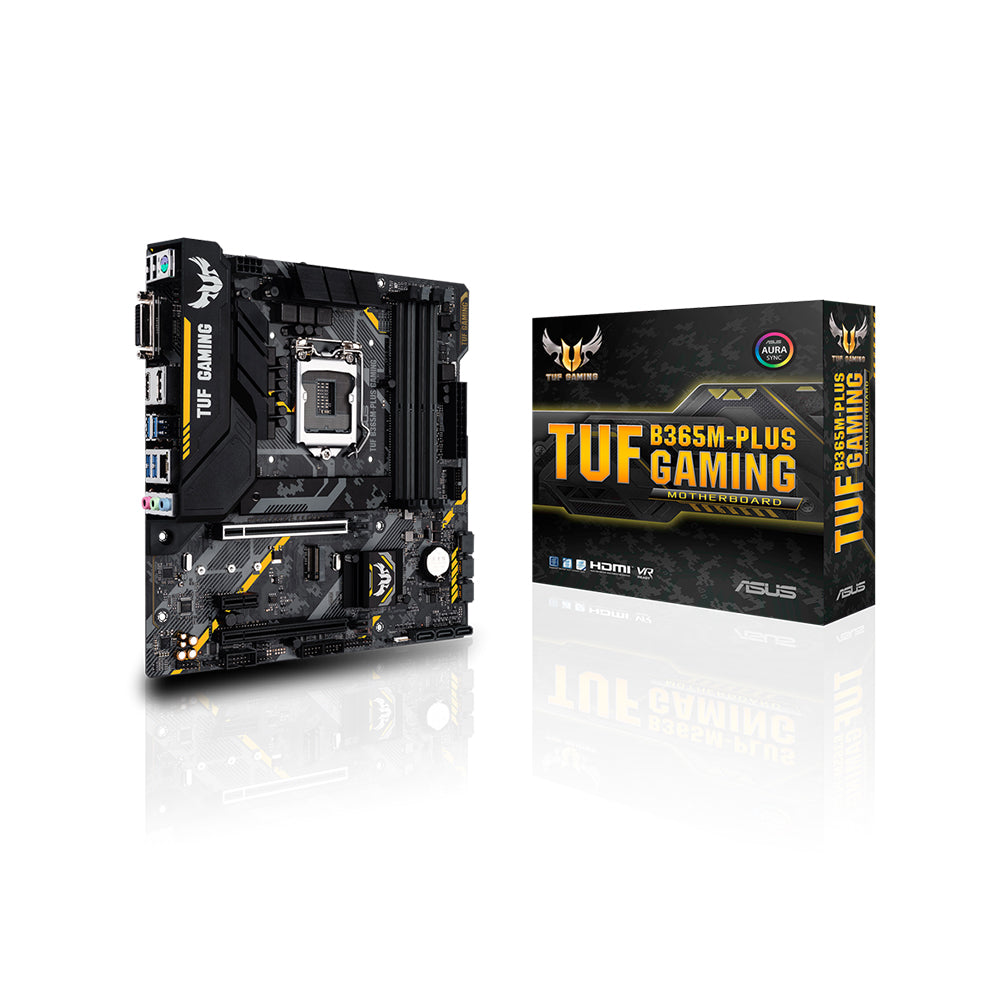

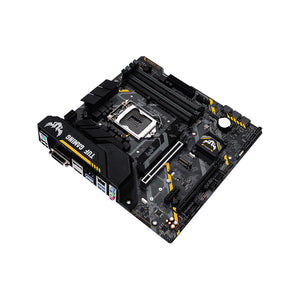

ASUS TUF B365M-PLUS GAMING Motherboard - LGA 1151, Intel B365, DDR4, Micro-ATX

The ASUS TUF B365M-PLUS GAMING motherboard is designed for gamers and PC builders seeking a reliable and durable platform for Intel's 8th and 9th Generation processors. Built on the Intel B365 chipset, this Micro-ATX motherboard combines robust features with military-grade components to ensure long-lasting performance in demanding conditions.

Key Features:

• Socket Type: LGA 1151
• Chipset: Intel® B365
• Form Factor: Micro ATX (244 x 241 mm)

CPU Support:

• Supports Intel® 8th and 9th Generation Core™, Pentium Gold, and Celeron processors.
• Utilizes Intel® Turbo Boost Technology 2.0 for enhanced performance.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 64GB
• Supported Memory Types: DDR4 (up to 2666/2400/2133 MHz)
• Memory Architecture: Dual Channel with support for Intel® Extreme Memory Profile (XMP).

Expansion Slots:

• 1 x PCIe 3.0 x16 slot (supports x16 mode).
• 1 x PCIe 3.0 x16 slot (operating at x4 mode).
• 2 x PCIe 3.0 x1 slots for additional expansion cards.

Storage Options:

• M.2 Slots:
  • 2 x M.2 sockets supporting both SATA and PCIe modes.
• SATA Ports:
  • 6 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: Integrated Intel® I219V Gigabit Ethernet with TUF LANGuard for enhanced protection against surges.

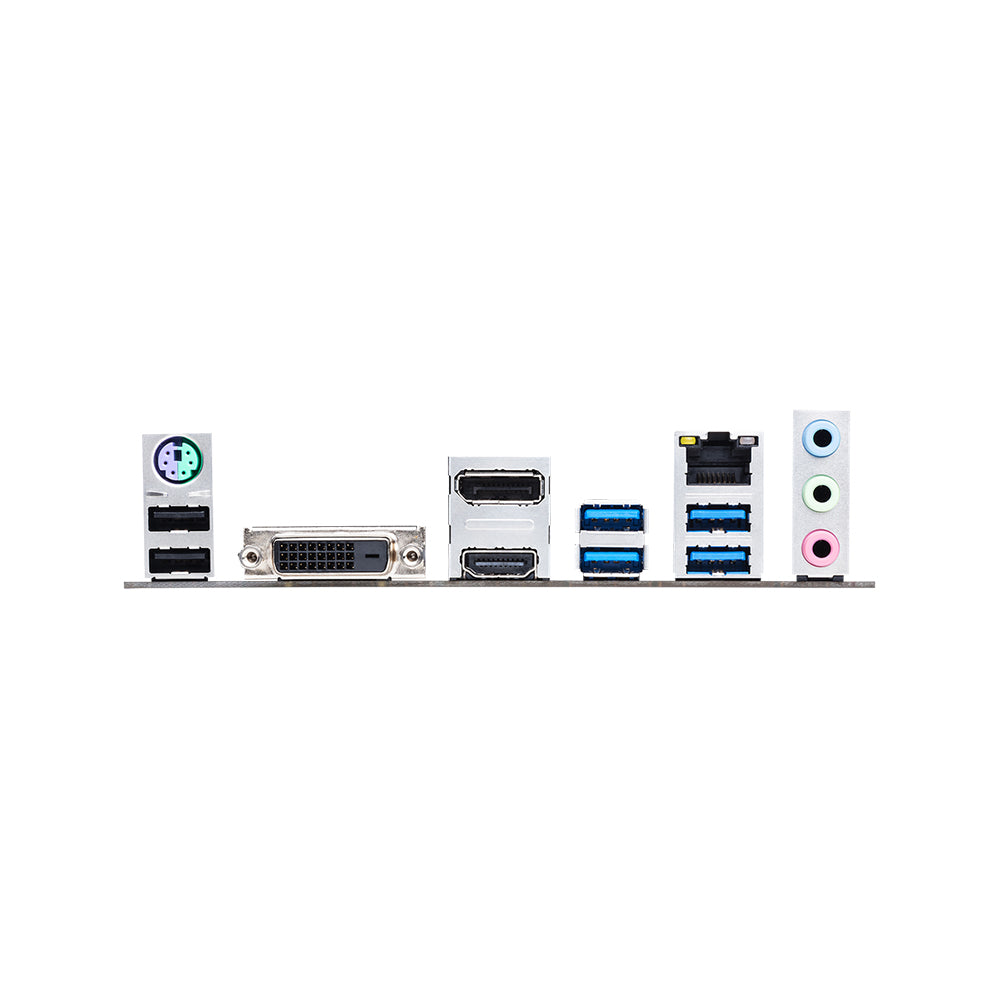

Video Outputs:

• Supports integrated graphics with DVI-D, HDMI, and DisplayPort outputs.

USB Connectivity:

• Multiple USB ports including:
  • 4 x USB 3.1 Gen 1 ports (2 at back panel, 2 at mid-board).
  • Additional USB 2.0 ports.

Audio Features:

• Audio Codec: Realtek® ALC1200 supporting up to 8-channel high-definition audio.

Additional Features:

• TUF Protection: Enhanced durability with ESD protection, overvoltage protection, and a stainless-steel back I/O panel.
• FAN Xpert 2+: Comprehensive fan control software that adjusts fan speeds based on system temperatures.
• Intel Optane Memory Ready: Supports Intel Optane technology to accelerate storage devices.
