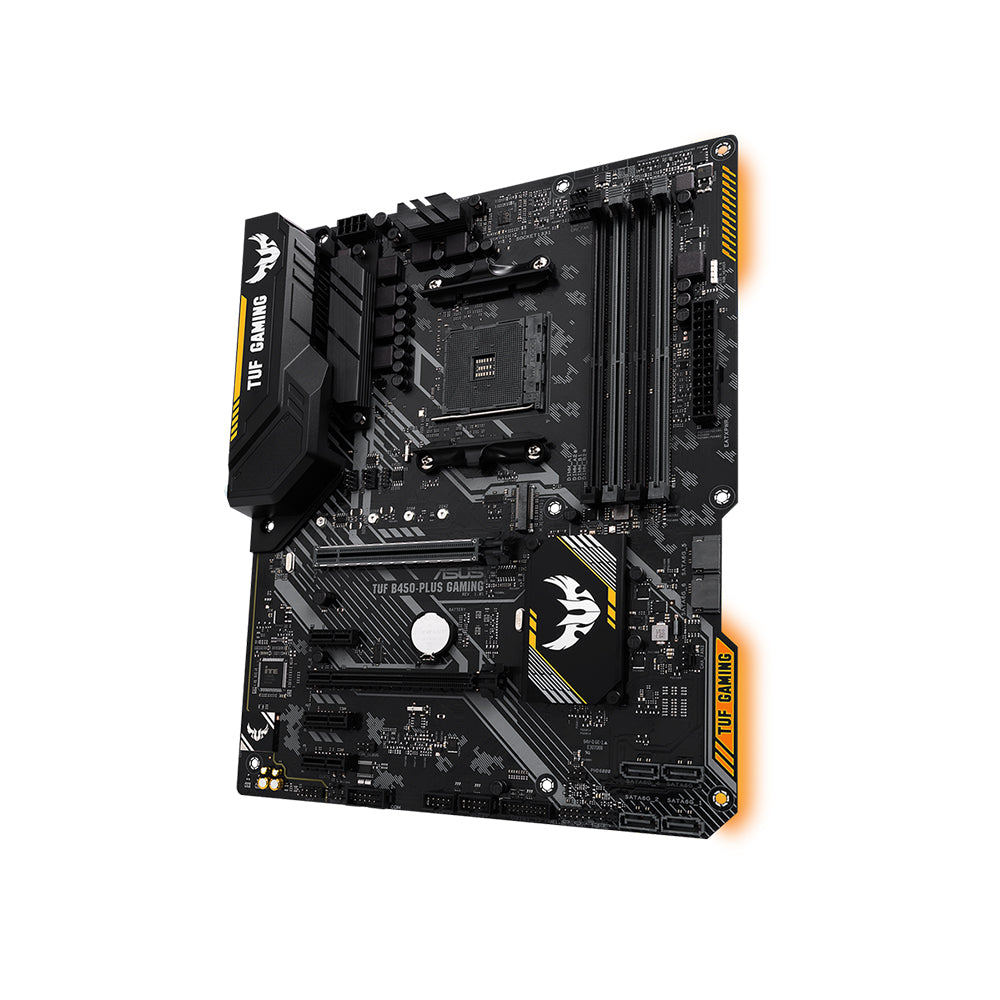

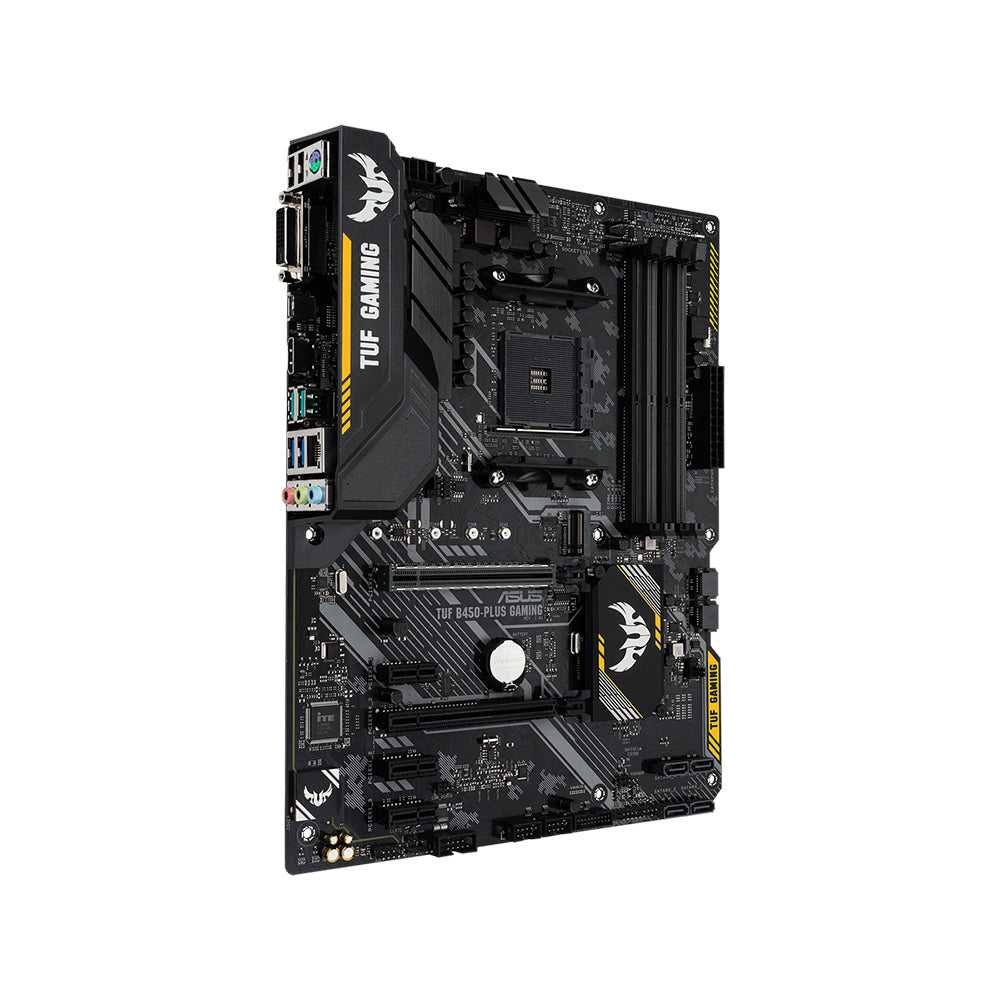

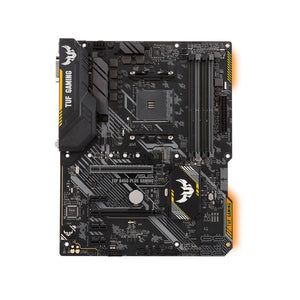

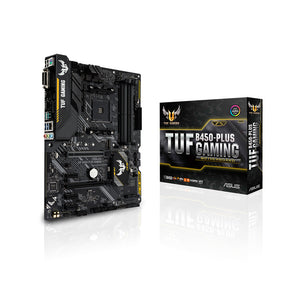

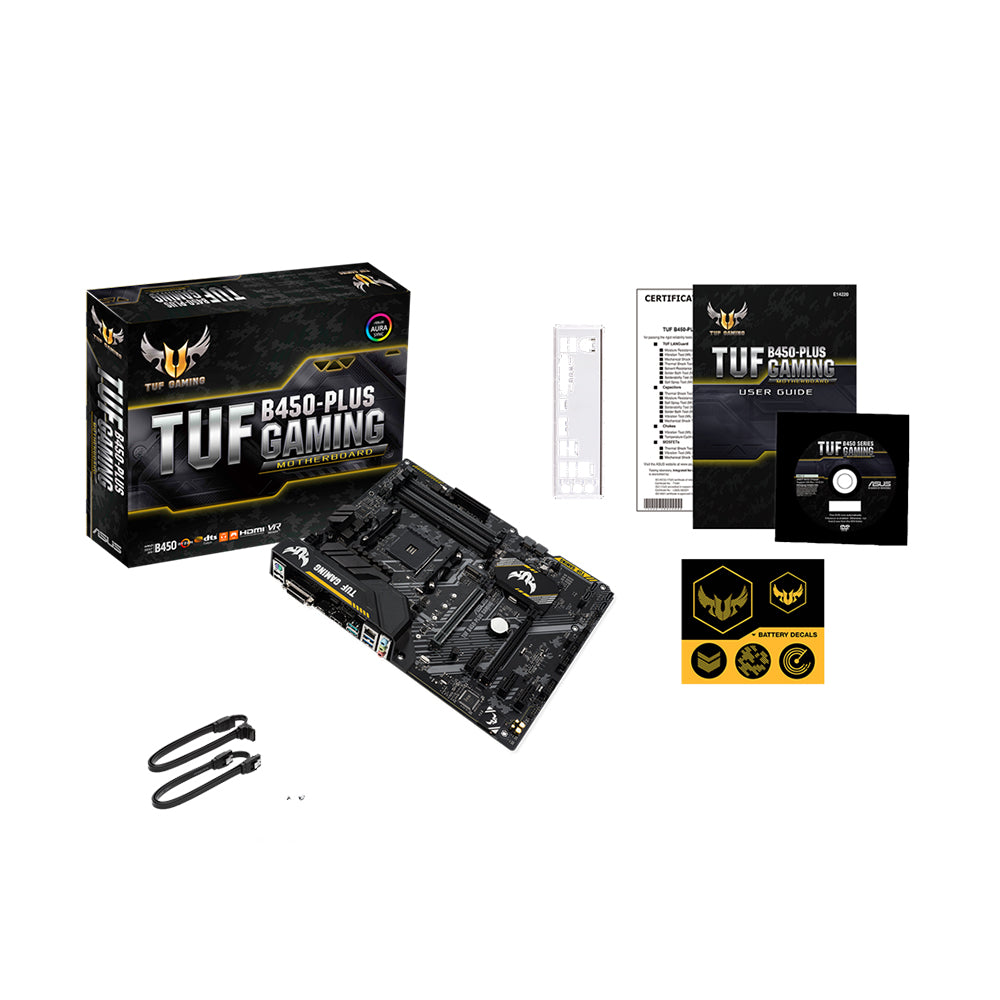

ASUS TUF B450-PLUS GAMING ATX Motherboard - AM4, AMD B450, DDR4, PCIe 3.0, Aura Sync RGB

The ASUS TUF B450-PLUS GAMING motherboard is designed for gamers and PC enthusiasts seeking a reliable and high-performance platform. Built on the AMD B450 chipset, this ATX motherboard supports a wide range of AMD Ryzen™ processors and offers robust features tailored for gaming and multitasking.

Key Features:

• Socket Type: AM4
• Chipset: AMD B450
• Form Factor: ATX (12 x 9.6 inches / 30.5 x 24.4 cm)

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 64GB
• Supported Memory Types: DDR4 (2133/2400/2666/2800/2933/3000/3200 MHz, with overclocking support up to 4400 MHz)

Expansion Slots:

• 2 x PCIe 3.0/2.0 x16 slots (one at x16 mode, one at x8 mode)
• 3 x PCIe 2.0 x1 slots for additional expansion cards.

Storage Options:

• M.2 Slot:
  • 1 x M.2 Socket 3 (supports PCIe 3.0 x4 and SATA modes)
• SATA Ports: 6 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, and 10).

Networking:

• LAN Controller: Realtek® RTL8111H providing Gigabit Ethernet.
• TUF LANGuard for enhanced protection against LAN surges and static electricity.

Audio Features:

• Audio Codec: Realtek ALC887 supporting up to 8-channel high-definition audio.
• DTS Custom audio technology for enhanced sound quality with gaming headsets.

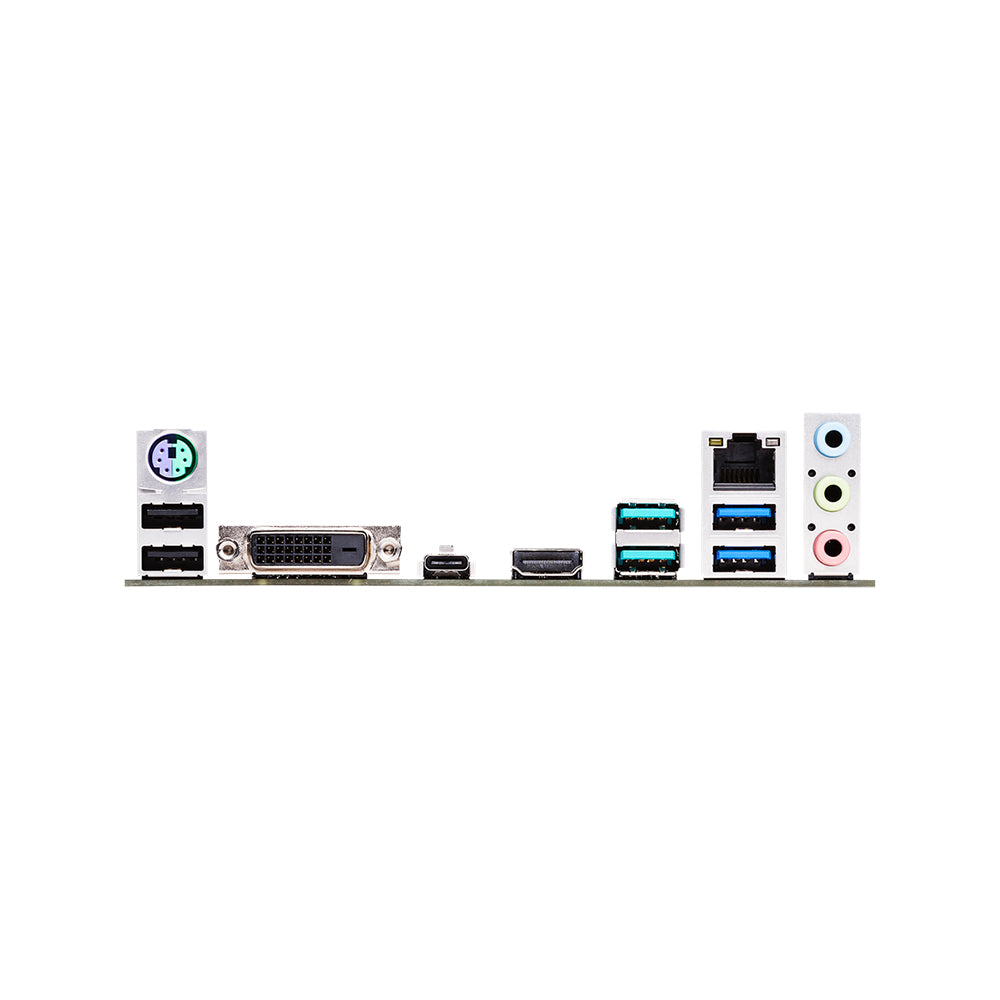

USB Connectivity:

• Rear USB Ports:
  • 2 x USB 3.1 Gen 2 ports (Type-A)
  • 2 x USB 3.1 Gen 1 ports
  • Additional USB headers for front panel connectivity.

Additional Features:

• TUF Protection:
  • SafeSlot for graphics card protection, ESD guards, and overvoltage protection for long-term reliability.
• Aura Sync RGB Lighting to synchronize LED effects with other compatible components.
• Comprehensive Cooling Solutions including VRM heatsinks and Fan Xpert for optimal thermal performance.
