ASUS TUF B450M-PRO GAMING Micro ATX Motherboard - AM4, AMD B450, DDR4, PCIe 3.0, Aura Sync RGB

The ASUS TUF B450M-PRO GAMING motherboard is engineered for gamers and PC enthusiasts looking for a reliable and high-performance platform. Built on the AMD B450 chipset, this Micro ATX motherboard supports a wide range of AMD Ryzen™ processors and offers robust features designed for gaming and multitasking.

Key Features:

• Socket Type: AM4
• Chipset: AMD B450
• Form Factor: Micro ATX (9.6 x 9.6 inches / 24.4 x 24.4 cm)

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 128GB
• Supported Memory Types: DDR4 (2133/2400/2666/2800/3000/3200/3466/3533/4400 MHz, with overclocking support)

Expansion Slots:

• 1 x PCIe 3.0/2.0 x16 slot (max at x16 mode)
• 1 x PCIe 3.0/2.0 x16 slot (max at x8 mode)
• 1 x PCIe 2.0 x16 slot (max at x4 mode)
• 1 x PCIe 2.0 x1 slot

Storage Options:

• M.2 Slots:
  • 1 x M.2 Socket 3 (supports PCIe 3.0 x4 and SATA modes)
  • 1 x M.2 Socket 3 (supports SATA mode)
• SATA Ports: 4 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, and 10).

Networking:

• LAN Controller: Realtek® RTL8111H providing Gigabit Ethernet.
• TUF LANGuard for enhanced protection against LAN surges and static electricity.

Audio Features:

• Audio Codec: Realtek® ALC S1200A supporting up to 8-channel high-definition audio.
• DTS Custom audio technology for enhanced sound quality with gaming headsets.

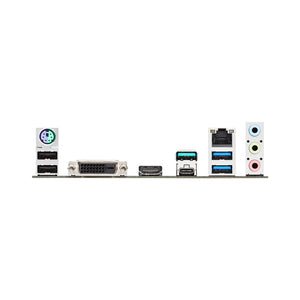

USB Connectivity:

• Rear USB Ports:
  • 2 x USB 3.1 Gen 1 ports
  • 6 x USB 2.0 ports (2 at the rear panel; 4 mid-board)

Additional Features:

• TUF Protection:
  • SafeSlot for graphics card protection, ESD guards, and overvoltage protection for long-term reliability.
• Aura Sync RGB Lighting to synchronize LED effects with other compatible components.
• Enhanced VRM Cooling with an optimized layout and larger heatsinks for improved thermal performance.
