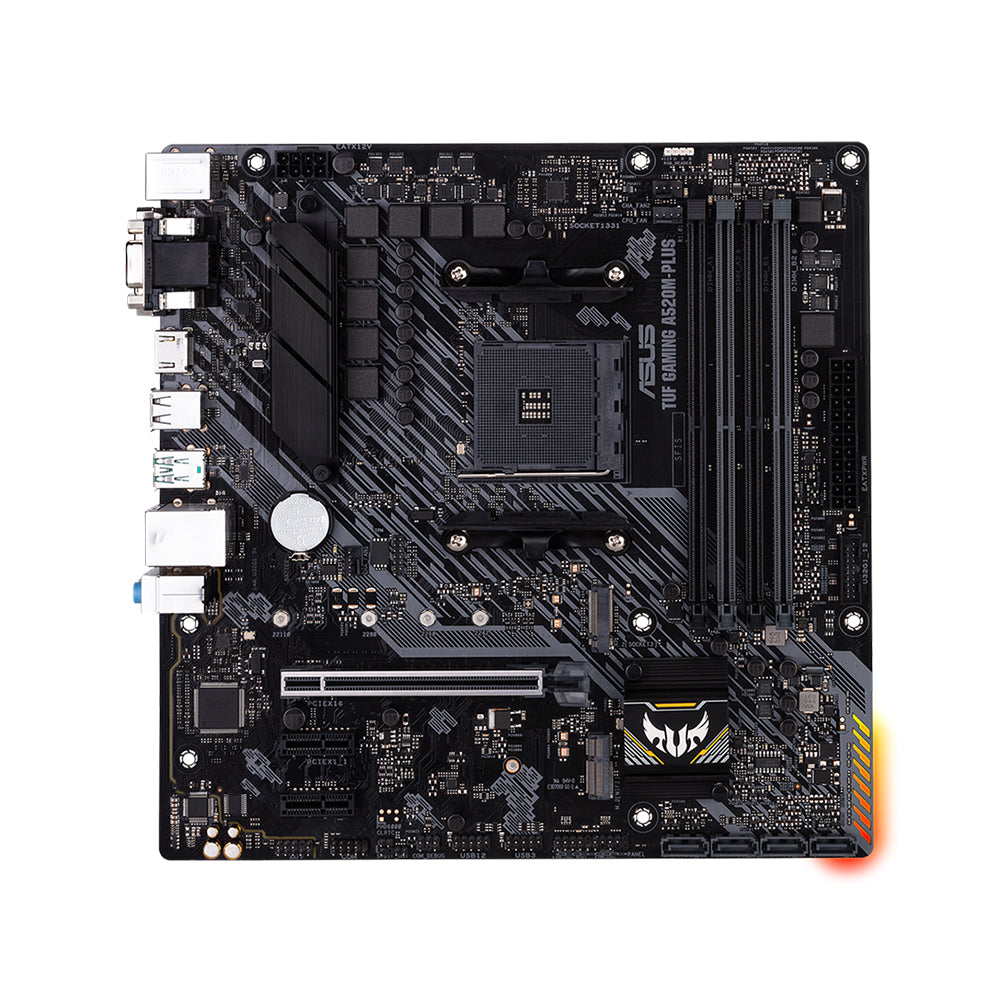

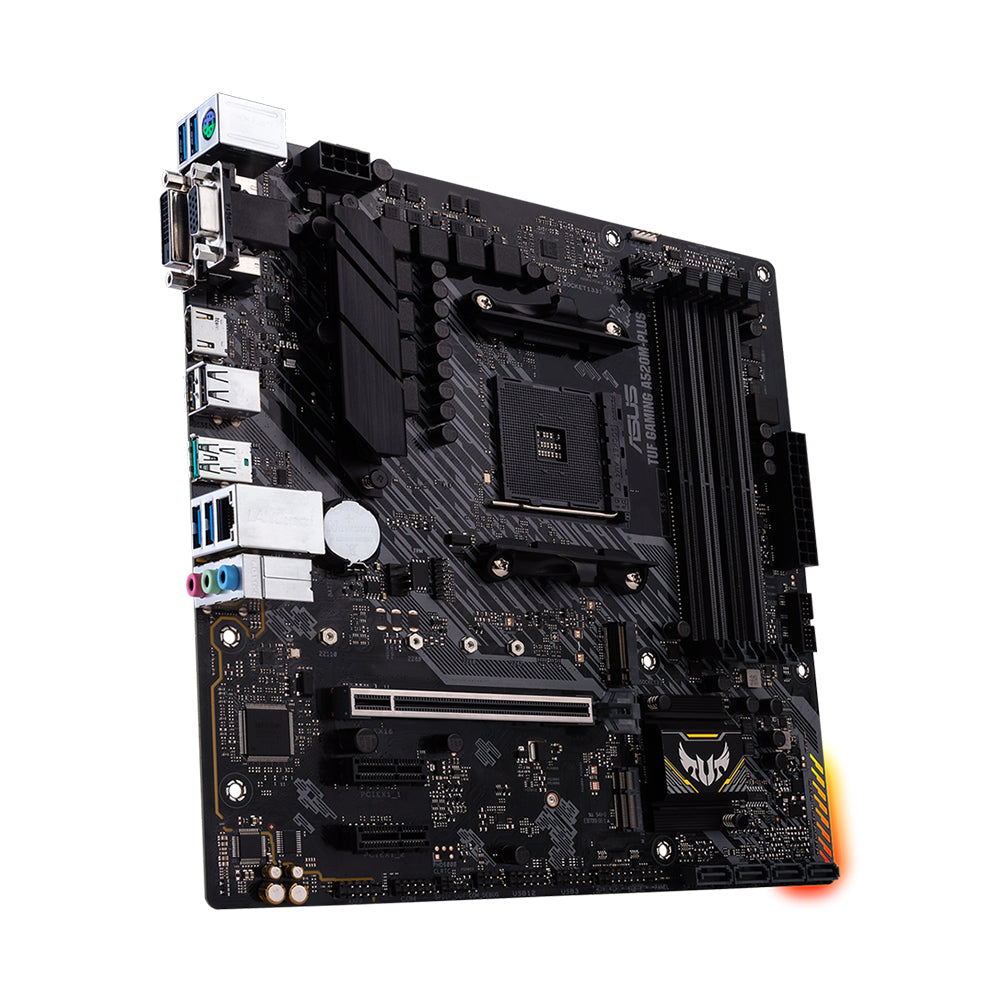

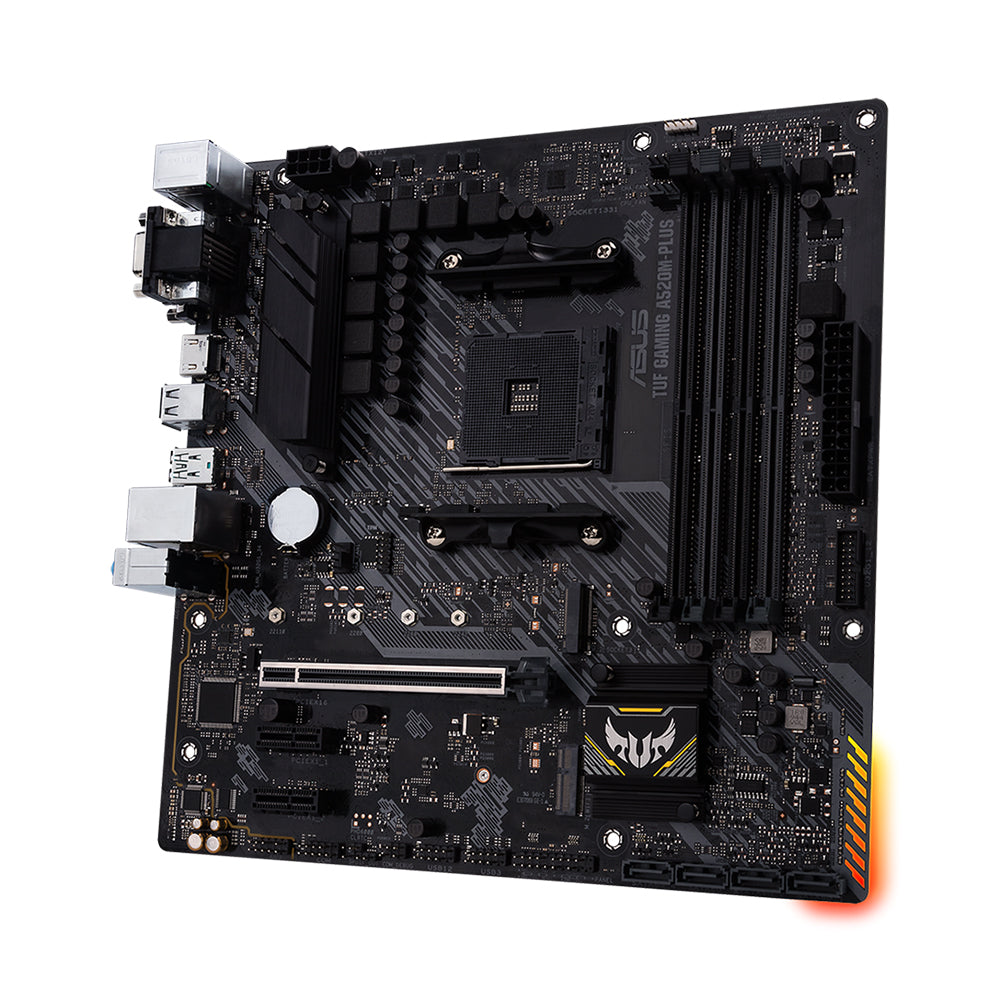

ASUS TUF GAMING A520M-PLUS Micro ATX Motherboard - AM4, AMD A520, DDR4, PCIe 3.0, Aura Sync RGB

The ASUS TUF GAMING A520M-PLUS motherboard is designed for gamers and PC builders who prioritize durability and performance. Built on the AMD A520 chipset, this Micro ATX motherboard supports a wide range of AMD Ryzen™ processors and features robust components engineered for long-lasting stability and performance.

Key Features:

• Socket Type: AM4
• Chipset: AMD A520
• Form Factor: Micro ATX (9.6 x 9.6 inches / 24.4 x 24.4 cm)

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 128GB
• Supported Memory Types: DDR4 (2133/2400/2666/2800/3000/3200/3466/3600/3733/4000/4133/4266/4400/4600/4800 MHz, with overclocking support up to 4866 MHz)

Expansion Slots:

• 1 x PCIe 3.0 x16 slot (supports x16 mode)
• 2 x PCIe 3.0 x1 slots for additional expansion cards.

Storage Options:

• M.2 Slot:
  • 1 x M.2 Socket 3 (supports PCIe 3.0 x4 and SATA modes)
• SATA Ports: 4 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, and 10).

Networking:

• LAN Controller: Realtek L8200A providing Gigabit Ethernet.
• TUF LANGuard for enhanced protection against LAN surges and static electricity.

Audio Features:

• Audio Codec: Realtek ALC887 supporting up to 7.1-channel high-definition audio with features like jack detection and multi-streaming.

USB Connectivity:

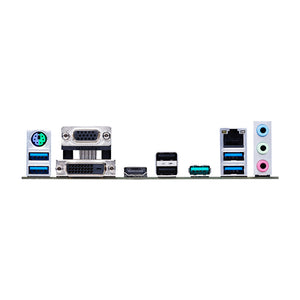

• Rear USB Ports:
  • 2 x USB 3.2 Gen 1 ports
  • 2 x USB 2.0 ports
  • Additional headers for front panel connectivity.

Additional Features:

• TUF Protection:
  • SafeSlot for graphics card protection, ESD guards, and overvoltage protection for long-term reliability.
• Aura Sync RGB Lighting to synchronize LED effects with other compatible components.
• Comprehensive Cooling Solutions including VRM heatsinks and multiple fan headers for optimal thermal performance.
