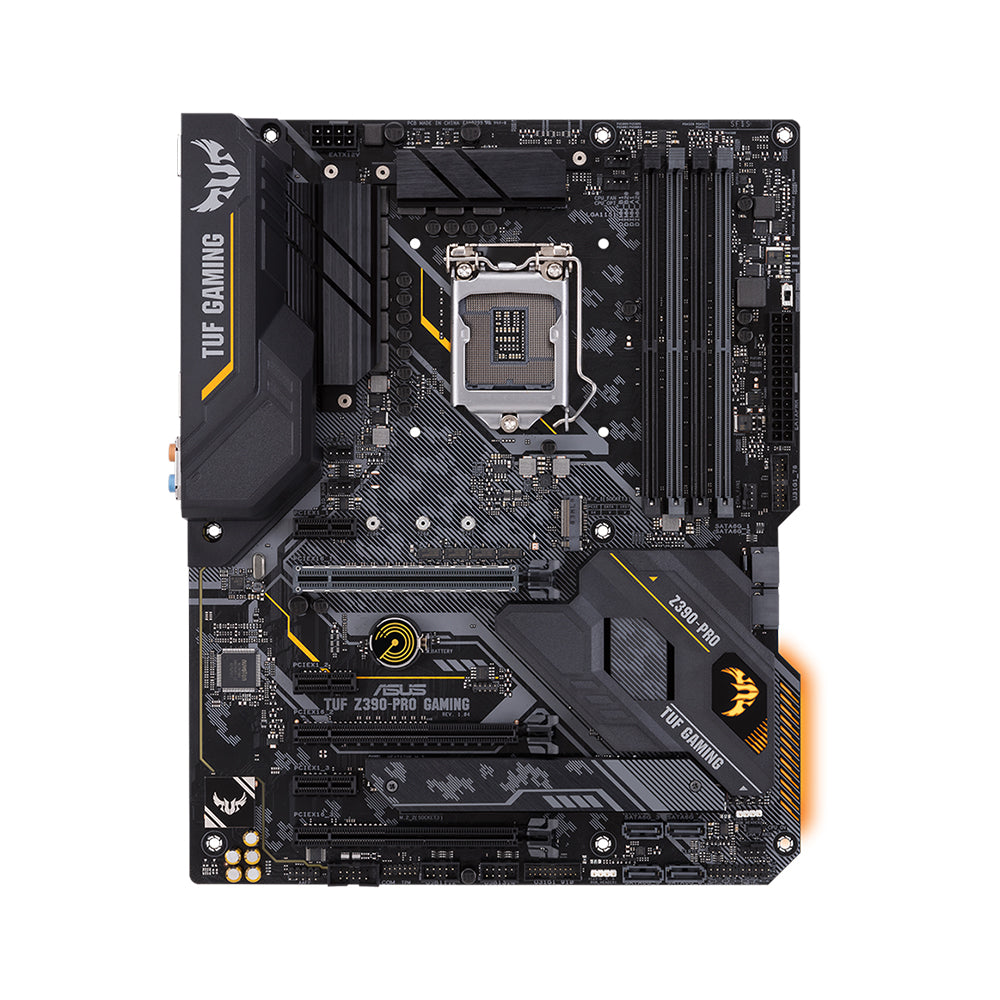

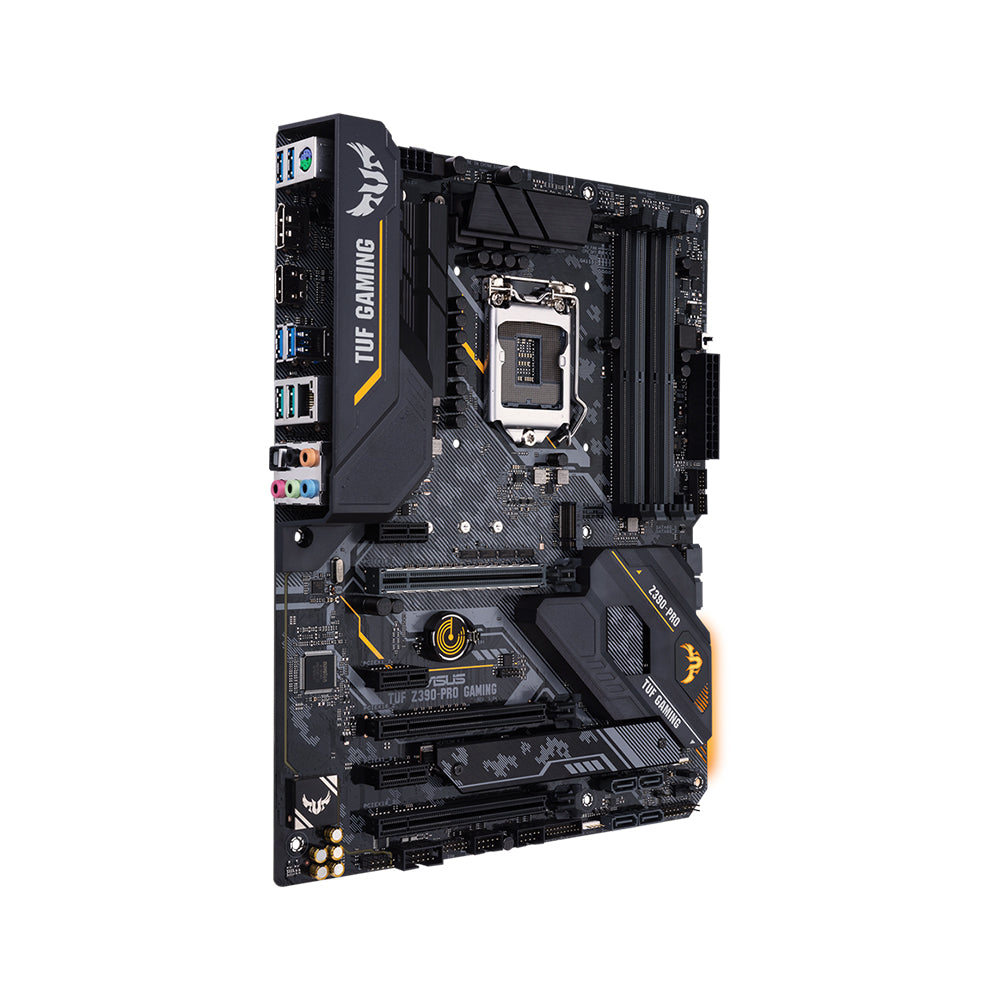

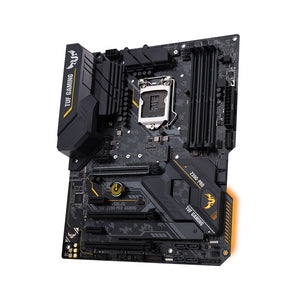

ASUS TUF Z390-PRO GAMING Motherboard - LGA 1151, Intel Z390, DDR4, ATX

The ASUS TUF Z390-PRO GAMING motherboard is designed for gamers and PC builders seeking a robust and reliable platform for Intel's 8th and 9th Generation processors. Built on the Intel Z390 chipset, this ATX motherboard combines military-grade components with advanced features to ensure durability and high performance during intense gaming sessions.

Key Features:

• Socket Type: LGA 1151
• Chipset: Intel® Z390
• Form Factor: ATX (244 x 305 mm)

CPU Support:

• Supports Intel® 8th and 9th Generation Core™, Pentium Gold, and Celeron processors.
• Utilizes Intel® Turbo Boost Technology 2.0 for enhanced performance.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 64GB
• Supported Memory Types: DDR4 (up to 4266 MHz overclocked)
• Memory Architecture: Dual Channel with support for Intel® Extreme Memory Profile (XMP).

Expansion Slots:

• 1 x PCIe 3.0 x16 slot (supports x16 mode).
• 1 x PCIe 3.0 x16 slot (operating at x8 mode).
• 3 x PCIe 3.0 x1 slots for additional expansion cards.

Storage Options:

• M.2 Slots:
  • 2 x M.2 sockets supporting both SATA and PCIe modes.
• SATA Ports:
  • 6 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: Integrated Intel® I219V Gigabit Ethernet with TUF LANGuard for enhanced protection against surges.

Video Outputs:

• Supports integrated graphics with:
  • 1 x DisplayPort
  • 1 x HDMI output.

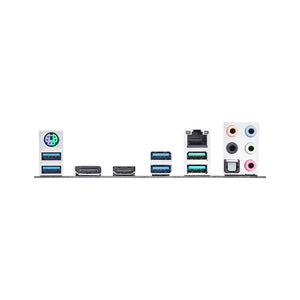

USB Connectivity:

• Multiple USB ports including:
  • 2 x USB 3.1 Gen 2 Type-A ports.
  • 4 x USB 3.1 Gen 1 Type-A ports.

Audio Features:

• Audio Codec: Realtek® ALC1200 supporting up to 7.1-channel high-definition audio.

Additional Features:

• TUF Protection: Enhanced durability with ESD protection, overvoltage protection, and a stainless-steel back I/O panel.
• Fan Xpert: Advanced fan control software that adjusts fan speeds based on system temperatures.
• Intel Optane Memory Ready: Supports Intel Optane technology to accelerate storage devices.
