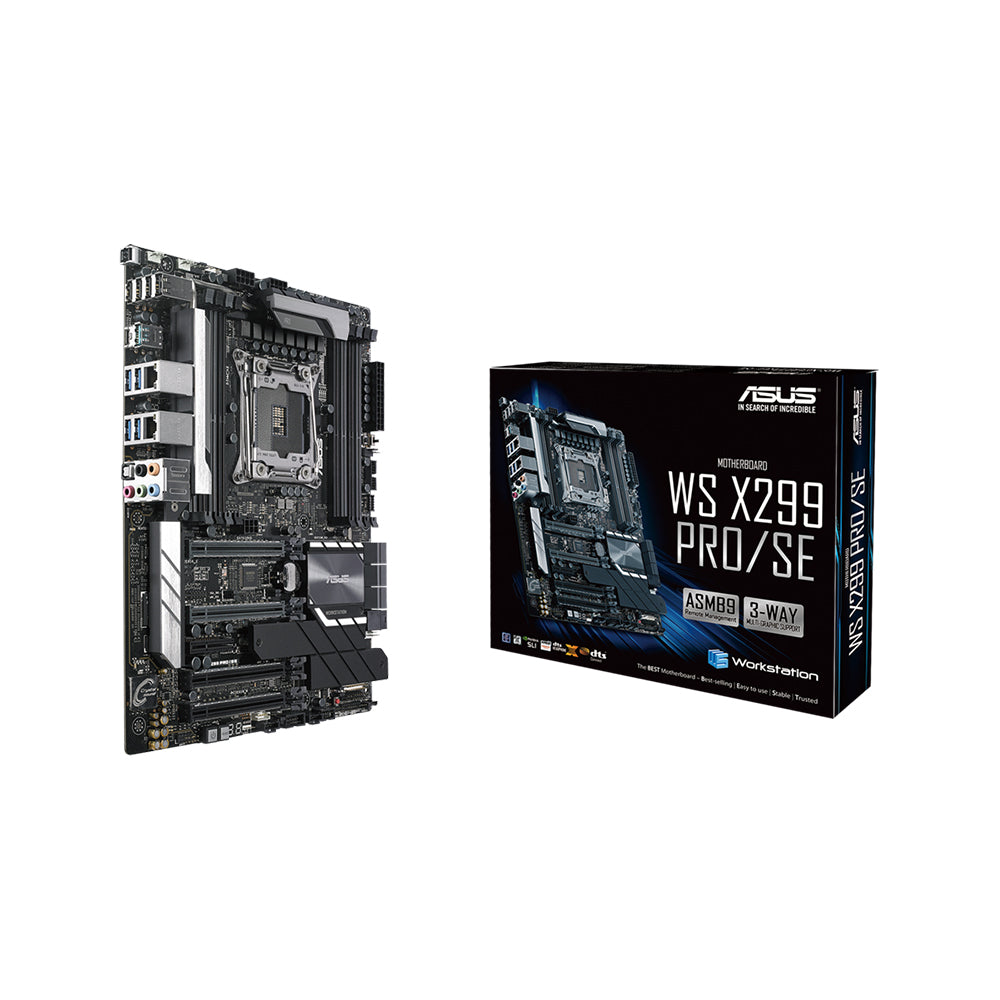

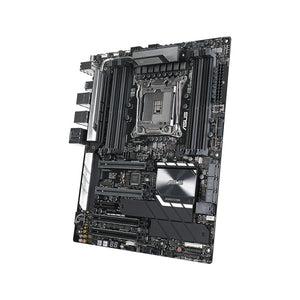

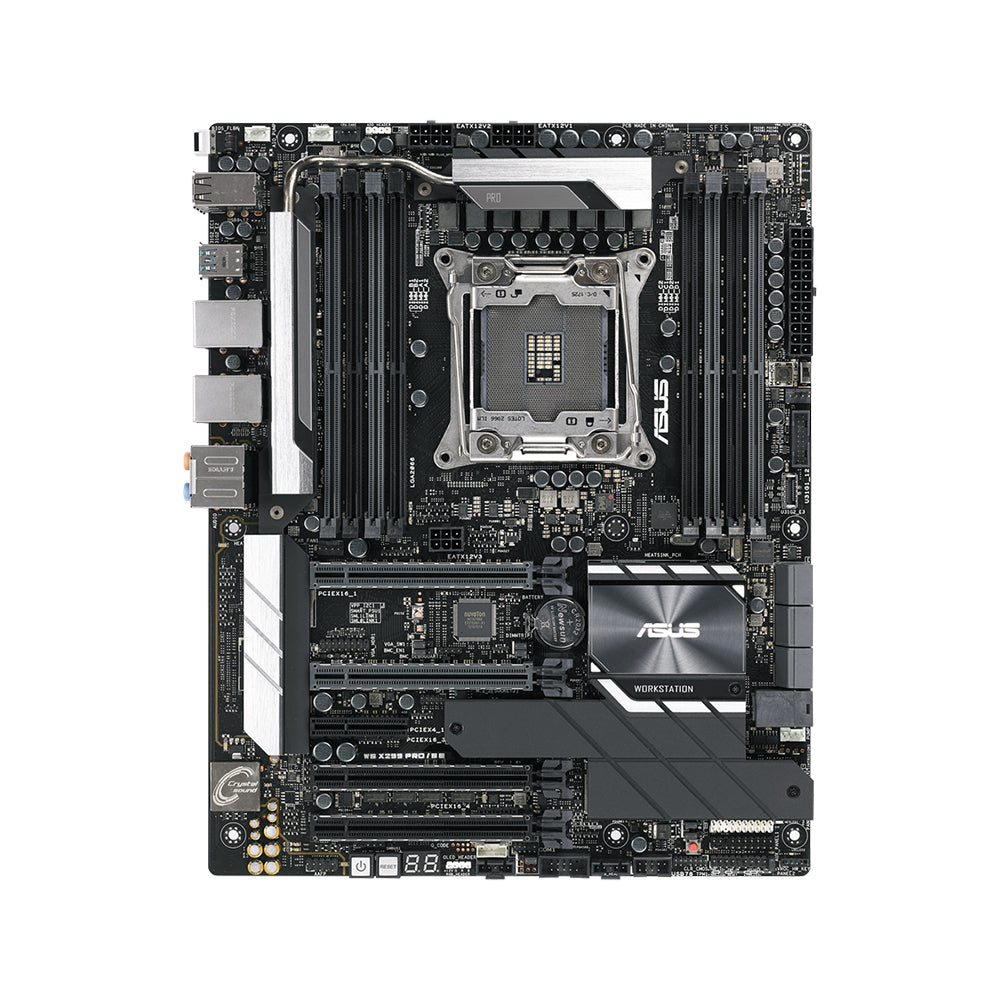

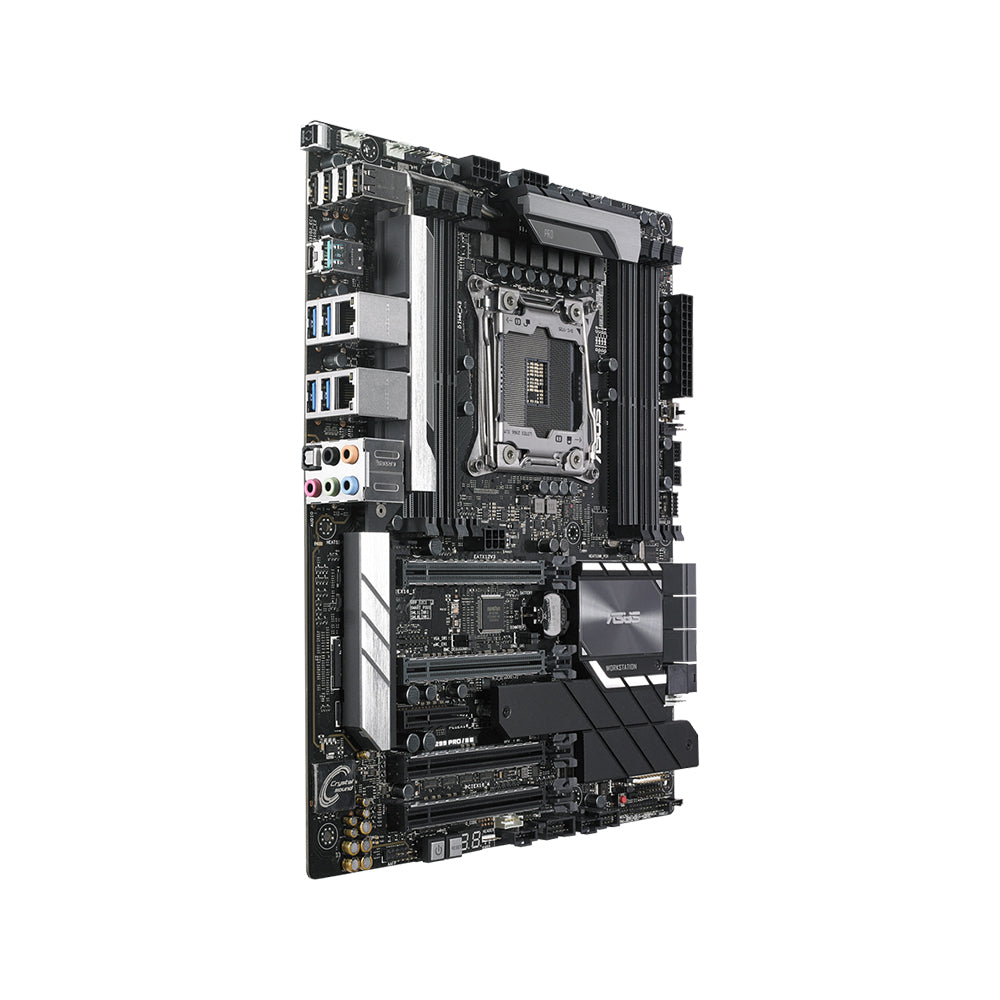

ASUS WS X299 PRO-SE Motherboard - LGA 2066, Intel X299, DDR4, ATX

The ASUS WS X299 PRO-SE motherboard is designed for high-performance workstations, supporting Intel's Core X-series processors. Built on the Intel X299 chipset, this ATX motherboard is equipped with advanced features and robust connectivity options tailored for demanding applications such as content creation, 3D rendering, and data analysis.

Key Features:

• Socket Type: LGA 2066
• Chipset: Intel® X299
• Form Factor: ATX (30.5 x 24.4 cm)

CPU Support:

• Compatible with Intel® Core™ X-series processors (6-core and above).
• Supports Intel® Turbo Boost Technology for enhanced performance.

Memory Support:

• Slots: 8 x DIMM
• Maximum Capacity: Up to 256GB
• Supported Memory Types: DDR4 (up to 4133 MHz overclocked)
• Memory Architecture: Supports ASUS T-Topology for improved memory stability and compatibility.

Expansion Slots:

• 3 x PCIe 3.0 x16 slots for multiple GPU configurations.
• 1 x PCIe 3.0 x1 slot for additional expansion cards.

Storage Options:

• M.2 Slots:
  • 2 x M.2 sockets (one supporting PCIe 3.0 x4 and SATA modes).
• U.2 Connector:
  • Supports NVMe SSDs for high-speed data transfer.
• SATA Ports:
  • 8 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controllers: Dual Intel® Gigabit LAN for reliable networking with lower CPU utilization.

USB Connectivity:

• Multiple USB ports including:
  • USB 3.1 Gen 2 Type-A and Type-C ports for fast data transfer.

Audio Features:

• Audio Codec: High-definition audio with premium capacitors for enhanced sound quality.

Additional Features:

• OC Design: Includes ASUS PRO Clock II technology for extended CPU and memory overclocking margins.
• Efficient Cooling Solutions: Features an ultra-efficient VRM heatsink design with additional heatsinks and heatpipes to ensure optimal thermal performance.
• ASUS Control Center (ACC): Provides remote management capabilities for IT infrastructure.
