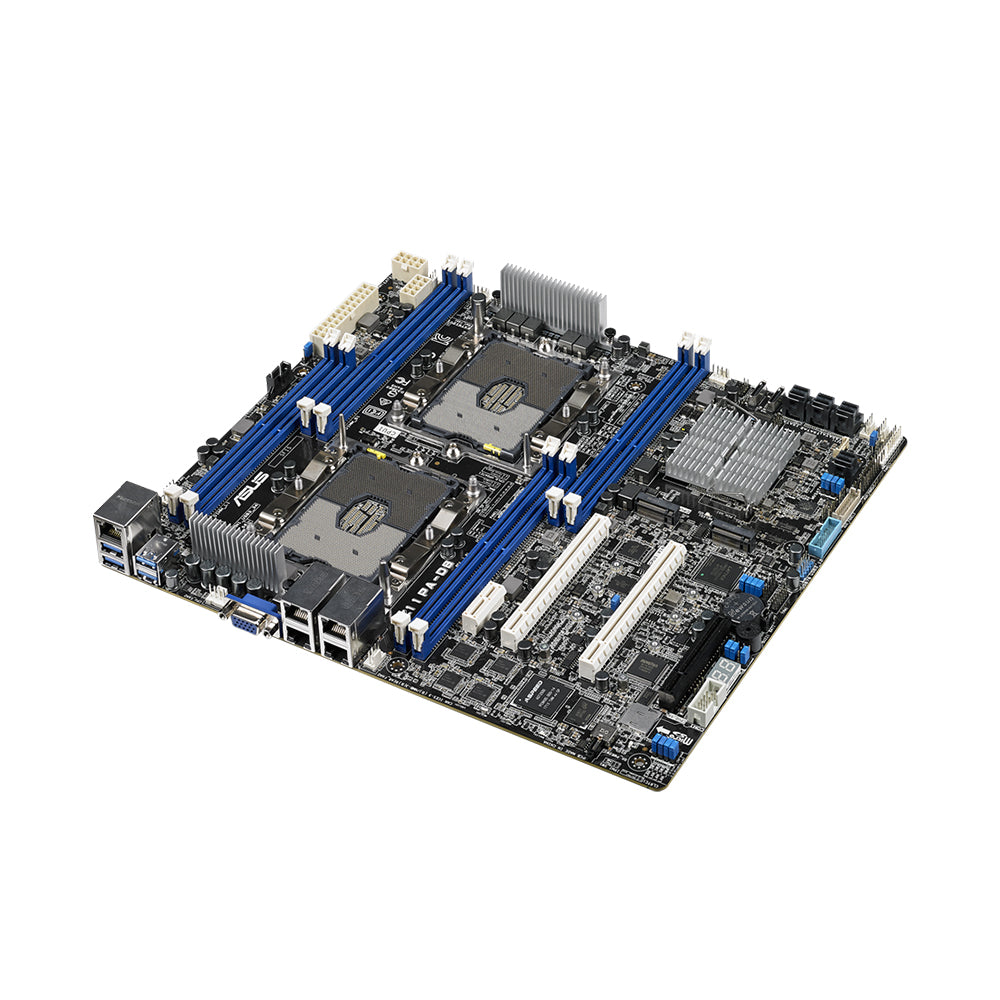

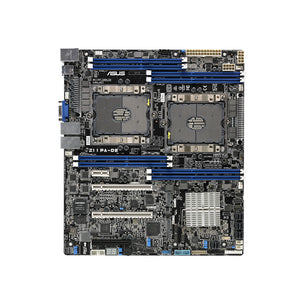

ASUS Z11PA-D8 Server Motherboard - LGA 3647, Intel C621, DDR4, CEB

The ASUS Z11PA-D8 motherboard is a powerful server and workstation solution designed for Intel's Xeon Scalable processors. Built on the Intel C621 chipset, this motherboard is optimized for high-performance computing environments, offering extensive memory support and advanced connectivity options.

Key Features:

• Socket Type: LGA 3647 (Socket-P)
• Chipset: Intel® C621
• Form Factor: CEB (12" x 10.5" / 305 mm x 267 mm)

CPU Support:

• Supports dual Intel® Xeon® Scalable processors (up to 165W).
• Utilizes Intel® Ultra Path Interconnect (UPI) for efficient communication between CPUs.

Memory Support:

• Slots: 8 x DIMM
• Maximum Capacity:
  • Up to 256GB RDIMM
  • Up to 512GB LRDIMM
  • Up to 1024GB LR-DIMM 3DS
• Supported Memory Types: DDR4 (2666/2400/2133 MHz)

Expansion Slots:

• Total of 3 PCIe slots:
  • 1 x PCIe 3.0 x16 slot
  • 1 x PCIe 3.0 x8 slot
  • Additional MIO slot for audio cards.

Storage Options:

• M.2 Slots:
  • 2 x M.2 connectors supporting NVMe SSDs.
• SATA Ports:
  • 12 x SATA III (6 Gb/s) ports via mini-SAS connectors.
• RAID Support:
  • Supports software RAID through Intel® Rapid Storage Technology Enterprise (RSTe).

Networking:

• LAN Controllers:
  • Four Intel® I210AT Gigabit Ethernet ports for reliable networking.
  • One dedicated management LAN port.

USB Connectivity:

• Multiple USB ports including:
  • Four USB 3.0 ports for high-speed data transfer.

Audio Features:

• Integrated audio capabilities via an optional MIO card.

Additional Features:

• Comprehensive Management Tools:
  • ASUS Control Center (ACC) provides centralized management for monitoring and controlling ASUS server products.
• Remote Management:
  • Optional ASMB9-iKVM module for KVM-over-IP functionality, enabling remote BIOS updates and system monitoring.
• Enhanced Cooling Solutions:
  • Multiple fan headers and temperature control features to ensure optimal thermal performance.
