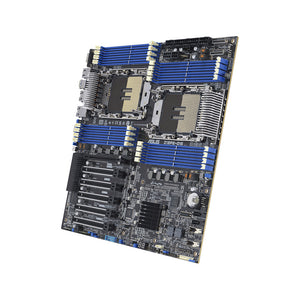

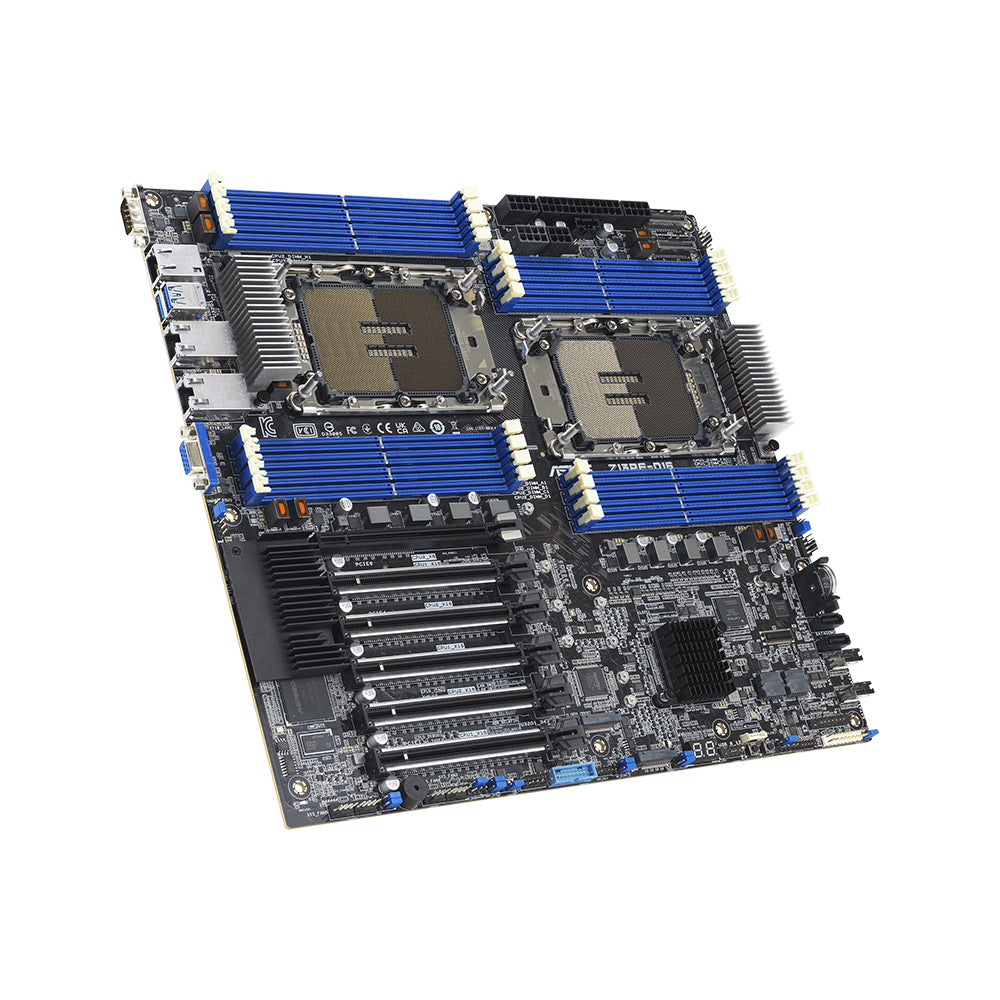

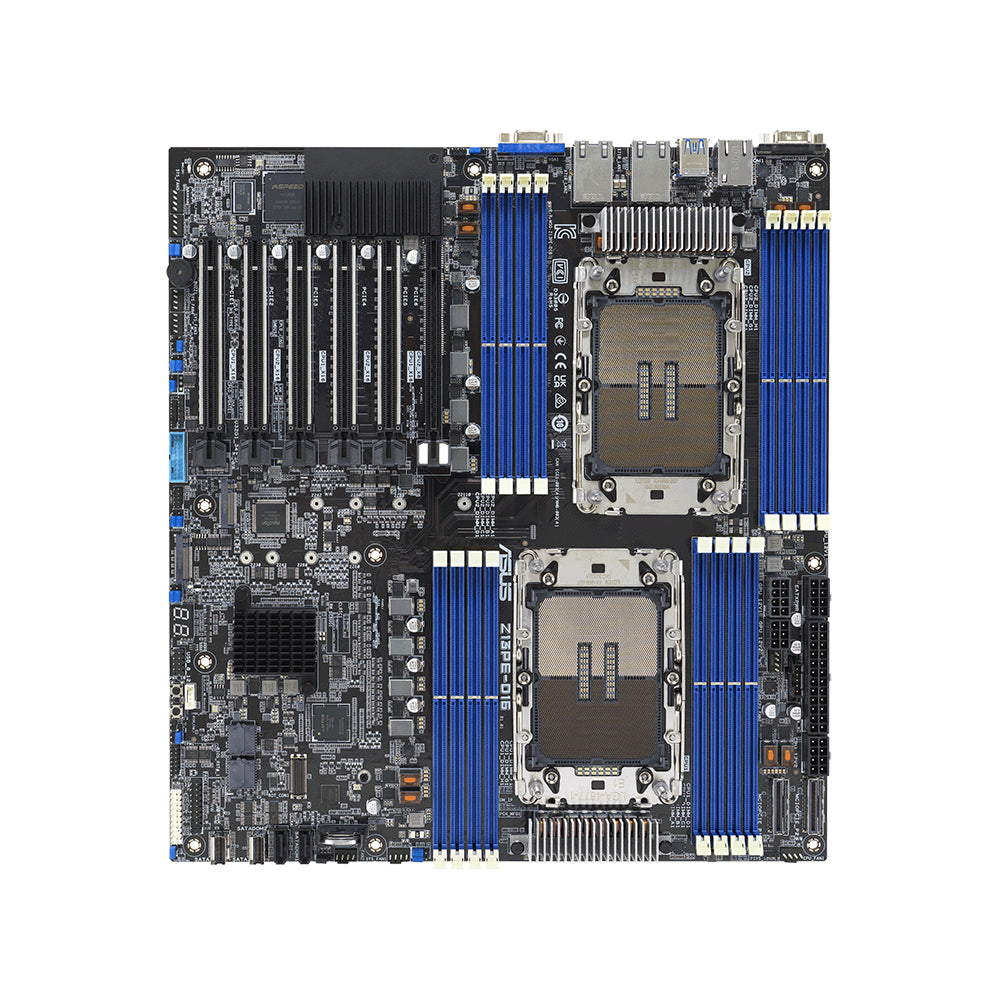

ASUS Z13PE-D16 Server Motherboard - LGA 4677, Intel C741, DDR5, Extended ATX

The ASUS Z13PE-D16 motherboard is a high-performance server solution designed for Intel's 5th Generation Xeon Scalable processors. Built on the Intel C741 chipset, this extended ATX motherboard supports advanced features that cater to demanding workloads in data centers and enterprise environments.

Key Features:

• Socket Type: LGA 4677
• Chipset: Intel® C741
• Form Factor: Extended ATX (12" x 13")

CPU Support:

• Supports dual Intel® 5th Generation Xeon® Scalable processors.
• Capable of handling up to 350W TDP for efficient power management.

Memory Support:

• Slots: 16 x DIMM
• Maximum Capacity: Up to 4TB DDR5 SDRAM
• Supported Memory Types: DDR5 (up to 5600 MHz)
• Memory Architecture: Supports eight memory channels for optimal performance.

Expansion Slots:

• Total of 6 PCIe slots:
  • 5 x PCIe 5.0 x16 slots.
  • 1 x PCIe 5.0 x8 slot.

Storage Options:

• M.2 Slots:
  • 2 x M.2 sockets supporting NVMe SSDs.
• SATA Ports:
  • 10 x SATA III (6Gb/s) ports with RAID support via Intel RSTe.

Networking:

• LAN Controllers:
  • Dual Intel® 10GBase-T Ethernet ports for ultra-high-speed networking.

USB Connectivity:

• Multiple USB ports including:
  • USB 3.2 Gen 1 ports for high-speed data transfer.

Audio Features:

• Integrated graphics controller: ASPEED AST2600 for basic video output.

Additional Features:

• AI-Powered Performance: Optimized for AI, HPC, analytics, and storage applications.
• CPU-Balanced Architecture: Provides full bandwidth for both single and dual CPU configurations, enhancing performance efficiency.
• Integrated Management: ASUS ASMB11-iKVM support for remote management capabilities.
