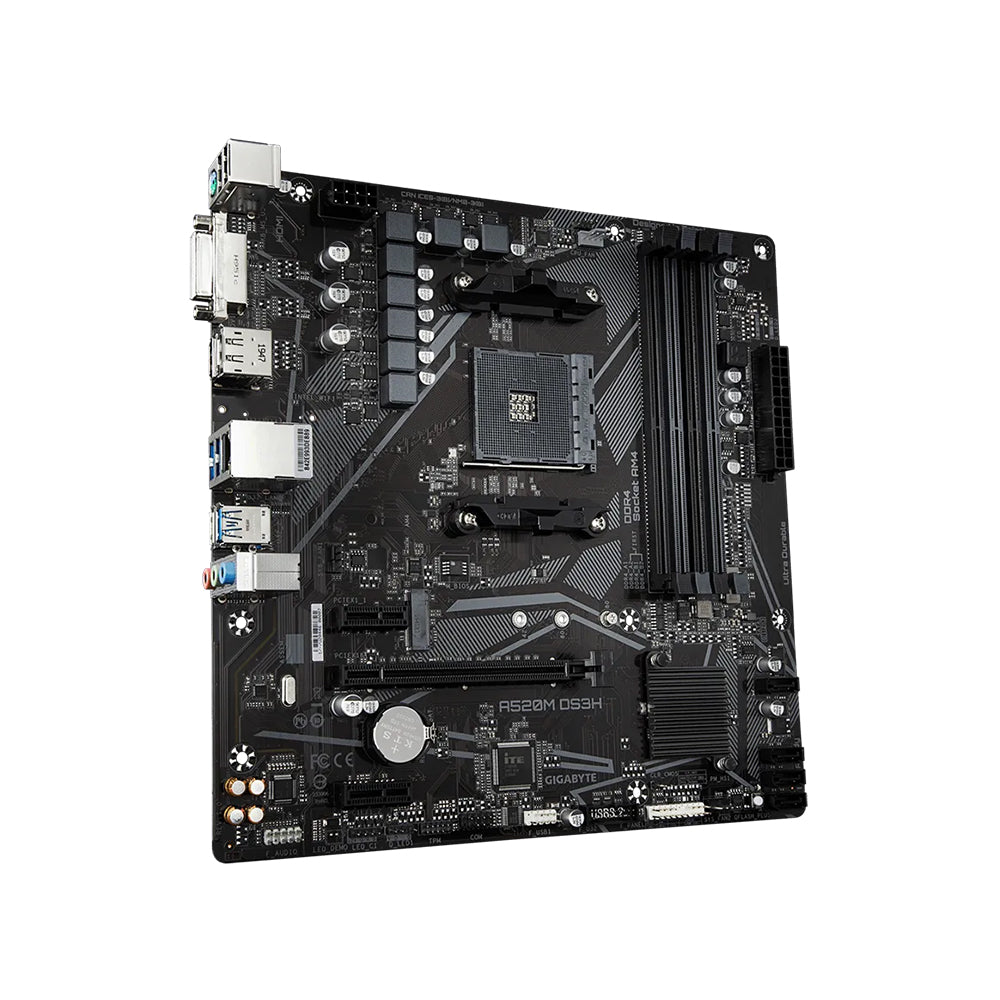

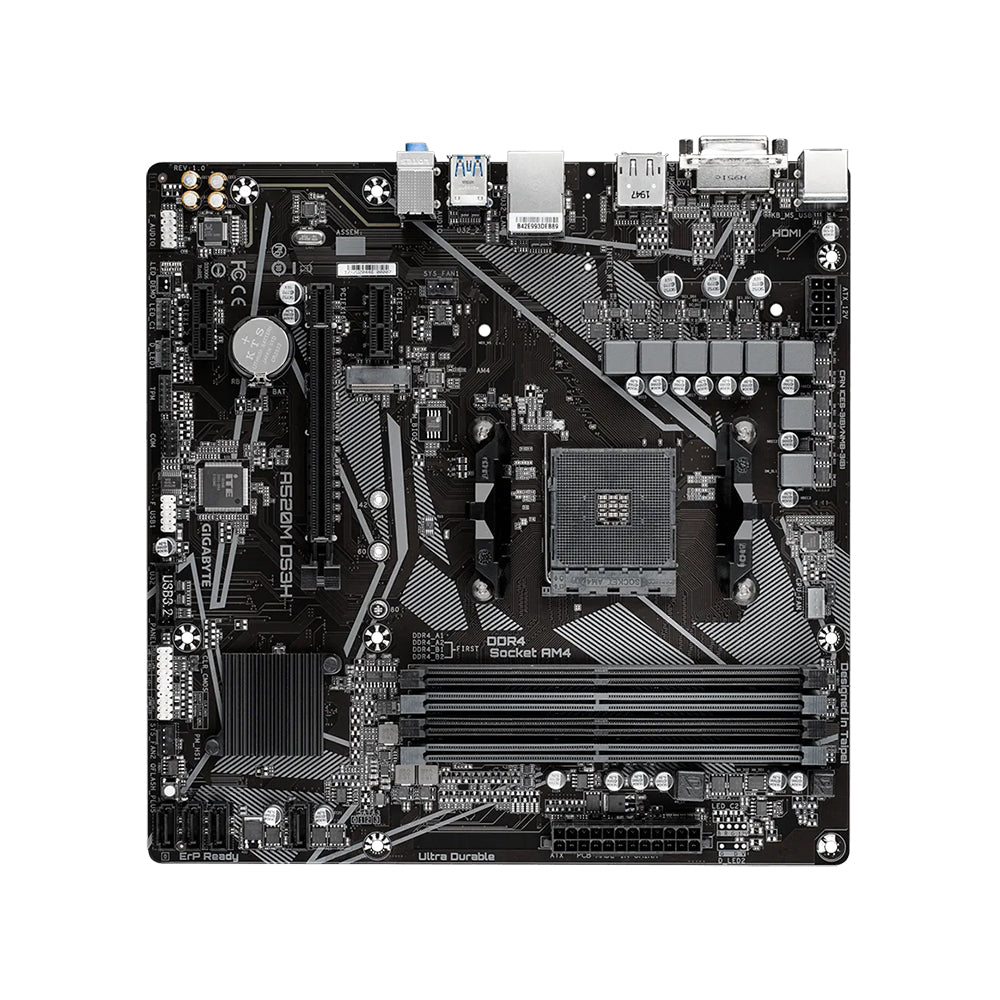

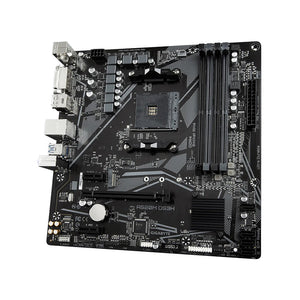

Gigabyte A520M DS3H Motherboard - LGA AM4, AMD A520, DDR4, Micro ATX

The Gigabyte A520M DS3H motherboard is a versatile and reliable solution designed for AMD Ryzen processors. Built on the AMD A520 chipset, this Micro ATX motherboard supports a wide range of AMD CPUs, making it an excellent choice for budget builds and general-purpose computing.

Key Features:

• Socket Type: AM4
• Chipset: AMD A520
• Form Factor: Micro ATX (24.4 x 24.4 cm)

CPU Support:

• Supports AMD Ryzen™ 5000 Series, 4000 G-Series, and 3000 Series processors.
• Compatible with both standard and G-Series APUs for integrated graphics.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 128GB (32GB per DIMM)
• Supported Memory Types: DDR4 (up to 4733 MHz overclocked)
• Memory Architecture: Dual Channel ECC/Non-ECC Unbuffered.

Expansion Slots:

• 1 x PCIe 3.0 x16 slot for high-performance graphics cards.
• 2 x PCIe 3.0 x1 slots for additional expansion cards.

Storage Options:

• M.2 Slot:
  • 1 x M.2 socket supporting PCIe 3.0 x4 and SATA modes.
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: Realtek® GbE LAN for reliable wired connectivity.

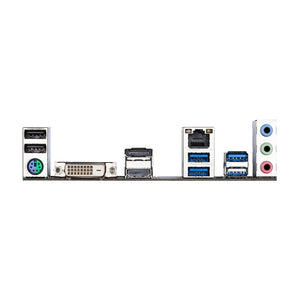

Video Outputs:

• Supports multiple display options with:
  • HDMI, DVI-D, and D-Sub outputs for versatile connectivity.

USB Connectivity:

• Multiple USB ports including:
  • USB 3.2 Gen 1 Type-A and USB 2.0 ports for various peripherals.

Audio Features:

• Audio Codec: Realtek® ALC887 supporting up to 7.1-channel high-definition audio.

Additional Features:

• Smart Fan 5: Features multiple temperature sensors and hybrid fan headers with FAN STOP functionality for efficient cooling management.
• Q-Flash Plus: Allows users to update the BIOS without needing to install the CPU, memory, or graphics card.
• RGB Fusion 2.0: Supports customizable RGB lighting with addressable LED strips.
