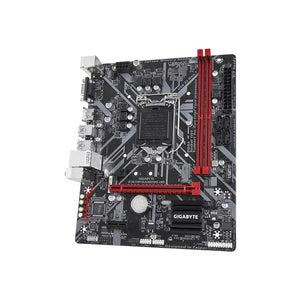

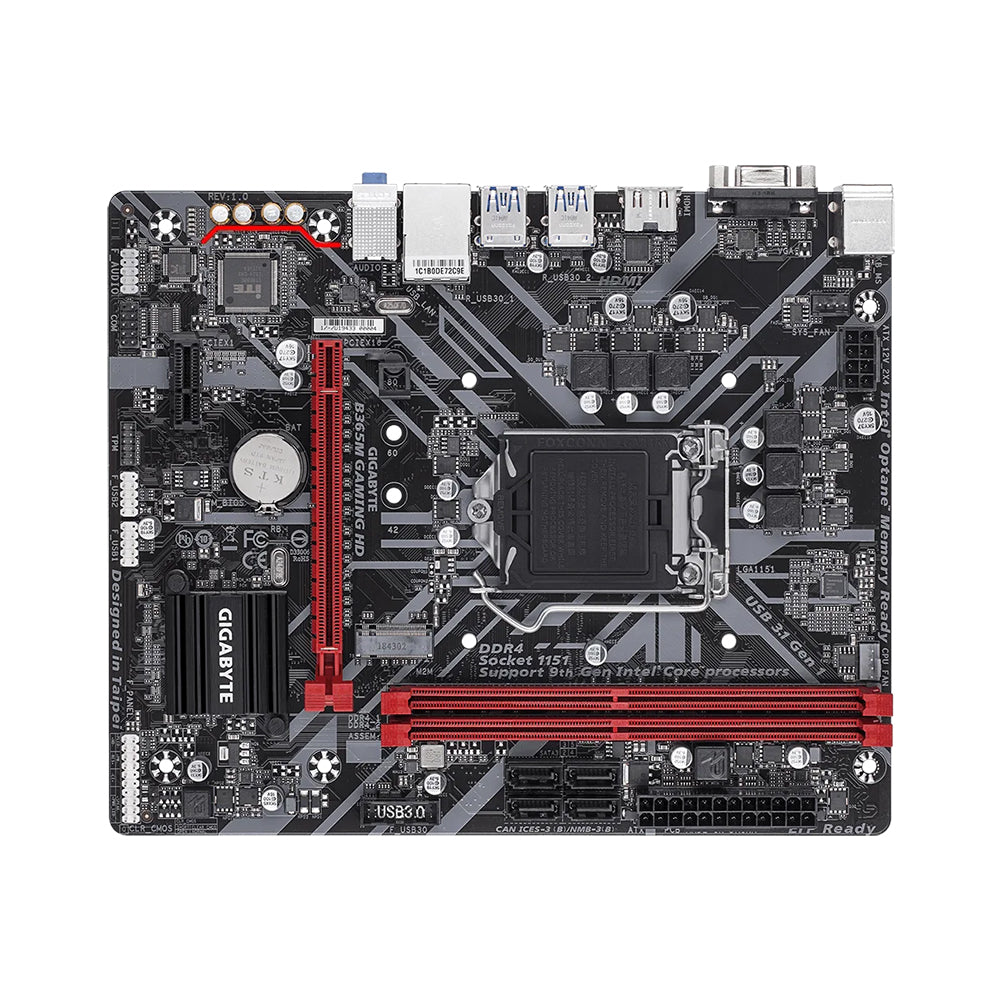

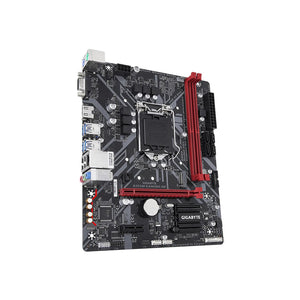

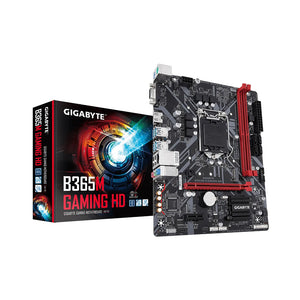

Gigabyte B365M GAMING HD Motherboard - LGA 1151, Intel B365, DDR4, Micro ATX

The Gigabyte B365M GAMING HD motherboard is designed for gamers and PC builders seeking a reliable and cost-effective platform for Intel's 8th and 9th Generation processors. Built on the Intel B365 chipset, this Micro ATX motherboard offers essential features and connectivity options for a solid gaming experience.

Key Features:

• Socket Type: LGA 1151
• Chipset: Intel® B365 Express Chipset
• Form Factor: Micro ATX (22.6 cm x 18.5 cm)

CPU Support:

• Supports 9th and 8th Generation Intel® Core™ i9, i7, i5, i3, Pentium®, and Celeron® processors.
• Compatible with a wide range of Intel CPUs for flexibility in builds.

Memory Support:

• Slots: 2 x DDR4 DIMM
• Maximum Capacity: Up to 32GB
• Supported Memory Types: DDR4 (up to 2666/2400/2133 MHz)
• Memory Architecture: Dual Channel Non-ECC Unbuffered; supports Extreme Memory Profile (XMP) for overclocking.

Expansion Slots:

• 1 x PCIe 3.0 x16 slot (running at x16)
• 1 x PCIe 3.0 x1 slot

Storage Options:

• M.2 Slot:
  • 1 x M.2 connector supporting PCIe Gen3 x4 and SATA SSDs (2242/2260/2280).
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: Realtek® GbE LAN chip (10/100/1000 Mbit) with GIGABYTE 8118 Gaming LAN for optimized bandwidth management.

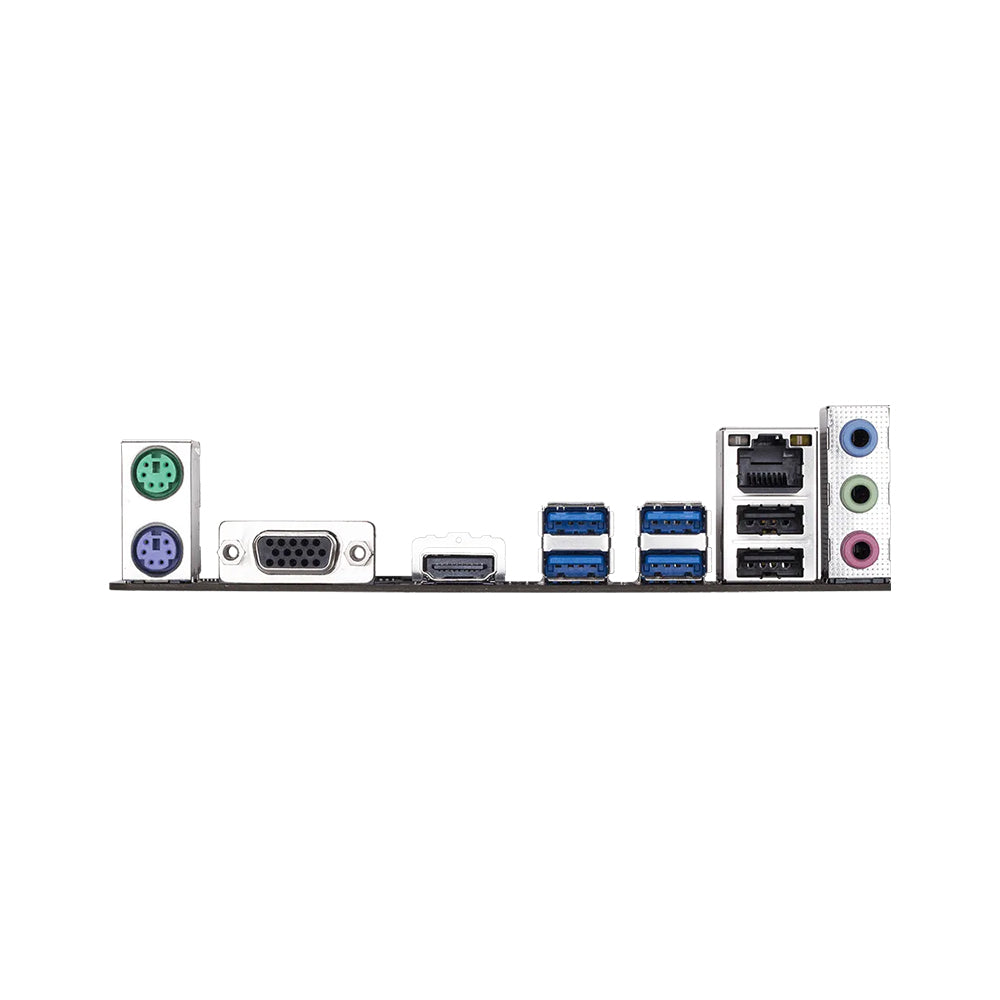

Video Outputs:

• Integrated Graphics Processor:
  • 1 x D-Sub port (max resolution: 1920x1200@60 Hz)
  • 1 x HDMI port (max resolution: 4096x2160@30 Hz)

USB Connectivity:

• Multiple USB ports including:
  • 6 x USB 3.1 Gen 1 ports (4 on the back panel, 2 via internal headers)
  • 6 x USB 2.0/1.1 ports (2 on the back panel, 4 via internal headers)

Audio Features:

• Audio Codec: High-quality audio capacitors with Audio Noise Guard supporting up to 7.1-channel high-definition audio.

Additional Features:

• Smart Fan 5: Multiple temperature sensors and hybrid fan headers with FAN STOP functionality for optimal cooling.
• Anti-Sulfur Resistors Design: Enhances durability against environmental factors.
• Ultra Durable™ Design: Includes surge protection and high-quality components for longevity.
• Intel® Optane™ Memory Ready: Supports Intel's Optane technology for improved storage performance.
