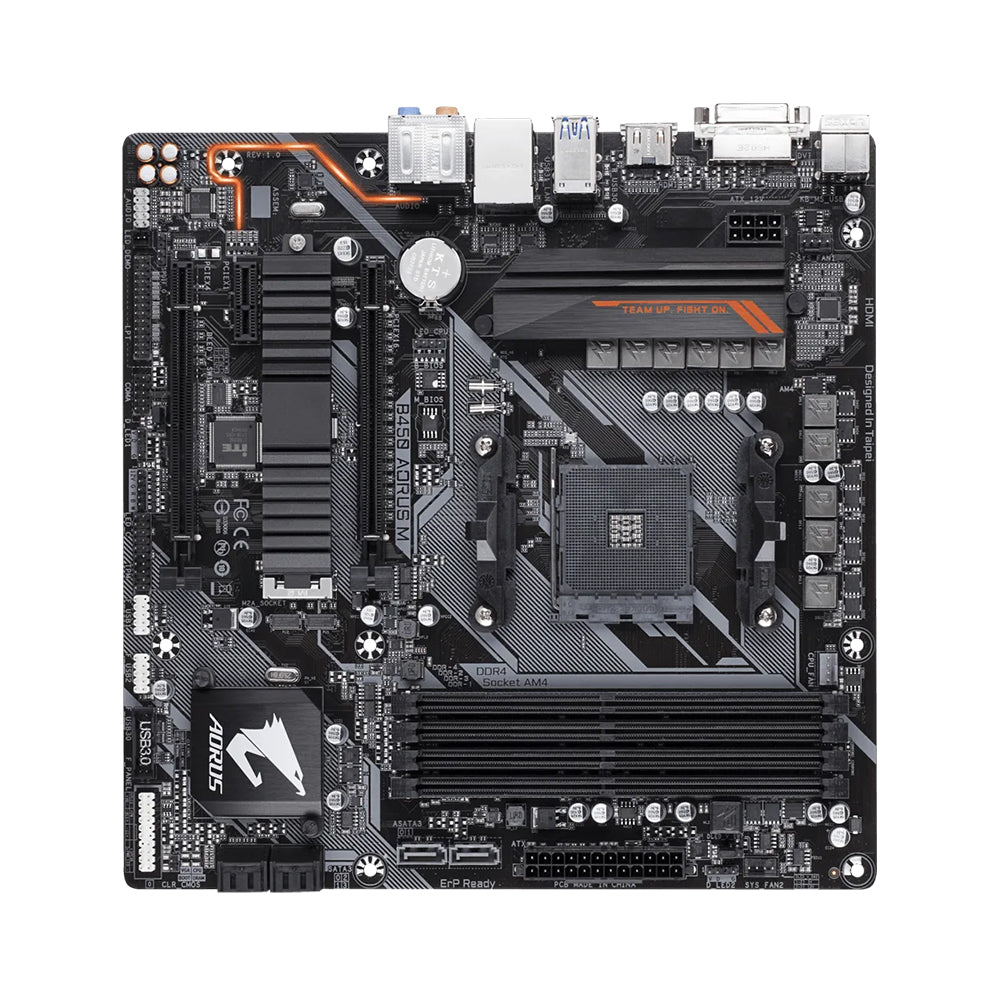

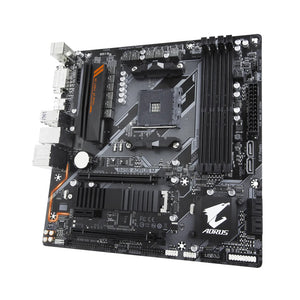

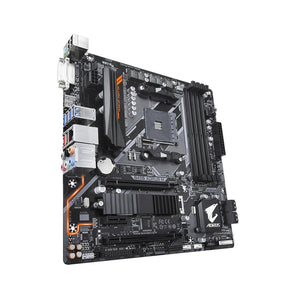

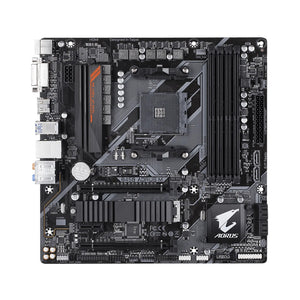

Gigabyte B450 AORUS M Motherboard - LGA AM4, AMD B450, DDR4, Micro ATX

The Gigabyte B450 AORUS M motherboard is designed for gamers and PC builders looking for a reliable and feature-rich platform for AMD Ryzen processors. Built on the AMD B450 chipset, this Micro ATX motherboard supports a wide range of AMD CPUs, making it an excellent choice for budget-friendly gaming and general-purpose computing.

Key Features:

• Socket Type: AM4
• Chipset: AMD B450
• Form Factor: Micro ATX (24.4 x 24.4 cm)

CPU Support:

• Supports AMD Ryzen™ 5000 Series, 4000 G-Series, and 1st, 2nd, and 3rd Generation Ryzen processors.
• Compatible with AMD Athlon processors with Radeon™ Vega Graphics.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 64GB (16GB per DIMM)
• Supported Memory Types: DDR4 (up to 3600 MHz overclocked)
• Memory Architecture: Dual Channel with support for Extreme Memory Profile (XMP).

Expansion Slots:

• 1 x PCIe 3.0 x16 slot for high-performance graphics cards.
• 1 x PCIe 2.0 x16 slot (operating at x4 mode).
• 1 x PCIe 2.0 x1 slot for additional expansion cards.

Storage Options:

• M.2 Slot:
  • 1 x M.2 socket supporting PCIe 3.0 x4 and SATA modes.
• SATA Ports:
  • 6 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, and 10).

Networking:

• LAN Controller: Realtek® GbE LAN for reliable wired connectivity.

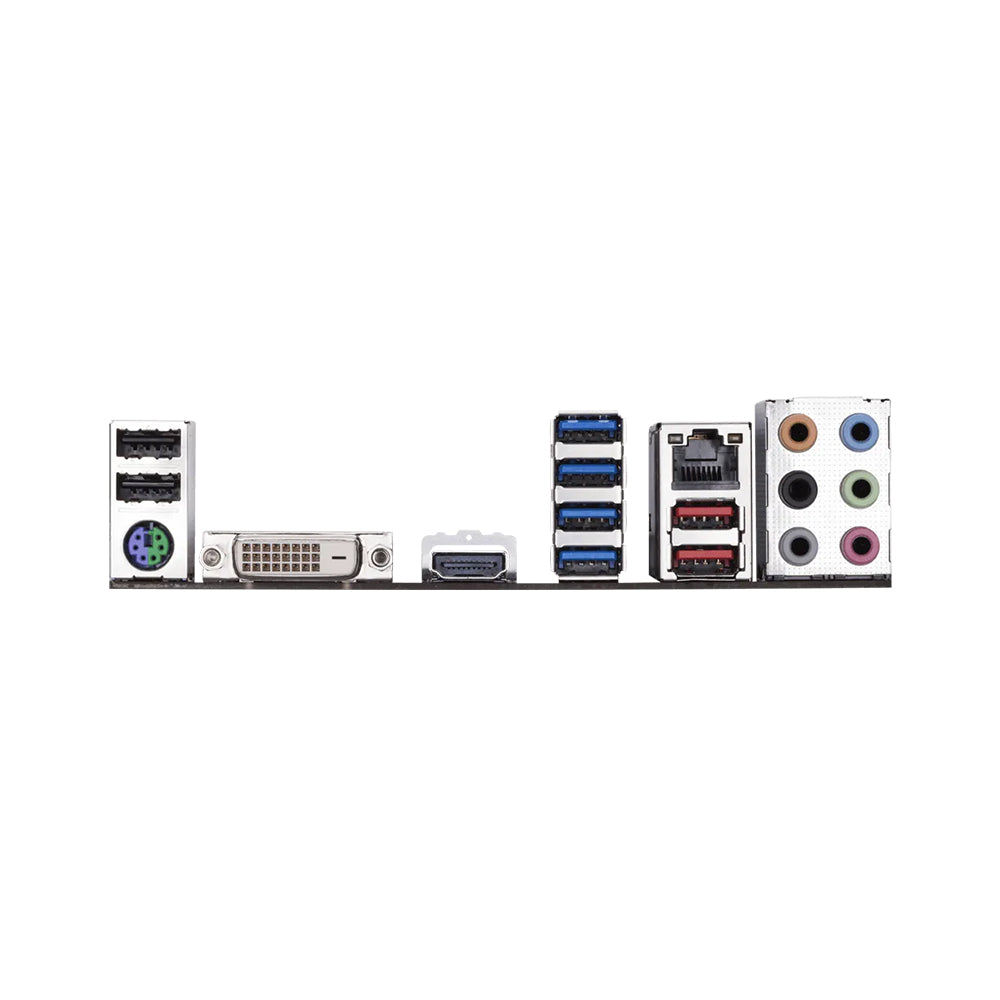

Video Outputs:

• Supports integrated graphics with:
  • 1 x HDMI port (up to 4096x2160@60 Hz).
  • 1 x DVI-D port (up to 1920x1200@60 Hz).

USB Connectivity:

• Multiple USB ports including:
  • 2 x USB 3.1 Gen 2 Type-A ports.
  • Additional USB Type-A ports for various peripherals.

Audio Features:

• Audio Codec: Realtek® ALC892 supporting up to 7.1-channel high-definition audio.

Additional Features:

• Smart Fan 5: Features multiple temperature sensors and hybrid fan headers to optimize cooling performance.
• M.2 Thermal Guard: Prevents throttling by dissipating heat from M.2 SSDs.
• RGB Fusion 2.0: Customizable RGB lighting with multiple headers for personalized aesthetics.
• DualBIOS Design: Provides a secondary backup BIOS for recovery from potential failures.
