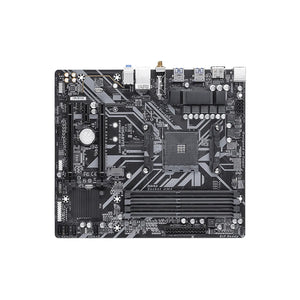

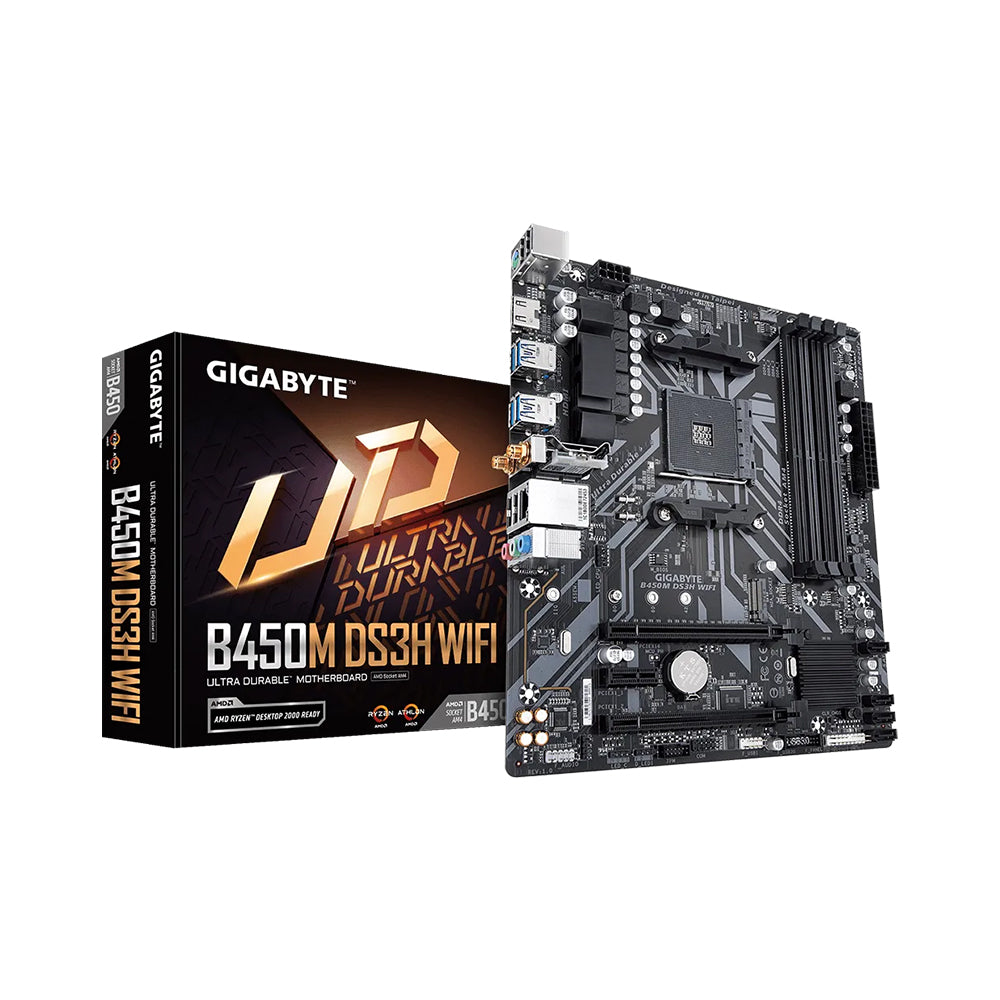

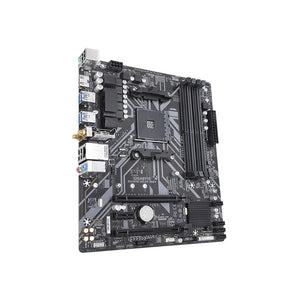

Gigabyte B450M DS3H WIFI (rev. 1.5) Motherboard - LGA AM4, AMD B450, DDR4, Micro ATX

The Gigabyte B450M DS3H WIFI motherboard is a versatile and feature-rich solution designed for AMD Ryzen processors, making it ideal for budget-friendly gaming and everyday computing. Built on the AMD B450 chipset, this Micro ATX motherboard supports a wide range of AMD CPUs and includes integrated Wi-Fi capabilities.

Key Features:

• Socket Type: AM4
• Chipset: AMD B450
• Form Factor: Micro ATX (24.4 x 21.5 cm)

CPU Support:

• Supports AMD Ryzen™ 5000 Series, Ryzen™ 4000 G-Series, 3rd Gen Ryzen™, 2nd Gen Ryzen™, and Athlon processors with Radeon™ Vega Graphics.
• Compatible with a variety of AMD CPUs for flexibility in builds.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 64GB (16GB per DIMM)
• Supported Memory Types: DDR4 (up to 3600 MHz overclocked)
• Memory Architecture: Dual Channel Non-ECC Unbuffered.

Expansion Slots:

• 1 x PCIe 3.0 x16 slot for high-performance graphics cards.
• 1 x PCIe 2.0 x16 slot (operating at x4 mode).
• 2 x PCIe 2.0 x1 slots for additional expansion cards.

Storage Options:

• M.2 Slot:
  • 1 x M.2 socket supporting PCIe NVMe and SATA modes.
• SATA Ports:
  • 6 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, and 10).

Networking:

• LAN Controller: Realtek® GbE LAN for reliable wired connectivity.
• Wireless Communication: Integrated Intel Dual Band 802.11ac Wi-Fi and Bluetooth 4.2 for wireless connectivity.

Audio Features:

• Audio Codec: Realtek® ALC892 supporting up to 7.1-channel high-definition audio with noise guard design.

Additional Features:

• RGB Fusion 2.0: Customizable RGB lighting with addressable RGB support for aesthetic customization.
• Smart Fan 6: Features multiple temperature sensors and hybrid fan headers with FAN STOP functionality for optimized cooling.
• APP Center: Includes utilities such as EasyTune™ and Cloud Station™ for enhanced system management.
• CEC 2019 Ready: Energy-efficient design that allows power saving with a simple click.
