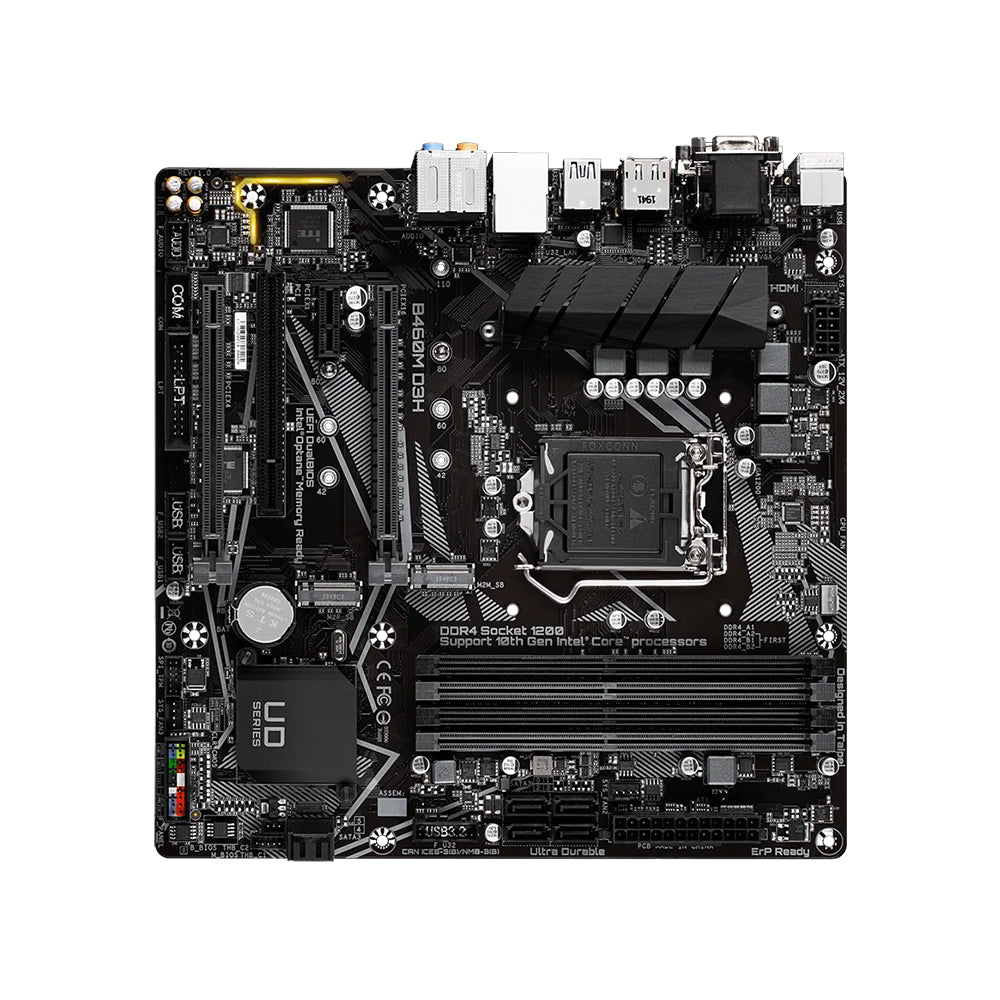

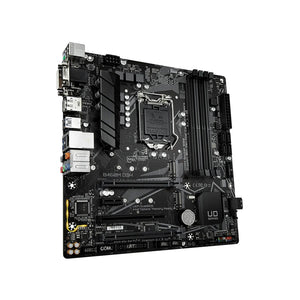

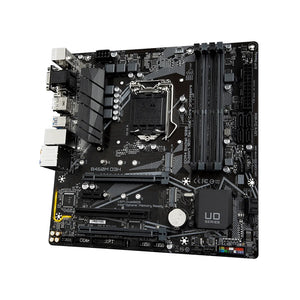

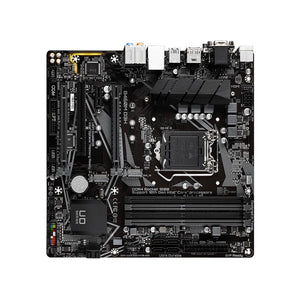

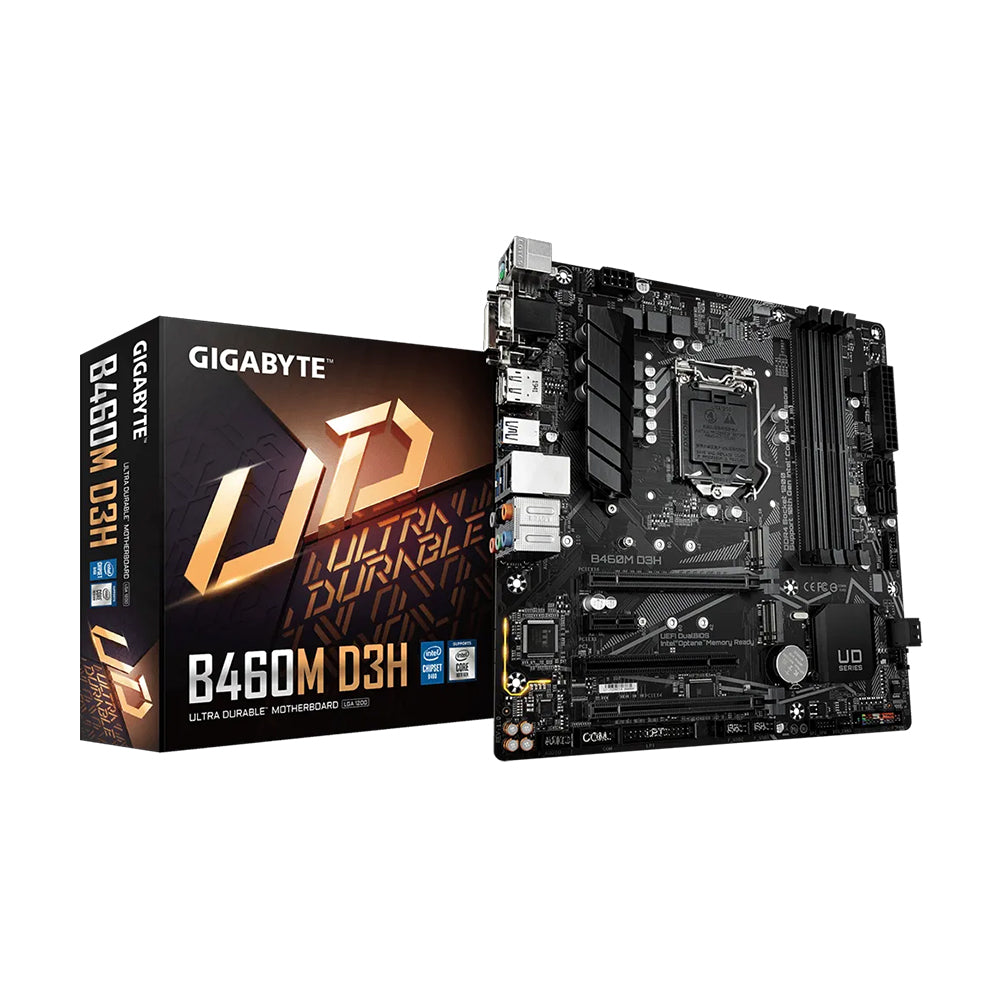

Gigabyte B460M D3H Motherboard - LGA 1200, Intel B460, DDR4, Micro ATX

The Gigabyte B460M D3H motherboard is designed for users looking to build a reliable and efficient system with Intel's 10th Generation processors. Built on the Intel B460 chipset, this Micro ATX motherboard offers essential features for gaming and everyday computing.

Key Features:

• Socket Type: LGA 1200
• Chipset: Intel® B460
• Form Factor: Micro ATX (22.6 cm x 18.5 cm)

CPU Support:

• Supports 10th Generation Intel® Core™ i9, i7, i5, i3, Pentium®, and Celeron® processors.
• Compatible with a wide range of Intel CPUs for flexibility in builds.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 128GB (32GB per DIMM)
• Supported Memory Types: DDR4 (up to 2933 MHz for i9/i7; up to 2666 MHz for i5/i3/Pentium/Celeron)
• Memory Architecture: Dual Channel Non-ECC Unbuffered; supports Extreme Memory Profile (XMP).

Expansion Slots:

• 1 x PCIe 3.0 x16 slot for high-performance graphics cards.
• 1 x PCIe 3.0 x4 slot.
• 1 x PCIe 2.0 x1 slot.

Storage Options:

• M.2 Slots:
  • 2 x M.2 connectors supporting PCIe Gen3 x4 and SATA SSDs.
• SATA Ports:
  • 6 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: Intel® GbE LAN with cFosSpeed Internet Accelerator for optimized network performance.

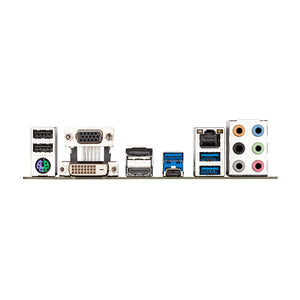

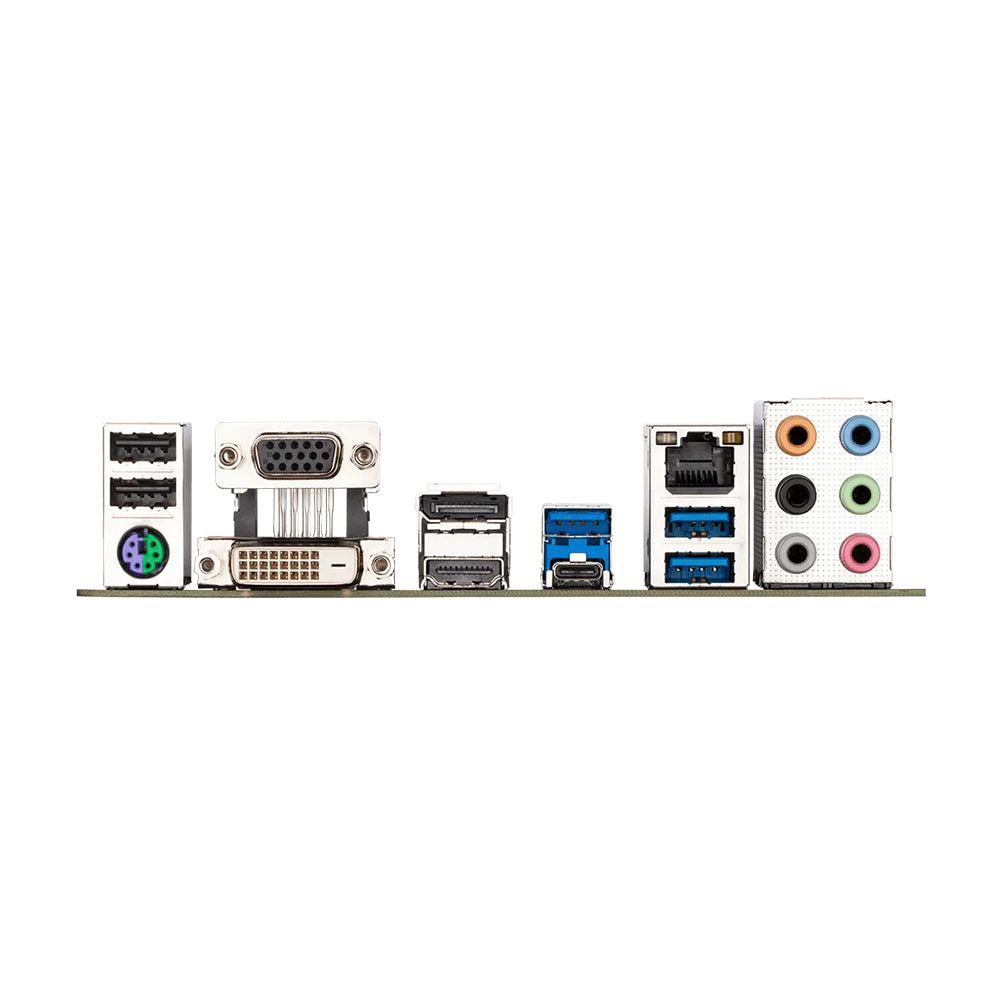

Video Outputs:

• Integrated Graphics Processor support with:
  • 1 x D-Sub port (max resolution: 1920x1200@60 Hz).
  • 1 x DVI-D port (max resolution: 1920x1200@60 Hz).
  • 1 x HDMI port (max resolution: 4096x2160@30 Hz).
  • 1 x DisplayPort (max resolution: 4096x2304@60 Hz).

USB Connectivity:

• Multiple USB ports including:
  • USB Type-C™ port with USB 3.2 Gen1 support.
  • Several USB Type-A ports including USB 3.2 Gen1 and USB 2.0.

Audio Features:

• Audio Codec: Realtek® ALC1200 supporting up to 7.1-channel high-definition audio.

Additional Features:

• Smart Fan 5: Features multiple temperature sensors and hybrid fan headers with FAN STOP functionality for optimal cooling management.
• DualBIOS™: Provides a backup BIOS to ensure system recovery in case of failure.
• Anti-Sulfur Resistors Design: Enhances durability against environmental factors.
• Intel® Optane™ Memory Ready: Supports Intel's Optane technology for improved storage performance.
