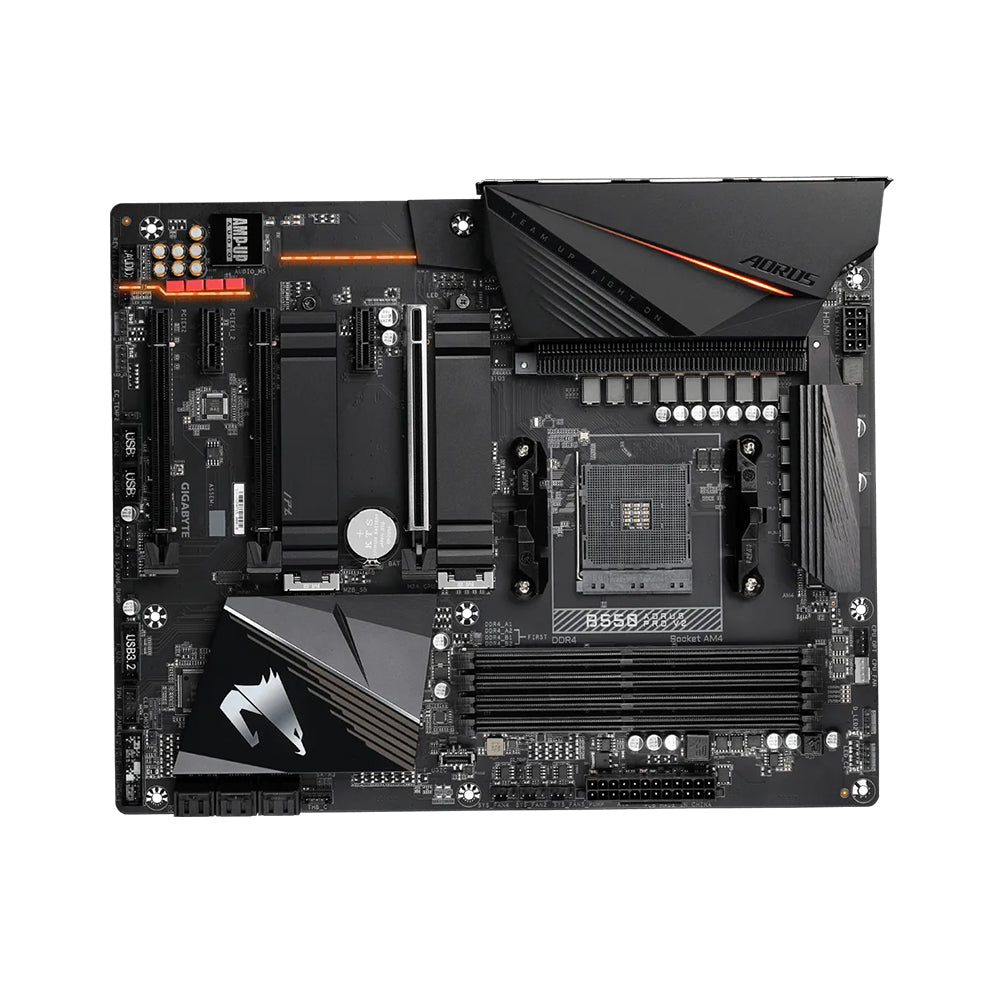

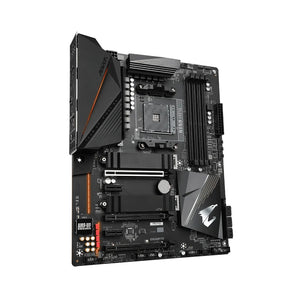

Gigabyte B550 AORUS PRO V2 Motherboard - LGA AM4, AMD B550, DDR4, ATX

The Gigabyte B550 AORUS PRO V2 motherboard is designed for gamers and PC enthusiasts seeking a high-performance platform for AMD Ryzen processors. Built on the AMD B550 chipset, this ATX motherboard offers advanced features and robust connectivity options to enhance gaming and productivity.

Key Features:

• Socket Type: AM4
• Chipset: AMD B550
• Form Factor: ATX (30.5 x 24.4 cm)

CPU Support:

• Supports AMD Ryzen™ 5000 Series, 4000 G-Series, and 3rd Generation Ryzen™ processors.
• Compatible with both standard and G-Series APUs for integrated graphics.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 128GB (32GB per DIMM)
• Supported Memory Types: DDR4 (up to 5100 MHz overclocked)
• Memory Architecture: Dual Channel with support for Extreme Memory Profile (XMP).

Expansion Slots:

• 2 x PCIe 4.0/3.0 x16 slots for high-performance graphics cards.
• 1 x PCIe 3.0 x16 slot (operating at x4 mode).
• 1 x PCIe 3.0 x1 slot for additional expansion cards.

Storage Options:

• M.2 Slots:
  • 2 x M.2 sockets supporting PCIe 4.0/3.0 SSDs.
• SATA Ports:
  • 6 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, and 10).

Networking:

• LAN Controller: Integrated Realtek® 2.5GbE Ethernet for high-speed wired connectivity.

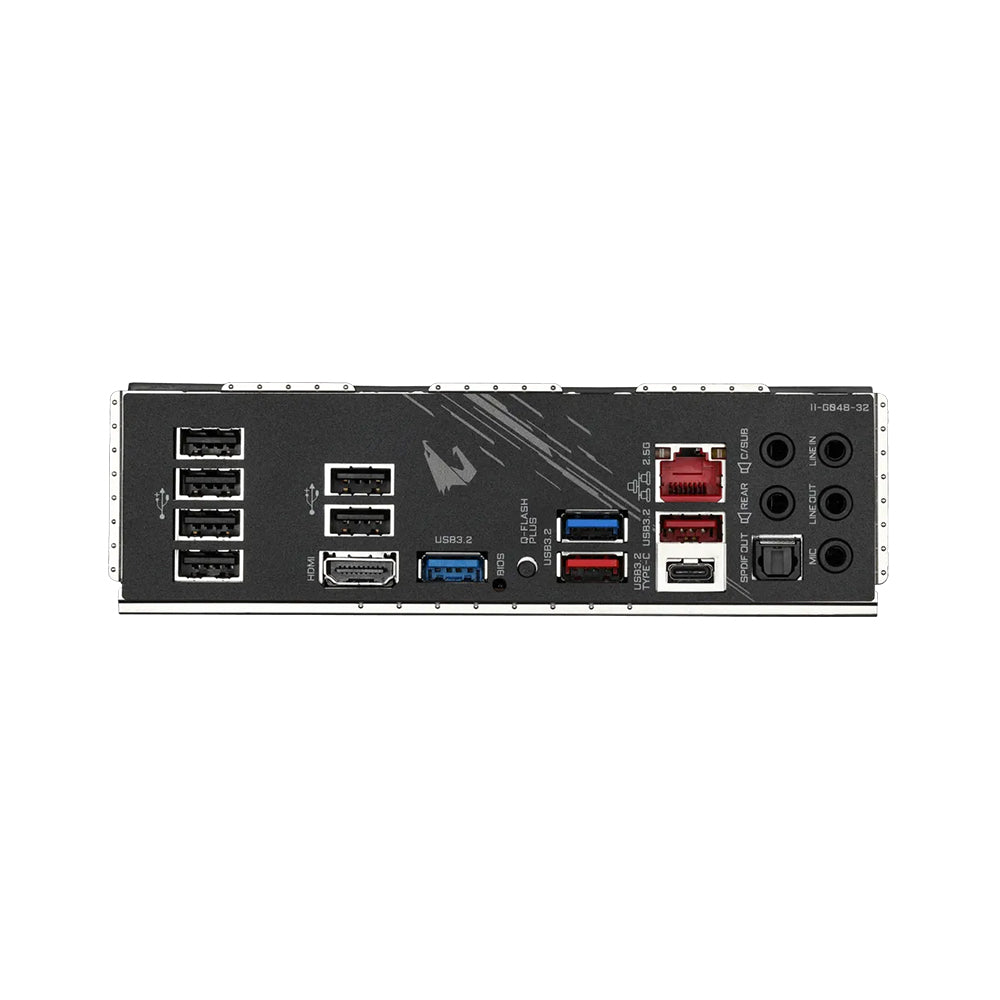

USB Connectivity:

• Multiple USB ports including:
  • 1 x USB Type-C™ port with USB 3.2 Gen 2 support.
  • Several USB Type-A ports including USB 3.2 Gen 2 and Gen 1.

Audio Features:

• Audio Codec: Realtek® ALC1220-VB supporting up to 7.1-channel high-definition audio.

Additional Features:

• Thermal Management: Fins-Array heatsink design with Direct-Touch Heatpipe for efficient cooling.
• Smart Fan Control: Features multiple fan headers with temperature sensors for optimized cooling performance.
• RGB Fusion 2.0: Customizable RGB lighting with addressable LED support for aesthetic customization.
• Dual BIOS: Provides a backup BIOS to ensure system recovery in case of failure.
