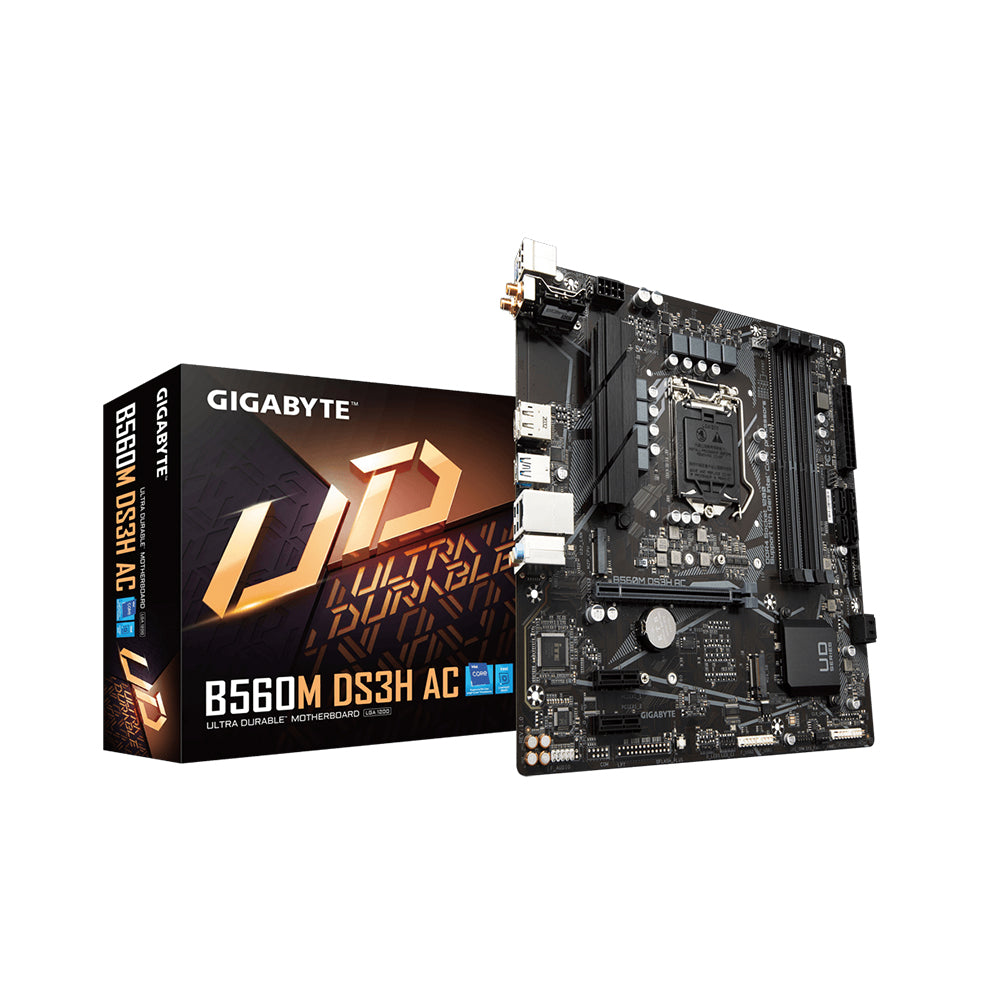

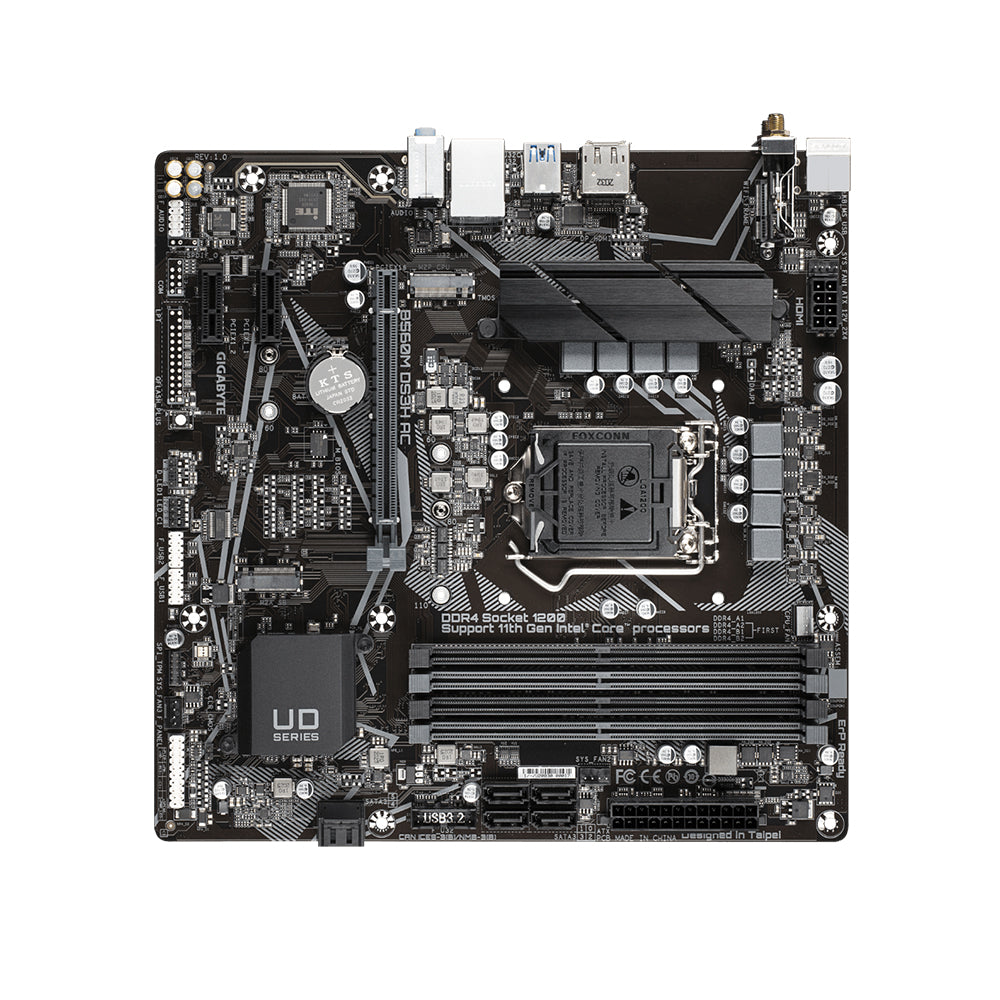

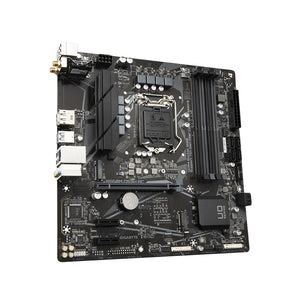

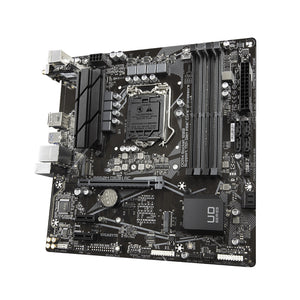

Gigabyte B560M DS3H AC Motherboard - LGA 1200, Intel B560, DDR4, Micro ATX

The Gigabyte B560M DS3H AC motherboard is designed for users looking to build a reliable and efficient system with Intel's 10th and 11th Generation processors. Built on the Intel B560 chipset, this Micro ATX motherboard features modern connectivity options, robust performance capabilities, and integrated Wi-Fi for enhanced versatility.

Key Features:

• Socket Type: LGA 1200
• Chipset: Intel® B560
• Form Factor: Micro ATX (24.4 x 24.4 cm)

CPU Support:

• Supports 11th and 10th Generation Intel® Core™ processors, including i9, i7, i5, i3, Pentium®, and Celeron®.
• Compatible with a wide range of Intel CPUs for flexibility in builds.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 128GB (32GB per DIMM)
• Supported Memory Types: DDR4 (up to 5333 MHz overclocked)
• Memory Architecture: Dual Channel Non-ECC Unbuffered; supports Extreme Memory Profile (XMP).

Expansion Slots:

• 1 x PCIe 4.0 x16 slot for high-performance graphics cards.
• 1 x PCIe 3.0 x4 slot.
• 1 x PCIe 2.0 x1 slot.

Storage Options:

• M.2 Slots:
  • 2 x M.2 connectors supporting PCIe 4.0/3.0 NVMe SSDs.
• SATA Ports:
  • 6 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: GIGABYTE Exclusive 8118 Gaming LAN with bandwidth management for optimized network performance.
• Wireless Connectivity: Onboard Dual Band 802.11ac Wi-Fi and Bluetooth 4.2 with an included antenna.

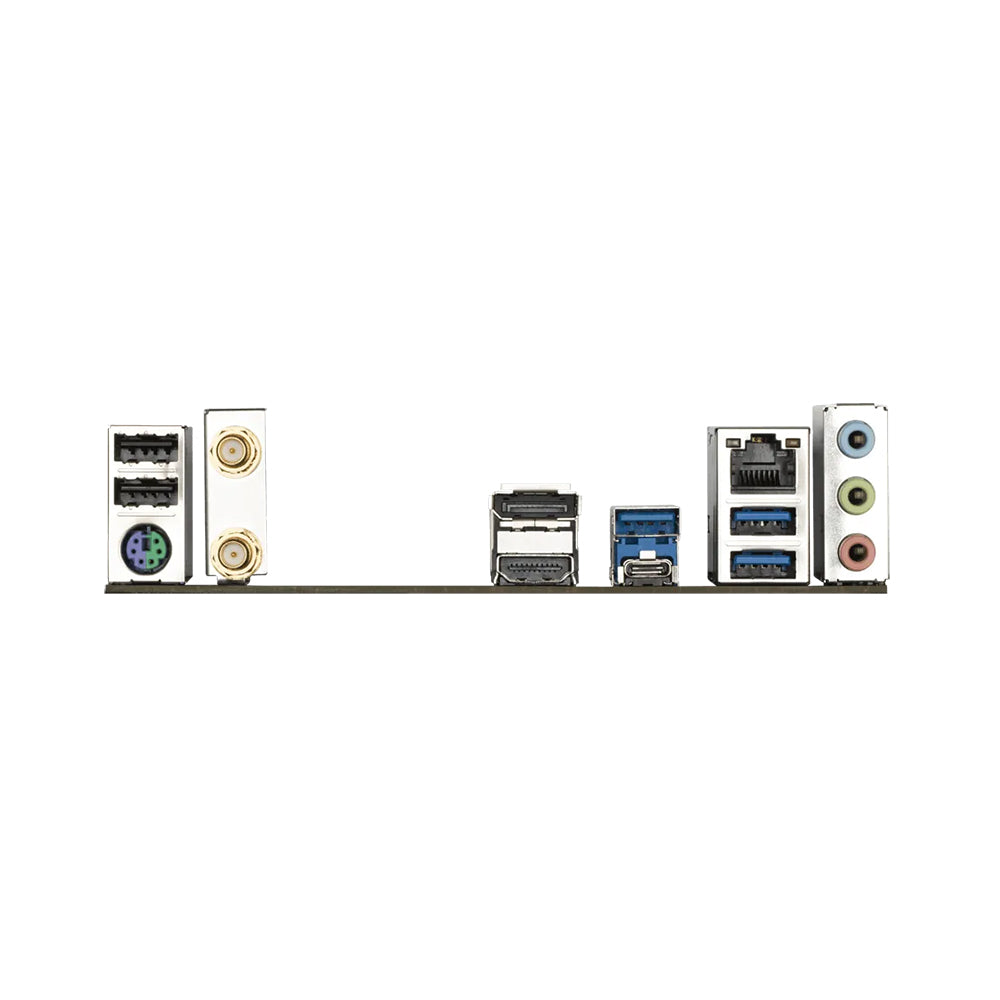

USB Connectivity:

• Multiple USB ports including:
  • USB Type-C™ port with USB 3.2 Gen1 support.
  • Several USB Type-A ports including USB 3.2 Gen1 and USB 2.0.

Audio Features:

• Audio Codec: Realtek® audio codec supporting up to 8-channel high-definition audio with high-quality capacitors.

Additional Features:

• Smart Fan 6: Features multiple temperature sensors and hybrid fan headers with FAN STOP functionality for optimal cooling management.
• RGB Fusion 2.0: Customizable RGB lighting with addressable LED support for aesthetic customization.
• Q-Flash Plus: Allows users to update the BIOS without needing to install the CPU, memory, or graphics card.
• Durable Design: Direct 6+2 Phases Digital VRM solution with low RDS(on) MOSFETs for improved power efficiency.
