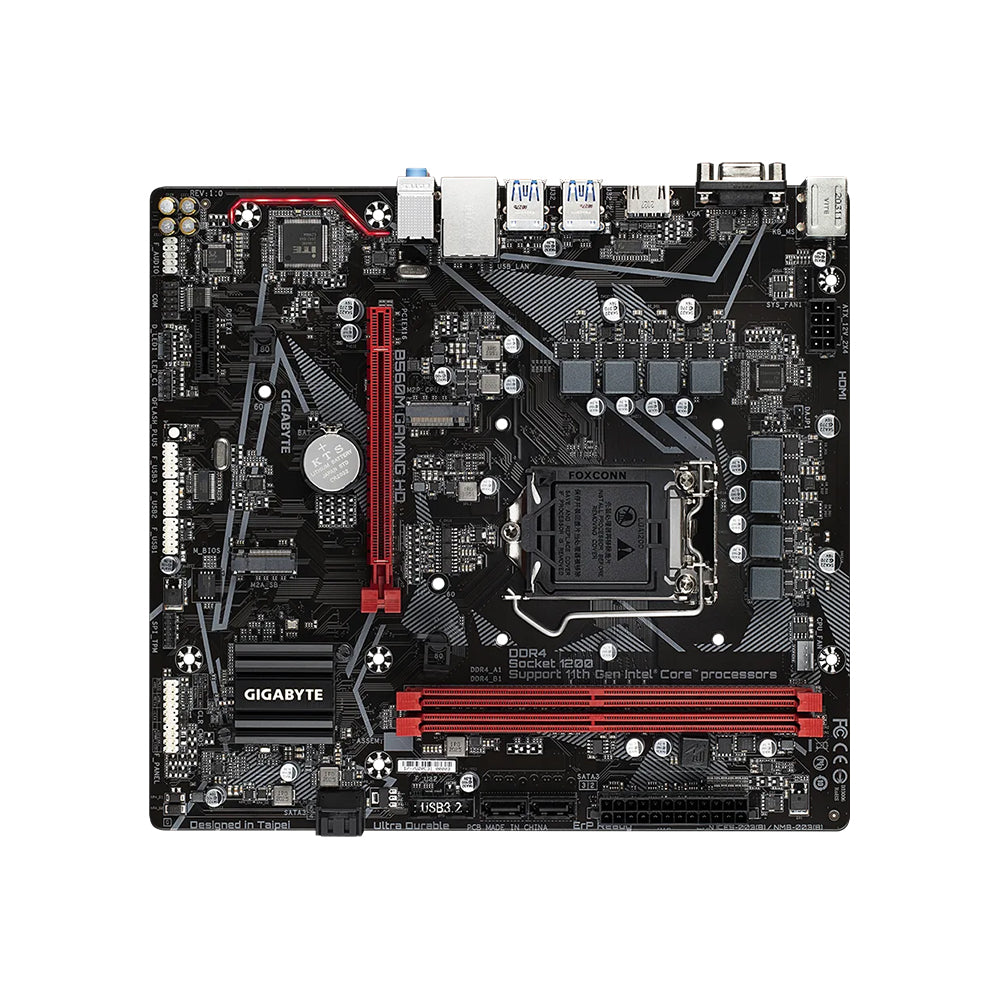

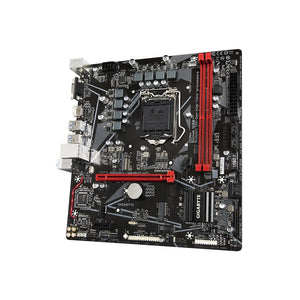

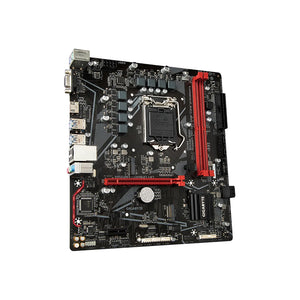

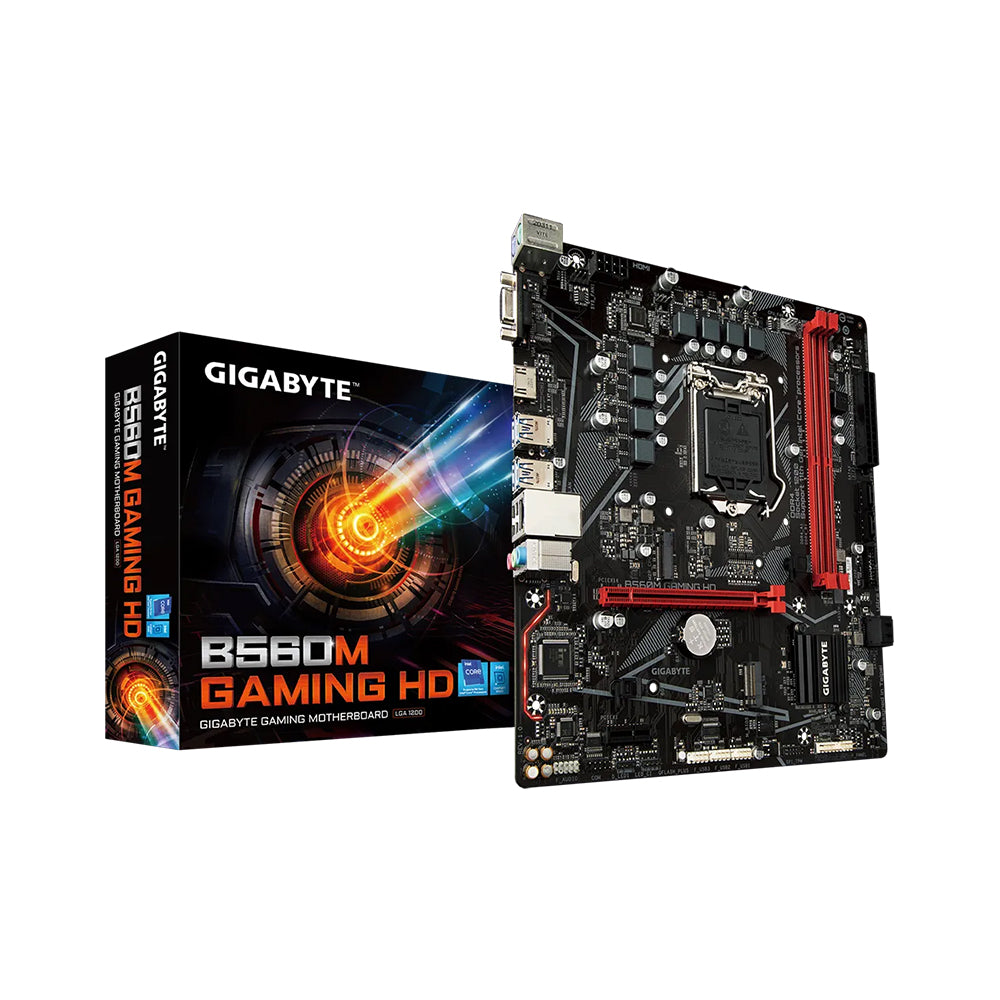

Gigabyte B560M GAMING HD Motherboard - LGA 1200, Intel B560, DDR4, Micro ATX

The Gigabyte B560M GAMING HD motherboard is designed for gamers and PC builders seeking a reliable platform for Intel's 10th and 11th Generation processors. Built on the Intel B560 chipset, this Micro ATX motherboard offers a range of features aimed at enhancing gaming performance and system efficiency.

Key Features:

• Socket Type: LGA 1200
• Chipset: Intel® B560
• Form Factor: Micro ATX (24.4 x 24.4 cm)

CPU Support:

• Supports both 11th and 10th Generation Intel® Core™ processors, including i9, i7, i5, i3, Pentium®, and Celeron®.
• Compatible with a wide range of Intel CPUs for flexibility in builds.

Memory Support:

• Slots: 2 x DIMM
• Maximum Capacity: Up to 64GB (32GB per DIMM)
• Supported Memory Types: DDR4 (up to 3200 MHz for 11th Gen; up to 2933 MHz for 10th Gen)
• Memory Architecture: Dual Channel Non-ECC Unbuffered; supports Extreme Memory Profile (XMP).

Expansion Slots:

• 1 x PCIe 4.0 x16 slot for high-performance graphics cards.
• 1 x PCIe 3.0 x4 slot.
• 1 x PCIe 2.0 x1 slot.

Storage Options:

• M.2 Slots:
  • 2 x M.2 connectors supporting PCIe 4.0/3.0 NVMe SSDs.
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: GIGABYTE Exclusive 8118 Gaming LAN with bandwidth management for optimized network performance.

USB Connectivity:

• Multiple USB ports including:
  • USB Type-C™ port with USB 3.2 Gen1 support.
  • Several USB Type-A ports including USB 3.2 Gen1 and USB 2.0.

Audio Features:

• Audio Codec: Realtek® audio codec supporting up to 7.1-channel high-definition audio with high-quality capacitors.

Additional Features:

• Smart Fan 6: Features multiple temperature sensors and hybrid fan headers with FAN STOP functionality for optimal cooling management.
• RGB Fusion 2.0: Customizable RGB lighting with addressable LED support for aesthetic customization.
• Q-Flash Plus: Allows users to update the BIOS without needing to install the CPU, memory, or graphics card.
• Durable Design: Direct 6+2 Phases Digital VRM solution with low RDS(on) MOSFETs for improved power efficiency
