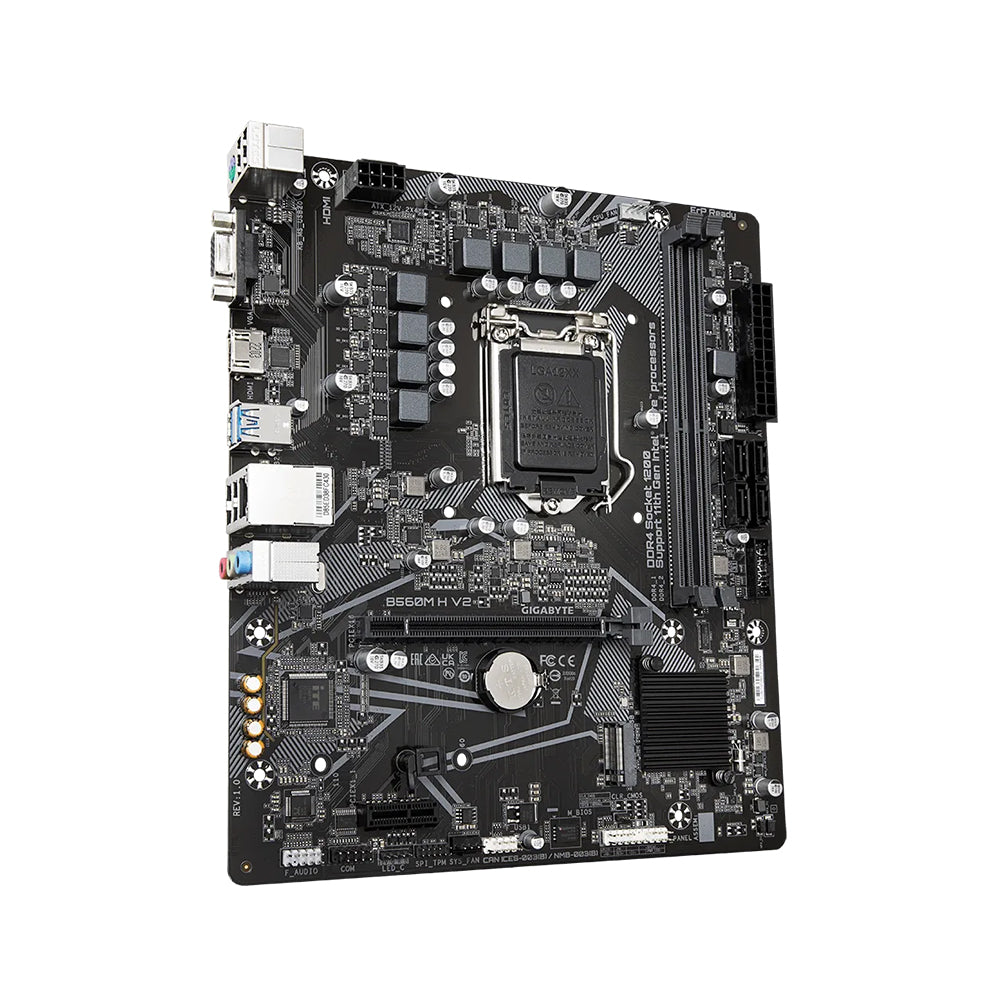

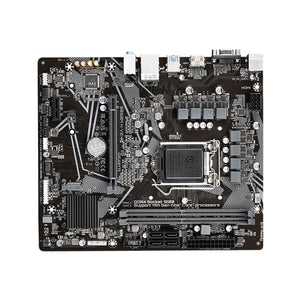

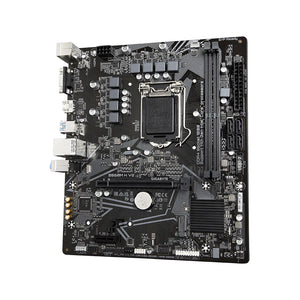

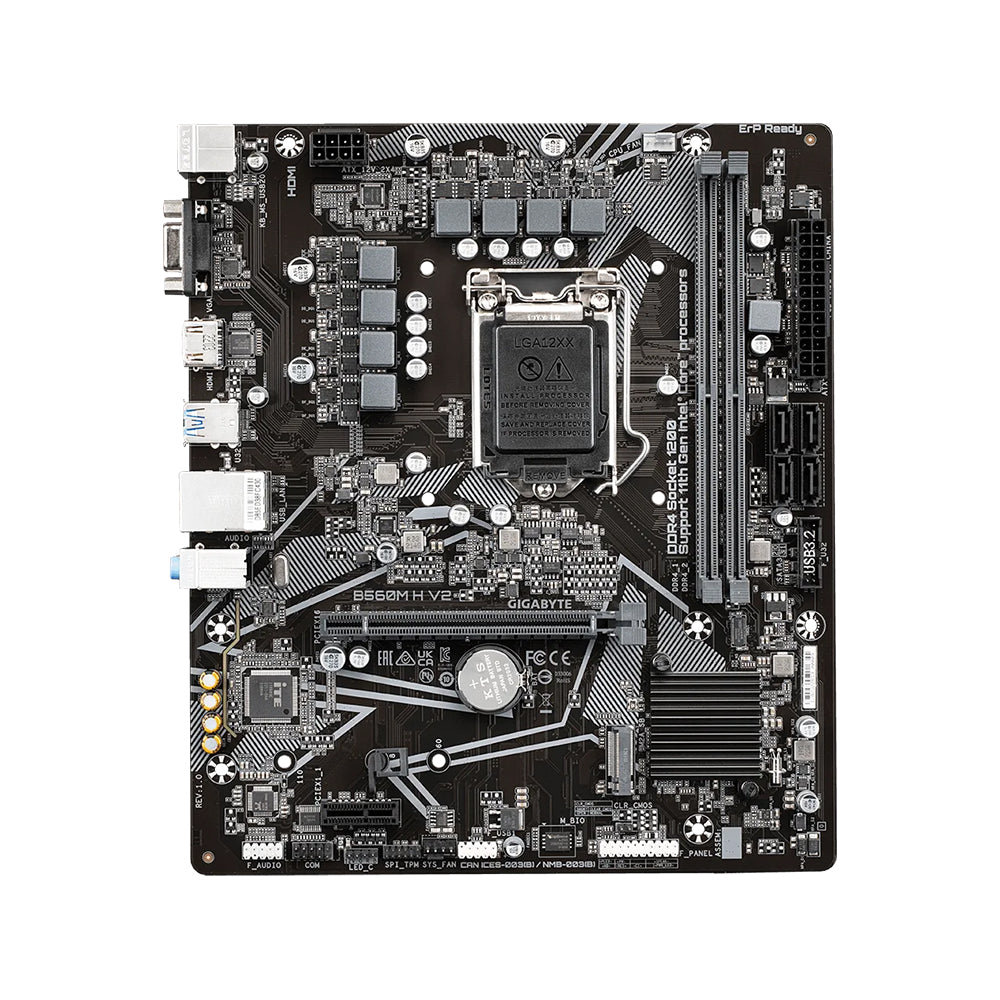

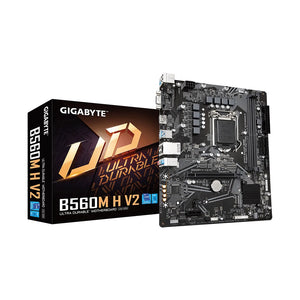

Gigabyte B560M H V2 Motherboard - LGA 1200, Intel B560, DDR4, Micro ATX

The Gigabyte B560M H V2 motherboard is designed for users looking to build a reliable and efficient system with Intel's 10th and 11th Generation processors. Built on the Intel B560 chipset, this Micro ATX motherboard features modern connectivity options, robust performance capabilities, and enhanced thermal management.

Key Features:

• Socket Type: LGA 1200
• Chipset: Intel® B560
• Form Factor: Micro ATX (24.4 x 21.0 cm)

CPU Support:

• Supports both 11th and 10th Generation Intel® Core™ processors, including i9, i7, i5, i3, Pentium®, and Celeron®.
• Compatible with a wide range of Intel CPUs for flexibility in builds.

Memory Support:

• Slots: 2 x DIMM
• Maximum Capacity: Up to 64GB (32GB per DIMM)
• Supported Memory Types: DDR4 (up to 3200 MHz for 11th Gen; up to 2933 MHz for 10th Gen)
• Memory Architecture: Dual Channel Non-ECC Unbuffered; supports Extreme Memory Profile (XMP).

Expansion Slots:

• 1 x PCIe 4.0 x16 slot for high-performance graphics cards.
• 1 x PCIe 3.0 x1 slot for additional expansion cards.

Storage Options:

• M.2 Slots:
  • 1 x M.2 connector supporting PCIe Gen3 x4 and SATA SSDs.
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: Realtek® GbE LAN with bandwidth management for optimized network performance.

USB Connectivity:

• Multiple USB ports including:
  • USB Type-C™ port with USB 3.2 Gen1 support.
  • Several USB Type-A ports including USB 3.2 Gen1 and USB 2.0.

Audio Features:

• Audio Codec: Realtek® audio codec supporting up to 7.1-channel high-definition audio with high-quality capacitors.

Additional Features:

• Smart Fan 6: Features multiple temperature sensors and hybrid fan headers with FAN STOP functionality for optimal cooling management.
• Anti-Sulfur Resistors Design: Enhances durability against environmental factors.
• GIGABYTE APP Center: Provides various utilities for system management and monitoring.
• Solid Capacitors and Low RDS(on) MOSFETs: Improve power delivery efficiency and thermal performance.
