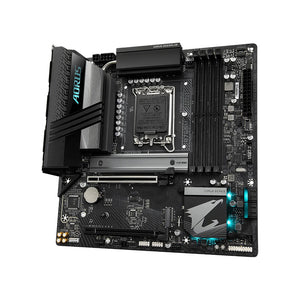

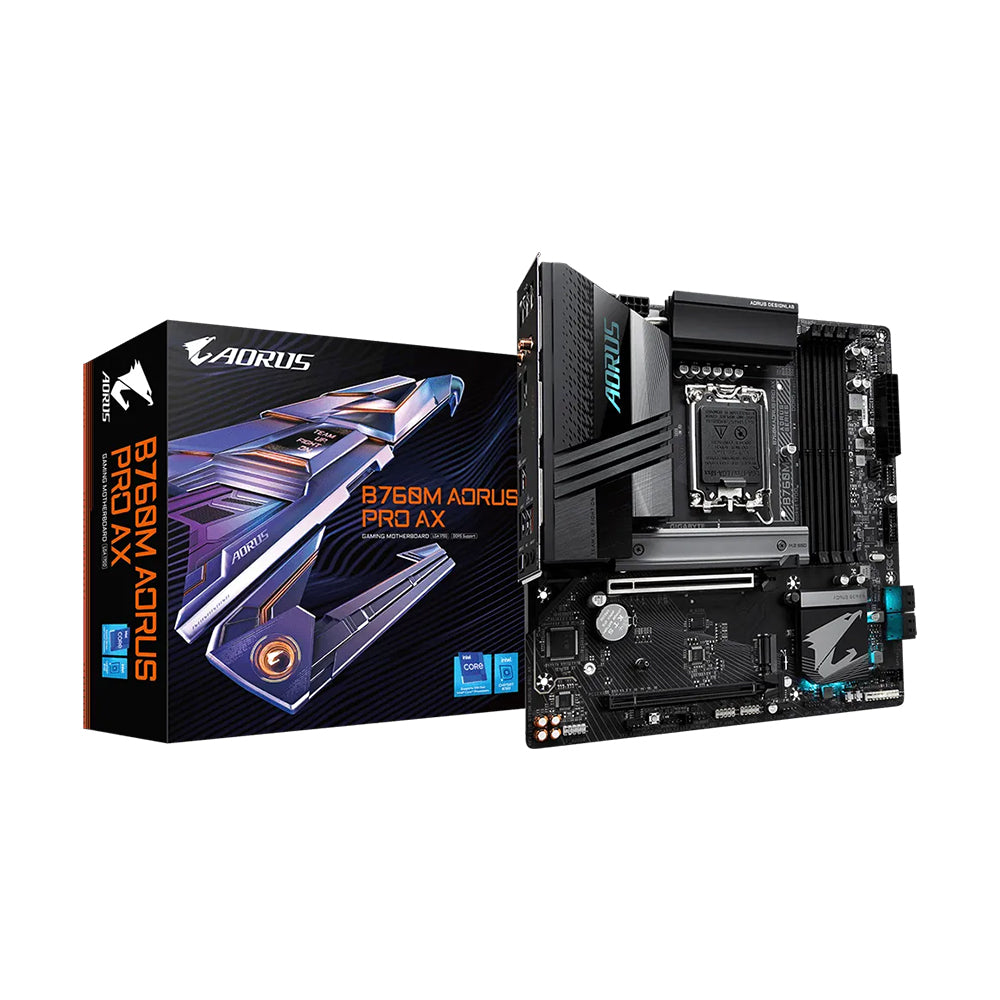

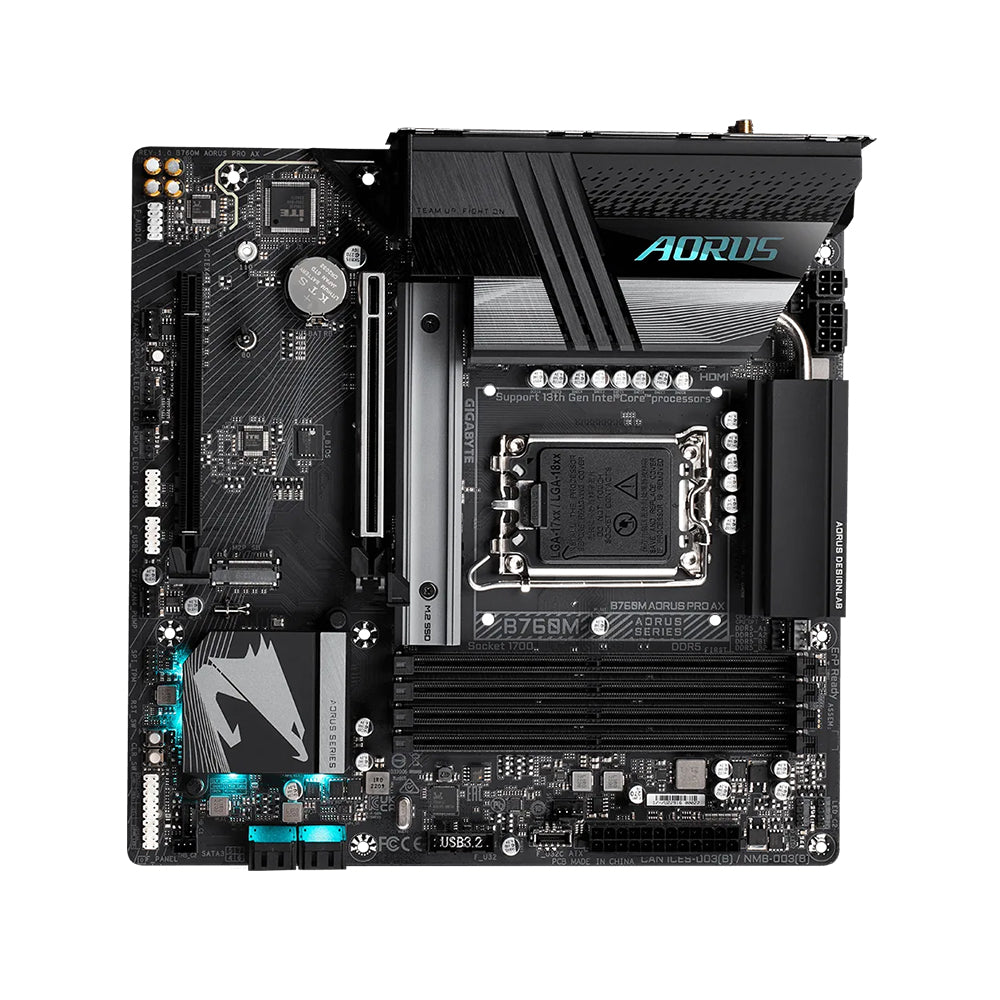

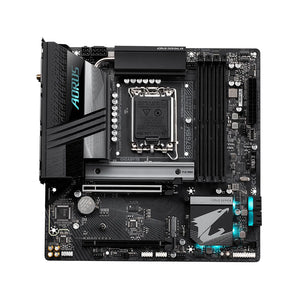

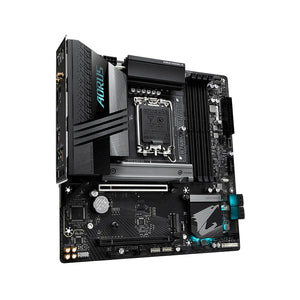

Gigabyte B760M AORUS PRO AX Motherboard - LGA 1700, Intel B760, DDR5, Micro ATX

The Gigabyte B760M AORUS PRO AX motherboard is designed for gamers and PC enthusiasts looking to leverage the capabilities of Intel's 12th and 13th Generation processors. Built on the Intel B760 chipset, this Micro ATX motherboard offers advanced features, robust performance, and excellent connectivity options.

Key Features:

• Socket Type: LGA 1700
• Chipset: Intel® B760
• Form Factor: Micro ATX (24.4 x 24.4 cm)

CPU Support:

• Supports 12th and 13th Generation Intel® Core™, Pentium®, and Celeron® processors.
• Designed to maximize performance with the latest Alder Lake architecture.

Memory Support:

• Slots: 4 x DDR5 DIMM
• Maximum Capacity: Up to 128GB (32GB per DIMM)
• Supported Memory Types: DDR5 (up to 7600 MHz overclocked)
• Memory Architecture: Dual Channel Non-ECC Unbuffered; supports XMP 3.0 for easy overclocking.

Expansion Slots:

• 1 x PCIe 4.0 x16 slot for high-performance graphics cards.
• 1 x PCIe 4.0 x4 slot for additional expansion cards.

Storage Options:

• M.2 Slots:
  • 2 x M.2 connectors supporting PCIe 4.0 NVMe SSDs with Thermal Guard for heat dissipation.
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: Realtek® 2.5GbE LAN for high-speed wired connectivity.
• Wireless Communication: Integrated Intel® Wi-Fi 6E (802.11ax) for fast wireless networking.

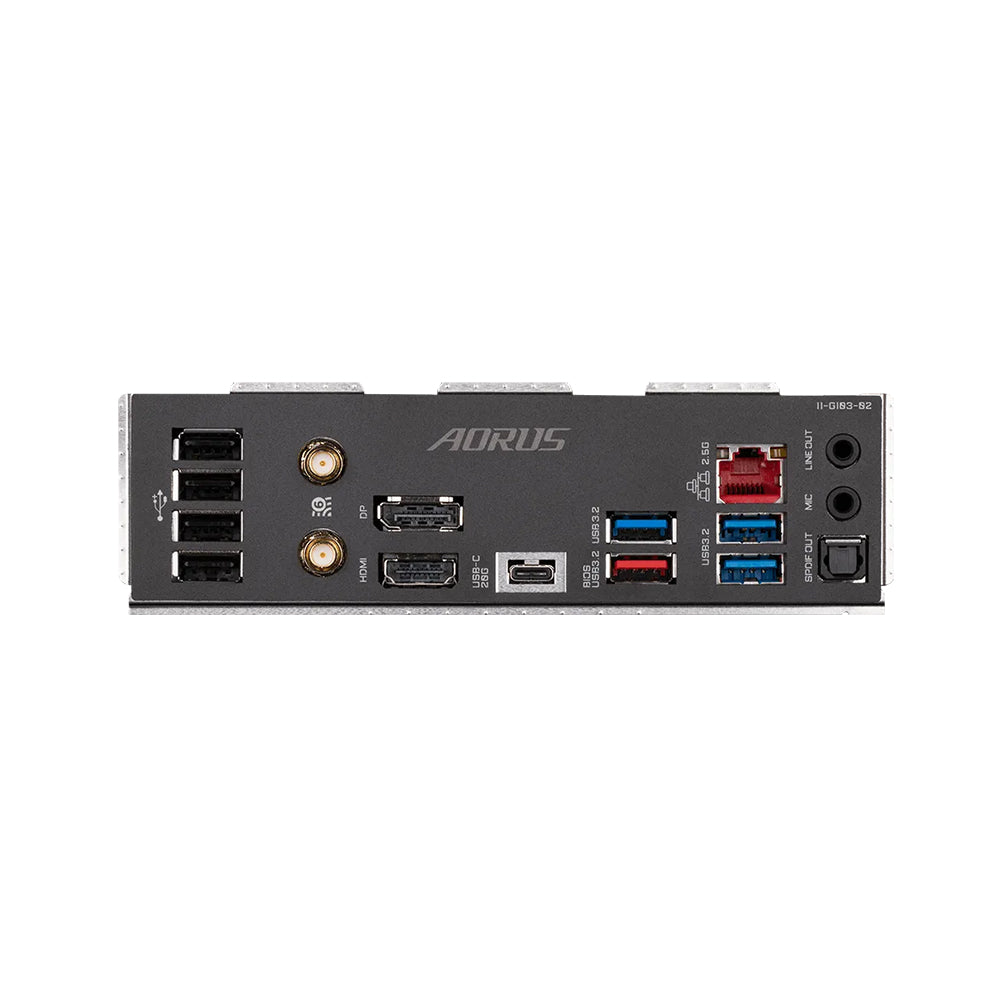

USB Connectivity:

• Multiple USB ports including:
  • Front USB-C® port with up to 10Gb/s speed.
  • Rear USB-C® port with up to 20Gb/s speed.
  • Several USB Type-A ports including USB 3.2 Gen1 and USB 2.0.

Audio Features:

• Audio Codec: High-end audio capacitors supporting up to 7.1-channel high-definition audio with an audio noise guard to minimize interference.

Additional Features:

• Advanced Thermal Design: Fully covered MOSFET heatsinks and M.2 Thermal Guard ensure optimal cooling during demanding tasks.
• Smart Fan 6: Features multiple temperature sensors and hybrid fan headers with FAN STOP functionality for efficient cooling management.
• Q-Flash Plus: Allows users to update the BIOS without needing to install the CPU, memory, or graphics card.
• EZ-Latch Plus: M.2 connectors with quick release and screwless design for easy installation.
