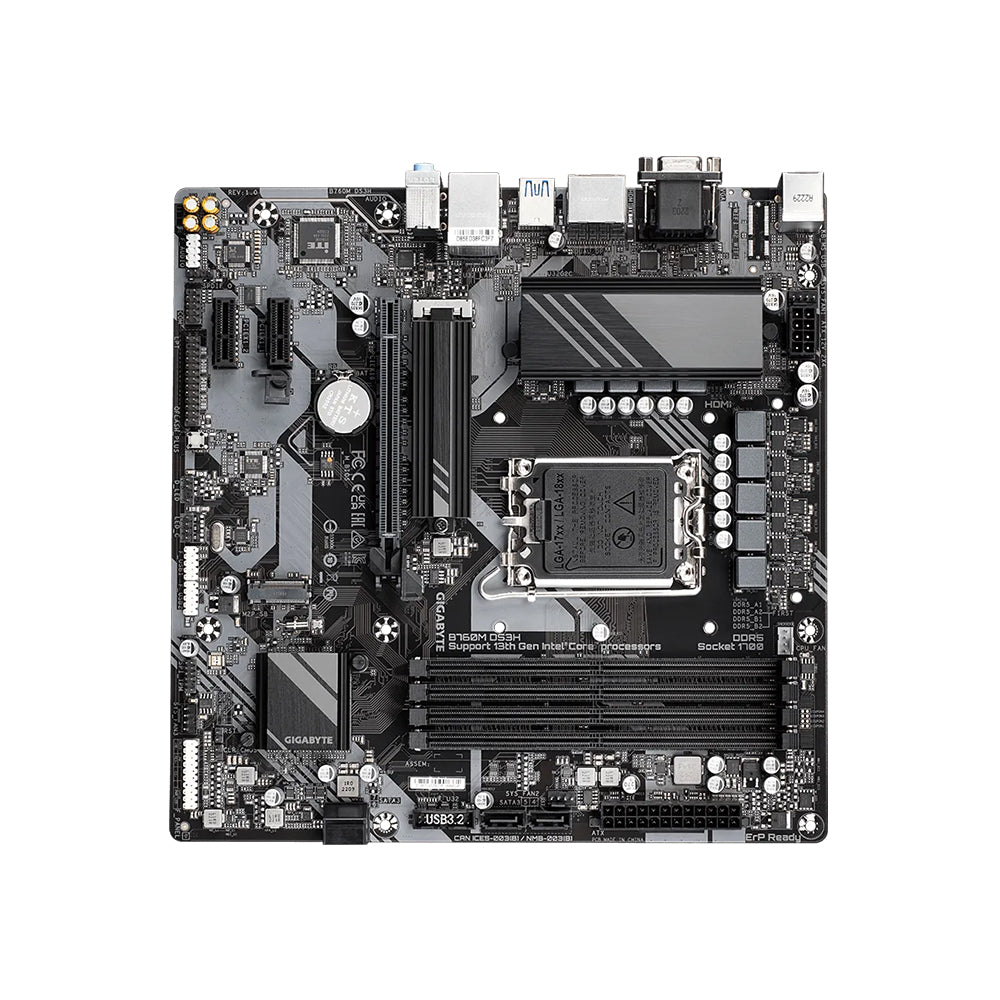

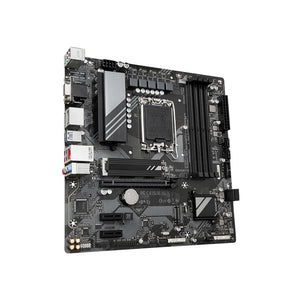

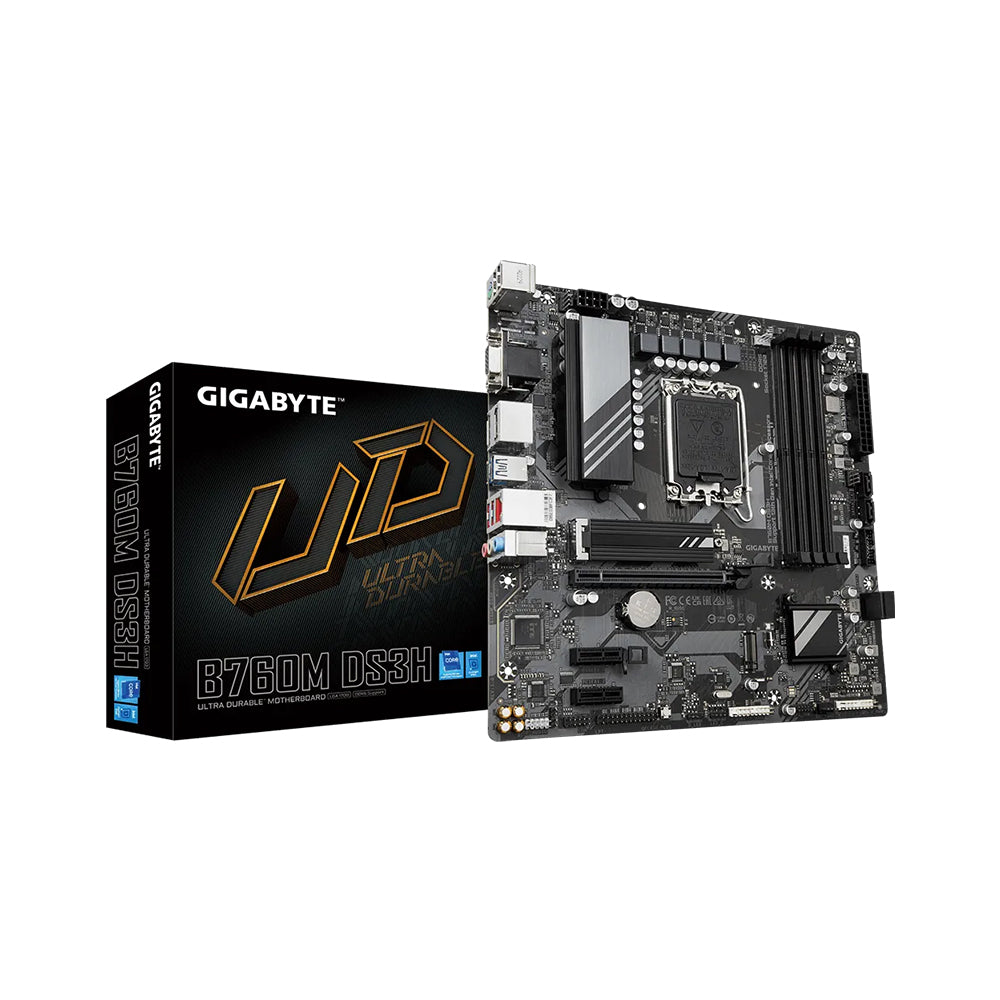

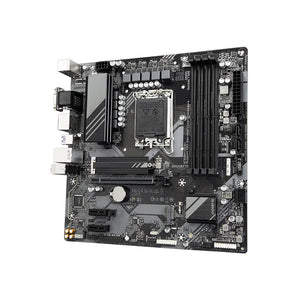

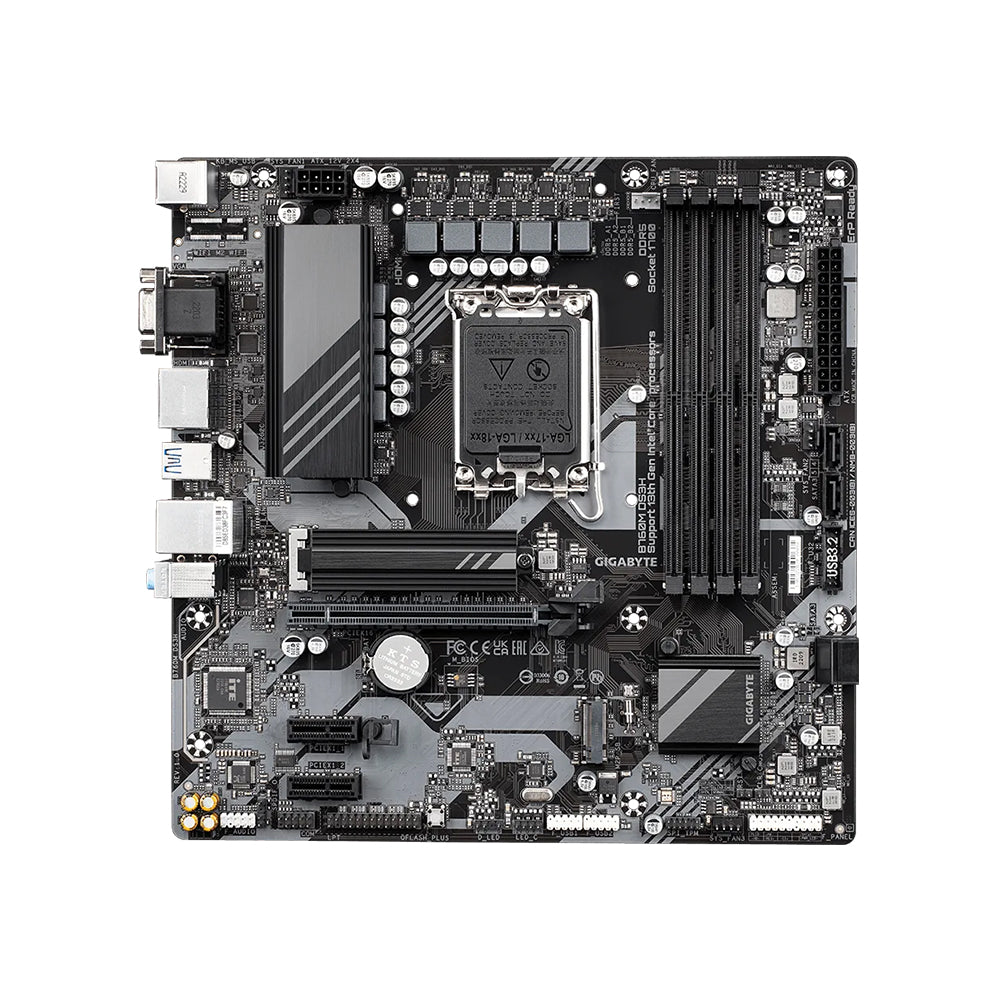

Gigabyte B760M DS3H DDR5 Motherboard - LGA 1700, Intel B760, DDR5, Micro ATX

The Gigabyte B760M DS3H DDR5 motherboard is designed for users looking to build a powerful and efficient system with Intel's 12th and 13th Generation processors. Built on the Intel B760 chipset, this Micro ATX motherboard features advanced DDR5 memory support, robust thermal management, and extensive connectivity options.

Key Features:

• Socket Type: LGA 1700
• Chipset: Intel® B760
• Form Factor: Micro ATX (24.4 x 24.4 cm)

CPU Support:

• Supports Intel® Core™ 14th, 13th, and 12th Generation processors.
• Designed to maximize performance with the latest Alder Lake architecture.

Memory Support:

• Slots: 4 x DDR5 DIMM
• Maximum Capacity: Up to 128GB (32GB per DIMM)
• Supported Memory Types: DDR5 (overclocking support up to 7600 MHz)
• Memory Architecture: Dual Channel Non-ECC Unbuffered; supports Extreme Memory Profile (XMP) for easy overclocking.

Expansion Slots:

• 1 x PCIe 4.0 x16 slot for high-performance graphics cards.
• 1 x PCIe 4.0 x4 slot for additional expansion cards.

Storage Options:

• M.2 Slots:
  • 2 x M.2 connectors supporting PCIe 4.0 NVMe SSDs with M.2 Thermal Guard to prevent throttling.
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: Realtek® 2.5GbE LAN for high-speed wired connectivity.
• Wireless Communication: Integrated Wi-Fi 6E (802.11ax) for fast wireless networking.

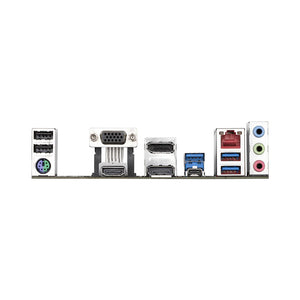

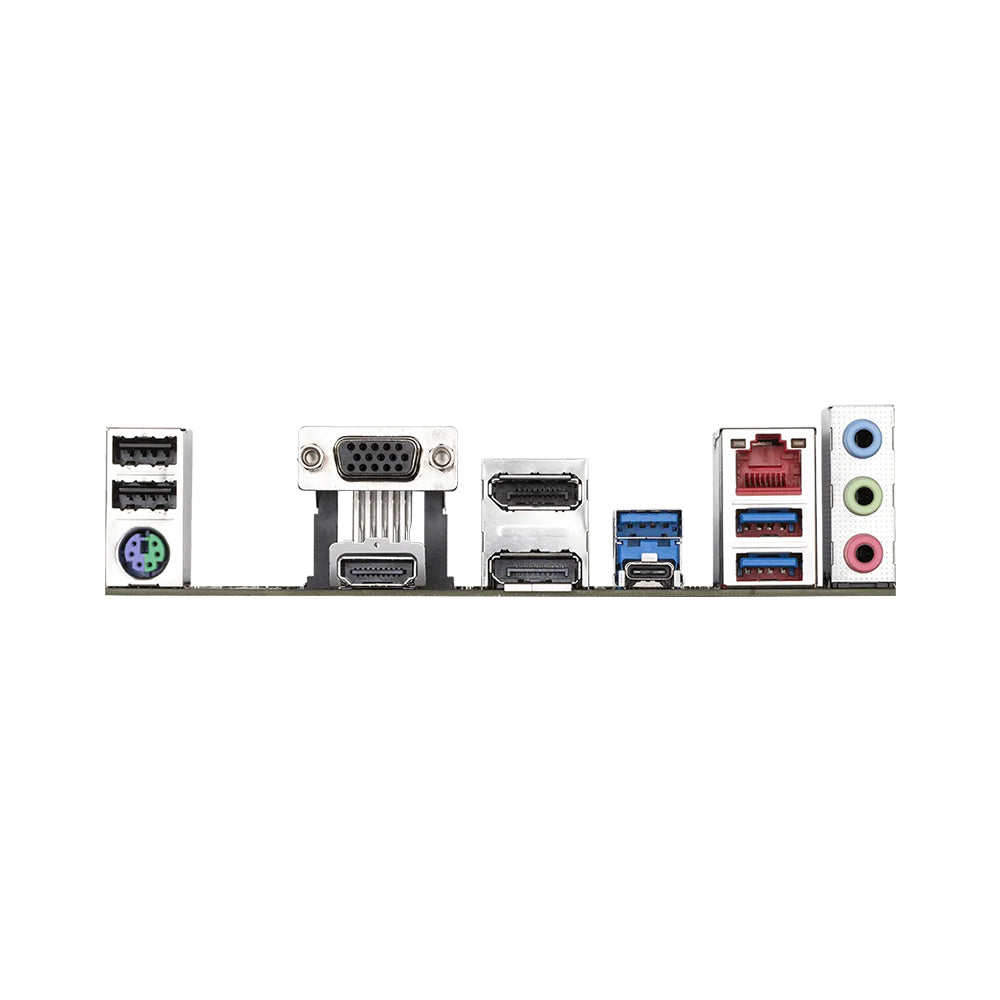

USB Connectivity:

• Multiple USB ports including:
  • Rear USB-C® port with up to 10Gb/s speed.
  • Several USB Type-A ports including USB 3.2 Gen1 and USB 2.0.

Audio Features:

• Audio Codec: High-end audio capacitors supporting up to 7.1-channel high-definition audio with an audio noise guard to minimize interference.

Additional Features:

• Smart Fan 6: Features multiple temperature sensors and hybrid fan headers with FAN STOP functionality for efficient cooling management.
• Q-Flash Plus: Allows users to update the BIOS without needing to install the CPU, memory, or graphics card.
• EZ-Latch Design: Quick release design for PCIe slots simplifies installation and upgrades.
