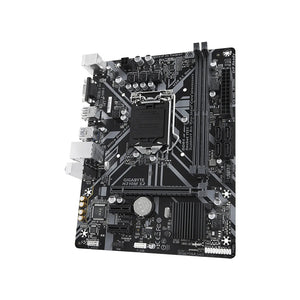

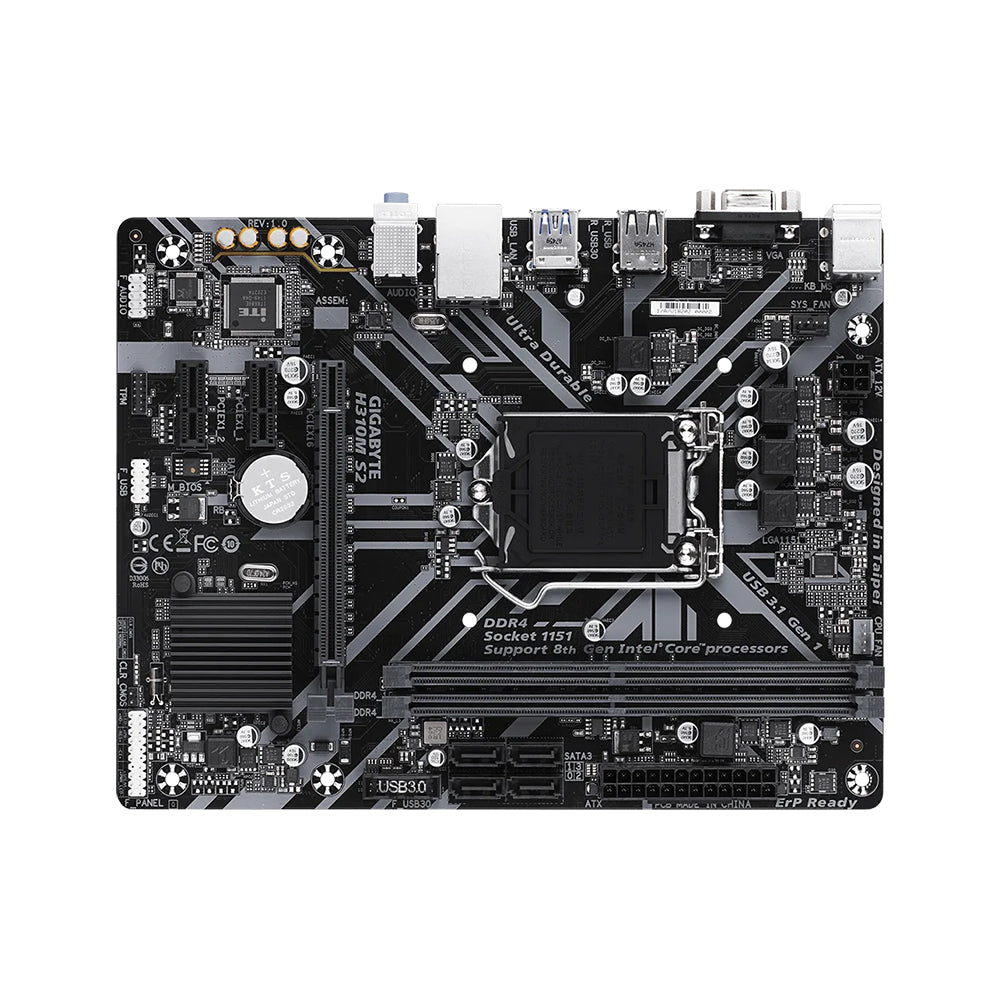

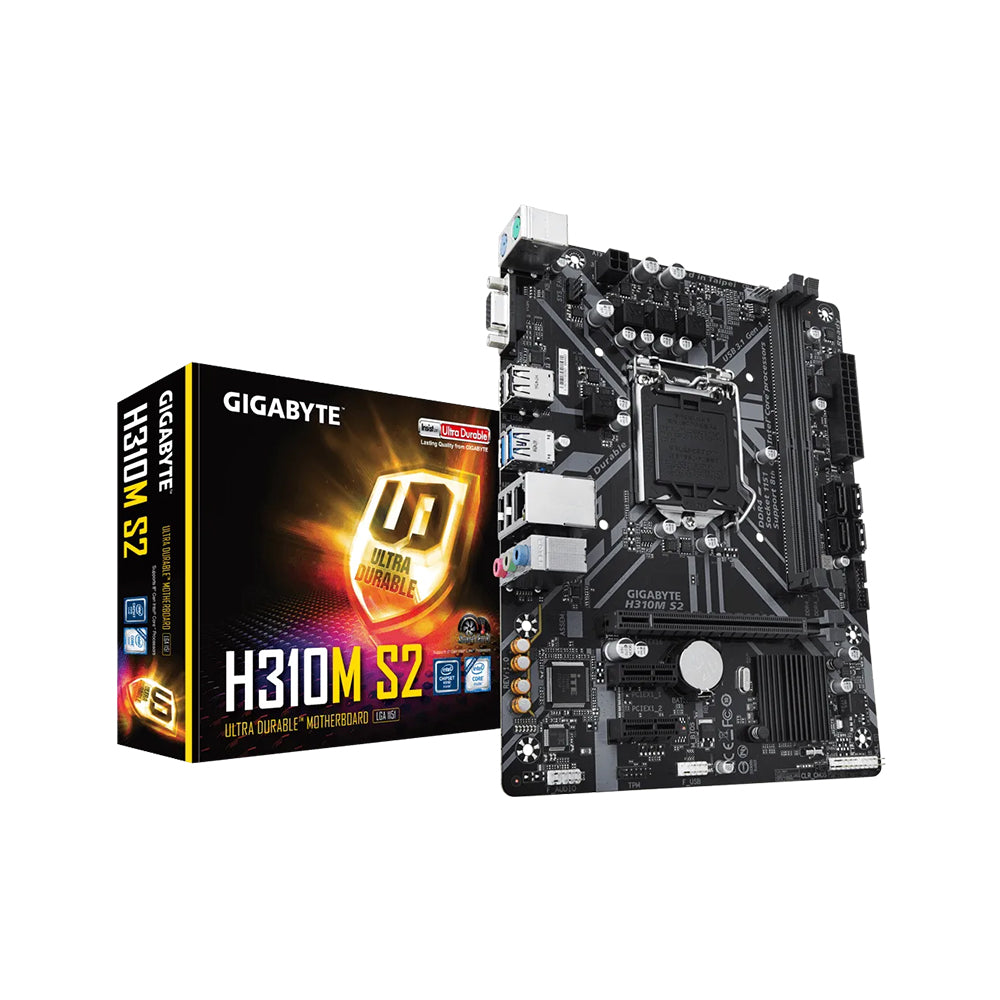

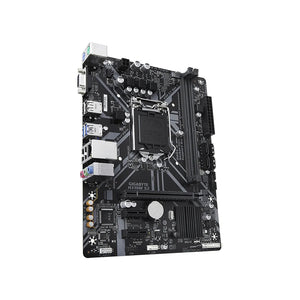

Gigabyte GA-H310M-S2 (rev. 1.0) Motherboard - LGA 1151, Intel H310, DDR4, Micro ATX

The Gigabyte GA-H310M-S2 (rev. 1.0) motherboard is designed for users looking to build an efficient system with Intel's 8th and 9th Generation processors. Built on the Intel H310 chipset, this Micro ATX motherboard offers essential features for both everyday computing and gaming.

Key Features:

• Socket Type: LGA 1151
• Chipset: Intel® H310
• Form Factor: Micro ATX (22.6 x 17.4 cm)

CPU Support:

• Supports 8th and 9th Generation Intel® Core™ processors, including i9, i7, i5, i3, Pentium®, and Celeron®.
• Designed to optimize performance with Intel's architecture.

Memory Support:

• Slots: 2 x DDR4 DIMM
• Maximum Capacity: Up to 32GB (16GB per DIMM)
• Supported Memory Types: DDR4 (up to 2666 MHz)
• Memory Architecture: Dual Channel Non-ECC Unbuffered.

Expansion Slots:

• 1 x PCIe 3.0 x16 slot for high-performance graphics cards.
• 2 x PCIe 2.0 x1 slots for additional expansion cards.

Storage Options:

• SATA Ports:
  • 4 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: Realtek® GbE LAN for reliable wired connectivity.

Video Outputs:

• Supports integrated graphics with:
  • 1 x HDMI port.
  • 1 x DVI-D port.
  • 1 x D-Sub (VGA) port for multiple display options.

USB Connectivity:

• Multiple USB ports including:
  • Up to 4 x USB 3.1 Gen 1 ports.
  • Up to 6 x USB 2.0 ports.

Audio Features:

• Audio Codec: Realtek® ALC887 supporting up to 7.1-channel high-definition audio with high-quality capacitors for improved sound quality.

Additional Features:

• Smart Fan 5: Features multiple temperature sensors and hybrid fan headers with FAN STOP functionality for optimal cooling management.
• Anti-Sulfur Resistors Design: Enhances durability against environmental factors.
• GIGABYTE UEFI DualBIOS™: Provides a backup BIOS for enhanced reliability.
• CEC 2019 Ready: Allows power saving with a simple click.
