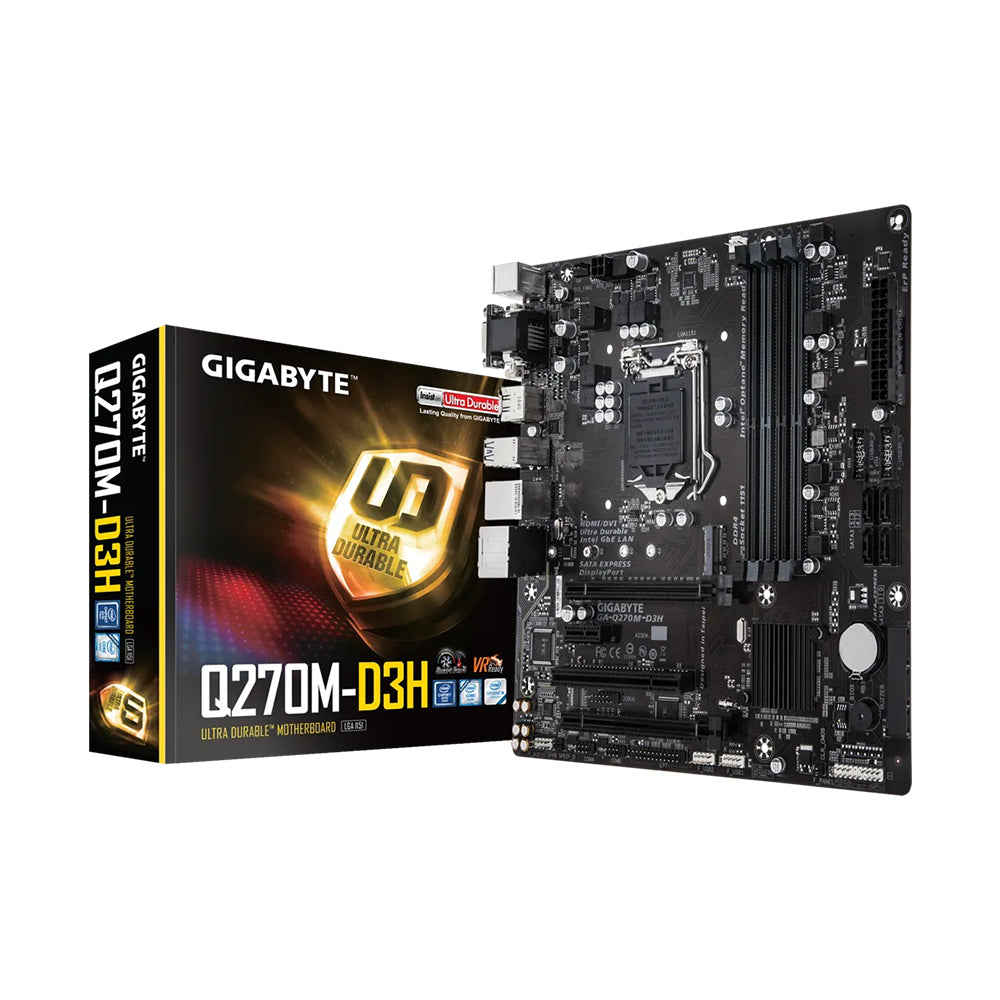

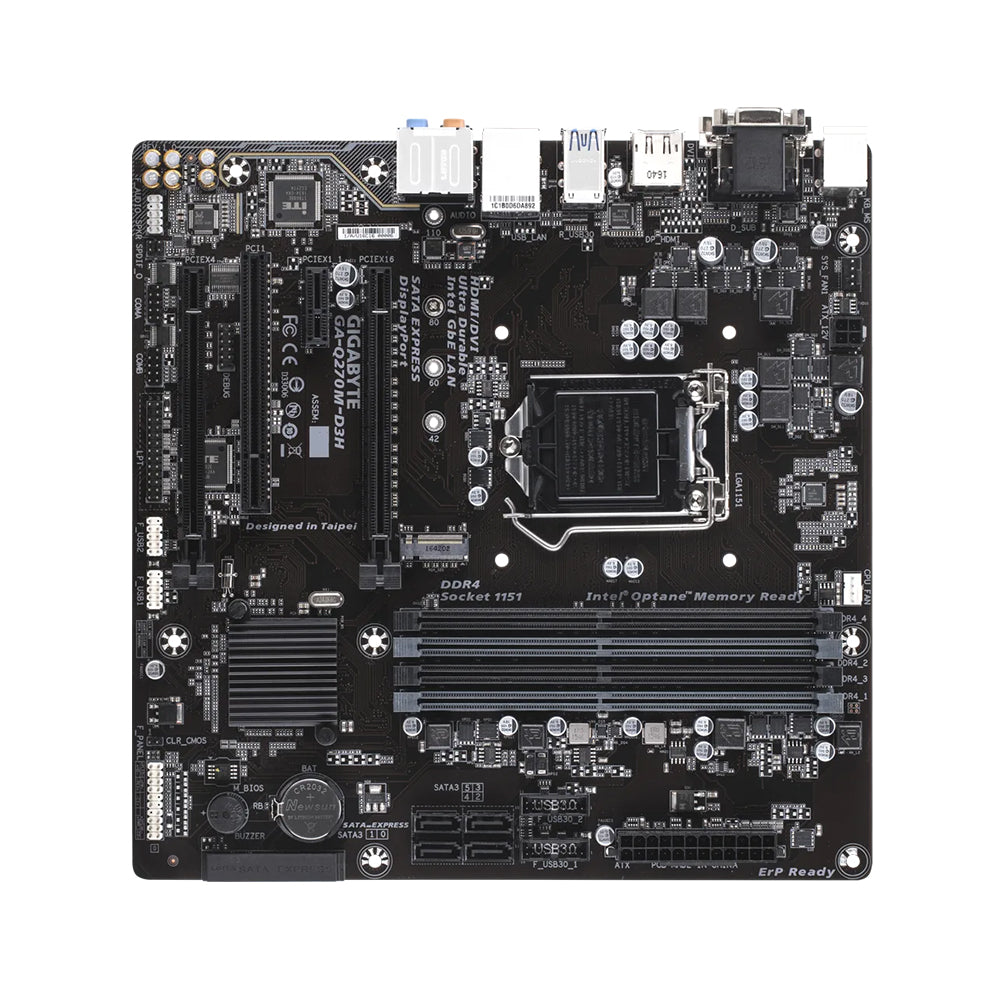

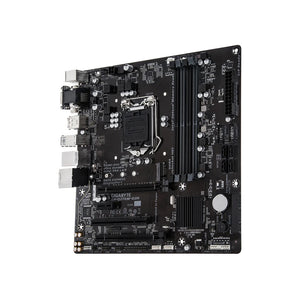

Gigabyte GA-Q270M-D3H (rev. 1.0) Motherboard - LGA 1151, Intel Q270, DDR4, Micro ATX

The Gigabyte GA-Q270M-D3H (rev. 1.0) motherboard is designed for users looking to build a stable and efficient system using Intel's 6th and 7th Generation processors. Built on the Intel Q270 chipset, this Micro ATX motherboard offers a range of features suitable for both business and gaming applications.

Key Features:

• Socket Type: LGA 1151
• Chipset: Intel® Q270
• Form Factor: Micro ATX (24.4 x 24.4 cm)

CPU Support:

• Supports Intel® Core™ i7, i5, i3, Pentium®, and Celeron® processors from the 6th and 7th generations.
• Designed to optimize performance with Intel's architecture.

Memory Support:

• Slots: 4 x DDR4 DIMM
• Maximum Capacity: Up to 64GB (16GB per DIMM)
• Supported Memory Types: DDR4 (up to 2400/2133 MHz)
• Memory Architecture: Dual Channel Non-ECC Unbuffered; supports ECC memory in non-ECC mode.

Expansion Slots:

• 1 x PCIe 3.0 x16 slot for high-performance graphics cards.
• 1 x PCIe 3.0 x4 slot.
• 1 x PCIe 2.0 x1 slot.
• 1 x PCI slot for legacy expansion cards.

Storage Options:

• M.2 Slot:
  • 1 x M.2 connector supporting SATA and PCIe NVMe SSDs.
• SATA Ports:
  • 6 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: Intel® GbE LAN for reliable wired connectivity.

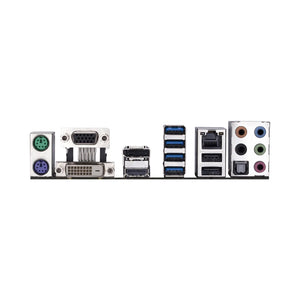

Video Outputs:

• Integrated Graphics Processor support with:
  • 1 x D-Sub port (max resolution: 1920x1200@60 Hz).
  • 1 x DVI-D port (max resolution: 1920x1200@60 Hz).
  • 1 x HDMI port (max resolution: 4096x2160@24 Hz).
  • 1 x DisplayPort (max resolution: 4096x2304@60 Hz).

USB Connectivity:

• Multiple USB ports including:
  • Up to 8 x USB 3.1 Gen 1 ports.
  • Up to 6 x USB 2.0 ports.

Audio Features:

• Audio Codec: Realtek® ALC887 codec supporting up to 7.1-channel high-definition audio.

Additional Features:

• Smart Fan 5: Features multiple temperature sensors and hybrid fan headers for optimal cooling management.
• DualBIOS™ Technology: Provides a backup BIOS for enhanced reliability.
• Intel® Optane™ Memory Ready: Supports Intel's Optane technology for improved storage performance.
