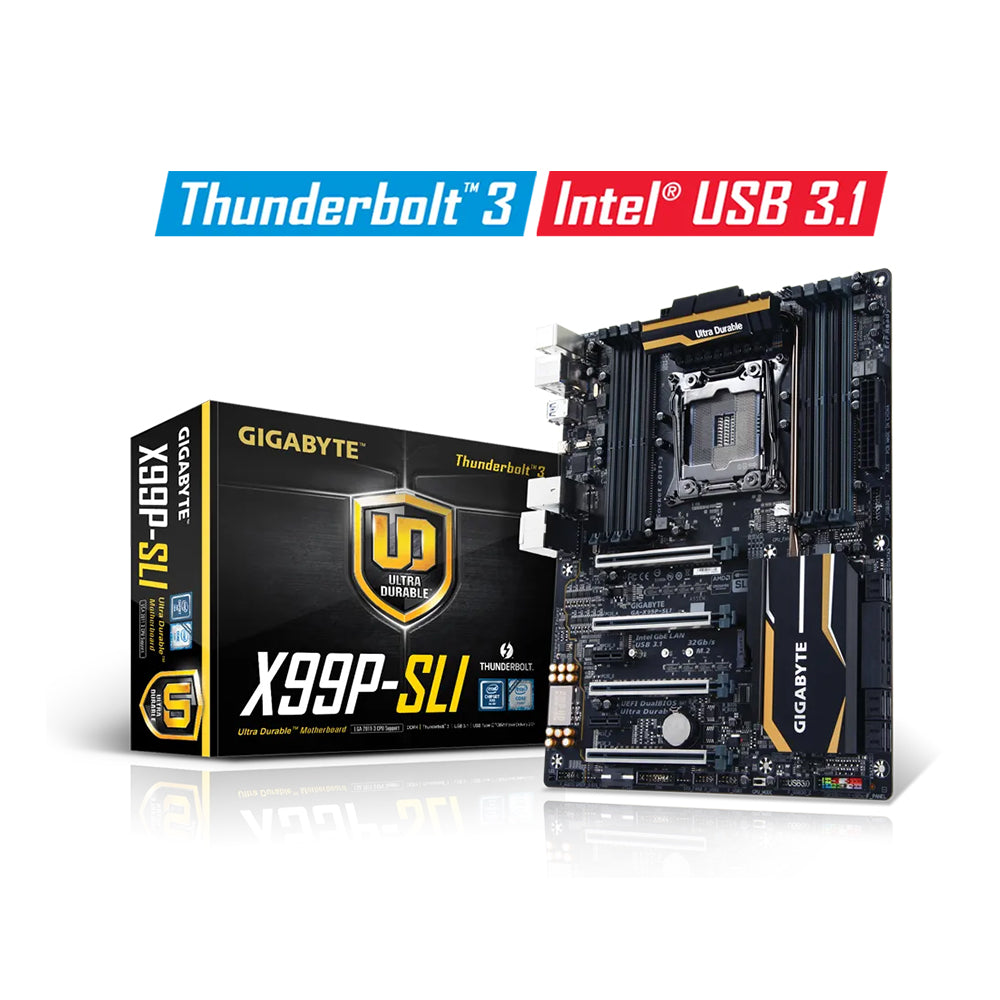

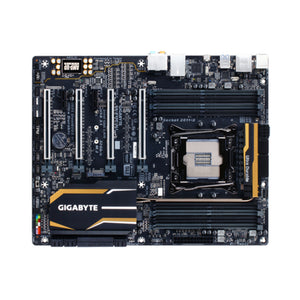

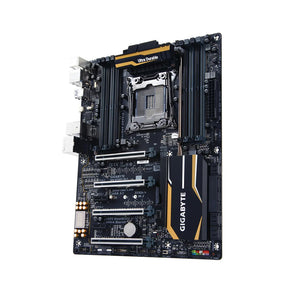

Gigabyte GA-X99P-SLI Motherboard - LGA 2011-3, Intel X99, DDR4, ATX

The Gigabyte GA-X99P-SLI motherboard is designed for high-performance computing, supporting Intel's Core i7 Extreme Edition processors and equipped with a range of features tailored for enthusiasts and professionals. Built on the Intel X99 chipset, this ATX motherboard supports quad-channel DDR4 memory and offers extensive connectivity options for demanding applications.

Key Features:

• Socket Type: LGA 2011-3
• Chipset: Intel® X99
• Form Factor: ATX (30.5 x 24.4 cm)

CPU Support:

• Supports Intel® Core™ i7 Extreme Edition processors, including the i7-6950X.
• Compatible with Intel Xeon E5-1600, E5-2600, and E5-4600 v3/v4 processors.

Memory Support:

• Slots: 8 x DDR4 DIMM
• Maximum Capacity: Up to 128GB (16GB per DIMM)
• Supported Memory Types: DDR4 (up to 3333 MHz overclocked)
• Memory Architecture: Quad Channel Non-ECC Unbuffered.

Expansion Slots:

• 4 x PCIe 3.0 x16 slots for multi-GPU configurations (NVIDIA SLI and AMD CrossFire support).
• 2 x PCIe 2.0 x1 slots.

Storage Options:

• M.2 Slot:
  • 1 x M.2 connector supporting PCIe NVMe SSDs.
• SATA Ports:
  • 10 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).
• SATA Express Connector: 1 for enhanced data transfer rates.

Networking:

• LAN Controller: Intel® GbE LAN for reliable wired connectivity.

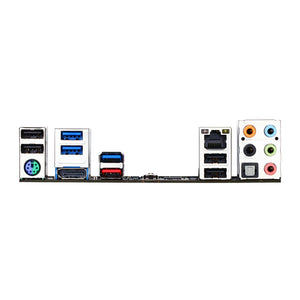

USB Connectivity:

• Multiple USB ports including:
  • 2 x USB 3.1 Gen 2 (Type A and Type C).
  • 3 x USB 3.0 ports.
  • 4 x USB 2.0 ports.

Audio Features:

• Audio Codec: Realtek® ALC1150 supporting up to 7.1-channel high-definition audio with high-quality capacitors.

Additional Features:

• Thunderbolt™ 3 Support: The world's first Intel Thunderbolt™ 3 certified X99 motherboard, enabling high-speed data transfer and daisy-chaining of devices.
• Smart Fan Control: Features multiple fan headers for optimal cooling management.
• Q-Flash Plus: Allows users to update the BIOS without needing to install the CPU or memory.
