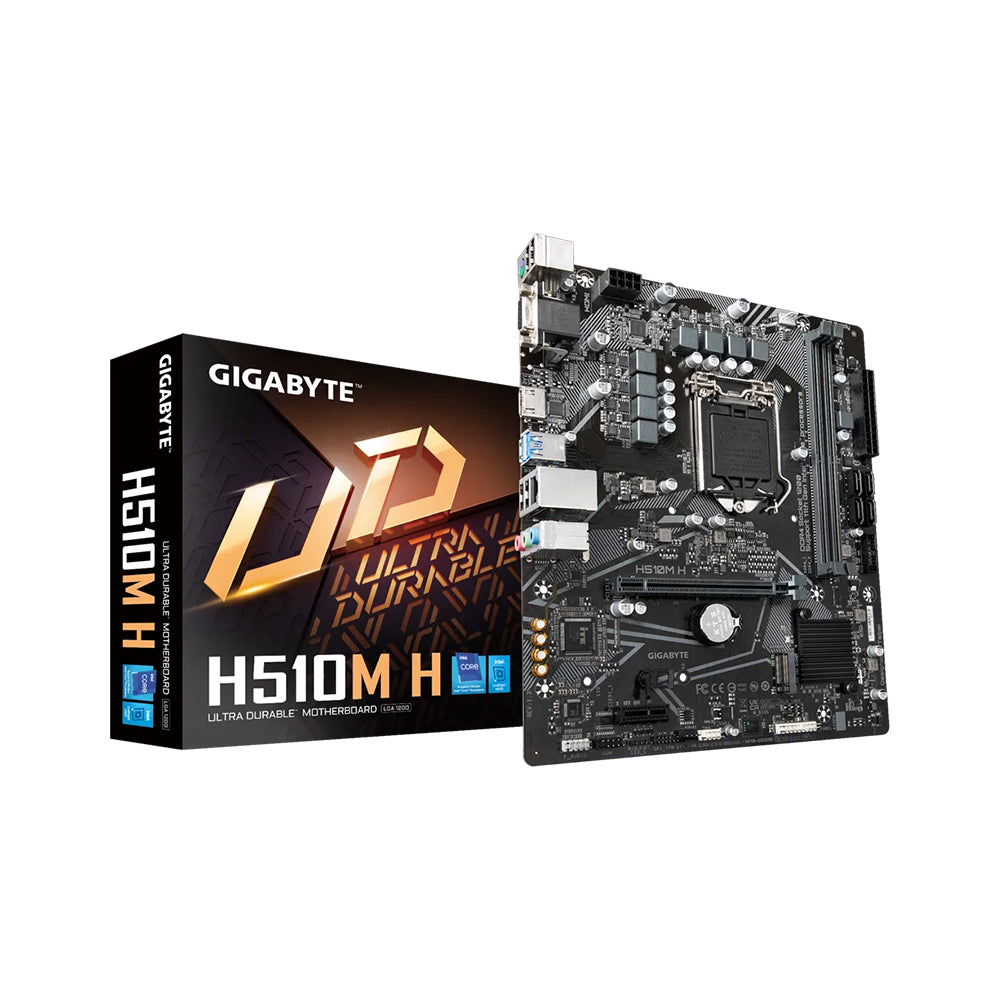

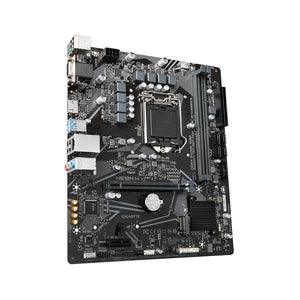

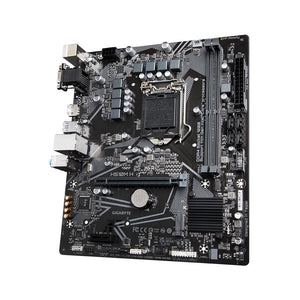

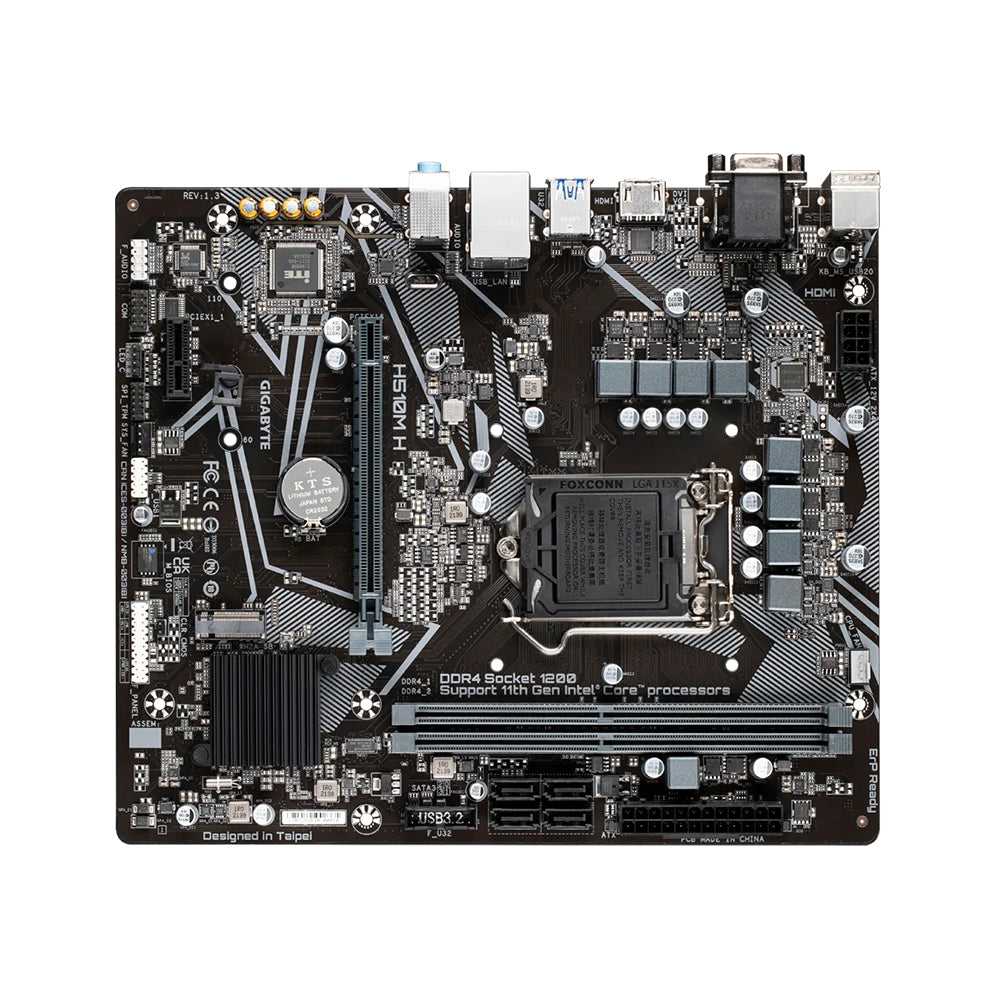

Gigabyte H510M H (rev. 1.31.6) Motherboard - LGA 1200, Intel H510, DDR4, Micro ATX

The Gigabyte H510M H (rev. 1.31.6) motherboard is designed for users looking to build a reliable and efficient system with Intel's 10th and 11th Generation processors. Built on the Intel H510 chipset, this Micro ATX motherboard features essential functionalities, robust performance, and a range of connectivity options suitable for both home and office use.

Key Features:

• Socket Type: LGA 1200
• Chipset: Intel® H510
• Form Factor: Micro ATX (22.6 x 18.5 cm)

CPU Support:

• Supports 10th and 11th Generation Intel® Core™ processors, including i9, i7, i5, i3, Pentium®, and Celeron®.
• Optimized for performance with Intel's architecture.

Memory Support:

• Slots: 2 x DDR4 DIMM
• Maximum Capacity: Up to 64GB (32GB per DIMM)
• Supported Memory Types: DDR4 (up to 3200 MHz)
• Memory Architecture: Dual Channel Non-ECC Unbuffered; supports Extreme Memory Profile (XMP).

Expansion Slots:

• 1 x PCIe 4.0 x16 slot for high-performance graphics cards.
• 1 x PCIe 3.0 x1 slot for additional expansion cards.

Storage Options:

• M.2 Slot:
  • 1 x M.2 connector supporting PCIe NVMe SSDs.
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: Realtek® GbE LAN for reliable wired connectivity with bandwidth management.

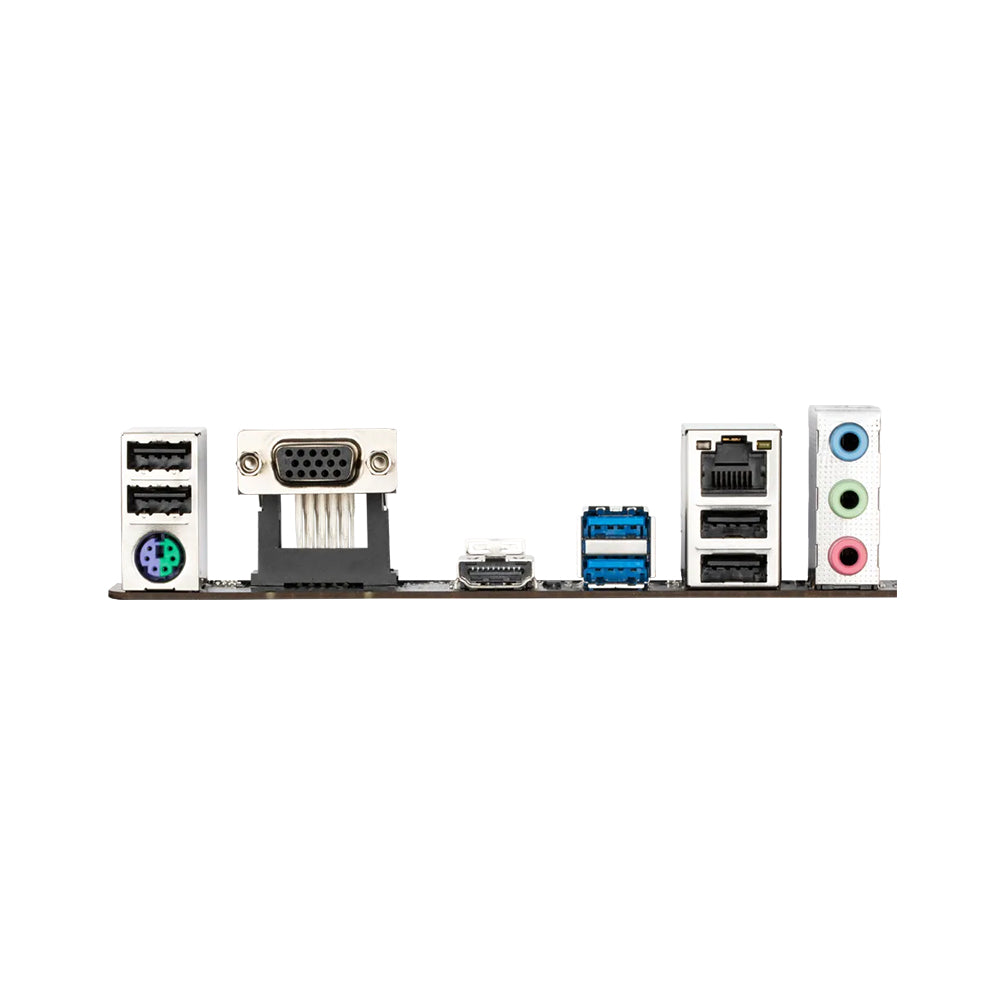

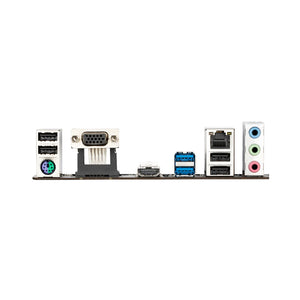

USB Connectivity:

• Multiple USB ports including:
  • Up to 4 x USB 3.2 Gen 1 ports.
  • Up to 6 x USB 2.0 ports.

Audio Features:

• Audio Codec: Realtek® ALC887 supporting up to 8-channel high-definition audio with high-quality capacitors for improved sound quality.

Additional Features:

• Smart Fan 5: Features multiple temperature sensors and hybrid fan headers with FAN STOP functionality for optimal cooling management.
• Anti-Sulfur Resistors Design: Enhances durability against environmental factors.
• GIGABYTE APP Center: Provides easy-to-use utilities for system management.
• Q-Flash Plus: Allows users to update the BIOS without needing to install the CPU or memory.
