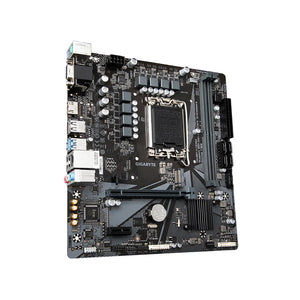

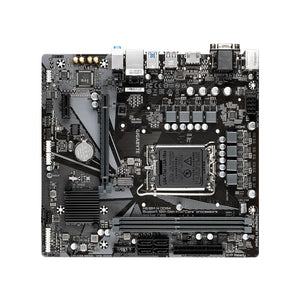

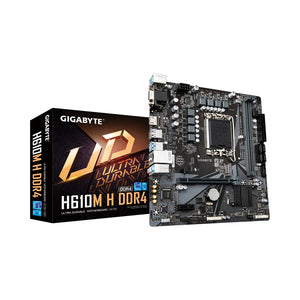

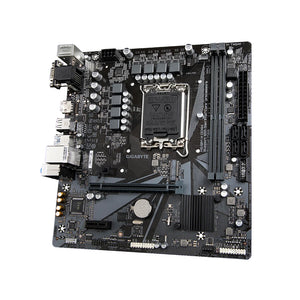

Gigabyte H610M H DDR4 (rev. 1.0) Motherboard - LGA 1700, Intel H610, DDR4, Micro ATX

Product Title

Gigabyte H610M H DDR4 (rev. 1.0) Motherboard - LGA 1700, Intel H610, DDR4, Micro ATX

Product Description

The Gigabyte H610M H DDR4 (rev. 1.0) motherboard is designed for users looking to build a reliable and efficient system with Intel's 12th and 13th Generation processors. Built on the Intel H610 chipset, this Micro ATX motherboard supports essential features for everyday computing and gaming.

Key Features:

• Socket Type: LGA 1700
• Chipset: Intel® H610
• Form Factor: Micro ATX (23.0 cm x 21.5 cm)

CPU Support:

• Supports Intel® Core™ 12th and 13th Generation processors, including i9, i7, i5, i3, Pentium®, and Celeron®.
• Optimized for performance with Intel's architecture.

Memory Support:

• Slots: 2 x DDR4 DIMM
• Maximum Capacity: Up to 64GB (32GB per DIMM)
• Supported Memory Types: DDR4 (up to 3200 MHz)
• Memory Architecture: Dual Channel Non-ECC Unbuffered; supports Extreme Memory Profile (XMP).

Expansion Slots:

• 1 x PCIe 4.0 x16 slot for high-performance graphics cards.
• 1 x PCIe 3.0 x1 slot for additional expansion cards.

Storage Options:

• M.2 Slot:
  • 1 x M.2 connector supporting PCIe NVMe SSDs.
• SATA Ports:
  • 4 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: Intel® GbE LAN for reliable wired connectivity with cFosSpeed Internet Accelerator software for improved network performance.

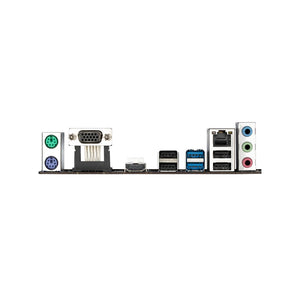

USB Connectivity:

• Multiple USB ports including:
  • Up to 4 x USB 3.2 Gen 1 ports.
  • Up to 4 x USB 2.0 ports.

Audio Features:

• Audio Codec: Realtek® High Definition Audio supporting up to 7.1-channel audio with high-quality capacitors for enhanced sound quality.

Additional Features:

• Smart Fan 6: Features multiple temperature sensors and hybrid fan headers with FAN STOP functionality for optimal cooling management.
• Anti-Sulfur Resistors Design: Enhances durability against environmental factors.
• GIGABYTE APP Center: Provides easy-to-use utilities for system management.
• Q-Flash Plus: Allows users to update the BIOS without needing to install the CPU or memory.
