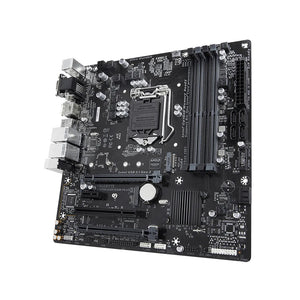

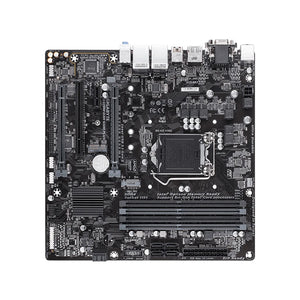

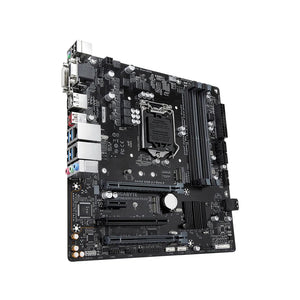

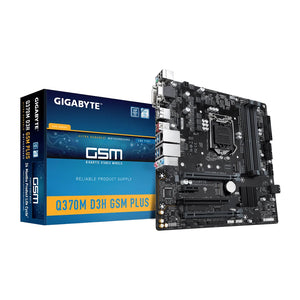

Gigabyte Q370M D3H GSM PLUS (rev. 1.0) Motherboard - LGA 1151, Intel Q370, DDR4, Micro ATX

The Gigabyte Q370M D3H GSM PLUS motherboard is designed for users seeking a robust platform for Intel's 8th and 9th Generation processors. Built on the Intel Q370 chipset, this Micro ATX motherboard offers a range of features tailored for both performance and connectivity, making it suitable for gaming, business, and general computing.

Key Features:

• Socket Type: LGA 1151
• Chipset: Intel® Q370
• Form Factor: Micro ATX (24.4 x 24.4 cm)

CPU Support:

• Supports 8th and 9th Generation Intel® Core™ processors, including i9, i7, i5, i3, Pentium®, and Celeron®.
• Optimized for performance with Intel's architecture.

Memory Support:

• Slots: 4 x DDR4 DIMM
• Maximum Capacity: Up to 128GB (32GB per DIMM)
• Supported Memory Types: DDR4 (up to 2400 MHz)
• Memory Architecture: Dual Channel Non-ECC Unbuffered.

Expansion Slots:

• 1 x PCIe 3.0 x16 slot for high-performance graphics cards.
• 1 x PCIe 3.0 x4 slot.
• 2 x PCIe 2.0 x1 slots.

Storage Options:

• M.2 Slot:
  • 1 x M.2 connector supporting PCIe Gen3 x4 and SATA SSDs.
• SATA Ports:
  • 6 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: Dual Intel® GbE LAN with cFosSpeed Internet Accelerator software for improved network performance.

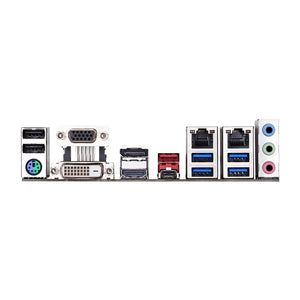

USB Connectivity:

• Multiple USB ports including:
  • USB Type-C™ and Type-A ports with USB 3.1 Gen2 support.
  • Additional USB Type-A ports including USB 3.1 Gen1 and USB 2.0.

Audio Features:

• Audio Codec: Realtek® ALC887 supporting up to 7.1-channel high-definition audio with high-quality capacitors for enhanced sound quality.

Additional Features:

• Intel® CNVi Wi-Fi Upgradeable: Supports Intel CNVi Wi-Fi technology for easy upgrades to faster wireless connectivity.
• Smart Fan 5: Features multiple temperature sensors and hybrid fan headers for optimal cooling management.
• Ultra Durable™ Design: Includes anti-sulfur resistors and surge protection for enhanced durability.
• Intel® Optane™ Memory Ready: Supports Intel's Optane technology for improved storage performance.
