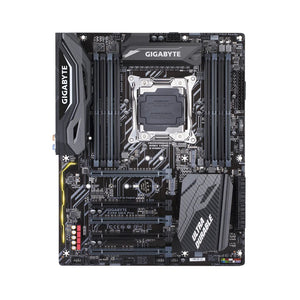

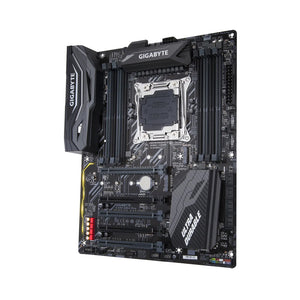

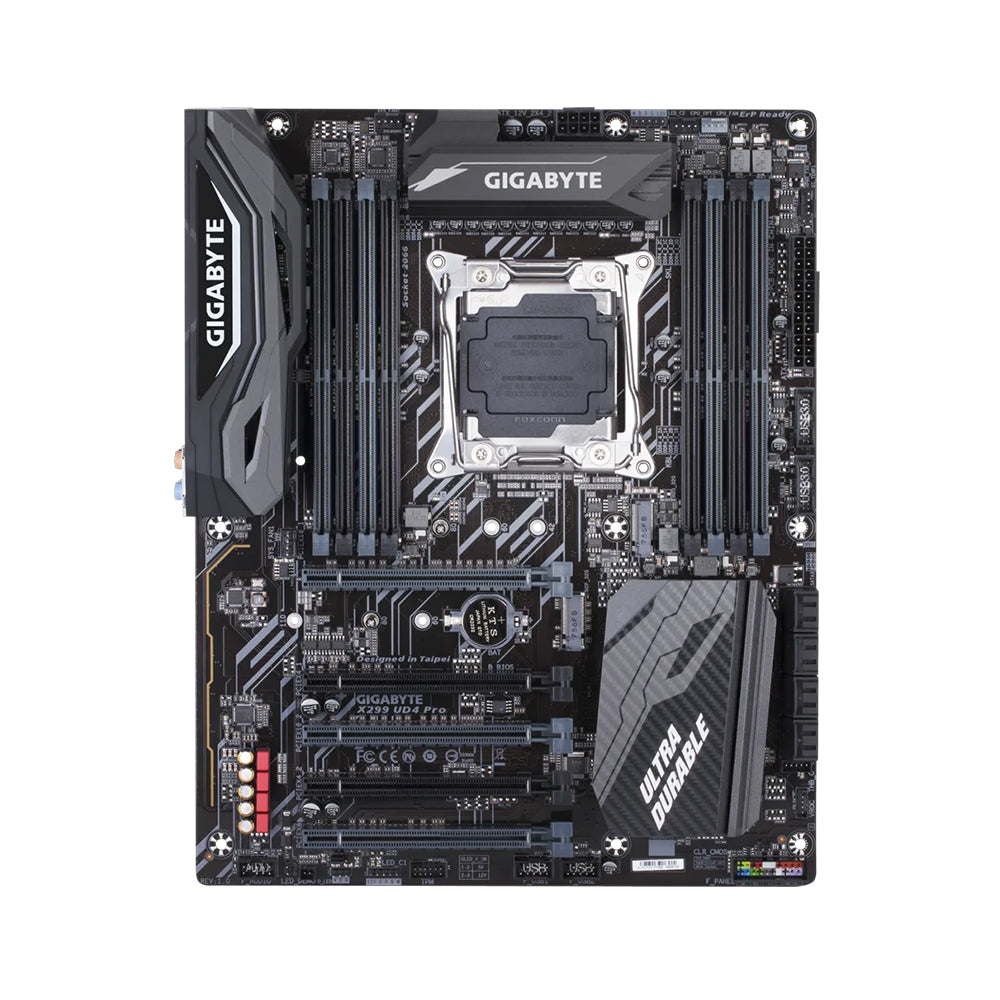

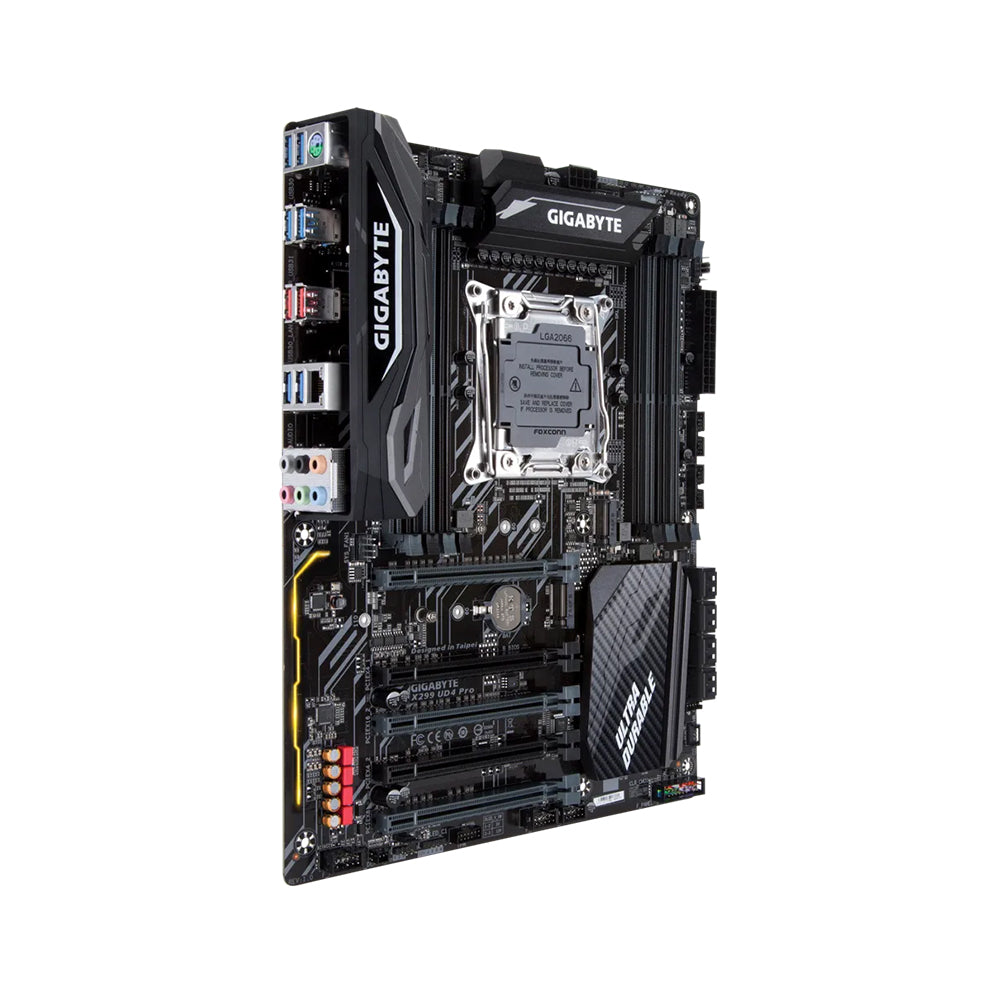

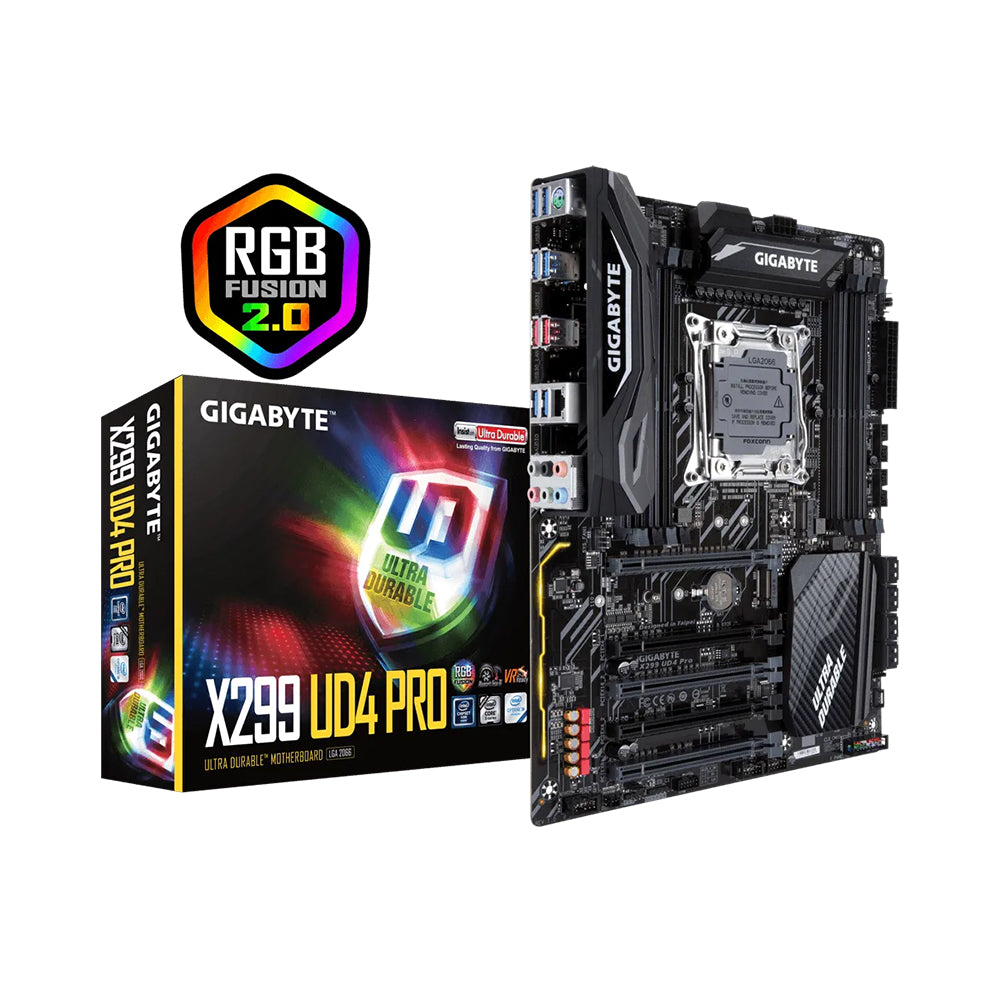

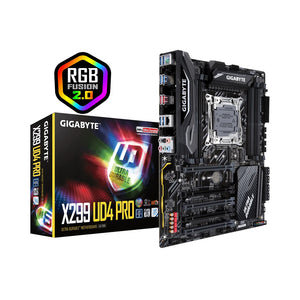

Gigabyte X299 UD4 Pro Motherboard - LGA 2066, Intel X299, DDR4, ATX

The Gigabyte X299 UD4 Pro motherboard is engineered for high-performance computing, supporting Intel's Core X-Series processors. Built on the Intel X299 chipset, this ATX motherboard offers advanced features suitable for gamers and professionals alike.

Key Features:

• Socket Type: LGA 2066
• Chipset: Intel® X299
• Form Factor: ATX (30.5 x 24.4 cm)

CPU Support:

• Supports Intel® Core™ X-Series processors, including i9, i7, i5, and i3 models.
• Designed to maximize performance with Intel's architecture.

Memory Support:

• Slots: 8 x DDR4 DIMM
• Maximum Capacity: Up to 256GB (32GB per DIMM)
• Supported Memory Types: DDR4 (up to 4400 MHz overclocked)
• Memory Architecture: Quad Channel Non-ECC Unbuffered; supports Extreme Memory Profile (XMP).

Expansion Slots:

• 2 x PCIe 3.0 x16 slots for high-performance graphics cards.
• 1 x PCIe 3.0 x8 slot.
• 2 x PCIe 3.0 x4 slots.

Storage Options:

• M.2 Slots:
  • 2 x M.2 connectors supporting PCIe NVMe SSDs with a Gen3 x4 interface.
• SATA Ports:
  • 8 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: Intel® GbE LAN for reliable wired connectivity with cFosSpeed Internet Accelerator software for enhanced performance.

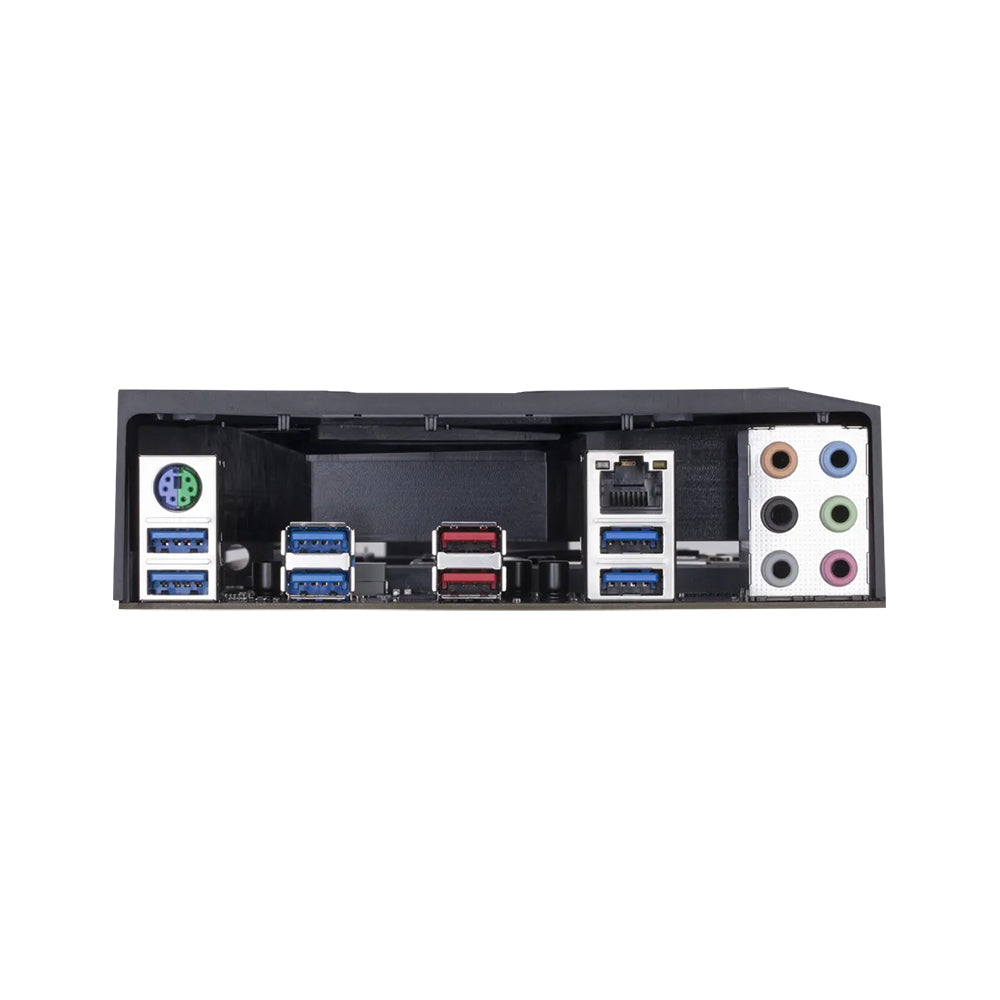

USB Connectivity:

• Multiple USB ports including:
  • 2 x USB 3.1 Gen2 Type-A ports.
  • 6 x USB 3.1 Gen1 ports.

Audio Features:

• Audio Codec: Realtek® ALC1220 with a signal-to-noise ratio of up to 120dB, supporting up to 7.1-channel high-definition audio.

Additional Features:

• RGB Fusion Support: Customize RGB lighting with digital LED strips.
• Smart Fan 5: Multiple temperature sensors and hybrid fan headers with FAN STOP functionality for optimal cooling management.
• Ultra Durable™ Design: Anti-sulfur resistor design and ESD protection for enhanced durability.
• Thunderbolt™ 3 AIC Support: For lightning-fast data transfer rates.
