Gigabyte X299 WU8 Motherboard - LGA 2066, Intel X299, DDR4, ATX

The Gigabyte X299 WU8 motherboard is designed for high-performance computing, supporting Intel's Core X-Series processors. Built on the Intel X299 chipset, this ATX motherboard offers extensive features for gaming, content creation, and professional applications.

Key Features:

• Socket Type: LGA 2066
• Chipset: Intel® X299
• Form Factor: ATX (30.5 x 24.4 cm)

CPU Support:

• Supports Intel® Core™ X-Series processors (6-core or above) in the LGA 2066 package.
• Compatible with a wide range of processors including i9, i7, i5, and more.

Memory Support:

• Slots: 8 x DDR4 DIMM
• Maximum Capacity: Up to 256GB (32GB per DIMM)
• Supported Memory Types: DDR4 (up to 4000 MHz overclocked)
• Memory Architecture: Quad Channel Non-ECC Unbuffered; supports Extreme Memory Profile (XMP).

Expansion Slots:

• 7 x PCIe x16 slots (2 PLX8747 chips providing a total of 64 PCIe lanes).
• Supports multi-GPU configurations including 4-way NVIDIA® SLI™ and AMD CrossFireX™.

Storage Options:

• M.2 Slots:
  • 1 x PCIe x4 M.2 connector for high-speed NVMe SSDs.
• SATA Ports:
  • Multiple SATA III ports with RAID support.

Networking:

• LAN Controller: Dual Intel® Server LAN for reliable wired connectivity.

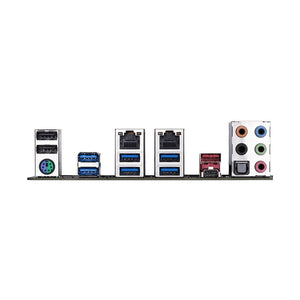

USB Connectivity:

• Multiple USB ports including:
  • USB 3.1 Gen 2 Type-C and Type-A ports for high-speed data transfer.

Audio Features:

• Audio Codec: Realtek® ALC1220 with a signal-to-noise ratio of up to 120dB, supporting high-definition audio.

Additional Features:

• Cooling Design: Efficient thermal cooling design with heatsinks for optimal performance.
• Intel® Optane™ Memory Ready: Supports Intel's Optane technology for improved storage performance.
• RGB Support: Features digital LED strip support for customizable lighting.
• Smart Fan 5: Includes multiple temperature sensors and hybrid fan headers for effective cooling management.
