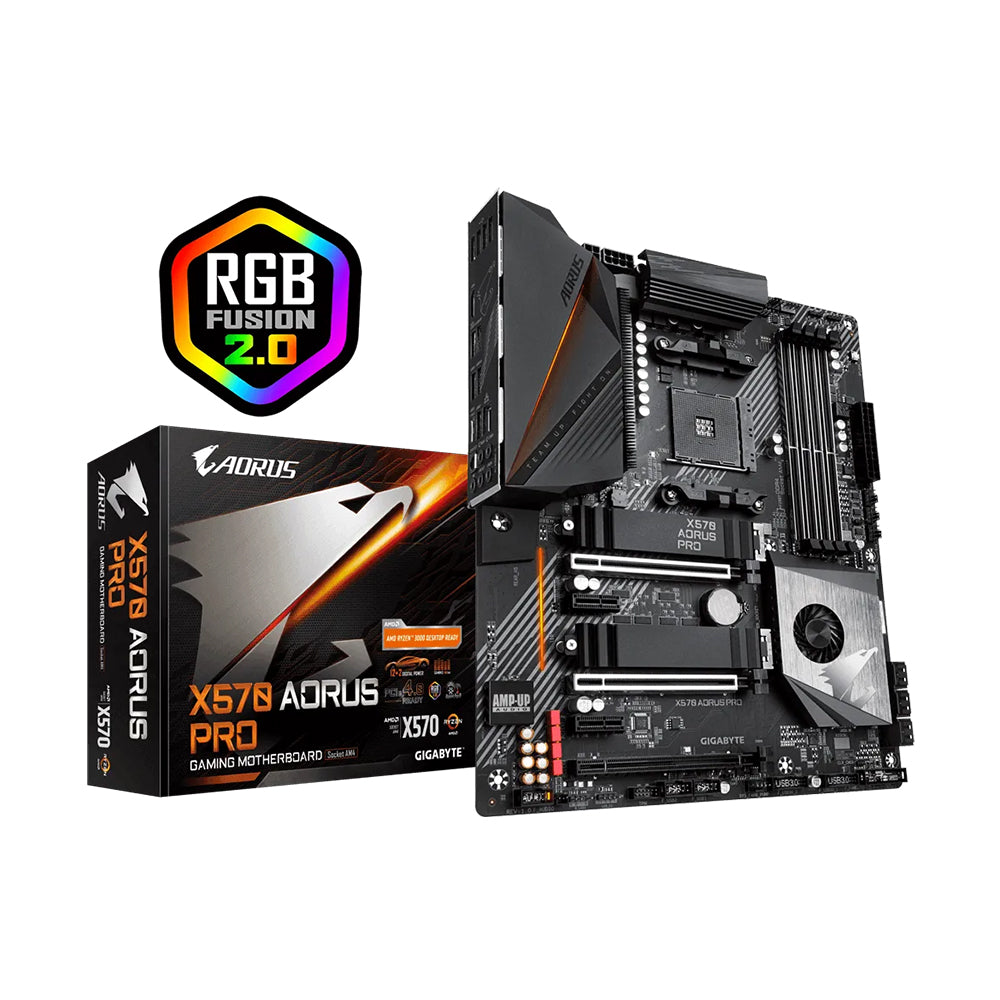

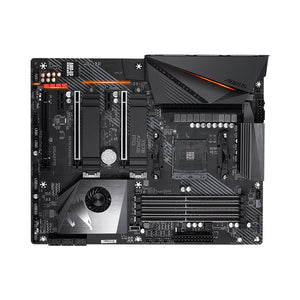

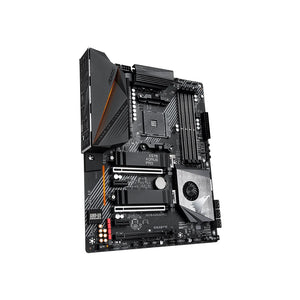

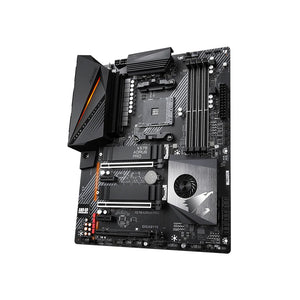

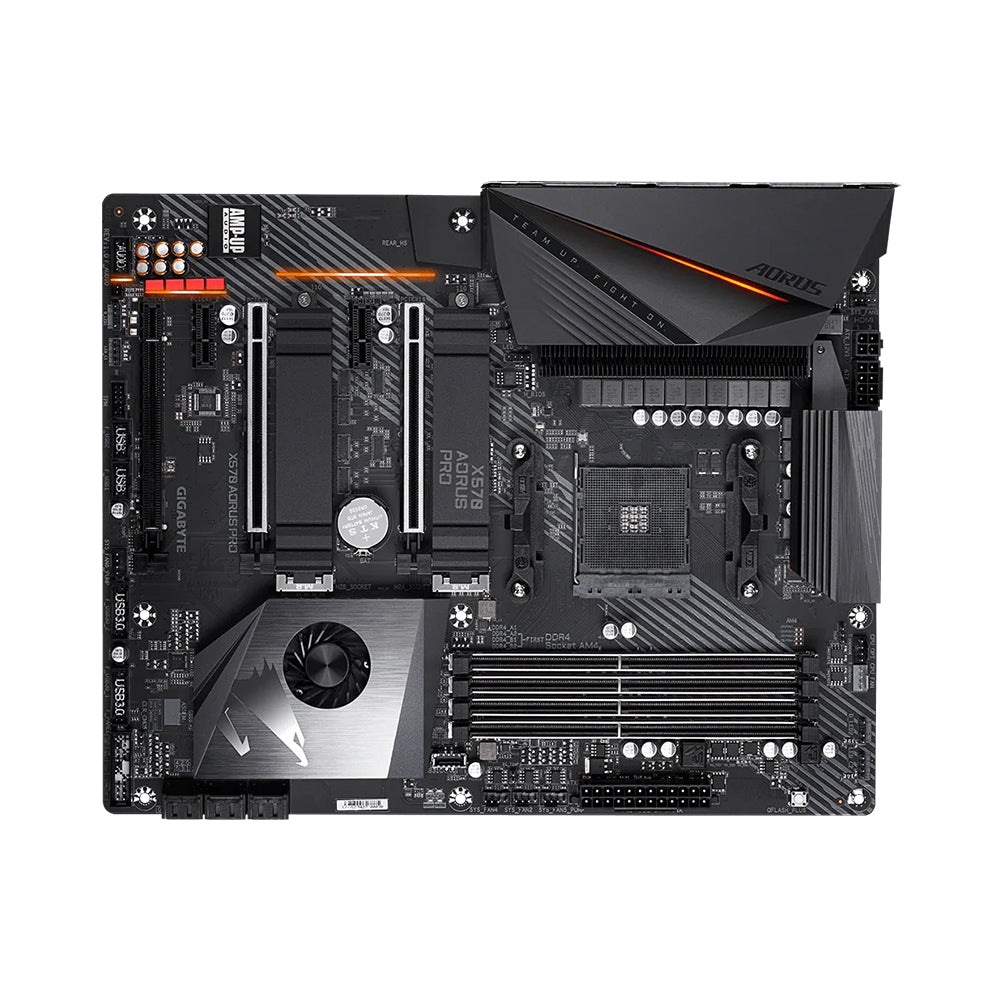

Gigabyte X570 AORUS PRO (rev. 1.0) Motherboard - LGA AM4, AMD X570, DDR4, ATX

The Gigabyte X570 AORUS PRO motherboard is engineered for gamers and PC enthusiasts who require high performance and advanced features. Built on the AMD X570 chipset, this ATX motherboard supports a wide range of AMD Ryzen processors and offers robust connectivity options along with superior thermal management.

Key Features:

• Socket Type: AM4
• Chipset: AMD X570
• Form Factor: ATX (244 x 305 mm)

CPU Support:

• Supports AMD Ryzen™ 5000 Series, Ryzen™ 4000 G-Series, 3rd Generation Ryzen™, and 2nd Generation Ryzen™ processors.
• Compatible with both standard and G-Series APUs for integrated graphics.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 128GB (32GB per DIMM)
• Supported Memory Types: DDR4 (up to 4400 MHz overclocked)
• Memory Architecture: Dual Channel ECC/Non-ECC Unbuffered.

Expansion Slots:

• 2 x PCIe 4.0 x16 slots for high-performance graphics cards.
• 1 x PCIe 4.0 x1 slot for additional expansion cards.

Storage Options:

• M.2 Slots:
  • 2 x M.2 sockets supporting PCIe 4.0 NVMe SSDs with thermal guards.
• SATA Ports:
  • 6 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, and 10).

Networking:

• LAN Controller: Intel® Gigabit Ethernet with cFosSpeed Internet Accelerator for enhanced network performance.

USB Connectivity:

• Multiple USB ports including:
  • 1 x USB Type-C™ port with USB 3.2 Gen 2 support.
  • Several USB Type-A ports including USB 3.2 Gen 1 and Gen 2.

Audio Features:

• Audio Codec: Realtek® ALC1220-VB supporting up to 7.1-channel high-definition audio with enhanced signal-to-noise ratio.

Additional Features:

• Advanced Thermal Design: Fins-Array heatsink and Direct Touch Heatpipe for efficient cooling.
• Smart Fan 5: Multiple temperature sensors and hybrid fan headers with FAN STOP functionality for optimal cooling management.
• RGB Fusion 2.0: Customizable RGB lighting with addressable LED support for aesthetic customization.

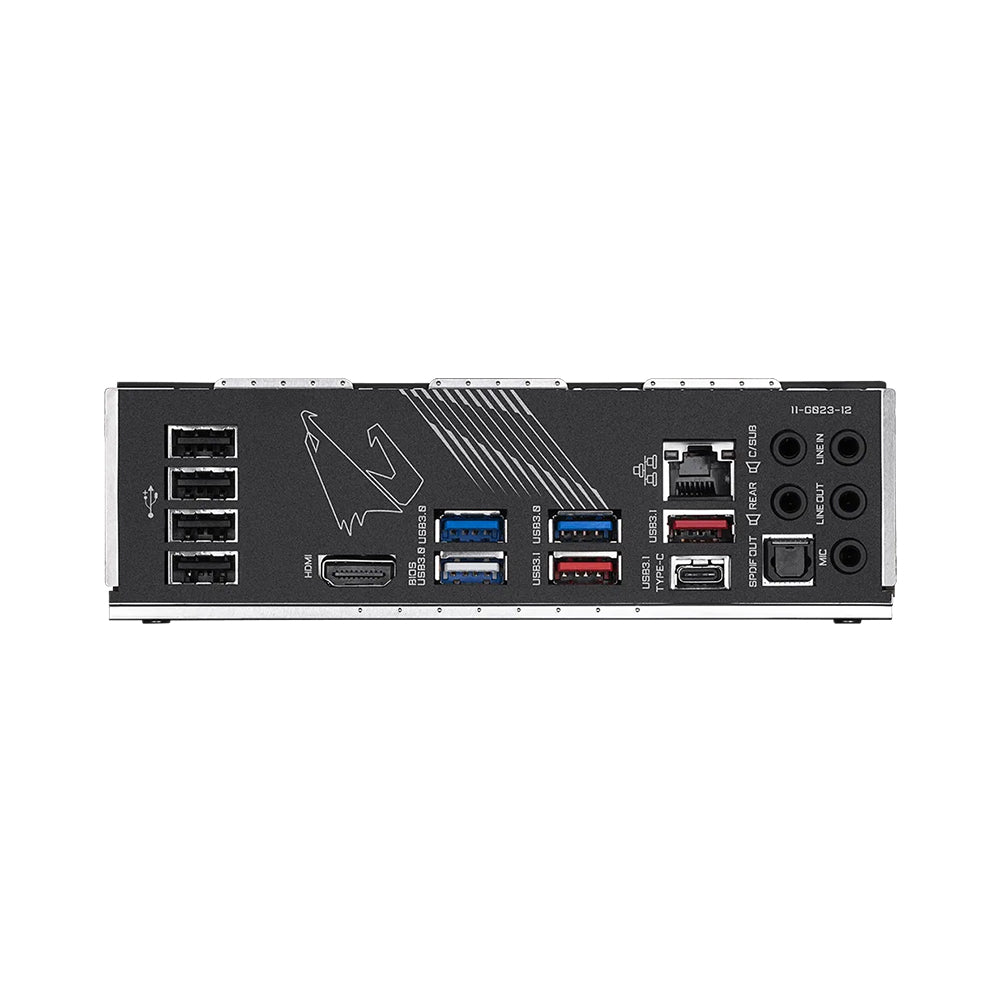

• Integrated I/O Shield Armor: Provides protection against static electricity and enhances durability.
• Q-Flash Plus: Allows users to update the BIOS without needing to install the CPU, memory, or graphics card.
