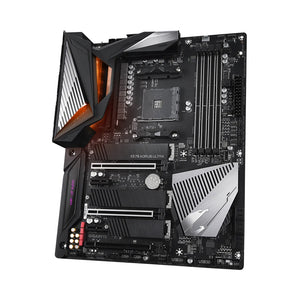

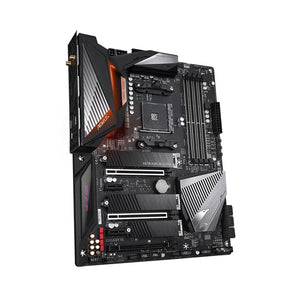

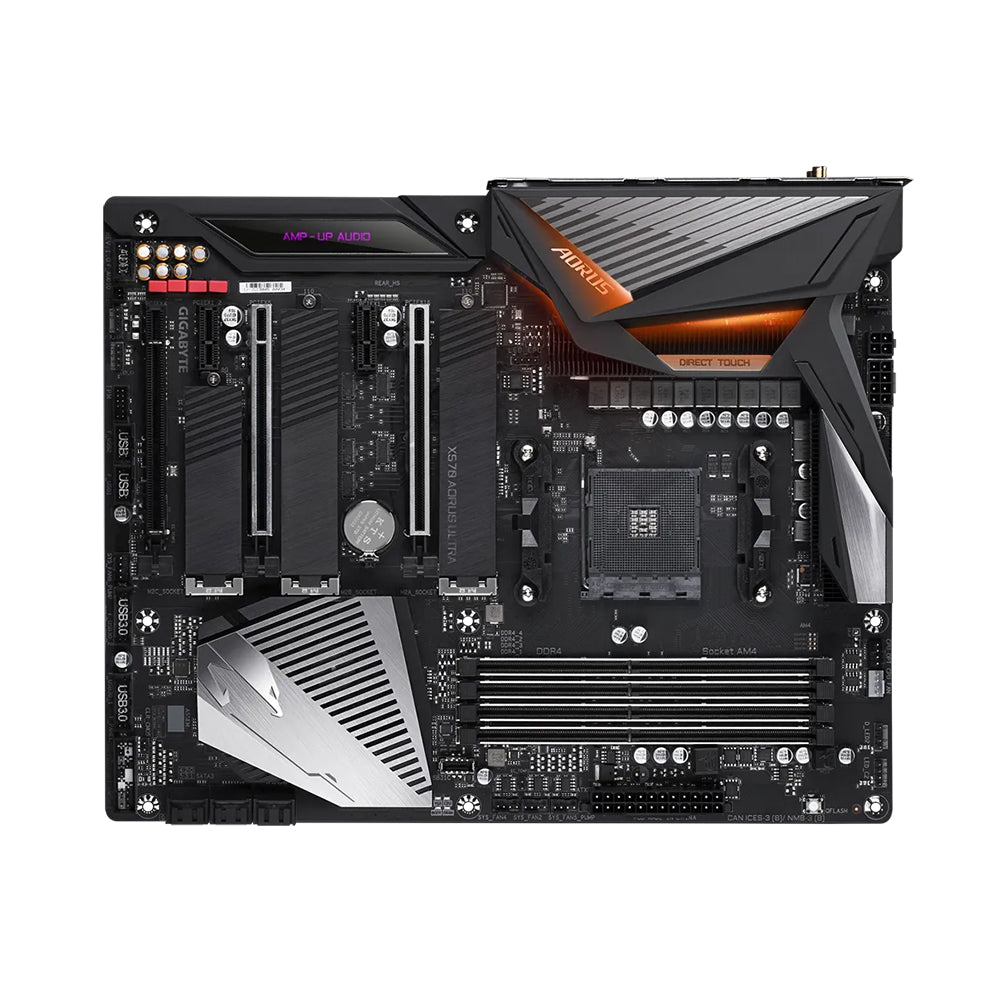

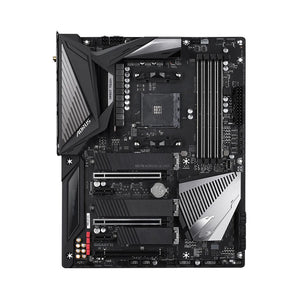

Gigabyte X570 AORUS ULTRA Motherboard - LGA AM4, AMD X570, DDR4, ATX

The Gigabyte X570 AORUS ULTRA motherboard is designed for high-performance gaming and content creation, built upon the AMD X570 chipset. This ATX motherboard supports a wide range of AMD Ryzen processors and features advanced connectivity options, robust thermal management, and enhanced audio capabilities.

Key Features:

• Socket Type: AM4
• Chipset: AMD X570
• Form Factor: ATX (30.5 x 24.4 cm)

CPU Support:

• Supports AMD Ryzen™ 5000 Series, 4000 G-Series, 3rd Generation Ryzen™, and 2nd Generation Ryzen™ processors.
• Compatible with both standard and G-Series APUs for integrated graphics.

Memory Support:

• Slots: 4 x DIMM
• Maximum Capacity: Up to 128GB (32GB per DIMM)
• Supported Memory Types: DDR4 (up to 4400 MHz overclocked)
• Memory Architecture: Dual Channel ECC/Non-ECC Unbuffered.

Expansion Slots:

• 3 x PCIe 4.0 x16 slots for high-performance graphics cards.
• 2 x PCIe 4.0 x1 slots for additional expansion cards.

Storage Options:

• M.2 Slots:
  • 3 x M.2 sockets supporting PCIe 4.0 NVMe SSDs with thermal guards.
• SATA Ports:
  • 6 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, and 10).

Networking:

• LAN Controller: Intel® Gigabit Ethernet with cFosSpeed Internet Accelerator for enhanced network performance.

USB Connectivity:

• Multiple USB ports including:
  • USB Type-C™ port with USB 3.2 Gen 2 support.
  • Several USB Type-A ports including USB 3.2 Gen 1 and Gen 2.

Audio Features:

• Audio Codec: Realtek® ALC1220-VB supporting up to 7.1-channel high-definition audio with WIMA audio capacitors for improved sound quality.

Additional Features:

• Advanced Thermal Design: Fins-Array heatsink and Direct Touch Heatpipe for efficient cooling.
• Smart Fan 5: Multiple temperature sensors and hybrid fan headers with FAN STOP functionality for optimal cooling management.

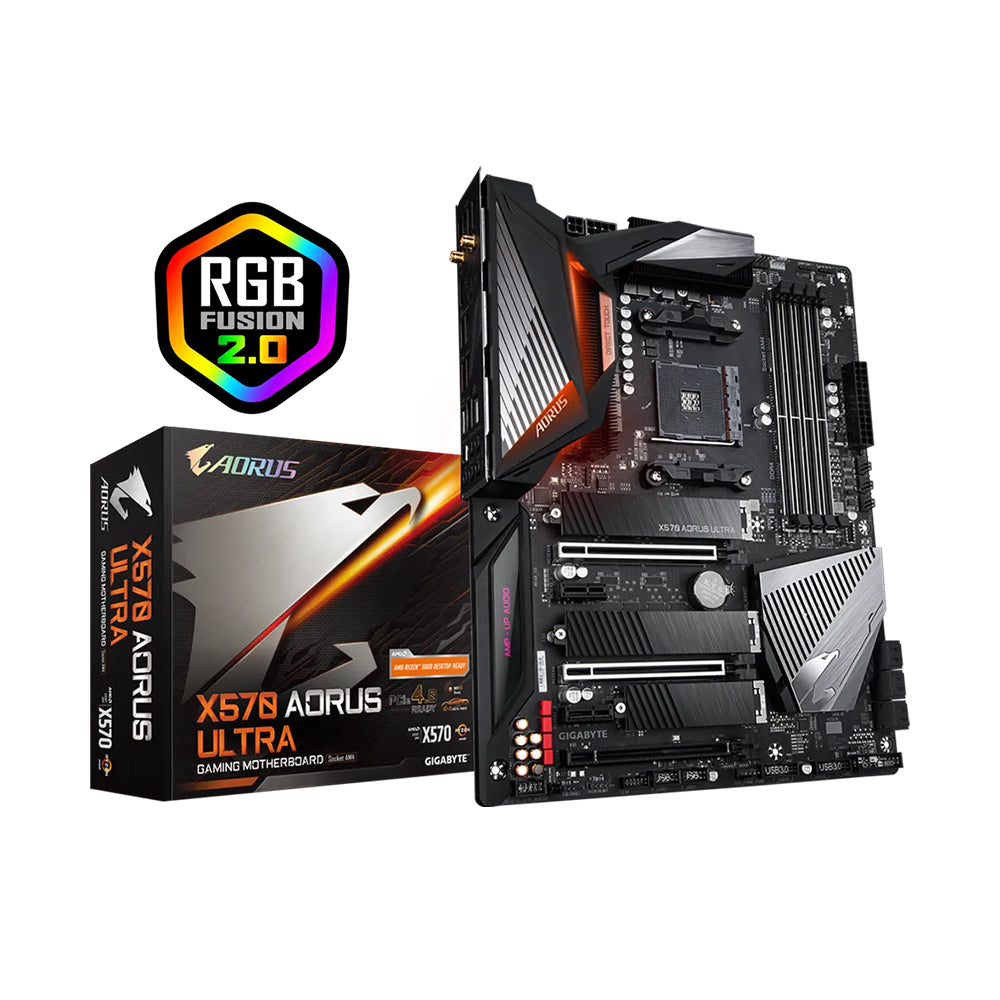

• RGB Fusion 2.0: Customizable RGB lighting with addressable LED support for aesthetic customization.

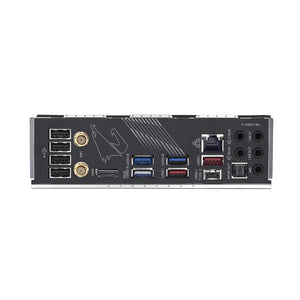

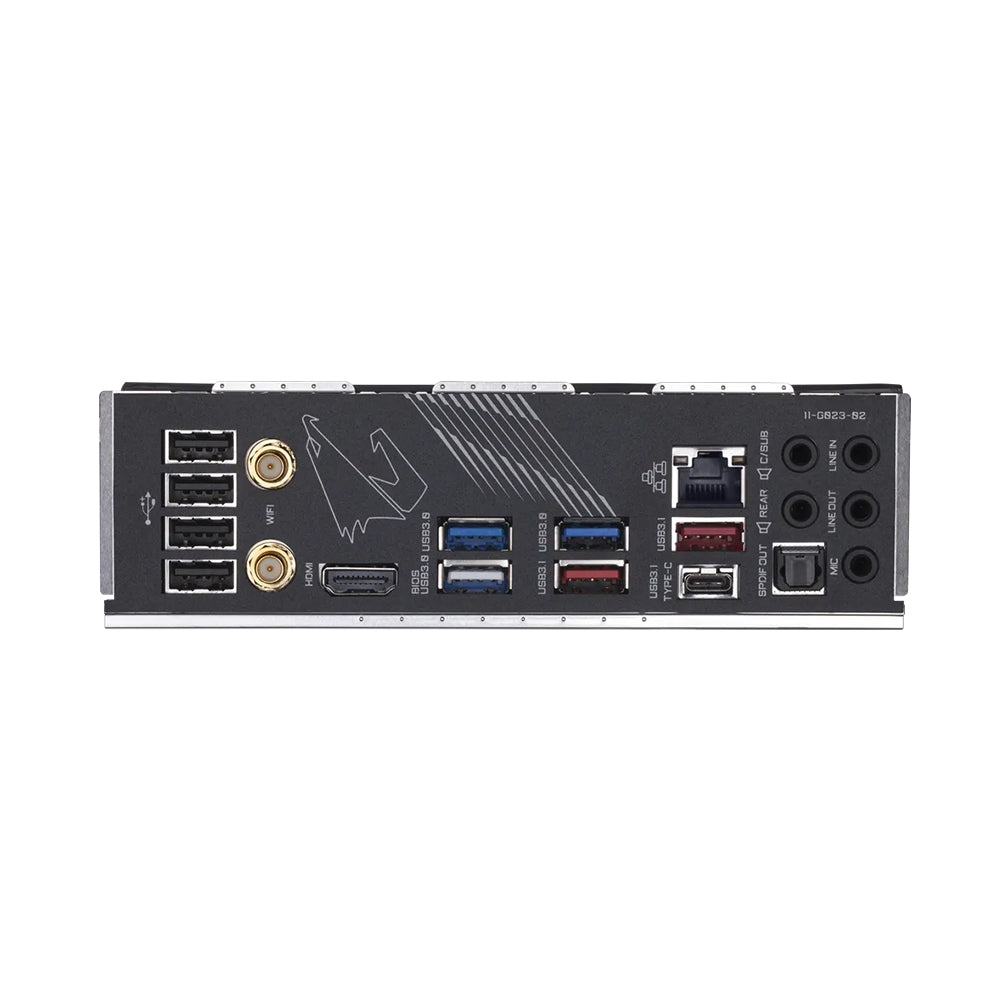

• Integrated I/O Shield Armor: Provides protection against static electricity and enhances durability.
• Q-Flash Plus: Allows users to update the BIOS without needing to install the CPU, memory, or graphics card.
