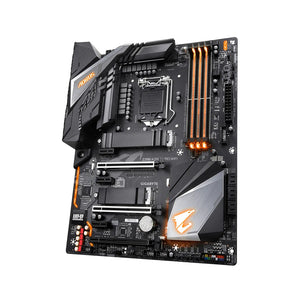

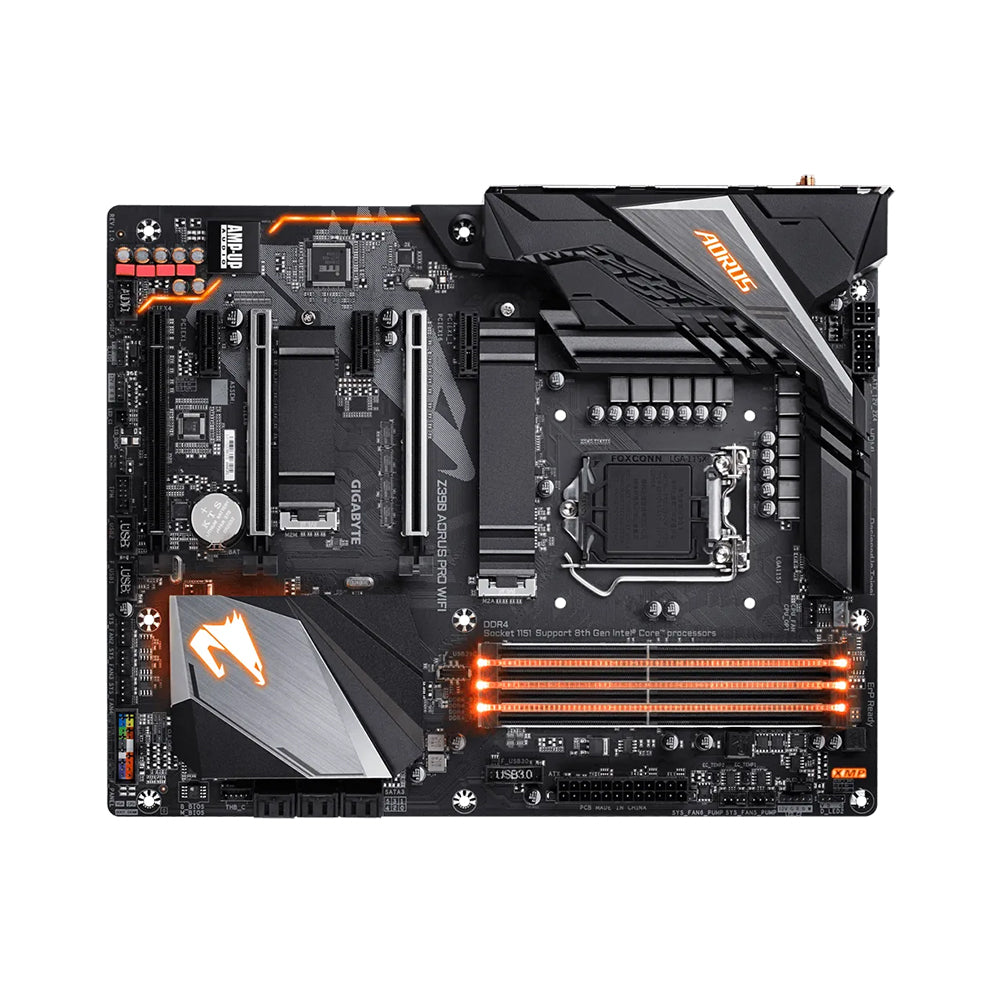

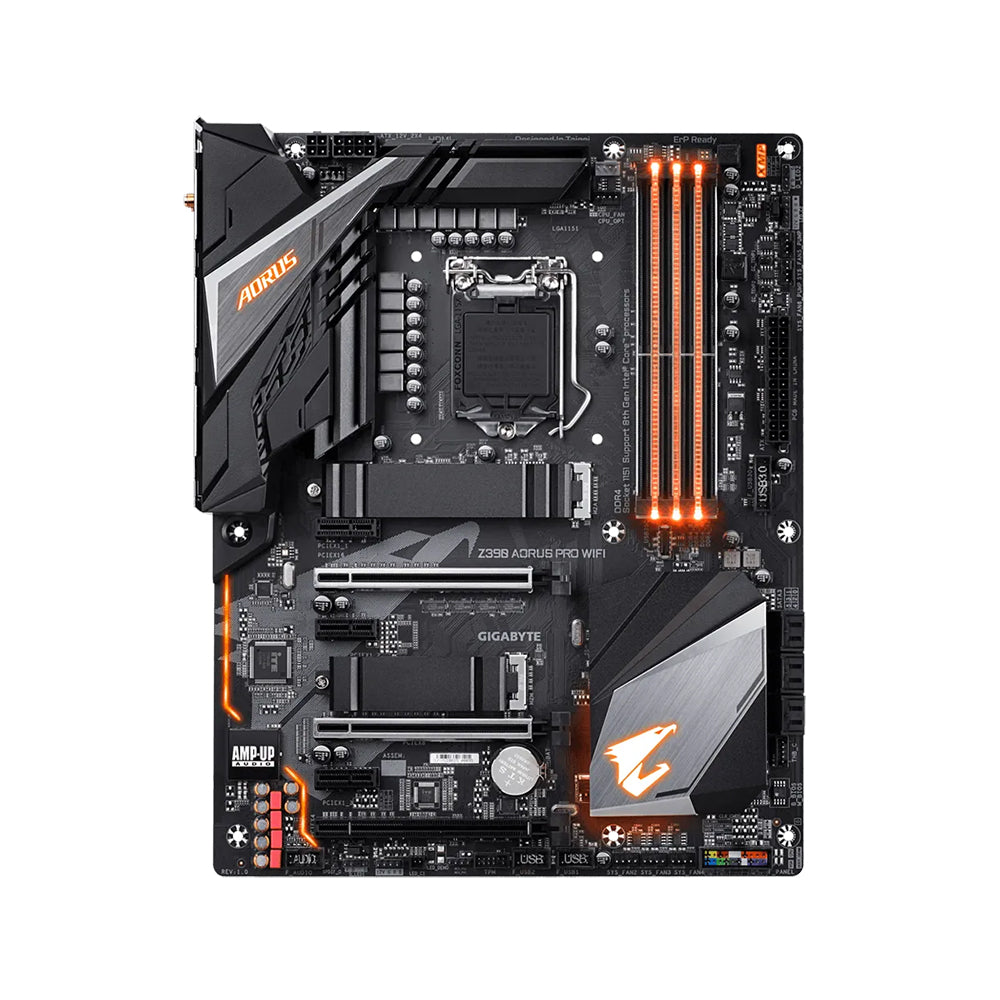

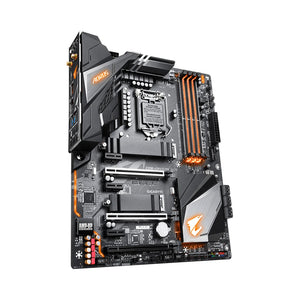

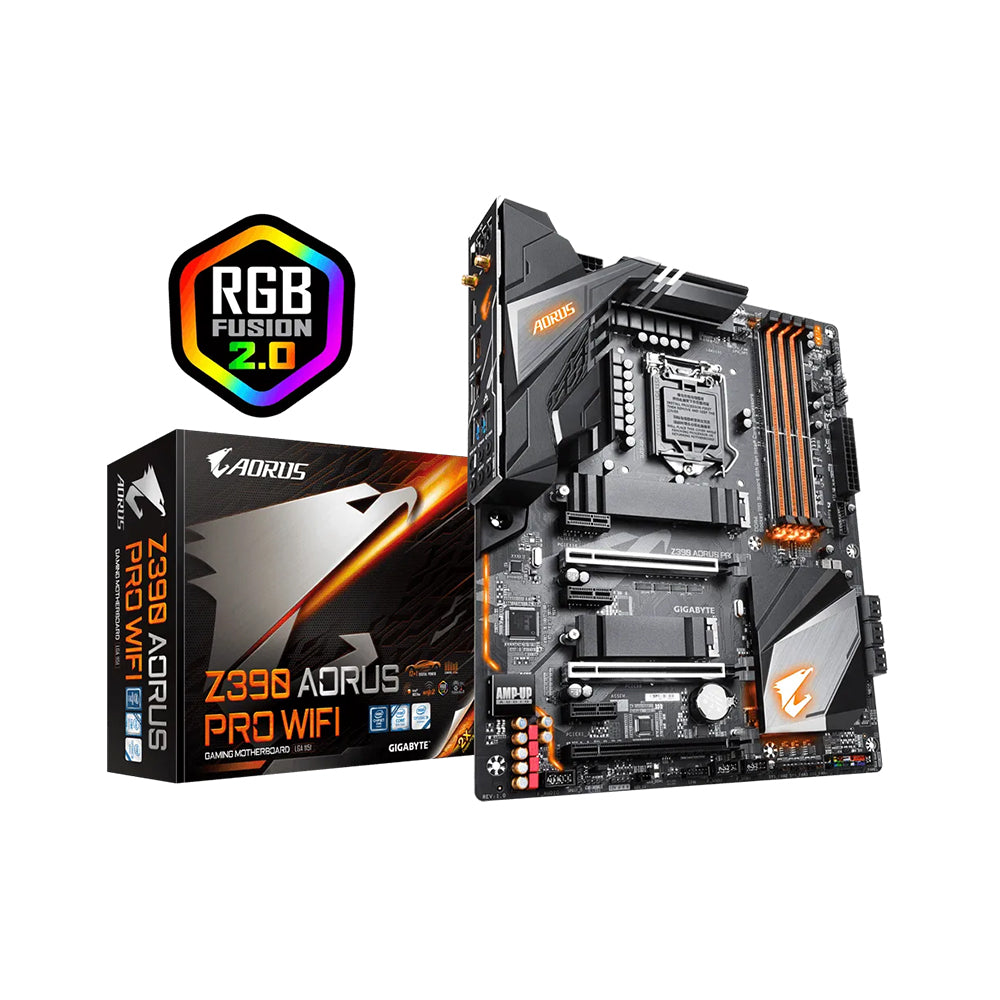

Gigabyte Z390 AORUS PRO WIFI Motherboard - LGA 1151, Intel Z390, DDR4, ATX

The Gigabyte Z390 AORUS PRO WIFI motherboard is designed for gamers and PC enthusiasts looking to build a high-performance system with Intel's 8th and 9th Generation processors. Built on the Intel Z390 chipset, this ATX motherboard features advanced thermal management, robust power delivery, and extensive connectivity options.

Key Features:

• Socket Type: LGA 1151
• Chipset: Intel® Z390
• Form Factor: ATX (244 x 305 mm)

CPU Support:

• Supports 8th and 9th Generation Intel® Core™ processors, including i9, i7, i5, i3, Pentium®, and Celeron®.
• Designed to optimize performance with Intel's architecture.

Memory Support:

• Slots: 4 x DDR4 DIMM
• Maximum Capacity: Up to 128GB (32GB per DIMM)
• Supported Memory Types: DDR4 (up to 4266 MHz overclocked)
• Memory Architecture: Dual Channel Non-ECC Unbuffered; supports Extreme Memory Profile (XMP).

Expansion Slots:

• 3 x PCIe 3.0 x16 slots for high-performance graphics cards.
• 3 x PCIe 3.0 x1 slots for additional expansion cards.

Storage Options:

• M.2 Slots:
  • 2 x M.2 connectors supporting PCIe NVMe SSDs with Thermal Guards.
• SATA Ports:
  • 6 x SATA III (6Gb/s) ports with RAID support (RAID 0, 1, 5, and 10).

Networking:

• LAN Controller: Intel® GbE LAN with cFosSpeed for optimized network performance.
• Wireless Communication: Onboard Intel® CNVi 802.11ac Wi-Fi and Bluetooth 5.0 for fast wireless connectivity.

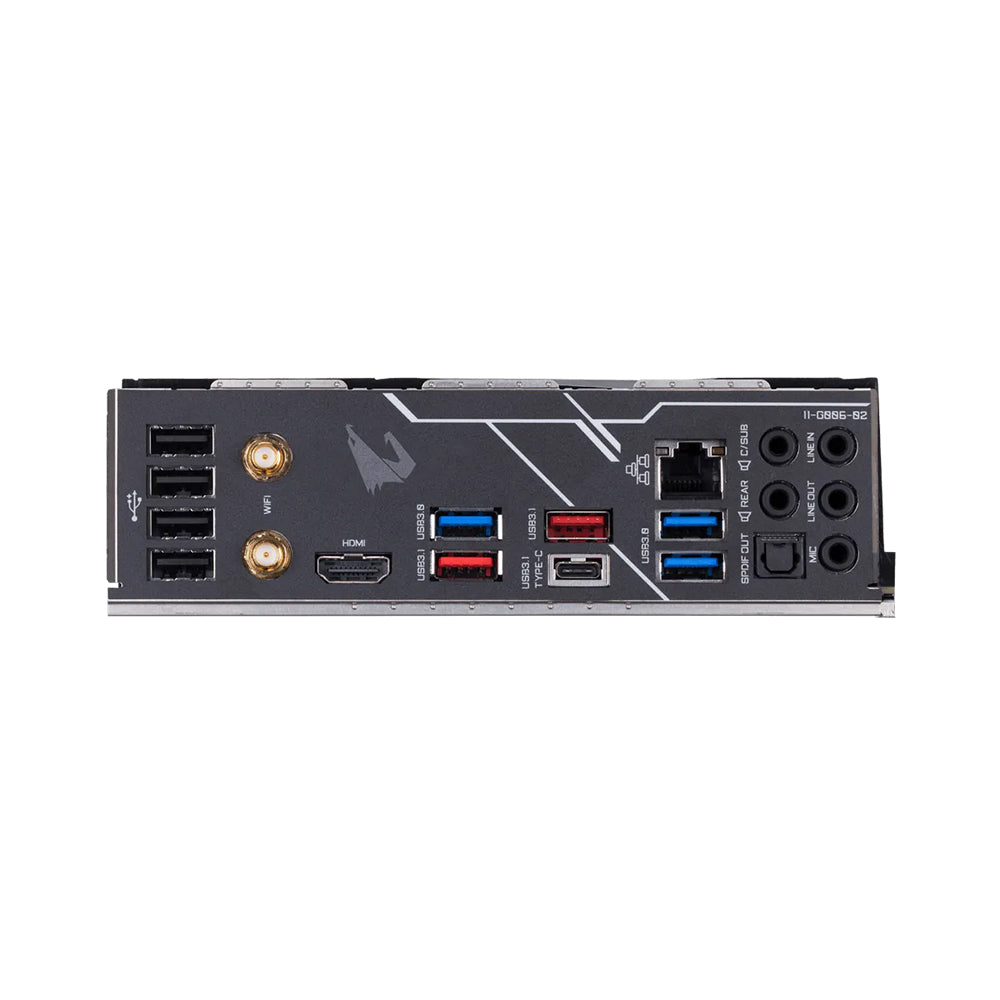

USB Connectivity:

• Multiple USB ports including:
  • 2 x USB 3.1 Gen2 Type-A ports.
  • 1 x USB Type-C™ port with USB 3.1 Gen2 support.
  • Additional USB Type-A ports including USB 3.1 Gen1 and USB 2.0.

Audio Features:

• Audio Codec: Realtek® ALC1220-VB supporting up to 7.1-channel high-definition audio with high-quality capacitors for enhanced sound quality.

Additional Features:

• Smart Fan 5: Features multiple temperature sensors and hybrid fan headers with FAN STOP functionality for optimal cooling management.
• RGB Fusion 2.0: Customizable RGB lighting with multi-zone LED light show design supporting addressable LED strips.
• Advanced Thermal Design: Multi-cut heatsinks with heatpipe ensure efficient cooling under heavy loads.
• Ultra Durable™ Design: Enhanced durability features including anti-sulfur resistors.
