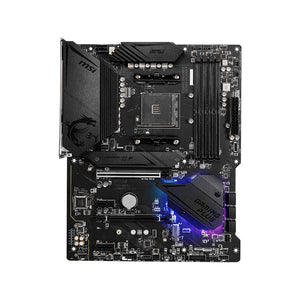

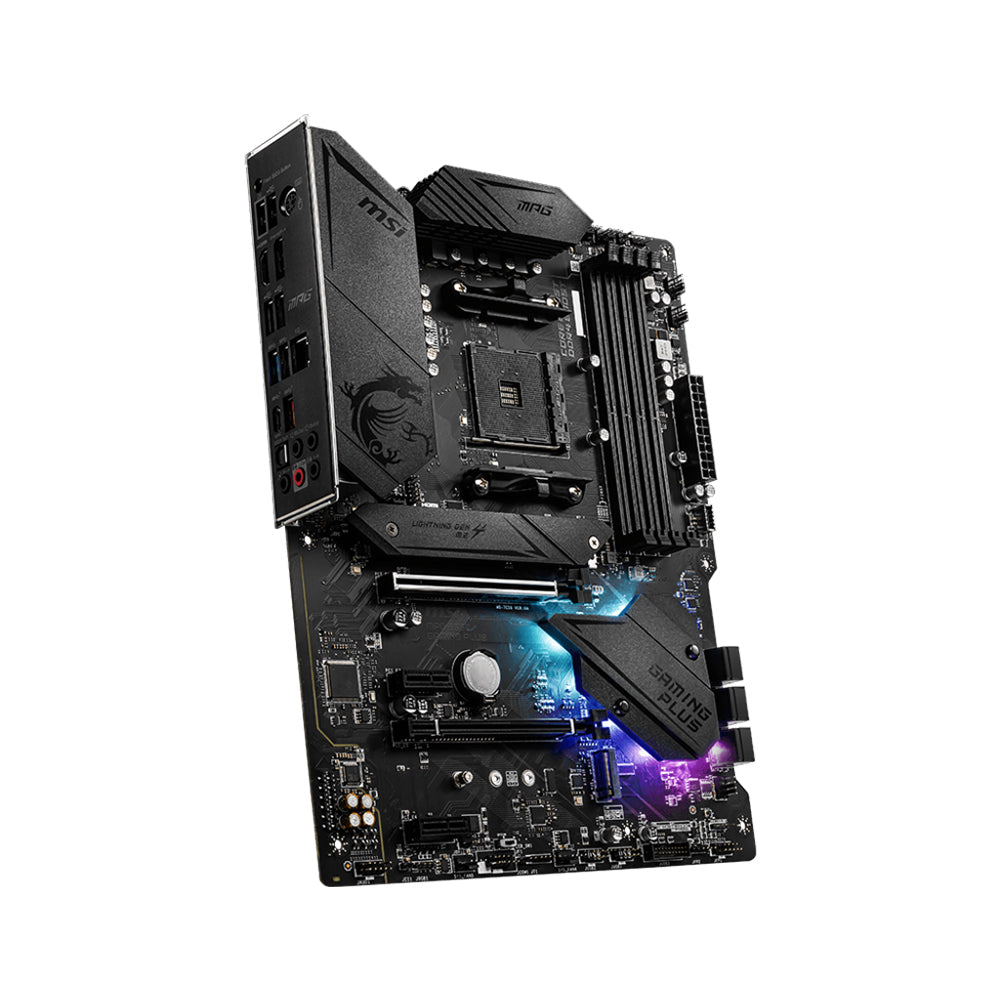

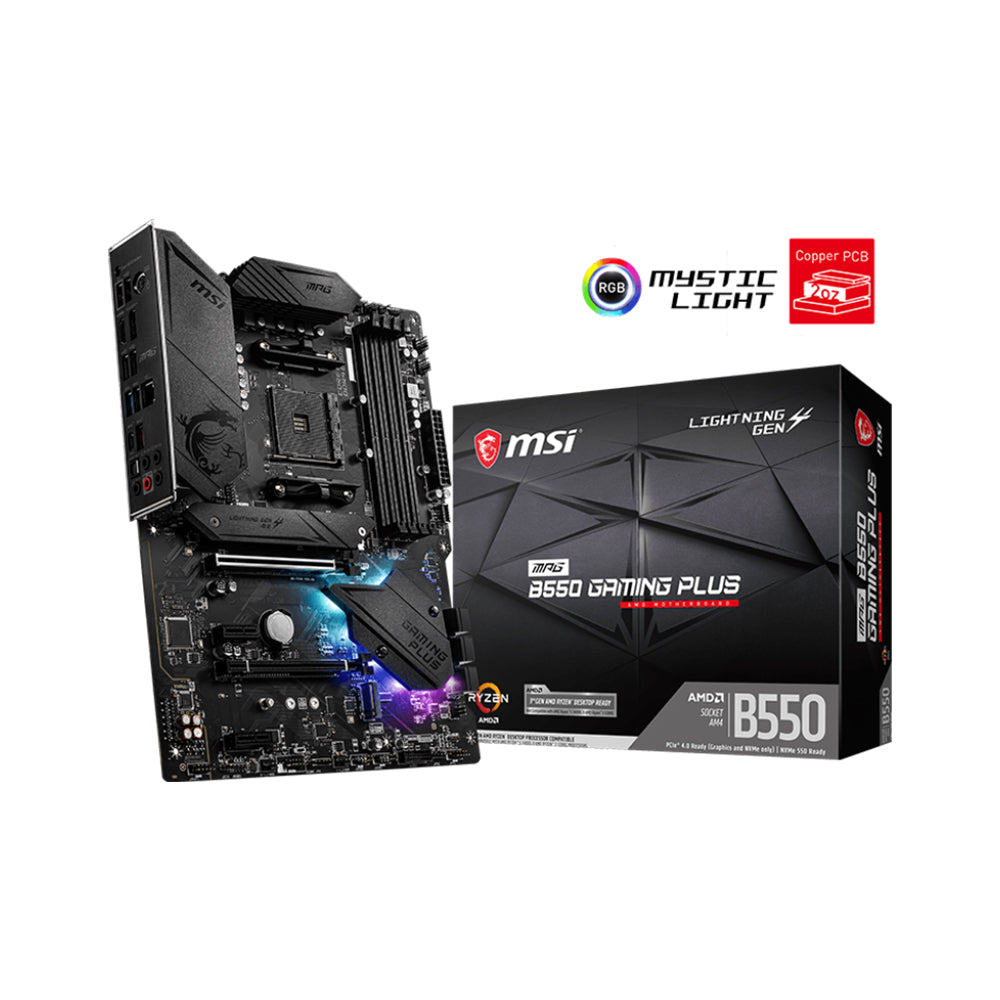

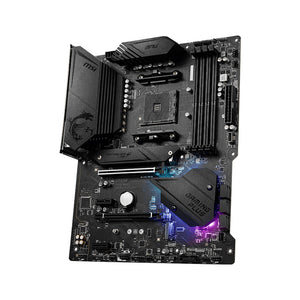

MSI MPG B550 GAMING PLUS Motherboard - AM4, DDR4, PCIe 4.0, ATX

The MSI MPG B550 GAMING PLUS Motherboard is designed for gamers and PC builders looking for high performance and advanced features. This ATX motherboard supports AMD Ryzen processors and provides a solid foundation for your gaming rig.Key Features:

• Processor Compatibility:
  • Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) using the AM4 socket.
• Chipset:
  • AMD B550 Chipset for enhanced performance and features.
• Memory Support:
  • Slots: 4 x DDR4 memory slots
  • Maximum Capacity: Up to 128GB
  • Speed Support:
    • Up to 3200 MHz by JEDEC
    • Overclocking support up to 4400+ MHz via A-XMP OC mode.
• Expansion Slots:
  • 1 x PCIe 4.0 x16 slot (PCI_E1)
  • 1 x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
  • 2 x PCIe 3.0 x1 slots.
• Storage Options:
  • SATA Ports: 6 x SATA III (6Gb/s)
  • M.2 Slots:
    • 2 x M.2 slots (M2_1 supports PCIe 4.0/3.0 and SATA; M2_2 supports PCIe 3.0).
• Networking:
  • LAN Controller: Realtek® 8111H Gigabit LAN for reliable wired connectivity.
• Audio Features:
  • Realtek® ALC892 Codec for high-definition audio with support for S/PDIF output.

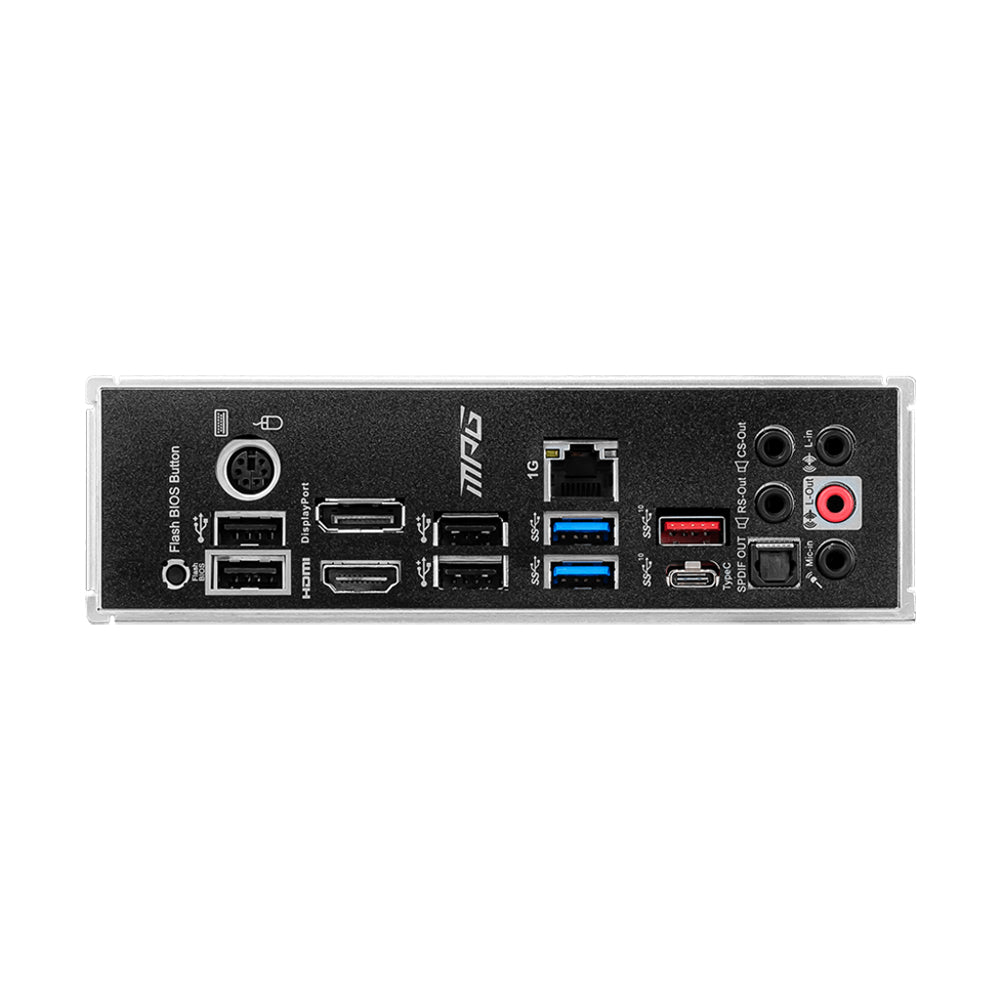

Back Panel Ports

• PS/2 Combo Port
• HDMI and DisplayPort outputs
• USB Ports:
  • USB 3.2 Gen 2 Type-A (10Gbps)
  • USB Type-C (10Gbps)
  • USB 3.2 Gen 1 Type-A (5Gbps)
• LAN Port
• HD Audio Connectors

Advanced Features

• Multi-GPU Support: Supports AMD CrossFire™ technology for enhanced graphics performance.
• EZ Debug LED: Provides easy troubleshooting with diagnostic LEDs.

Design and Build Quality

The MPG B550 GAMING PLUS features a sleek design with an ATX form factor, measuring approximately 30.5 cm x 24.4 cm. It is built with high-quality components to ensure durability and stability during operation.
